W2400 Series PTO Shaft-Replacement of Walterscheid PTO Shaft

W2400 Series PTO Shaft-Replacement of Walterscheid PTO Shaft

The W2400 series PTO shaft is a type of power take-off shaft used in agricultural equipment, such as tractors and other machinery. PTO shafts are used to transfer power from the engine of the tractor or other equipment to attached implements, such as mowers, cultivators, or hay balers. The W2400 series PTO shaft is available in various lengths and configurations to match the specific needs of different equipment setups. The shafts are typically made from high-strength steel and are designed to provide reliable and efficient power transfer with minimal maintenance requirements.

The series number of a PTO shaft refers to its size and capacity. The W2400 series PTO shaft is designed for tractors with up to 240 horsepower. It has a 1 3/8" (6) spline shaft and a 47 x 61 x 2900mm profile tube. The W2400 series PTO shaft is available with a variety of universal joints, including S4LH, S5, and F5. It can also be equipped with a freewheel clutch or a shear bolt.

The W2400 series PTO shaft is a reliable and durable drive shaft that is well-suited for demanding applications. It is easy to install and maintain, and it is backed by a limited warranty. If you are looking for a heavy-duty PTO shaft for your agricultural tractor, the W2400 series PTO shaft is a great option. It is reliable, durable, and easy to use.

▍Specifications of W2400 Series PTO Shaft

150-250cm Cross to Cross Length,
165-260cm Overall Length,
W2400 Series.
32mm x 76mm x 86mm (approx.) Triangular Profile Drive Tube.
39KW-53HP @ 540 rpm,
61KW-83HP @ 1000 rpm.
Standard Shaft Includes:
1 3/8" x 6 Splines Quick Release Yokes at One End.
NO End Yoke 0n the Other End.
Safety Guard.
I will accept a non-standard yoke.

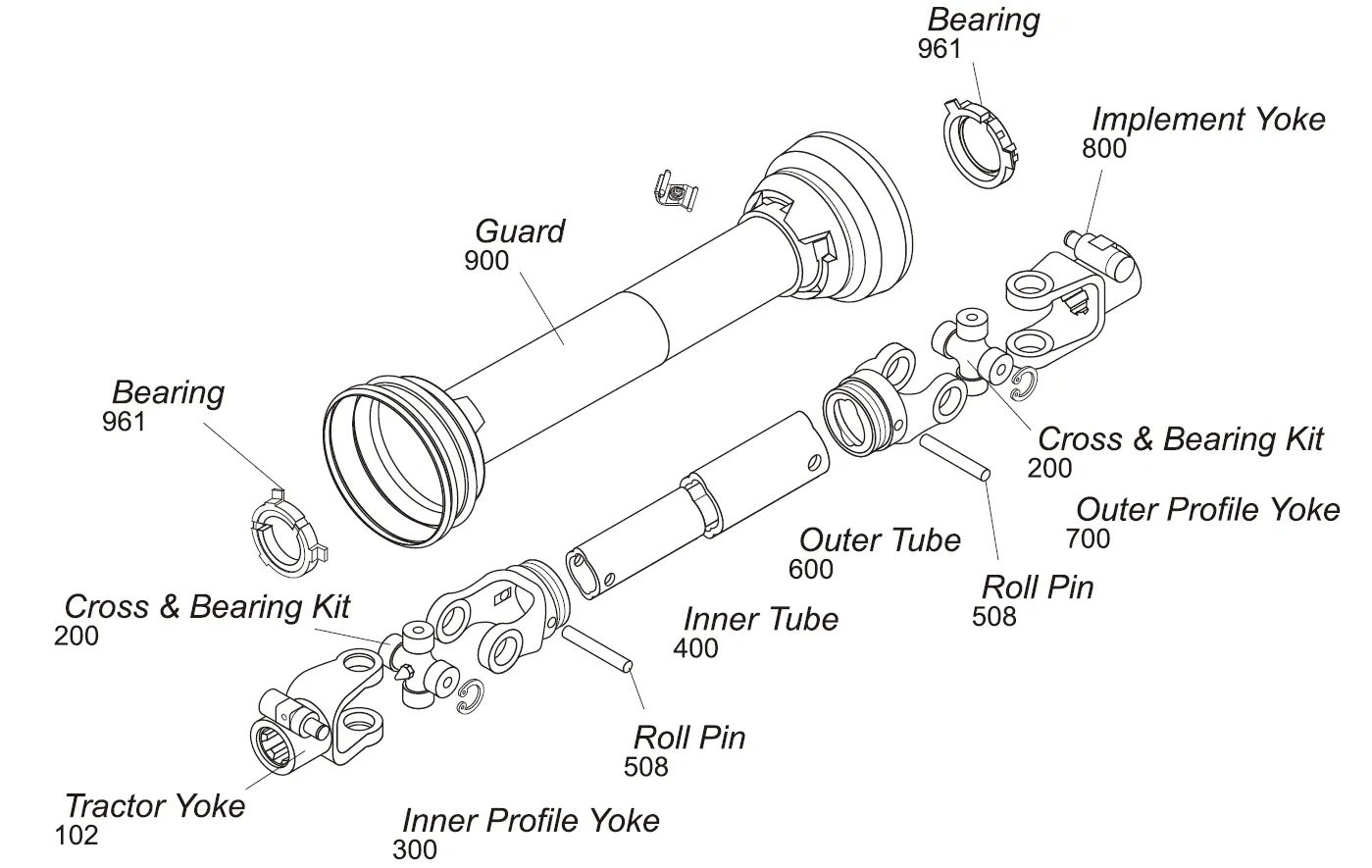

▍W2400 Series PTO Shaft Parts Diagram

The W2400 series PTO shaft is a common driveline component used in many agricultural and industrial applications. Here are the parts found in a W2400 series PTO shaft.

▍W2400 Series PTO Shaft Tractor Yoke

	Dim. “A”	Dim. “B” mm	in.
Safety Slide Lock	1 3/8” x 6 Spl.	126.0	4.96”
	1 1/8” Hex	116.0	4.57”
	1 3/4” x 20 Spl.	128.5	5.06”
Quick Disconnect Yoke	1 3/8” x 6 Spl.	116	4.57”
	1 3/4” x 20 Spl.	116	4.57”
	1 3/8” x 21 Spl.	116	4.57”

	Dim. “A” Bore	Dim. “B” mm	in.	Shear Bolt
Ball Shear	1 3/8” x 6 Spl.	140.7	5.54”	3/8” - 16 Gr. 5
	1 3/4” x 20 Spl.	153.9	6.06”	3/8” - 16 Gr. 5
	1 3/8” x 21 Spl.	140.7	5.54”	3/8” - 16 Gr. 5

▍W2400 Series PTO Shaft Cross and Bearing Kit

	Dim. “A” mm	in.	Dim. “B” mm	in.
	32.0	1.26”	76	3.00”

▍W2400 Series PTO Shaft Inner Profile Yoke

	Dim. “A” Profile		Dim. “B” Profile		Dim. “C”
	mm	in.	mm	in.	mm	in.
With Bearing Groove	39.5	1.56”	/	/	92.0	3.62”
	/	/	51.4	2.02”	92.0	3.62”

▍W2400 Series PTO Shaft Outer Profile Yoke

	Dim. “A” Profile		Dim. “B” Profile		Dim. “C”
	mm	in.	mm	in.	mm	in.
With Bearing Groove	48.0	1.89”	/	/	102.0	4.02”
	/	/	61.0	2.40”	102.0	4.02”

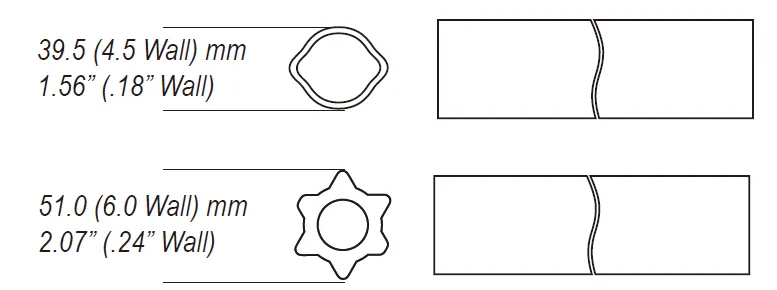

▍W2400 Series PTO Shaft Inner Tube

	Length mm	in.
	1.5	59.06”
	1.5	59.06”
	1.0	39.37”
	1.0	39.37”

▍W2400 Series PTO Shaft Roll Pin

	Dim. “A”		Dim. “B”
	mm	in.	mm	in.
	10.0	.394”	75.0	2.95”

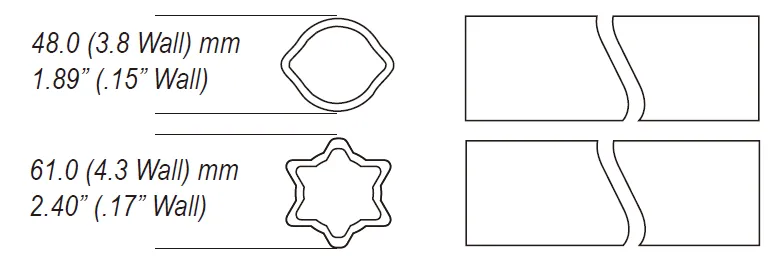

▍W2400 Series PTO Shaft Outer Tube

	Length mm	in.
	1.5	59.06”
	1.5	59.06”
	1.0	39.37”
	1.0	39.37”

▍W2400 Series PTO Shaft Implement Yoke

	Dim. “A”		Dim. “B”		Standard Keyway
	mm	in.	mm	in.	mm	in.
Round Bore With Keyway & Set Screw	31.8	1.25”	112.0	4.41”	6.4	.25”
	34.9	1.38”	112.0	4.41”	8.0	.31”
	38.1	1.50	112.0	4.42	8.0	0.31
	35.0	1.38”	112.0	4.41”	10.0	.39”
	40.0	1.57”	112.0	4.41”	12.0	.47”
	Dim. “A”		Dim. “B”		Pinhole
	mm	in.	mm	in.	mm	in.
Shear Pin With Pin Hole	35.0	1.38”	105.0	4.13”	12.9	.50”
	30.0	1.18”	106.4	4.19”	10.0	.39”
	40.0	1.57”	106.4	4.19”	13.0	.512”

	Dim. “A” Bore	Dim. “B” Bore	Dim. “C” Bore	Dim. “D”
				mm	in.
Clamp Yoke	/	/	1 3/8” x 6 Spl.	116.0	4.57”
	1 1/8” Hex	/	/	116.0	4.57”
	/	/	1 3/4” x 20 Spl.	116.0	4.57”
	/	/	1 3/8” x 21 Spl.	116.0	4.57”
	/	*1 3/8” Rd. Bore	/	116.0	4.57”

▍W2400 Series PTO Shaft Guard

Overall Driveline Length	Bearing Kit (2 per kit)
48”	961-0251
60”	961-0251
Guard Chain Kit
Easy Lock Replacement Kit

▍W2400 Series PTO Shaft Drivelines

Overall Comp. Length Dim.“A”	Max. Running Length	Tractor Yoke	Implement Yoke
31”	39”	1 3/8” x 21 Spl.Safety Slide Lock	1 1/8” Hex Clamp
33”	41”	1 1/8” Hex Safety Slide Lock	1 1/8” Hex Clamp
35”	45”	1 3/8” x 21 Spl. Safety Slide Lock	1 1/8” Hex Clamp
40”	50”	1 3/8” × 6 Spl. QD	1 3/8” × 6 Spl. QD
45”	58”	1 3/8” × 6 Spl. QD	1 3/8” × 6 Spl. w/Overrunning Clutch
57”	77”	1 3/8” × 6 Spl.	1 3/8” × 6 Spl

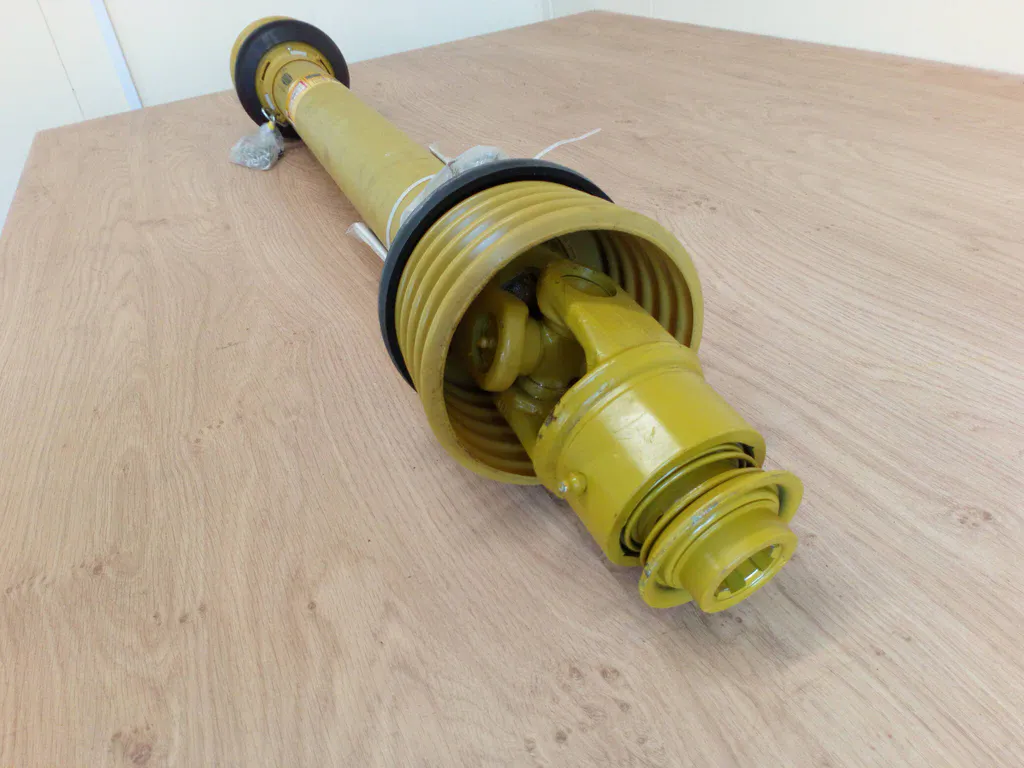

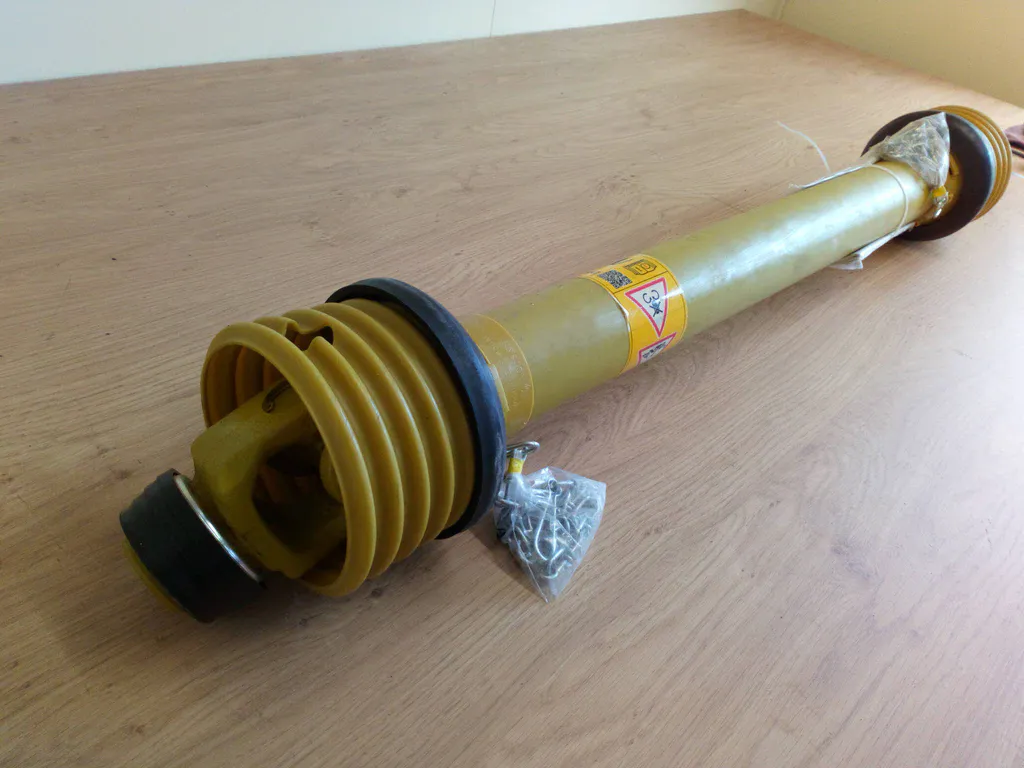

▍Features of W2400 Series PTO Shafts

The W2400 series PTO shafts are a line of heavy-duty drive shafts designed for use with agricultural tractors and other implements. They are made from high-quality materials and feature a robust design that can withstand the rigors of everyday use. The W2400 series PTO shafts are available in a variety of lengths and configurations to meet the specific needs of different applications.

Here are some of the features of the W2400 series PTO shafts:

1. Heavy-duty construction: The W2400 series PTO shafts are made from high-quality materials, including steel, aluminum, and brass. This ensures that they are strong and durable enough to withstand the rigors of everyday use.

2. Robust design: The W2400 series PTO shafts feature a robust design that can withstand the stresses of high-horsepower applications. They are also designed to be flexible, which helps to prevent damage in the event of a collision.

3. Variety of lengths and configurations: The W2400 series PTO shafts are available in a variety of lengths and configurations to meet the specific needs of different applications. This includes shafts for both 540 and 1000 RPM applications.

4. Universal joints: The W2400 series PTO shafts are equipped with universal joints that allow them to flex and rotate, which is necessary for smooth operation. The universal joints are also designed to be durable and long-lasting.

5. Guards: The W2400 series PTO shafts are equipped with guards that protect them from damage. The guards are also designed to be easy to remove for maintenance or repairs.

6. Easy to install and maintain: The W2400 series PTO shafts are easy to install and maintain. This makes them a good choice for farmers and other agricultural professionals who need a reliable and easy-to-use PTO shaft.

If you are looking for a reliable and durable PTO shaft for your agricultural tractor, the W2400 series PTO shafts are a great option. They are made from high-quality materials, feature a robust design, and are available in a variety of lengths and configurations to meet the specific needs of different applications.

▍W2400 Series PTO Shaft Common Applications

The W2400 series PTO shaft is a versatile power take-off shaft that is suitable for a wide range of agricultural applications. Here are some of the common applications of the W2400 series PTO shaft:

Mowers: The W2400 series PTO shaft can be used to power various types of mowers, including rotary mowers, flail mowers, and sickle bar mowers.

Rotary Cutters: The W2400 series PTO shaft can be used to power rotary cutters and other rotary mower equipment, helping to cut hay or other crops.

Hay Balers: The W2400 series PTO shaft is commonly used to power hay balers, which are used to compress and package hay for storage and transport.

Spreaders: The W2400 series PTO shaft can be used to power manure spreaders and other types of fertilizer spreaders, helping to distribute nutrients evenly across a field.

Harvesters: The W2400 series PTO shaft can be used to power various types of harvesters, including combines, forage harvesters, and grain carts.

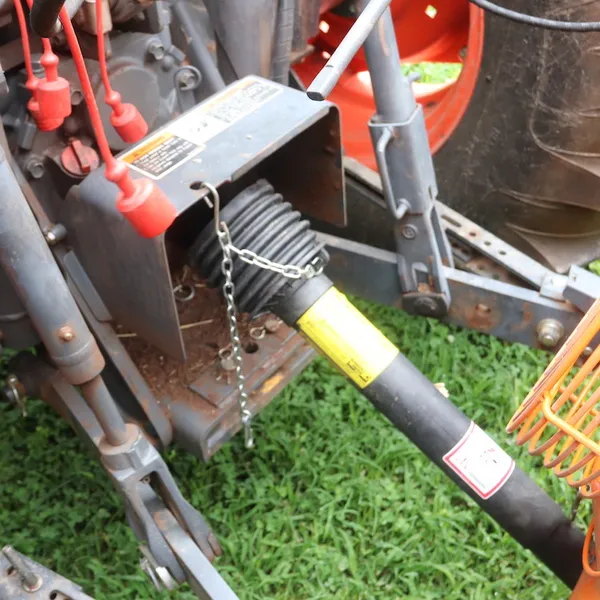

▍How to Attach a W2400 Series PTO Shaft to a Tractor?

Attaching a W2400 series PTO shaft to a tractor is a straightforward process that can be completed by following a few simple steps. Here's a general guide on how to attach a W2400 series PTO shaft to a tractor:

(1) Align the Shaft: First, align the W2400 series PTO shaft with the tractor's PTO stub. Make sure the splines on the shaft match up with the splines on the tractor's PTO stub.

(2) Attach the Locking Collars: Once the shaft is aligned, slide the locking collars onto the tractor's PTO stub and tighten them down to secure the shaft in place. Make sure the collars are tight enough to prevent the shaft from slipping but not too tight that they cause damage to the shaft or PTO stub.

(3) Attach the Safety Shield: Install the safety shield over the W2400 series PTO shaft to protect against any potential hazards. Make sure the safety shield is properly secured to the tractor and implement.

(4) Attach the Implement: Next, attach the implement to the other end of the W2400 series PTO shaft. Make sure the implement's input shaft matches the output shaft on the PTO shaft.

(5) Connect the Safety Chain: Attach the safety chain or other safety device to the PTO shaft and the tractor to prevent the shaft from becoming disengaged during operation.

(6) Test the Connection: Once everything is attached, start the tractor and engage the PTO to test the connection. Check for any unusual noises or vibrations and make sure everything is running smoothly.

It's important to follow the manufacturer's instructions for attaching the W2400 series PTO shaft and to take the necessary safety precautions to prevent injury or damage to the equipment. Additionally, make sure to inspect the PTO shaft and other components regularly for any signs of wear or damage and to replace any worn or damaged parts before using the equipment.

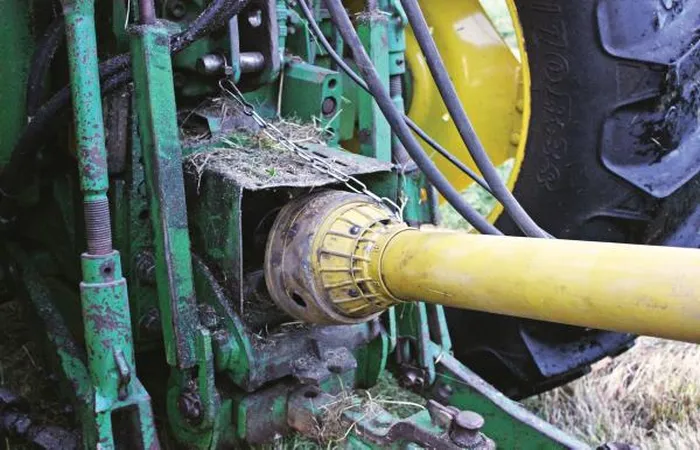

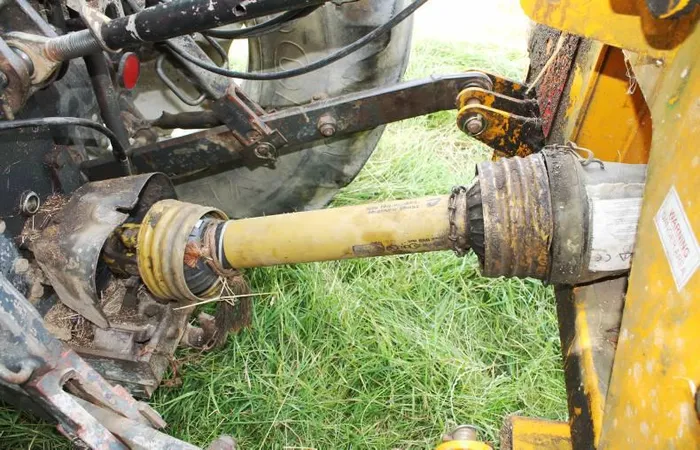

▍W2400 Series PTO Shaft Accident Issues

Like any agricultural equipment, the W2400 series PTO shaft can pose safety risks if not used properly. Here are some of the common accident issues associated with the W2400 series PTO shaft:

Entanglement: The rotating PTO shaft can cause entanglement injuries if the operator or other individuals come into contact with it. It's important to ensure that the PTO shaft is properly shielded and to follow safety procedures when operating the equipment.

Improper Installation: If the W2400 series PTO shaft is not properly installed or attached to the implement or tractor, it can become disengaged during operation, causing damage to the equipment and posing a safety risk to the operator and others nearby. It's important to follow the manufacturer's instructions for installation and to inspect the equipment regularly for signs of wear or damage.

Lack of Maintenance: Failure to maintain the W2400 series PTO shaft can lead to accidents and equipment failure. It's important to inspect the PTO shaft and other components regularly, replace worn or damaged parts, and lubricate the shaft and other moving parts as needed.

Improper Operation: Operating the W2400 series PTO shaft at speeds or torque levels beyond its design capacity can pose safety risks and cause equipment failure. It's important to follow the manufacturer's instructions for operation and to avoid overloading the equipment.

Overall, to prevent accidents associated with the W2400 series PTO shaft, it's important to follow safety procedures, properly install and maintain the equipment, and operate it within its design capacity. By taking these steps, operators can ensure that the equipment operates safely and efficiently, reducing the risk of accidents and injuries.

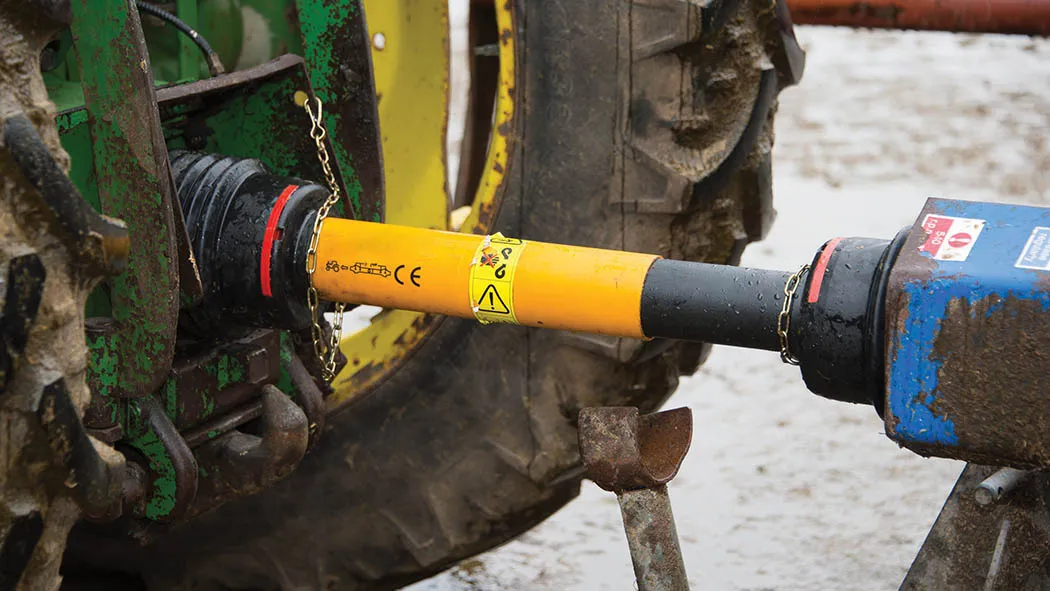

▍W2400 Series PTO Shaft Maintenance

Proper maintenance of the W2400 series PTO shaft is essential to ensure the safe and efficient operation of agricultural equipment. Here are some maintenance tips for the W2400 series PTO shaft:

1. Inspect Regularly: Regularly inspect the PTO shaft and other components for signs of wear or damage. Look for cracks, corrosion, or other damage to the shaft, yokes, and universal joints. Replace any worn or damaged parts immediately.
2. Lubricate: Lubricate the PTO shaft and other moving parts regularly to prevent wear and ensure smooth operation. Use the appropriate lubricant recommended by the manufacturer.
3. Clean: Clean the PTO shaft and other components regularly to remove dirt, debris, and other contaminants that can cause damage or affect performance. Use a wire brush or other appropriate cleaning tool.
4. Protect: Protect the PTO shaft and other components from damage during storage or transport. Store the equipment in a dry, secure location, and cover it to protect it from weather and other environmental factors.
5. Follow Manufacturer's Instructions: Follow the manufacturer's instructions for the maintenance and operation of the equipment. Be sure to use the appropriate replacement parts and lubricants recommended by the manufacturer.

Overall, proper maintenance of the W2400 series PTO shaft is essential to ensure the safe and efficient operation of agricultural equipment. By regularly inspecting and maintaining the PTO shaft and other components, operators can extend the life of the equipment, reduce the risk of accidents and injuries, and ensure that the equipment operates at maximum efficiency.

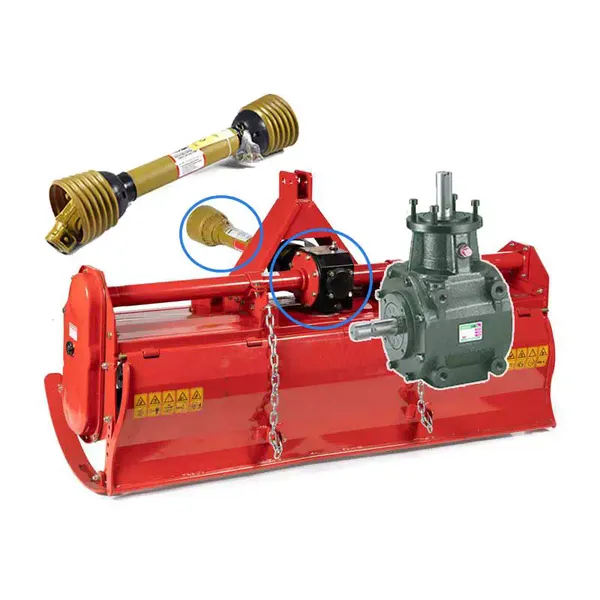

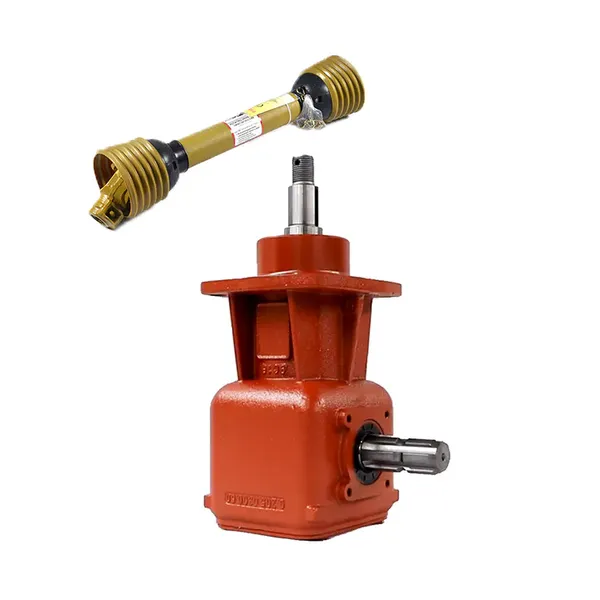

▍W2400 Series PTO Shaft for Agricultural Gearboxes

Agricultural gearboxes and the W2400 series PTO shaft work together to provide the necessary power and speed to operate a variety of agricultural equipment. Here are some of the ways in which agricultural gearboxes and the W2400 series PTO shaft are commonly used together:

Changing Speed and Torque: Agricultural gearboxes are used to change the speed and torque of the power transmitted from the PTO shaft to the implement. The W2400 series PTO shaft provides the power, while the gearbox allows the operator to adjust the speed and torque to match the needs of the equipment being used.

Increasing Efficiency: By using an agricultural gearbox with the W2400 series PTO shaft, farmers and other agricultural professionals can increase the efficiency of their equipment. By adjusting the speed and torque of the power transmitted to the implement, the operator can ensure that the equipment is operating at the optimal speed and torque for maximum efficiency.

Customization: Agricultural gearboxes are available in a variety of configurations and ratios, allowing operators to customize the speed and torque of the power transmitted to the implement. This customization can be combined with the versatility of the W2400 series PTO shaft to create a system that is tailored to the specific needs of the equipment being used.

Durability: Both agricultural gearboxes and the W2400 series PTO shaft are designed to be durable and long-lasting, even in harsh agricultural environments. This durability ensures that the equipment can withstand the demands of heavy-duty agricultural use.

Overall, agricultural gearboxes and the W2400 series PTO shaft work together to provide the power, speed, and customization necessary to operate a wide range of agricultural equipment. By selecting the appropriate gearbox and PTO shaft combination, farmers and other agricultural professionals can optimize the efficiency and productivity of their equipment.
