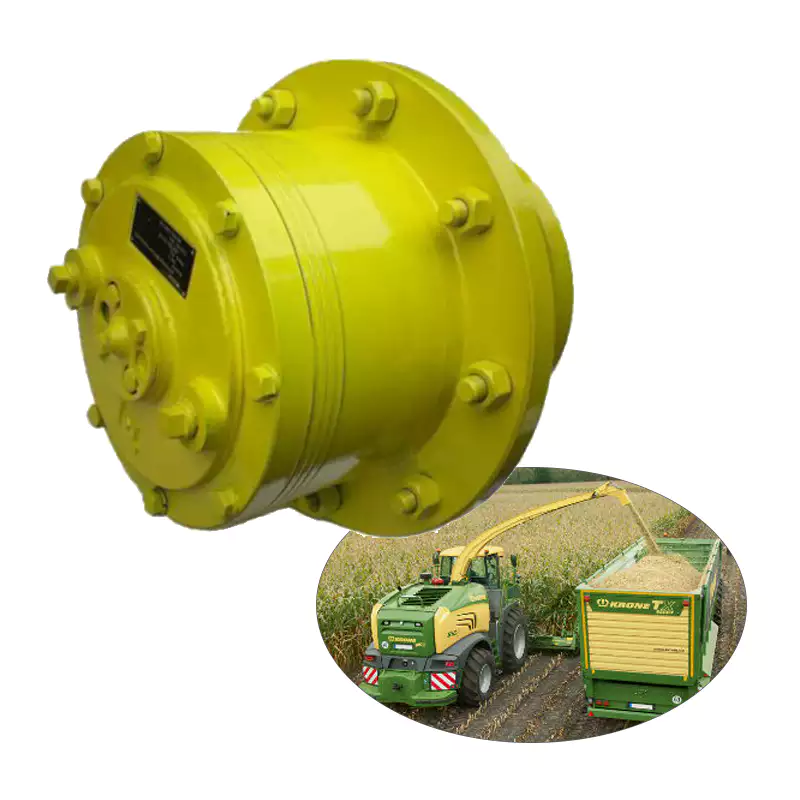

Wheel Drive Planetary Gearbox Reducer For Forage Harvester

Introduction

In the Forage Harvester, the Wheel Drive Planetary Gearbox Reducer is usually installed in the drive wheel system, which is directly connected to the harvester's drive shaft and transmits the power generated by the engine to the wheels through deceleration and torque increase.

A wheel drive planetary gearbox reducer for wheeled forage is an essential component used in machines that are designed to move on wheels. This gearbox helps in reducing the speed of the motor while increasing the torque, which is required to rotate the wheels of the machine. This device is commonly used in machines such as forage harvesters, which are used in the agricultural industry to harvest crops.

Importance of Wheel Drive Reducer

The wheeled forage machine requires a wheel drive reducer as it helps in transmitting power from the motor to the wheels and provides the necessary torque to rotate the wheels. Without this device, the machine would not be able to move efficiently.

1. Torque amplification:
   The planetary gearbox can significantly increase the power torque output of the engine, ensuring that the harvester can maintain sufficient traction and propulsion capacity in complex field conditions, such as muddy, slippery, or fully loaded heavy loads.
2. Speed control:
   By using planetary gear mechanisms with different speed ratios, the high-speed and low torque power is converted into low-speed and high torque suitable for wheel travel, thereby controlling the driving speed of the harvester and providing stable speed output under different operational requirements.
3. Efficient and Durable:
   Due to its compact structure, strong load-bearing capacity, and high transmission efficiency, the planetary gearbox can maintain good performance and low failure rate in long-term operation and harsh working conditions of the harvester, extending the service life of the equipment.
4. Load balancing:
   The planetary gear design helps to evenly distribute driving force throughout the entire harvesting process, ensuring smooth machine operation and reducing impact and wear on mechanical components.
5. Flexibility and Handling:
   For feed harvesters that require flexible movement and steering within farmland, the wheel drive planetary gearbox reducer also provides precise speed and torque control, improving the maneuverability and handling of the harvester in small plots or complex terrains.

Compatibility

Our wheel drive reducer is compatible with a range of machines, including popular models such as the John Deere 8600, Claas Jaguar 980, and New Holland FR780. These machines are commonly used in the agricultural industry, and our wheel drive reducer is designed to provide optimal performance in these machines.

What are the Signs of Forage Harvester Needing to Replace the Wheel Drive Reducer

When the Forage Harvester shows the following signs, it may indicate the need to inspect or replace the Wheel Drive Reducer:

• Insufficient power

The harvester's driving speed significantly slows down under normal loads, and it feels like the traction is weakened. Even if the throttle is increased, it cannot provide sufficient driving force.

• Abnormal noise:

Metal impact, sharp and piercing sounds, or continuous buzzing sounds can be heard from the drive wheel during the operation, which may be caused by gear wear, internal bearing damage, or other mechanical failures.

• Intensified vibration:

The harvester experiences abnormal strong vibration during driving, especially during acceleration or climbing, which may be caused by severe wear of internal components in the gearbox and imbalance.

• Oil leakage phenomenon:

Significant lubricating oil leakage was observed around the drive wheel reducer, indicating possible seal failure or housing rupture. Long term oil leakage will lead to insufficient lubrication and overheating of internal parts.

• Heating issue:

When touching the casing of the drive wheel reducer, an abnormal temperature increase was found, exceeding the normal operating temperature range. This may be due to excessive wear, poor lubrication, or increased internal friction causing overheating.

• Unable to turn or move:

The harvester encounters difficulties or even cannot move at all when attempting to turn or drive in a straight line, which may indicate that the wheel drive reducer has completely failed.

• Instrument warning light on:

Modern harvesters are usually equipped with monitoring systems. If the system detects abnormalities in the drive system, it may trigger the warning light to flash or display error codes.

Author: Miya
