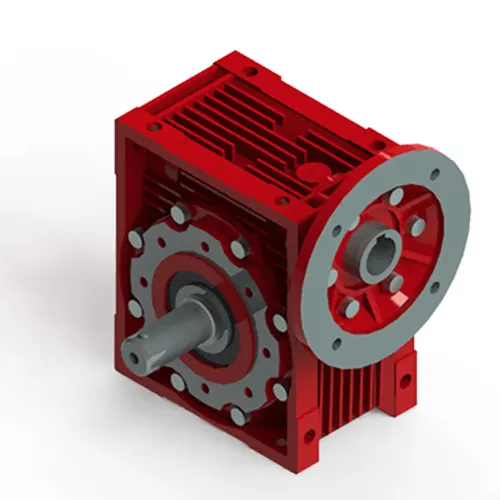

Worm Gearbox-Replacement of Chenta HSM110 Aluminum Worm Gear Reducer(Input Flange)

Our company provides a replacement for the Chenta HSM110 Aluminum Worm Gear Reducer (Input Flange). Our products are of high quality and available at competitive prices. It is important to note that our products are replacement parts and not original factory parts. If you require original factory parts, please contact the original supplier for purchase.

Structure of Worm Gear Reducer

• Worm Gearbox
• Worm Gearmoto
• Worm Speed Reducer
• Worm Drive

The Worm Gear Reducer has the following components:

1. Input flange
2. Worm gear
3. Worm shaft
4. Bearings
5. Output flange
6. Output shaft
7. Housing

Each component plays a specific role in the functionality of the Worm Gear Reducer. The input flange connects the reducer to the motor. The worm gear is responsible for transmitting the torque from the input to the output shaft. The worm shaft rotates the worm gear. The bearings support the rotating elements. The output flange connects the reducer to the equipment. The output shaft transmits the torque to the equipment. The housing protects the internal components and provides a mounting surface.

Features of Worm Gear Reducer

The Worm Gear Reducer has many features, including:

• High precision
• Increased surface area for better heat dissipation and durability
• Lightweight and compact design
• Low maintenance costs
• Selectable oil change
• Reverse drive option
• Higher strength hollow output shaft
• Chromium molybdenum alloy steel input shaft for higher strength
• Wide range of accessories for compatibility
• Minimal vibration and noise during power transmission
• Aluminum alloy castings for sizes 30-90 and cast iron castings for sizes 110-150
• Universal size design for greater compatibility
• Widespread applicability for various installation positions
• Powder-coated castings that are rust-resistant

Chenta Aluminum Housing Worm Gear Reducer Replacement

We offer a replacement for the Chenta Aluminum Housing Worm Gear Reducer. Our product has the following advantages:

• High-quality replacement
• Competitive prices
• Wide compatibility
• Easy to install
• Low maintenance costs
• High durability

It is important to note that our products are replacement parts and not original factory parts. If you require original factory parts, please contact the original supplier for purchase. We also welcome custom orders based on customer specifications.

Worm Gear Reducer Troubleshooting

Problem	Cause	Solution
Overheating	Low oil level, high ambient temperature, excessive loading, excessive speed, or blocked ventilation	Check oil level, reduce loading or speed, ensure proper ventilation, and inspect for blockages
Noisy operation	Worn bearings, damaged gears, improper alignment, or loose mounting bolts	Replace bearings or gears, realign components, or tighten mounting bolts
Oil leakage	Worn seals, cracked housing, or loose mounting bolts	Replace seals or housing, or tighten mounting bolts
Shaft locking	Improper alignment, damaged bearings, or excessive loading	Realign components, replace bearings, or reduce loading
Abnormal vibration	Imbalanced gears, worn bearings, or loose mounting bolts	Balance gears, replace bearings, or tighten mounting bolts
Excessive noise	Loose mounting bolts, worn gears, or damaged bearings	Tighten mounting bolts, replace gears or bearings
Abnormal wear	Excessive loading, improper alignment, or lack of lubrication	Reduce loading, realign components, or ensure proper lubrication
Low efficiency	Loose mounting bolts, worn gears or bearings, or excessive loading	Tighten mounting bolts, replace gears or bearings, or reduce loading
Corrosion	Exposure to moisture, lack of maintenance, or improper storage	Ensure proper maintenance and storage, and protect from moisture
Electrical problems	Loose connections, improper grounding, or lack of power supply	Check connections, ensure proper grounding, or verify power supply

Installation of Worm Gear Reducer

• When connecting the input shaft directly to the motor, choose a flexible coupling. For the connection between the output shaft and the equipment, a gear coupling is preferred.
• Install on a stable base with good ventilation. Consider accessibility for oil addition and discharge.
• Ensure the input shaft and motor shaft are aligned within tolerance range.
• After installation, manually rotate the input shaft to check for any locking.
• Perform a no-load operation test before normal operation. Correct any abnormalities before operation.

Worm Gear Reducer Lubrication and Maintenance

• To extend the life of the gearbox, change the oil after the first 500 hours of operation, and then every 2500 hours of operation. However, it is recommended to check the oil level and condition regularly before the next oil change.
• Only use compatible oil specifications, and do not mix different oil specifications in the same unit.
• Before adding new oil, flush and drain the gearbox.
• If the temperature rises above 80 degrees Celsius or abnormal noise occurs, immediately shut off the reducer for inspection. Only restart after identifying and resolving the problem.

Motors for Worm Gear Reducers

Motors and Worm Gear Reducers are complementary components in many applications. Choosing the right motor for the right reducer is crucial for optimal performance and longevity. Our company also provides various electric motors for sale to meet your needs.

Our company, HZPT, is a comprehensive transmission equipment manufacturer that integrates research and development, production, and sales of speed reducers. We have over 20 years of experience in designing, producing, and selling gearboxes to customers worldwide, including Europe, America, Africa, and Asia. Our advanced production and testing equipment, as well as our team of professionals and technicians, enable us to provide high-quality, energy-efficient, and stable products. Our gearboxes are widely used in various industries such as the equipment industry, food industry, car washing industry, packaging industry, transmission industry, automation industry, and solar energy industry. We are committed to providing our customers with the best service, highest product quality, and most competitive prices.

We encourage you to explore our products and contact us for purchase.

Q&A

Q: Can this Worm Gear Reducer be used in hazardous environments?

A: Yes, it can be used in hazardous environments if it is properly rated and specified for the application.

Q: Can this Worm Gear Reducer be used for high-speed applications?

A: Yes, it can be used for high-speed applications if it is properly rated and specified for the application.

Q: What is the warranty period for this Worm Gear Reducer?

A: Our company provides a 1-year warranty for this product.
