Worm Reducer-Replacement of Elecon Double Reduction Worm Gear Unit SFOD 7/170

Product Introduction

The Worm Reducer is a replacement for the Elecon Double Reduction Worm Gear Unit SFOD 7/170. It is designed to meet the requirements of slow-speed machinery, with a minimum transmission ratio of 75:1 and a maximum ratio of 4900:1. It can be used in under-driven, over-driven, and vertical assembly conditions. Our company offers high-quality replacement worm reducers under the Elecon brand, at competitive prices. Please note that our products are replacement parts and not original equipment. For original equipment, please contact the original supplier.

Features of the Worm Gear Unit

The Worm Gear Unit consists of two single reduction worm gear units. The main worm unit is specially designed to be installed as a whole on the standard single worm unit that forms the second stage. The entire gear device has a compact and sturdy structure, suitable for slow-speed machinery. The transmission ratio ranges from 75:1 to 4900:1, making it ideal for high torque, slow speed applications. The worm gear transmission meets the BS-721 standard.

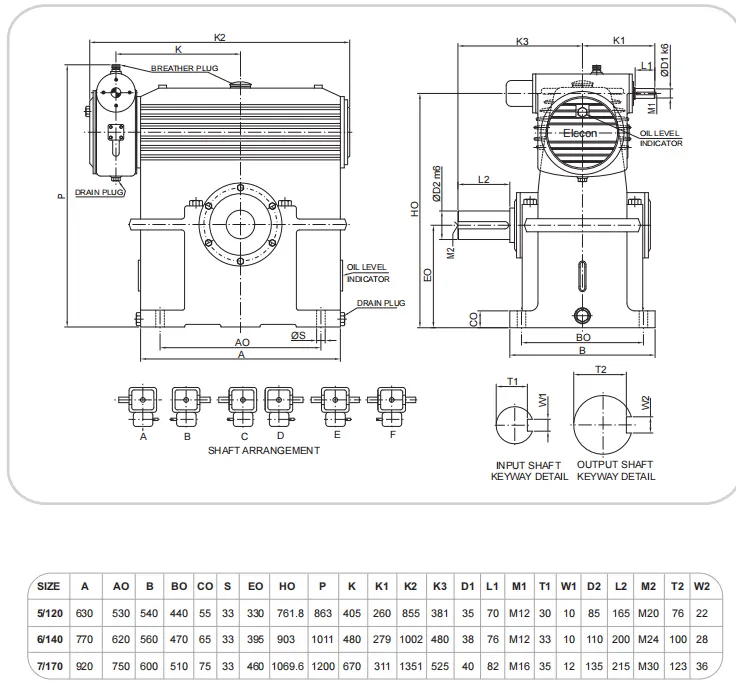

Dimensions

Applications

• Material handling equipment
• Packaging machinery
• Conveyor systems
• Textile machinery
• Food processing equipment
• And more

The Worm Gear Unit can be applied in various industries and specific applications. It is commonly used in material handling equipment for transporting goods, packaging machinery for efficient packaging processes, conveyor systems for smooth movement of goods, textile machinery for precise fabric production, food processing equipment for hygienic food preparation, and many other applications.

Maintenance

When installing, using, and maintaining the equipment, please consider the following:

1. Use lifting eye bolts or lifting points when hoisting gear units (for larger units).
2. Check the level and quantity of lubricating oil before commissioning. Read and follow the lubrication plate and installation instructions.
3. The installation must be carried out according to the manufacturer's instructions and by qualified personnel. Installation should be performed by qualified personnel.
4. Ensure proper maintenance of the running gearbox.
5. Regularly check the oil level and replenish when necessary.
6. Do not exceed the design values for the operating speed, transmitted power, generated torque, or external load.
7. Correctly select the driving and driven equipment to ensure satisfactory performance of the entire mechanical system, such as avoiding system critical speed and system torsional vibration.

Possible Issues, Causes, and Solutions

Issue	Cause	Solution
Excessive noise	Worn gears or bearings	Replace the worn parts and ensure proper lubrication
Overheating	Inadequate lubrication	Check and replenish lubrication, ensure proper oil level
Leakage of lubricating oil	Seal damage or improper assembly	Replace damaged seals and ensure proper assembly
Abnormal vibration	Misalignment or unbalanced load	Check alignment and balance the load
Failure to engage gears	Misalignment or worn gears	Check alignment and replace worn gears
Excessive backlash	Worn gears or improper gear meshing	Replace worn gears and adjust gear meshing
Gear teeth damage	Overloading or foreign object ingress	Avoid overloading and protect gears from foreign objects
Loss of power	Slippage or worn gears	Check for slippage and replace worn gears

Elecon Worm Gear Unit Replacement

Our company offers several advantages in replacing Elecon brand worm gear units:

1. High-quality replacements

Our worm reducers are manufactured with high-quality materials and undergo stringent quality control to ensure their performance and durability.

2. Competitive prices

We offer competitive prices for our replacement worm gear units, providing cost-effective solutions for your machinery.

3. Replacement parts

Please note that our products are replacement parts and not original equipment. For original equipment, please contact the original supplier.

We encourage customers to explore our products and contact us for purchases. We also welcome customizations based on your specific requirements.

Motors for Worm Reducers

Electric motors play a vital role in the operation of worm reducers. They provide the necessary power to drive the gears and enable the smooth functioning of the machinery. Our company also offers a wide range of electric motors for sale, ensuring compatibility and optimal performance with our worm reducers.

We are a comprehensive transmission equipment manufacturer, specializing in the research, development, manufacturing, and sales of speed reducers. With over 20 years of experience, we serve customers worldwide and have earned a reputation for providing high-quality products, excellent service, and competitive prices. Our gearboxes are widely used in various industries, including equipment industry, food industry, car washing industry, packaging industry, transmission industry, automation industry, and solar energy industry. We encourage customers to explore our products and contact us for purchases.

Q&A

Q: Can the Worm Reducer be used in vertical assembly conditions?

A: Yes, the Worm Reducer is suitable for vertical assembly conditions.

Q: Is lubrication necessary for proper functioning of the Worm Gear Unit?

A: Yes, proper lubrication is essential for the smooth and efficient operation of the Worm Gear Unit. Regular checks and replenishment of lubricating oil are recommended.

Q: Can the Worm Gear Unit be customized for specific applications?

A: Yes, we welcome customizations based on specific requirements. Please contact us for further details.
