Worm Reducer-Replacement of Elecon Double Reduction Worm Gear Unit SNU-UD 3/60

SNU-UD 3/60 Worm Gear Unit

The SNU-UD 3/60 Worm Gear Unit is a series of double reduction worm gear units that can be used for under-driven, over-driven and vertical mounting conditions. The transmission ratio ranges from 75:1 to 4900:1, making it ideal for slow-moving machinery. Our company provides Elecon brand replacement worm reducers that are of high quality and affordable, but please note that these are replacement parts and not original factory parts. If you need to purchase original factory parts, please contact the original supplier.

SNU-UD 3/60 Worm Gear Unit Features

The SNU-UD 3/60 Worm Gear Unit is a double reduction worm gear unit composed of two single reduction worm gear units. The main worm unit is specially designed to be mounted as a whole on the standard single worm unit forming the second stage. The entire gear device is compact and sturdy, making it suitable for slow-moving machinery. The transmission ratio is very wide, ranging from 75:1 to 4900:1. These gear devices are especially suitable for high torque and slow speed driving. The worm gear transmission meets the BS-721 standard.

• Compact and sturdy structure
• Wide transmission ratio range
• Suitable for high torque and slow speed driving
• Meets the BS-721 standard

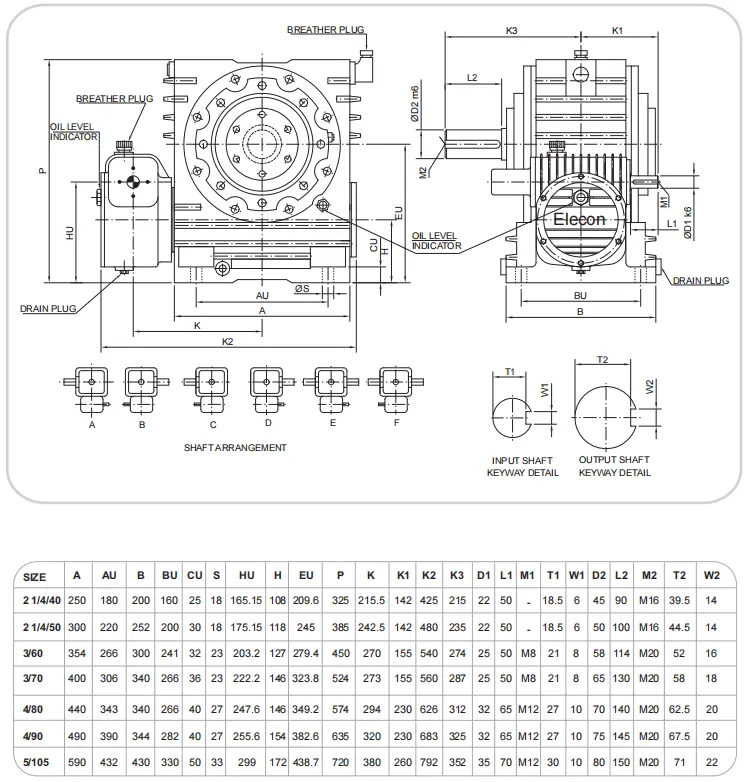

SNU-UD 3/60 Worm Gear Unit Dimensions

SNU-UD 3/60 Worm Gear Unit Applications

The SNU-UD 3/60 Worm Gear Unit is suitable for a wide range of applications, including:

• Conveyors
• Mixers
• Agricultural machines
• Food processing machines
• Construction machines

For more specific details, please refer to the following:

SNU-UD 3/60 Worm Gear Unit Maintenance

When installing, using, and maintaining the equipment, please note the following:

1. When hoisting the gear unit, use a lifting eye bolt or a lifting point (on larger units).
2. Check the level and quantity of lubricating oil before commissioning. Read and execute the lubricating oil plate and installation instructions.
3. The installation must be carried out in accordance with the manufacturer's instructions and by personnel with the appropriate qualifications.
4. Ensure that appropriate maintenance is carried out on the running gearboxes.
5. The oil level should be checked regularly and refilled if necessary.
6. The operating speed, transmitted power, generated torque, or external load must not exceed the design values.
7. The driving and driven equipment must be selected correctly to ensure satisfactory performance of the entire mechanical device, for example, to avoid system critical speed, system torsional vibration, etc.

Possible Problems with SNU-UD 3/60 Worm Gear Unit and Solutions

Problem	Cause	Solution
Abnormal noise during operation	Insufficient lubricant, gear wear	Add lubricant, replace worn gears
Gear wear	Long-term overload operation	Reduce load, repair or replace gears
Oil leakage	Damaged oil seal	Replace the damaged oil seal
Unstable operation	Unbalanced load, belt slippage	Adjust load balance, adjust belt tension
Shaft breakage	Long-term overload operation, improper use	Reduce load, use properly
Abnormal vibration	Loose fasteners, damaged bearings	Tighten fasteners, replace damaged bearings
Abnormal heating	Insufficient lubricant, bearing damage	Add lubricant, replace damaged bearings
Abnormal wear	Impurities in the lubricating oil, poor lubrication	Use clean lubricating oil, improve lubrication

Elecon Worm Gear Unit Replacement

Our company provides high-quality and affordable replacement SNU-UD 3/60 worm reducers of Elecon brand. The advantages of choosing our replacement parts are as follows:

• High quality
• Affordable price
• Replacement parts, not original factory parts
• Customizable upon customer's request
• Professional customer service

Please feel free to explore our products and contact us for purchase. If you need to purchase original factory parts, please contact the original supplier.

Motors for Worm Reducers

The motor and worm reducer are important components of the transmission system. The motor provides power to the worm reducer, which in turn reduces the speed and increases the torque to drive the load. Our company not only provides various types of high-quality worm reducers, but also provides various types of electric motors for customers to choose from. We are committed to providing customers with comprehensive transmission solutions.

At HZPT, we are a comprehensive transmission equipment manufacturer integrating research and development, manufacturing, and sales of speed reducers. We have more than 20 years of experience in the design, production, manufacture, and sales of gearboxes, serving customers in Europe, America, Africa, Asia, etc., and have won the praise of the market. Our consistent mission and vision over the years, our company has introduced advanced production equipment and testing equipment at home and abroad, employing industry professionals and technicians to carry out innovative research and development and manufacturing, the use of standardized production management methods to strictly control every aspect of the production of reducers, over the years has been to provide customers with high-quality, high-energy-efficiency, high-stability production. Our gearboxes are widely used in equipment Industry, food industry, car washing industry, packaging industry, transmission industry, automation industry, solar energy industry and so on. We welcome and trust by customers.

Please feel free to contact us for more information and purchase!

Q&A

Q: Can the SNU-UD 3/60 Worm Gear Unit be used for high-speed machinery?

A: No, the SNU-UD 3/60 Worm Gear Unit is suitable for slow-moving machinery due to its wide transmission ratio range.

Q: Can the gear unit be customized according to specific requirements?

A: Yes, the gear unit can be customized upon customer's request.

Q: Are the replacement parts of Elecon brand SNU-UD 3/60 worm reducers original factory parts?

A: No, the replacement parts are not original factory parts. If you need to purchase original factory parts, please contact the original supplier.
