Worm Reducer-Replacement of Elecon SNU Modular Universal Mounting 4 SNU-U Worm Gear Unit

SNU-U Worm Gear Unit

The SNU-U worm gear unit is a high-quality replacement for the Elecon SNU Modular Universal Mounting 4 SNU-U worm gear unit. It is designed with large ribs that increase the heat dissipation area. The streamlined oil sump can hold more oil, and the larger fan improves the gearbox's thermal rating. All of these features result in increased continuous load capacity without a significant rise in temperature. The unit can be replaced without opening the gearbox, simply by moving the fan and fan cover from one end of the worm shaft to the other.

Structure of the Product

Gearbox Casing

The gearbox casing is made of strong and durable fine-grain cast iron. It is completely oil and dust-proof, allowing for outdoor installation without the need for separate covers. The surface and bores are precision-drilled and machined using the latest precision machinery to ensure perfect alignment and interchangeability.

Worm/Worm Wheel

The worm is made of carburized alloy steel that has been ground and polished. It is integral with the shaft, and the bearing journals are precision-ground. The worm wheel is made of centrifugally cast phosphor bronze. The worm is milled on a special worm milling machine, and then undergoes gas carburizing and grinding on an automatic workpiece grinder. The worm wheel is hobbed on a precision gear hobbing machine using high-precision hobs. Each worm wheel is inspected and matched with the main worm to ensure complete interchangeability.

Bearings

The worm and worm wheel are supported by ball or roller antifriction bearings, which have ample safety margins to withstand sufficient shaft neck and thrust loads. Overhung loads generated by chain or pinion drives are generally allowable because the gearbox and bearings are designed for this. However, complete detailed information should be provided for confirmation. In cases where overhung loads are heavy, additional roller bearings can be provided.

Wheel Shaft

The wheel shaft is made of high-strength carbon steel. Its larger diameter allows it to withstand torsional and bending loads caused by overhung drives.

Features of the SNU-U Worm Gear Unit

• High-quality replacement for Elecon SNU Modular Universal Mounting 4 SNU-U worm gear unit
• Durable and compact design
• Increased heat capacity
• Easy replacement without opening the gearbox
• Wide range of applications

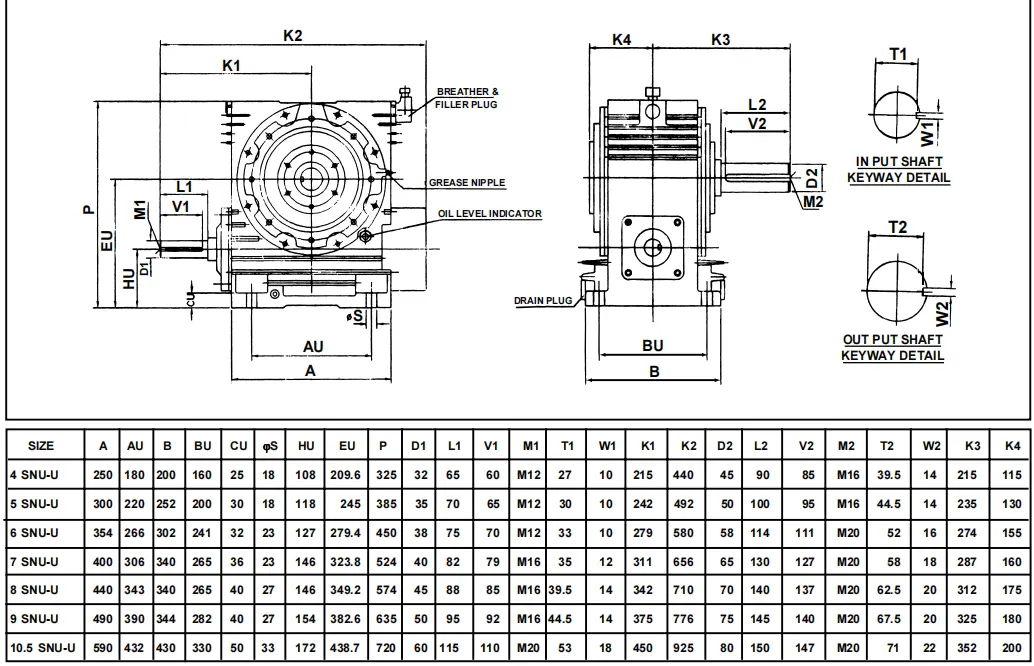

Dimensions of the Product

Installation Positions

The single-piece universal housing has top and bottom flanges, as well as a support flange, allowing the gearbox to have a universal mounting position, including low speed, high speed, and vertical positions. Therefore, internal components can be exchanged for all installation positions. To quickly change the installation position from low speed to high speed or vice versa, simply invert the device and change the position of the drain plug, breather plug, and oil level indicator.

Possible Issues and Solutions

Elecon Worm Gear Unit Replacement

• High-quality replacement for Elecon brand worm gear units
• Competitive pricing
• Provides replacement parts, not original parts
• Excellent quality
• Customization options available

Electric Motors for Worm Reducers

Electric motors are an essential component for worm reducers. They provide the power necessary to drive the gearbox and enable the efficient operation of the entire system. We offer a wide range of electric motors for various applications. Whether you need a motor for low speed or high speed operations, we have the right solution for you.

Our company, HZPT, specializes in the production and sale of high-quality worm gear units. With over 20 years of experience, we have established ourselves as a trusted manufacturer in the transmission equipment industry. We serve customers worldwide and have a strong reputation in Europe and America.

We pride ourselves on providing the best service, highest product quality, and competitive prices. Our production facilities are equipped with advanced equipment and testing facilities, and our team of industry professionals and technicians ensures innovative research, development, and manufacturing. We strictly adhere to standardized production management methods to maintain the highest level of quality in all our products.

Our gearboxes are widely used in various industries, including equipment, food, car washing, packaging, transmission, automation, and solar energy. We welcome customers to explore our products and contact us for purchase.

Q&A

Q: What is the warranty period for your worm gear units?

A: We offer a warranty period of 12 months for our worm gear units
