Worm Reducer-Replacement of Elecon SNU Modular Universal Mounting 6 SNU-SM Worm Gear Unit

Introduction

The Worm Gear Unit that we offer is a replacement for Elecon SNU Modular Universal Mounting 6 SNU-SM Worm Gear Unit. This series of gearboxes have wide ribs that increase the heat dissipation area, streamlined oil sump that can carry more oil, and a larger fan that can increase the gearbox's thermal capacity rating. All of these features mean that the continuous carrying capacity is increased, and the temperature does not increase significantly. There is no need to manually replace the gearbox by opening it, just replace the fan and fan cover from one end of the worm shaft to the other.

We provide Elecon brand replacement worm gearboxes, which are of good quality and offer competitive prices. It should be noted that our products are all replacement parts and not original equipment parts. If you need to purchase original equipment parts, please contact the original supplier for purchase.

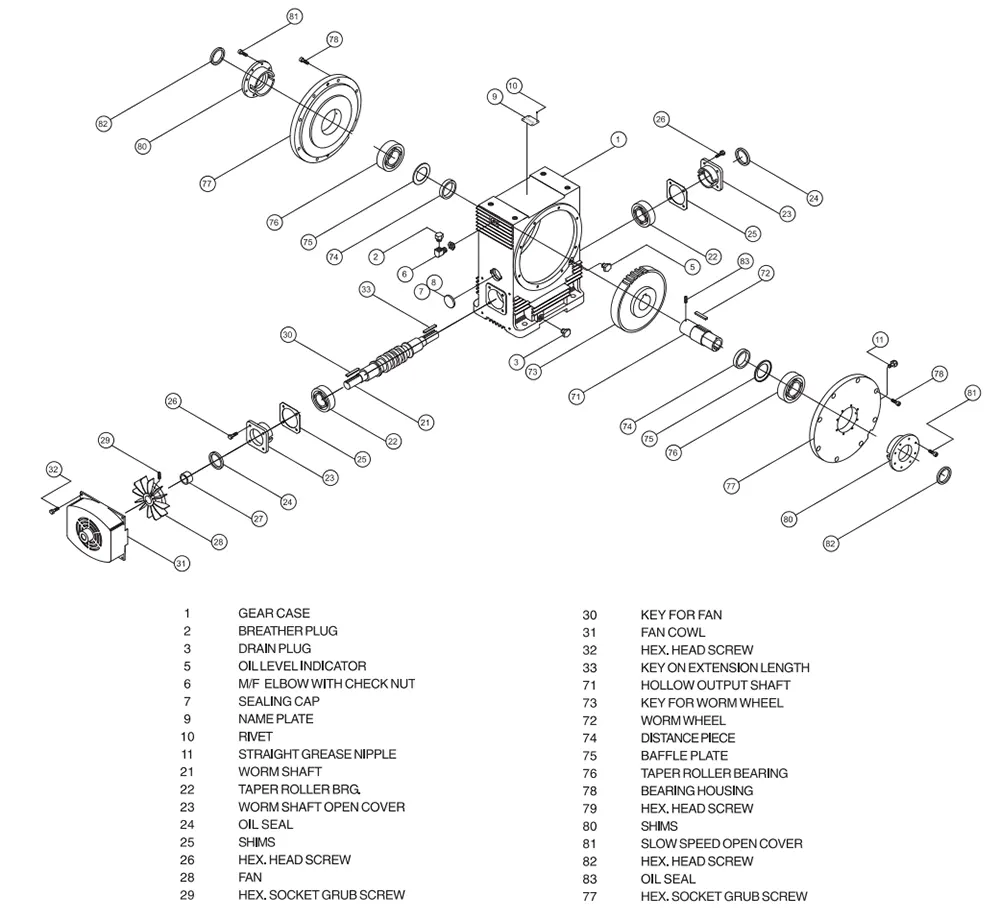

Structure

Gearbox Casing: The gearbox adopts a streamlined design and is made of fine-grained cast iron. It is completely oil-proof and dust-proof and can be installed outdoors without a separate cover. The surface and aperture are precisely drilled and processed using the latest precision machinery to ensure perfect alignment and interchangeability.

Worm/Worm Wheel: The worm is made of carburized, ground, and polished carburized alloy steel and is integral with the shaft. The bearing journal of the shaft is precisely ground. The worm wheel is made of centrifugally cast phosphor bronze wheel rims. The worm is machined on a dedicated worm milling machine and gas carburized and ground on an automatic workpiece grinder. The worm wheel is hobbed with a high-precision hob on a precision gear hobbing machine. Each worm wheel is checked and matched with the master worm to ensure complete interchangeability.

Bearings: The worm and worm wheel are supported by ball or roller anti-friction bearings and have sufficient safety margin to withstand sufficient shaft and thrust loads. Cantilever loads generated by chain or small gear drives are generally allowed since the gearbox and bearings are designed for this purpose. However, complete and detailed information should be provided to us for confirmation. In cases where the cantilever loads are heavy, additional roller bearings can be provided.

Shaft: The shaft is made of high-strength carbon steel. The shaft diameter is large, which can withstand torsion and bending loads that may be caused by cantilever drive.

Features

- High efficiency
- Low noise
- Large load-carrying capacity
- Compact structure
- Long service life

The Elecon SNU Modular Universal Mounting 6 SNU-SM Worm Gear Unit replacement series of gearboxes also have other features:

- Wide range of power transmission
- Low energy consumption
- High precision
- Multiple installation positions
- Easy maintenance

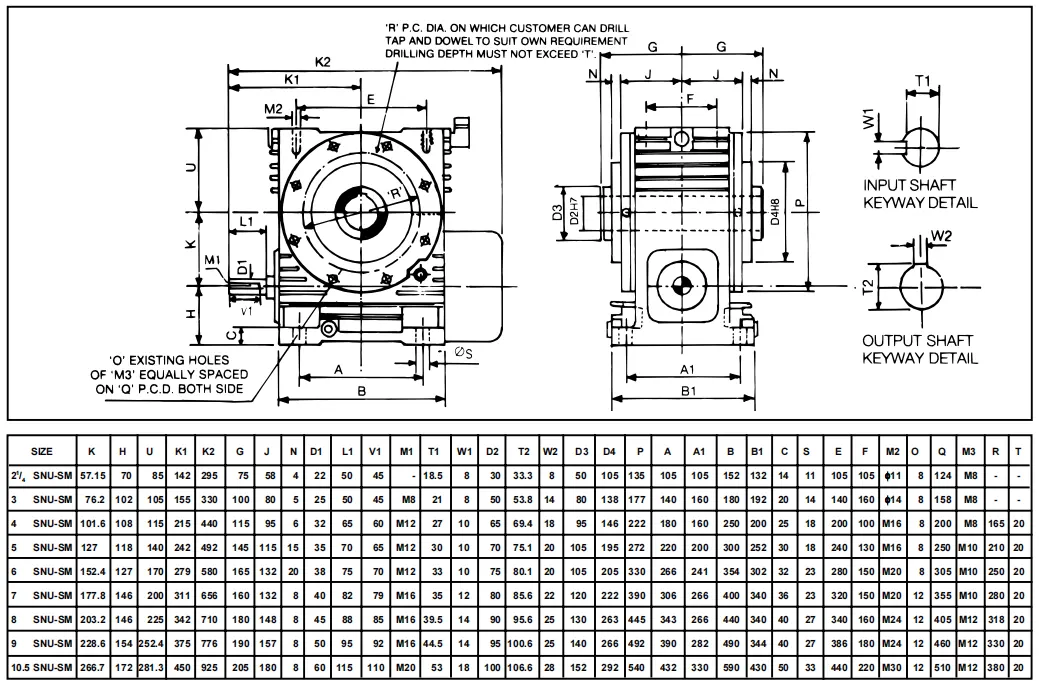

Size

Installation Position

The single-piece universal housing has top and bottom flanges and also includes supporting flanges, making the gearbox have a universal mounting position, such as low speed, high speed, and vertical. Therefore, internal components can be exchanged for all mounting positions. Only by inverting the device and replacing the position of the drain plug, vent plug, and oil level indicator can the mounting position be quickly changed from low speed to high speed and vice versa. The rugged and compact streamlined design has ample heat capacity.

Possible Issues and Solutions

Issue	Cause	Solution
Overheating	Insufficient lubrication or incorrect oil viscosity	Check the oil level and type
Abnormal noise	Worn or damaged gears	Replace the damaged gears
Oil leakage	Loose screws or damaged seals	Tighten the screws or replace the seals
Reduced efficiency	Worn or damaged bearings	Replace the damaged bearings
Shaft breakage	Excessive load or poor shaft quality	Reduce the load or replace the shaft

Elecon Worm Gear Unit Replacement

Our company offers a replacement for Elecon brand Worm Gear Units that have several advantages:

- Wide range of models available
- High-quality products
- Competitive prices
- Easy to install
- Compatible with Elecon brand gearboxes

All of our products are replacement parts and not original equipment parts. If you need to purchase original equipment parts, please contact the original supplier for purchase. We also welcome customers to come to us with their own designs or samples for custom-made gearboxes.

Motors for Worm Reducers

Motors and worm reducers are closely related, as the motor provides power to the gearbox. A high-quality motor can ensure the stable operation of the gearbox and improve its efficiency. Our company also provides various electric motors for sale, which can be matched with our worm reducers to form a complete power transmission system.

About HZPT

We are a comprehensive transmission equipment manufacturer integrating research and development, manufacturing, and sales of speed reducers. With more than 20 years of experience in the design, production, manufacture, and sales of gearboxes, we serve customers in Europe, America, Africa, Asia, and other regions and have won the praise of the market.

Our company has introduced advanced production equipment and testing equipment at home and abroad, employing industry professionals and technicians to carry out innovative research and development and manufacturing. The use of standardized production management methods strictly controls every aspect of the production of speed reducers, providing customers with high-quality, energy-efficient, and stable products.

Our gearboxes are widely used in various industries, such as the equipment industry, food industry, car washing industry, packaging industry, transmission industry, automation industry, solar energy industry, and more. We welcome and trust by customers to explore our products and to contact us for purchases.

Q&A

Q: Are your replacement worm gearboxes compatible with Elecon brand gearboxes?
A: Yes, our replacement worm gearboxes are compatible with Elecon brand gearboxes.

Q: Can I purchase original equipment parts from your company?
A: No, we only provide replacement parts for original equipment parts. If you need to purchase original equipment parts, please contact the original supplier for purchase.

Q: What materials are your gearboxes made of?
A: Our gearboxes are made of fine-grained cast iron, carburized alloy steel, centrifugally cast phosphor bronze, and high-strength carbon steel.
