Worm Reducer-Replacement of Fenner Series C Helical Worm Gearbox Shaft Mounted Reducer-with Flange Double/Triple Reduction 874

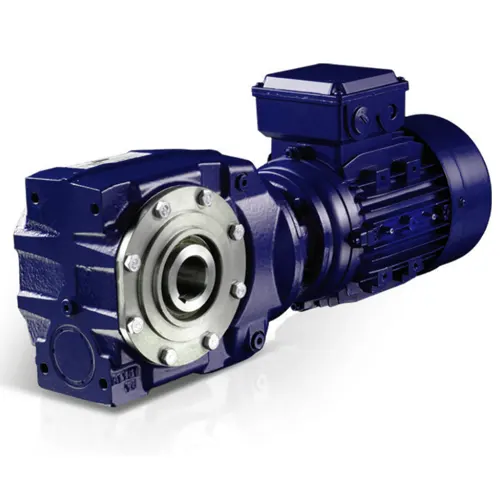

Our company provides a replacement for the Fenner brand helical worm gearbox, which is of high quality and competitive pricing. It is important to note that our products are replacement parts and not original parts. If you need to purchase original parts, please contact the original supplier for purchase. See the image below for the product:

Overview

The worm reducer is a highly efficient and energy-saving direct-drive gearbox that offers multiple installation options. It has a driving power of up to 45 kW and a readily available transmission ratio ranging from 8:1 to 16,000:1. Its modern design technology and high-quality components make it the most cost-effective gearbox in Nm/min compared to any other gearbox. The C-series helical worm gearbox is superior to any other gearbox in its cost-effectiveness per Nm. The C-series right-angle gearbox provides a highly efficient and compact solution that meets most requirements. It is interchangeable in size with leading manufacturers' products, and accepts standard IEC motors without modification. See the image below for mounting positions:

Features

• Transmission ratio ranging from 8:1 to 16,000:1
• Maximum torque of 10,000 Nm
• 8 different specifications available
• Bore sizes ranging from 20 mm to 90 mm
• Highly efficient and energy-saving right-angle drive unit
• Efficient gear transmission that saves energy and operating costs
• Interchangeable in size with other manufacturers' products
• Innovative motor adapter with standard IEC interface
• Oil-free sealed gearbox prevents oil leakage during motor disassembly
• Multiple installation options, including base, flange or shaft mounting

Applications

• Food processing industry
• Pharmaceutical industry
• Agricultural machinery
• Conveyor systems
• Industrial automation
• Mining and metallurgy industry
• Packaging industry
• Wastewater treatment industry

See the image below for an example of a worm reducer in use:

Composition

• Worm Gear
• Worm Shaft
• Bearing
• Oil seal
• Gearbox Housing

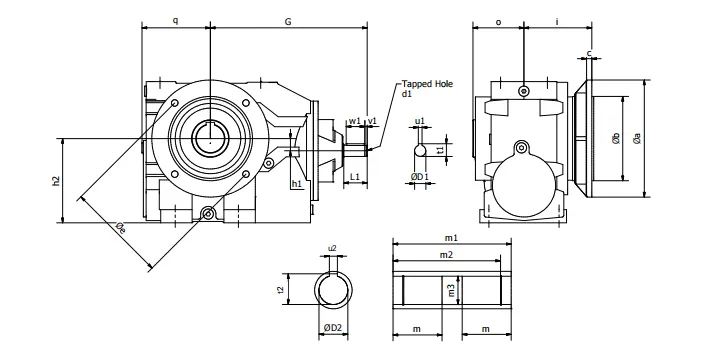

See the image below for a diagram of the worm reducer:

Installation

The performance of the gearbox depends on correct installation, lubrication, and maintenance.

Shaft Mounting:

Ensure that the shaft and the gearbox unit's hole are clean and free of burrs. Apply a sufficient amount of lubricating oil to the shaft and the hole to aid in assembly and prevent frictional corrosion. Slide the unit onto the drive shaft and install the key.

Foot Mounting:

Secure the device to a sturdy structure as needed. Install the output extension shaft if necessary. The connection between the shafts should use a flexible coupling, and the deviation of the shaft should be within the coupling's tolerance range. When installing pulleys or sprockets on two shafts, they should be installed as close as possible to the gearbox. Do not strike the shaft when installing or removing the transmission components, as this will damage the bearings. See the image below for an example of a shaft-mounted reducer:

Lubrication and Maintenance

It is important to properly lubricate and maintain the worm reducer to ensure its longevity and optimal performance.

Lubrication:

• Oil Change: Gearboxes with sizes 870 and 871 are lifetime lubrication, except for those that work in explosive environments. All other gearbox sizes require oil changes based on the equipment's operating temperature. New gearboxes should have half of their oil changed after either 1000 hours of use, one year, or the specified service life.

Maintenance:

• Keep the gearbox clean and free of debris
• Check the gearbox regularly for leaks
• Replace any damaged parts immediately
• Check the gear teeth regularly for wear and damage
• Inspect the bearings and replace them if necessary

See the image below for an example of a worm drive motor:

Fenner Helical Worm Gearbox Replacement

Our worm reducer is a replacement for the Fenner brand helical worm gearbox. It offers several advantages, including:

• High-quality and competitively priced
• Interchangeable in size with other manufacturers' products
• Direct replacement parts for Fenner brand helical worm gearbox
• Superior to any other gearbox in its cost-effectiveness per Nm

If you need to purchase original parts, please contact the original supplier for purchase. We also welcome customers to come to us with their own designs and samples. See the image below for an example of a worm gearbox replacement:

Motors for Worm Gear Reducers

The worm reducer and electric motors are closely related and dependent on each other. The worm reducer provides a direct drive, while the electric motor provides the power to drive it. Therefore, the selection of an appropriate motor is essential to the gearbox's optimal performance. Our company provides a variety of electric motors for sale. See the image below for an example of electric motors:

About Us

We are a comprehensive transmission equipment manufacturer integrating research and development, manufacturing, and sales of speed reducers. With more than 20 years of experience in gearboxes' design, production, manufacture, and sales, we serve customers in Europe, America, Africa, Asia, and other regions and have won the market's praise. Our consistent mission and vision over the years, our company has introduced advanced production equipment and testing equipment at home and abroad, employing industry professionals and technicians to carry out innovative research and development and manufacturing. We use standardized production management methods to strictly control every aspect of gear reducers' production. Over the years, we have provided customers with high-quality, high-energy-efficiency, and high-stability production. Our gearboxes are widely used in the equipment industry, food industry, car washing industry, packaging industry, transmission industry, automation industry, solar energy industry, and so on. See the image below for an example of our factory:

Q&A

Question	Answer
Q: What is the driving power of the worm reducer?	A: The driving power of the worm reducer can reach up to 45 kW.
Q: What are the bore sizes available for the worm reducer?	A: The bore sizes for the worm reducer range from 20 mm to 90 mm.
Q: How often should the gearbox oil be changed?	A: Gearboxes with sizes 870 and 871 are lifetime lubrication, except for those that work in explosive environments. All other gearbox sizes require oil changes based on the equipment's operating temperature. New gearboxes should have half of their oil changed after either 1000 hours of use, one year, or the specified service life.
