XL BL Series Cycloidal Gearbox Single Stage Vertical Flange-mounted

Overview of XL BL Cycloidal Gearbox

A cycloidal pin gear reducer is a novel transmission device that uses the planetary transmission principle and cycloidal pin gear meshing. All transmission devices of cycloidal pin gear reducers can be divided into three parts: input, reduction, and output. An eccentric double sleeve with a displacement of 180 ° is installed on the input shaft, and two roller bearings called the rotary arm are installed on the eccentric sleeve to form the raceway of the rotary arm bearing on the eccentric sleeve through the central holes of the H mechanism and two cycloidal gears. The cycloidal gear is meshed with a group of ring-shaped needle teeth on the needle gear to form an internal meshing reducer with a tooth difference of one tooth, (To reduce friction, in the reducer with a small speed ratio, there is a needle tooth sleeve on the needle tooth).

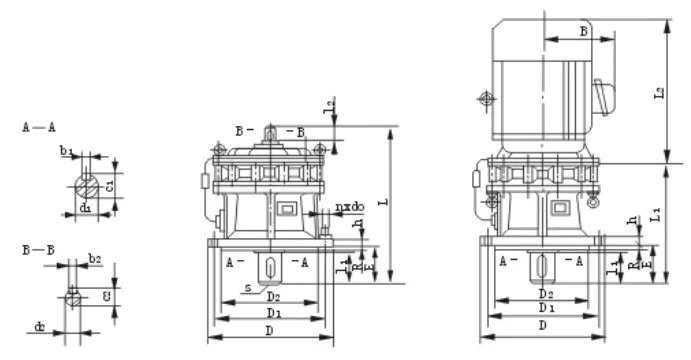

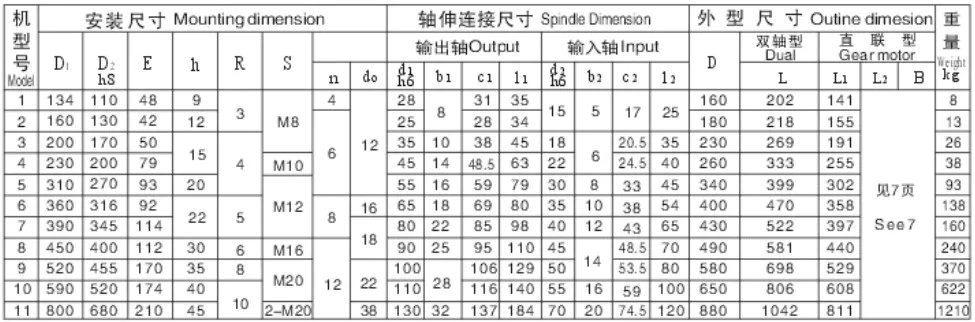

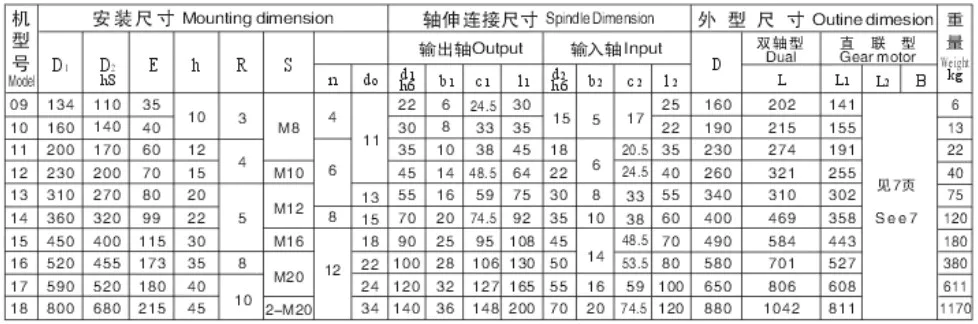

XL BL Series Cycloidal Gearbox Mounting Dimension

XL Series Cycloidal Gearbox

BL Series Cycloidal Gearbox

What Can a Cycloidal Gear Used for?

The cycloidal pin gear reducer adopts the cycloidal pin gear meshing and planetary transmission principle, so it is also commonly called the planetary cycloidal reducer. The planetary cycloidal pin gear reducer can be widely used in petroleum, environmental protection, chemical industry, cement, transportation, textile, pharmaceutical, food, printing, lifting, mining, metallurgy, construction, power generation and other industries, as a driving or reducing device. The machine is divided into horizontal, vertical, double shaft and direct connection types. Its unique stable structure can replace ordinary cylindrical gear reducer and worm gear reducer in many cases. Therefore, planetary cycloidal pin gear reducer is widely used in various industries and fields, and is widely welcomed by users.

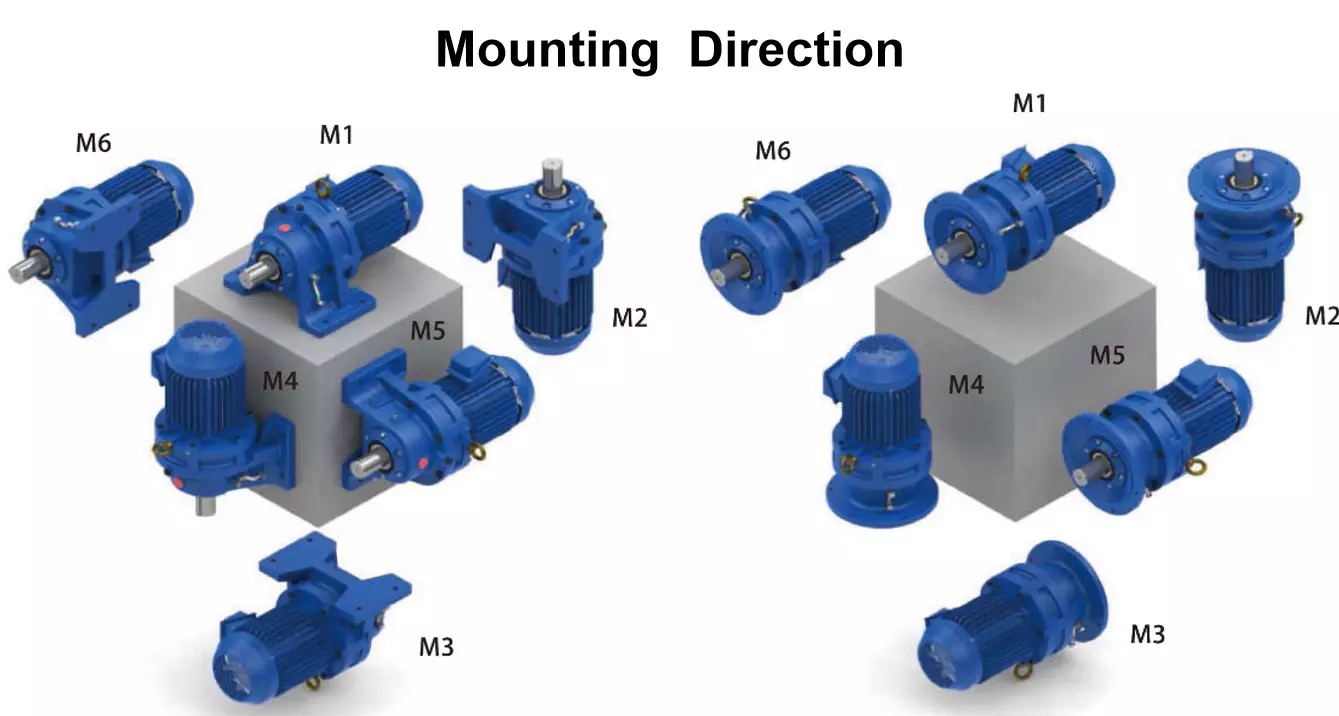

Installation and maintenance of Cycloidal Gearbox

Install
