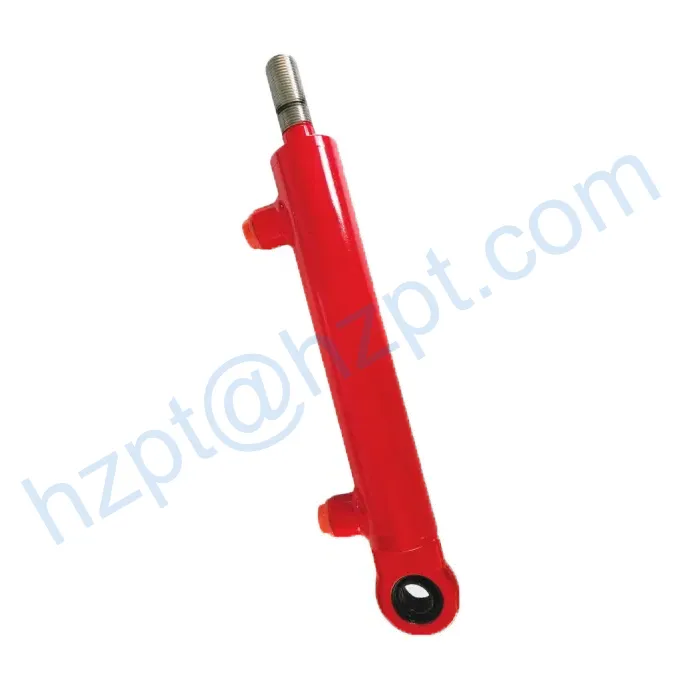

YM4P 83K 05 Corn Harvester Steering Oil Cylinder
Introduction:
The YM4P 83K 05 Corn Harvester Steering Oil Cylinder is a hydraulic cylinder used in corn harvesters. It is responsible for steering the harvester and ensures smooth maneuverability during operation.
Product Specifications:
- Cylinder Diameter: 40mm
- Rod Diameter: 25mm
- Travel: 190mm
- Installation Distance: 387mm
Product Features:
- High-quality construction for durability
- Precision engineering for optimal performance
- Designed to withstand harsh operating conditions
- Provides reliable and efficient steering control
- Compatible with various corn harvester models
Applications:
The YM4P 83K 05 Corn Harvester Steering Oil Cylinder finds its applications in various fields:
- Construction: commonly used in cranes, hoists, and elevators that require secure fixation of heavy objects.
- Manufacturing: used in hydraulic presses for forming materials under high pressure, requiring a stable and reliable fixing mechanism.
- Transportation: employed in vehicle stabilizers and jacks to ensure safety during maintenance or transportation processes.
- Aviation: utilized in landing gear systems to securely fix the landing gear in the appropriate position during takeoff and landing.
Design Considerations and Selection Criteria:
When designing the YM4P 83K 05 Corn Harvester Steering Oil Cylinder, several key factors are taken into account:
- Bearing capacity: the cylinder is designed to withstand the specified load and ensure safe operation.
- Sealing properties: various seals, such as piston seals and rod seals, are used to prevent leakage and maintain hydraulic pressure.
- Durability: the cylinder is constructed with high-quality materials and undergoes fine surface treatment to enhance wear resistance.
- Safety: safety features are incorporated to prevent accidents during operation.
- Maintainability: the cylinder is designed for easy maintenance and repair, allowing for efficient servicing.
Sealing and Lubrication:
The YM4P 83K 05 Corn Harvester Steering Oil Cylinder utilizes various sealing components, such as piston seals and rod seals. These seals are made of durable materials like polyurethane and nitrile rubber to ensure longevity. The cylinder body and threaded ends are finely processed to enhance wear resistance. Regular lubrication with hydraulic oil is recommended to maintain smooth operation.
Regular Inspection and Preventative Maintenance:
To ensure the longevity of the YM4P 83K 05 Corn Harvester Steering Oil Cylinder, regular inspection and preventative maintenance are essential:
- Inspect the cylinder for any signs of wear or damage.
- Properly lubricate the cylinder to maintain optimal performance.
- Replace worn seals and perform calibration checks as needed.
Product Installation Guide:
Follow these steps for correct installation of the YM4P 83K 05 Corn Harvester Steering Oil Cylinder:
- Ensure the mounting location is suitable and secure.
- Align the cylinder in the correct position.
- Use appropriate installation brackets to secure the cylinder.
Common Maintenance Tasks:
Here are three common maintenance tasks for the YM4P 83K 05 Corn Harvester Steering Oil Cylinder:
- Regular inspections
- Proper lubrication
- Seal replacement and calibration checks
It is crucial to emphasize the importance of correct installation, lubrication, and adjustment. Proper alignment guidance during installation, the use of suitable installation brackets for secure fixing, recommended inspection, repair, and replacement procedures, and tips to extend the lifespan of the cylinder should be followed.
Safety Considerations and Environmental Factors:
When using the YM4P 83K 05 Corn Harvester Steering Oil Cylinder, safety measures are of utmost importance to prevent accidents. It is essential to consider the surrounding environment to ensure secure operation and minimize potential hazards.
Common Fault Diagnosis and Troubleshooting:
Here are some common faults that may occur with the YM4P 83K 05 Corn Harvester Steering Oil Cylinder:
- Leakage
- Inconsistent steering performance
- Noise during operation
To address these issues, follow these troubleshooting tips and solutions:
- Determine the source of leakage and repair or replace the faulty seals.
- Inspect the steering system for any misalignments or damaged components and rectify accordingly.
- Identify the cause of noise and address it by lubricating or replacing worn parts.
Additionally, provide preventative measures to minimize potential problems and ensure efficient troubleshooting.
