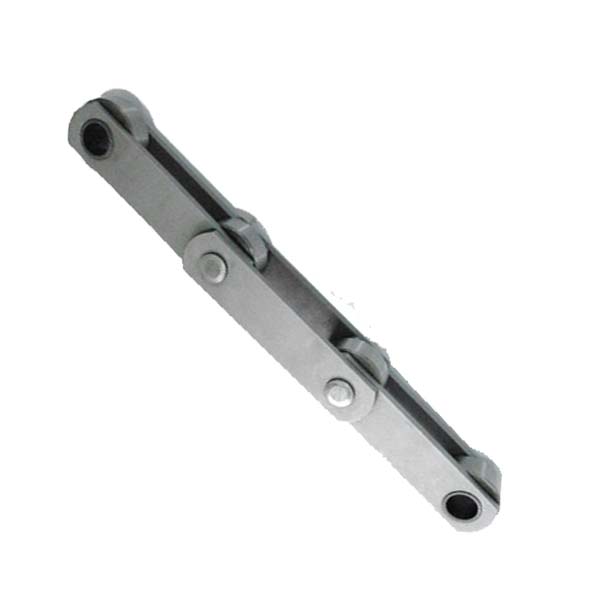

Z Series Conveyor Chains Z40 Z100 Z160 Z300
Z Series Conveyor Chains
Z Series Conveyor Chains Z40 Z100 Z160 Z300
The standard chains of the ZMC range include products made according to the primary international standards (ISO1977, DIN 8165, DIN 8167, DIN 8168, British standard 4119, ANSI / ASME B29.100) and nonstandard chains of everyday use.
Versatile and reliable, the standard chains offer the designer a wide choice of solutions for conveyor chains in various sectors. The range of ZMC standard chains covers a vast field in terms of dimensions, mechanical characteristics, and geometry. They are both metric and imperial chains, with solid, hollow, or extended pins. Standard or deep-link plates with attachments are available. In most cases, an alternative with hardened plates increases the breaking load and, on request, in stainless steel or zinc-plated finish.
For the sake of identification and research, the traditional ZMC vocabulary is associated with the main series of standard chains:
Z series - Chains with inch pitch according to the English standard BS4119 Part4
M Series - Chains with metric pitch ISO1977, DIN 8167, DIN 8168 standards
Series C - Metric pitch chains according to DIN 8165, internationally known also as FV chains

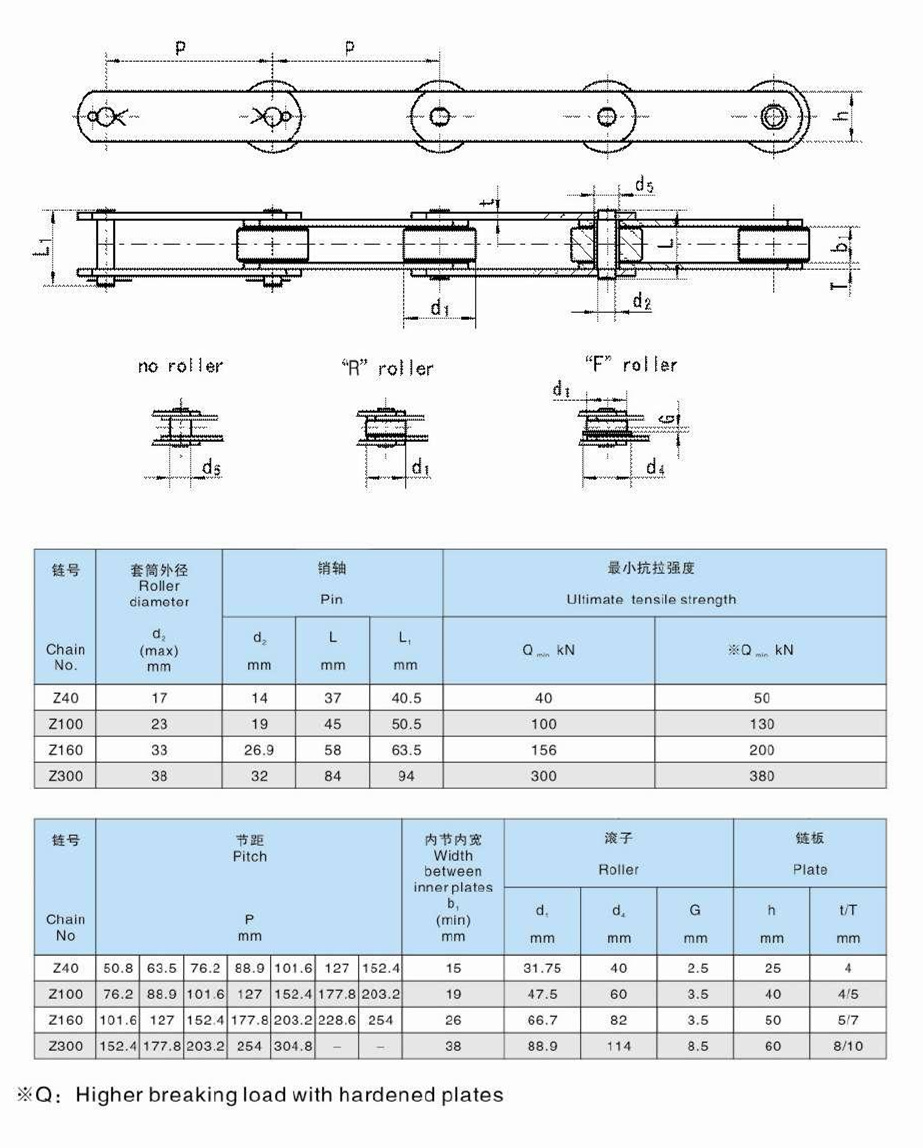

Specifications of Z Series Conveyor Chains

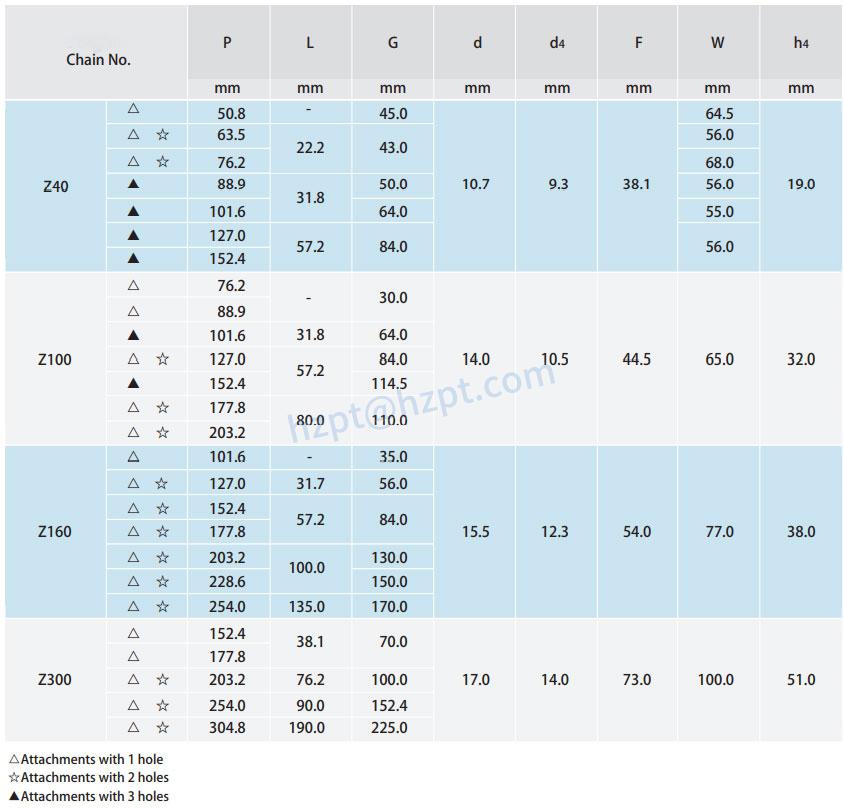

Z Series Conveyor Chains with Attachments
Conveyor Chains Design
Sprockets For Chains
There are many different types of sprockets for chains. Some are made of stainless steel, while others are made of non-stainless steel. Stainless steel sprockets are ideal for harsh environments and are usually 304-grade stainless steel. You can also find 316-grade stainless steel sprockets, which are ideal for extreme corrosive conditions. In addition to standard sizes, you can also find idler sprockets with a ball bearing pressed in.
There are two standards for sprockets: ISO and metric. ISO sprockets are used in most American, European, and Asian machines. In the United States, ISO sprockets are used to meet stringent standards, while metric sprockets are more flexible and interchangeable with European-style chains. For the most part, sprockets are interchangeable, although there is still a small number of exceptions to this rule.
The most common type of sprockets are made from metal or reinforced plastic. These devices are closely related to gears, and their wheel-shaped design with teeth allows them to span greater distances than their mating gears. Most sprocket and chain systems are similar to bicycle chain assemblies.
To choose sprockets for chains, it's essential to get the size and pitch of the chain. Depending on your requirements, you may want to select one that has wide teeth or a sprocket with small teeth. In addition to pitch, you should also consider the size of the drive shaft. For example, if the chain is large, you will need a sprocket that is wide. For smaller chains, you'll need a sprocket with smaller teeth. Likewise, you should consider the sprocket bore.
As a professional transmission parts manufacturer and supplier in China, HZPT offers a variety of high-quality drive chains and sprockets for sale. Contact now！
Related Chains for Sale
Why Choose Ever-power Conveyor Chains？
2. Mesh belt furnace:
3. Multipurpose furnace:
4. ABB intelligent welding robot:
6. Induction quenching equipment: the self-developed semi-automatic induction quenching equipment successfully realizes selective (local) induction quenching of pin shaft and induction quenching of sprocket teeth
7. Programmable gantry cutting machine: it has the functions of plasma cutting and flame cutting
8. CNC machining center: CNC vertical machining center and CNC horizontal machining center, which meet the processing of high-precision molds and products
We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.
Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.
