ZR03 Right Angle Planetary Gearbox Reducer

Overview

The ZR03 Right Angle Planetary Gearbox Reducer is a type of gearbox that is used to decrease the output speed and increase the torque of a motor. It is commonly used in industrial applications where a high degree of precision is required. The ZR03 gearbox features a compact design, low noise operation, and is made from durable materials that ensure long-lasting performance.

Features

• High precision transmission
• Durable and long-lasting
• Compact design
• Low noise operation

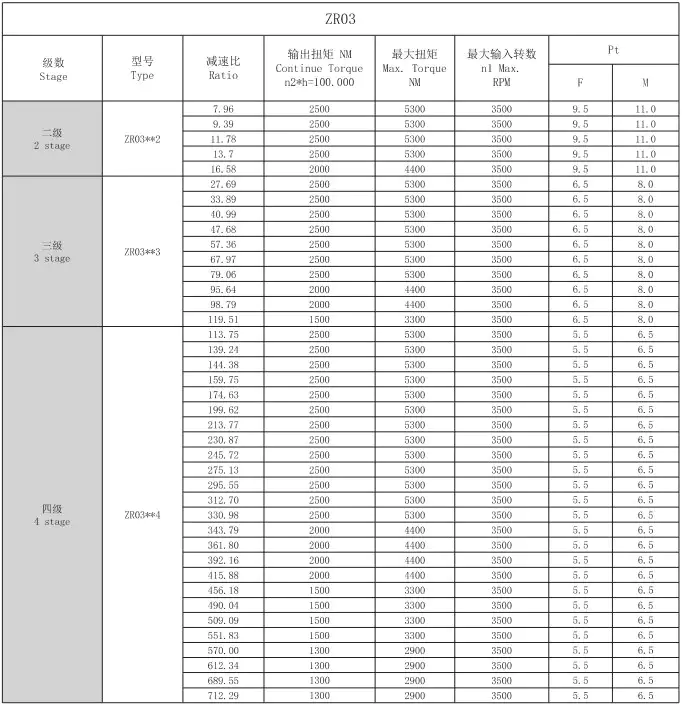

Technical Specifications

Performance Advantages

The ZR03 Right Angle Planetary Gearbox Reducer offers several performance advantages. It is designed to be highly efficient and energy-saving, with a long service life and high reliability.

• Highly efficient and energy-saving
• Long service life
• High reliability

Applications

The ZR03 Right Angle Planetary Gearbox Reducer has a wide range of applications in various industries, including:

• Building industry
• Crushing equipment
• Environmental protection industry
• Mining industry
• Port equipment
• Communication industry
• Papermaking industry
• Power equipment
• Amusement equipment
• Chemical mixing
• Marine vessels
• Metal products

How to Order

To order the ZR03 Right Angle Planetary Gearbox Reducer, please provide the following information:

• Your application requirements and operating environment
• The basic parameters required such as ratio, input speed, output speed, rated torque, and power
• The installation and connection methods
• The specific dimensions of the installation space
• The surface treatment of the material
• Other requirements such as protection level, lubrication, vibration and noise restrictions, etc.

Supply Information

When ordering the ZR03 Right Angle Planetary Gearbox Reducer, please note that:

• The gearbox is not pre-filled with lubricant when it leaves the factory
• The surface of the gearbox is treated with rust-proof paint. If you require other special coatings, please inform us in advance
• If the gearbox is stored for a long time, it needs to be coated with grease
• The gearbox is packaged in a wooden box

Author: Miya
