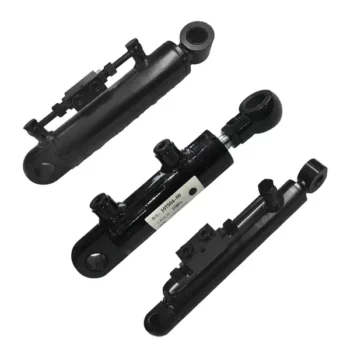

Sanitation Machinery Hydraulic Cylinder
Sanitation Machinery Hydraulic Cylinders
A sanitation machinery hydraulic cylinder is a type of hydraulic cylinder that is used in sanitation equipment. These cylinders are typically used to lift, lower, or move objects, such as garbage containers, compactors, and hoppers. They are also used to apply force to objects, such as when compacting garbage.
Sanitation machinery hydraulic cylinders are typically made of steel or aluminum and have a piston rod that is connected to the object being moved. The piston rod is moved by pressurized hydraulic fluid, which is typically supplied by a hydraulic pump.
The size and type of sanitation machinery hydraulic cylinder that is needed will vary depending on the specific application. However, some common types of sanitation machinery hydraulic cylinders include:
- Double-acting cylinders: These cylinders have two ports for the hydraulic fluid, one for extending the piston rod and one for retracting it. This allows the cylinder to be used for both lifting and lowering objects.
- Single-acting cylinders: These cylinders only have one port for the hydraulic fluid, which is used to extend the piston rod. Single-acting cylinders are typically used for lifting objects, but they can also be used for lowering objects if the object is first lifted by another means.
- Telescopic cylinders: These cylinders have a piston rod that can extend and retract in multiple stages. This allows the cylinder to reach a greater distance than a single-stage cylinder. Telescopic cylinders are typically used in applications where the object being moved is located at a distance from the hydraulic pump.
Sanitation machinery hydraulic cylinders are an essential part of many sanitation equipment. They allow these machines to perform their tasks safely and efficiently.
Sanitation Machinery Hydraulic Cylinder Catalog:
Sanitation Machinery Hydraulic Cylinder Types:
|Cylinder Name||Drawing number||Bore diameter (D)||Rod diameter (d)||Stroke (S)||Installation distance (L)||Working pressure||Interface dimensions (M)||Weight|
|Reverse Thrust Cylinder||LPE222.2.2-5-00||Φ220||Φ110||420||1110||16MPa||2-M22*1.5||323kg|
|Forward Thrust Cylinder||LPE416B.4.4-2-00||Φ90||Φ63||320||878||16MPa||2-M22*1.5||47kg|
|Forward Thrust Cylinder||LPG418.4.4-2-00||Φ100||Φ55||320||700||16MPa||2-M22*1.5||41kg|
Sanitation Machinery Hydraulic Cylinder Features:
Hydraulic cylinders are used in a variety of sanitation machinery, including garbage trucks, street sweepers, and sewer cleaning equipment. The specific features of these sanitation machinery hydraulic cylinders will vary depending on the application, but some common features include:
1. Double acting: This means that the sanitation machinery hydraulic cylinder can be extended and retracted by applying hydraulic pressure to either end of the piston. This is important for sanitation machinery, as it allows the cylinders to be used for both lifting and pushing tasks.
2. Long stroke: Sanitation machinery often needs to move large objects, so the sanitation machinery hydraulic cylinders need to have a long stroke. This allows the cylinders to extend and retract enough to move the objects.
3. Heavy-duty construction: Sanitation machinery is often used in harsh environments, so the sanitation machinery hydraulic cylinders need to be able to withstand a lot of wear and tear. They are typically made from strong materials such as steel or stainless steel.
4. Corrosion resistance: Sanitation machinery may come into contact with water, chemicals, and other corrosive substances. The sanitation machinery hydraulic cylinders need to be resistant to these substances to prevent them from corroding and failing.
5. Seals: The seals on the sanitation machinery hydraulic cylinders need to be able to keep the hydraulic fluid in and contaminants out. This is important to prevent the cylinders from leaking and to ensure that they operate efficiently.
How Does a Sanitation Machinery Hydraulic Cylinder Work?
A sanitation machinery hydraulic cylinder works on the principle of Pascal’s law, which states that pressure applied to an enclosed fluid is transmitted equally throughout the fluid. The hydraulic cylinder consists of a piston that moves back and forth within a cylinder bore. The piston is connected to a rod that extends out of the cylinder. When hydraulic fluid is pumped into the cylinder, it pushes on the piston, causing it to move forward. When the fluid is drained from the cylinder, the piston moves back.
Sanitation machinery hydraulic cylinders are used in a variety of applications, such as:
- Garbage trucks: to lift and dump the trash
- Compactors: to compress the trash
- Tub and tree grinders: to grind up tubs and trees
- Advanced composting equipment: to mix and aerate compost
The type of hydraulic cylinder used in sanitation machinery depends on the specific application. For example, garbage trucks typically use double-acting hydraulic cylinders, which means that they can move in both directions. This is necessary because the truck needs to be able to lift the trash and then dump it. Compactors, on the other hand, typically use single-acting hydraulic cylinders, which means that they can only move in one direction. This is because the compactor only needs to compress the trash.
Hydraulic cylinders are an essential component of sanitation machinery. They provide the force needed to move heavy objects and perform a variety of tasks.
Edited by Yjx
