Stainless Steel Metallurgy Chains

If the product you need is not listed, Go to GET A FREE QUOTE!

Metallurgical Water Slot Chain for Disc Casting Machine


Metallurgical Anode Scrap Conveyor Chain


Metallurgical Lift Chain


Metallurgical Waste Material Conveyor Chain


Metallurgical Electrolysis Anode Chain for Horizontal Conveyor

Metallurgical Washing Conveyor Chain

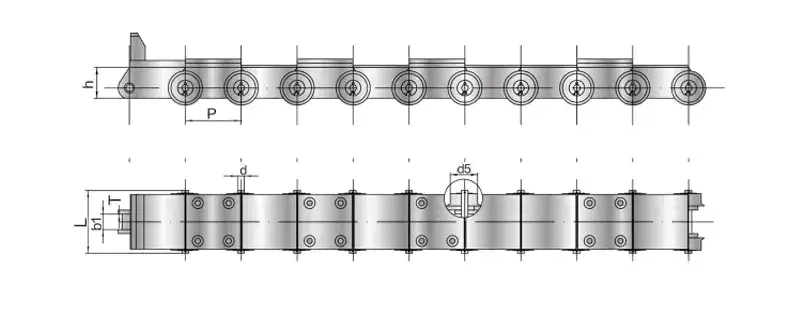

Metallurgical Electrolysis Cathode Chain for Horizontal Conveyor

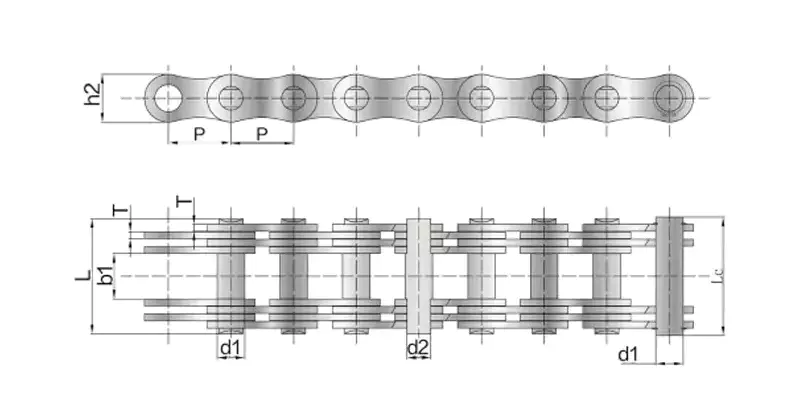

Metallurgical 5544 Pin & Plate Chain

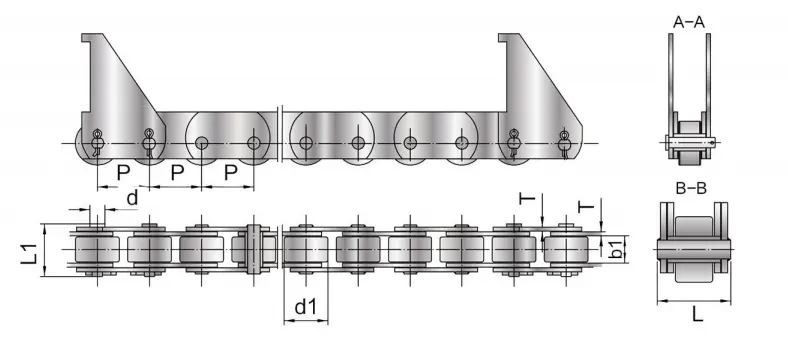

Metallurgical Cathode Copper Conveyor Chain


Metallurgical Anode Copper Conveyor Chain

Metallurgical Slag Conveyor Chain


Pitch Width
Between
Inner
Plates		 Bush
Diameter		 Pin Plate Attachment Dimension Ultimate
Tensile
Strength
Diameter Length Height Thickness
P b1
min		 d1
max		 d2
max		 max H
max		 T X C g S d3 d4 min
mm mm mm mm mm mm mm mm mm mm mm mm mm KN
365 65 52 31.6 16.2 76.2 16 160 120 115 72 80 100 450

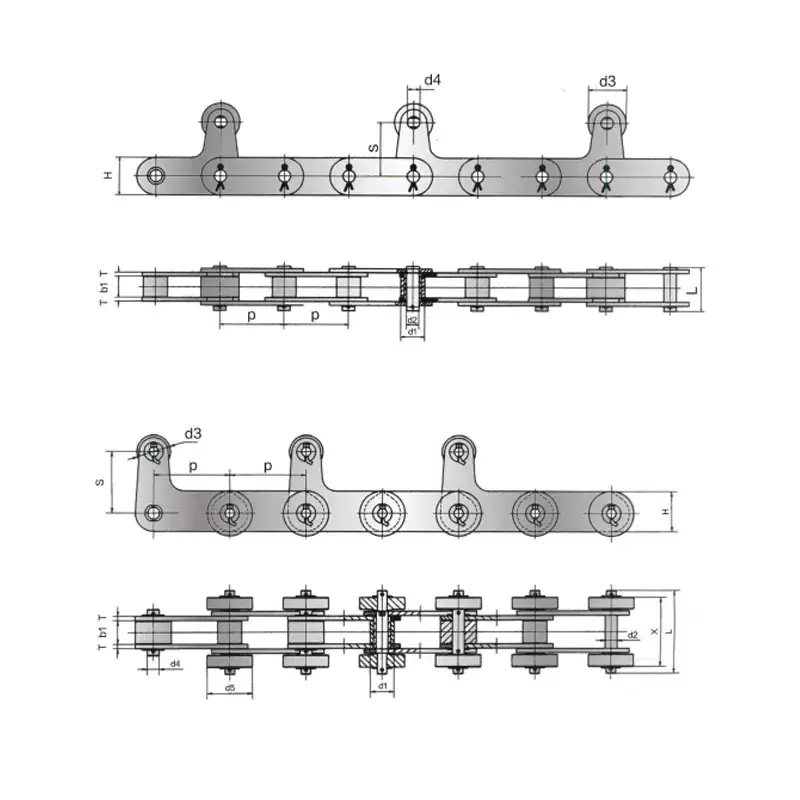

Metallurgical Steel Tube Conveyor Chain


Pitch Width
Between
Inner
Plates		 Roller
Diameter		 Pin Plate Attachment Dimension Type Ultimate
Tensile
Strength
P b1
min		 d1
max		 d2 L H T d3 S d4 X d5
mm mm mm mm mm mm mm mm mm mm KN
135 135 50 26 95.5 80 8 80 115 26 / / A 320
135 135 50 26 95.5 80 8 80 140 26 / / A 320
135 135 60 30 200 75 12 60 100 20 175 85 B 350
160 160 50 25 177 85 9 70 130 25 148 95 B 320

Metallurgical Steel Coil Conveyor Chain


Pitch Width
Between
Inner
Plates		 Roller
Diameter		 Pin Plate Attachment Dimension Type Ultimate
Tensile
Strength
P b1
min		 d1
max		 d2 L H T d3 S d4 X d5
mm mm mm mm mm mm mm mm mm mm KN
135 135 50 26 95.5 80 8 80 115 26 / / A 320
135 135 50 26 95.5 80 8 80 140 26 / / A 320
135 135 60 30 200 75 12 60 100 20 175 85 B 350
160 160 50 25 177 85 9 70 130 25 148 95 B 320


Pitch Width
Between
Inner
Plates		 Roller Diameter Pin Plate Ultimate
Tensile
Strength		 Weight Per Meter
P b1 d1 d5 d2 L H T B min q
mm mm mm mm mm mm mm mm mm KN kq/m
830 484 110 170 80 780 180 30 780 3000 410
900 463 130 200 100 849 200 36 780 3600 770
1000 484 110 170 80 778 180 30 800 3000 350

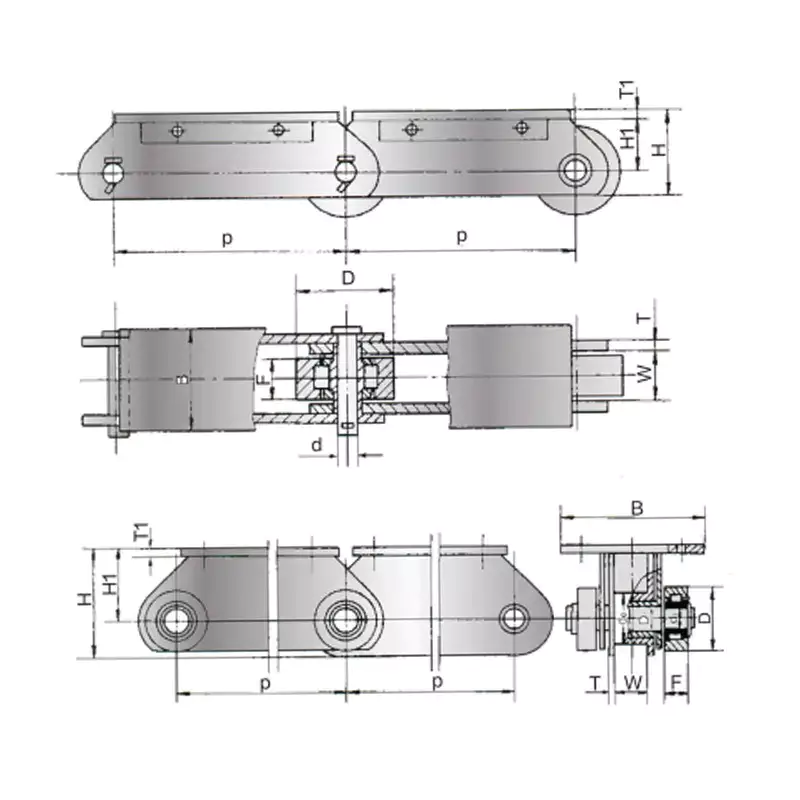

Metallurgical Heavy Duty Flat Top Conveyor Chain


Pitch Plate Flat Plate Thickness Type A Type B Ultimate Tensile Strength
Height Thickness
P H H1 T T1 W B d D F W B d0 d1 D F D1 min
mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm KN
75 76 45 5 6 35 80 11.1 60 30 28 130 36 17 60 18 18 145
150 90 50 6 8 40 90 12.7 70 35 32 140 42 20 65 22 21 175
200 95 55 8 9 45 100 15.8 80 40 34 150 50 20 65 25 25 200
250 104 64.5 9.5 9 51.4 110 19.1 95 44 36 160 55 25 70 25 30 250
350 108 68 9.5 10 64 115 22.2 100 46 40 170 55 30 72 29 32 330
450 127 89 10 12 65 145 25.4 105 52 40 180 60 30 72 29 34 400
550 150 105 14 15 80 100 28.3 110 60 50 220 70 40 90 40 42 650
400 182 140 10 12 75 240 60 26 120 45 30 530
300 171 94 16 16 82 210 38.2 150 70 850
500 171 94 16 16 82 210 38.2 150 70 850
600 208 112 16 16 88 220 45.2 160 75 1200

Metallurgical Lifting Chain

”

Pitch Width
Between
Inner
Plates		 Roller
Diameter		 Pin
Diameter		 Plate
Thickness		 Attachment Dimension Ultimate
Tensile
Strength
b1 d1 d2 b4 b5 H T h A C G b2 D D1 b3 KN
315 55 60 30 133 310 82 13 170 205 70 360 180 125 149 274 450

Metallurgical Welded Plate Conveyor Chain


Pitch Width
Between
Inner
Plates		 Roller
Diameter		 Pin Plate Attachment Dimension Ultimate
Tensile
Strength		 Weight Per Meter
P b1 min d1 max d2 max L.max h T n h1 X q
mm mm mm mm mm mm mm mm mm mm KN kq/m
315 47 100 25 117 72 11 200 65 170 315 36.5
250 55 120 30 133 82 13 160 75 181 450 51.2

Metallurgical Bucket Elevator Chain


Pitch Width Between Inner Plates Roller Diameter Pin Plate G attachment Ultimate Tensile Strength
P b1 min d1 max d2 max I max h max T H f g o min
mm mm mm m mm mm mm mm mm mm mm KN
152.4 36.5 35 15.5 90 50 8 110 70 75 14 200
200 51.8 42 19.1 120 60 10 125 80 100 14 320
200 58 50 20 126 75 10 125 80 100 14 420
250 67.4 63.5 31.75 146 90 12 150 110 150 17 800


Pitch Width Between Inner Plates Roller Diameter Pin Plate G attachment Ultimate Tensile Strength
P b1 min d1 max d2 max I max h max T 2X 2C S g o min
mm mm mm m mm mm mm mm mm mm mm mm KN
100 37 36 16 80 40 6 130 96 36 30 13 160
101.6 54 25.4(套) 16 110 40 10 164 134 36 44 12 280
101.6 27 26.5 11.5 70 35 6 120 80 35 35 10 120
152.4 36.5 35 15.5 90 50 8 150 110 80 80 10 200
200 57.6 48.5 19.1 120 75 10 200 160 125 125 12 380
315 68 70 36 147 100 14 250 200 85 85 24 1250

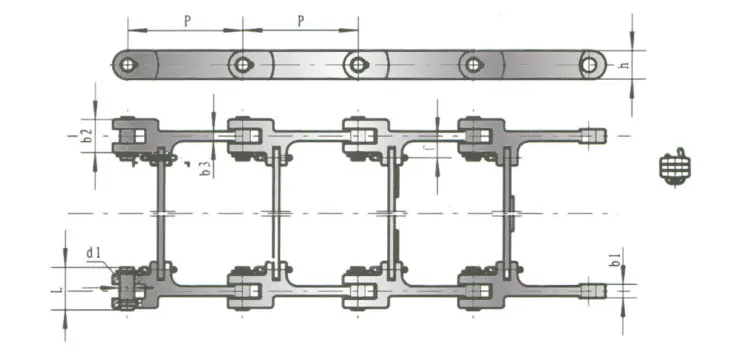

Metallurgical Scraper Chain

P d1(mm) b1(mm) b2(mm) b3(mm) f(mm) L(mm)
142 25 19 43 12.2 35 69


P d1(mm) b1(mm) b2(mm) b3(mm) L(mm)
142 25 29 62 15 82



P d1(mm) h(mm) b1(mm) b2(mm) b3(mm) f(mm) L(mm)
200 25 50 24 58 17 38 75



P d1(mm) h(mm) b1(mm) b2(mm) b3(mm) f(mm) L(mm)
200 32 64 23 50 15 66 69

Metallurgical Conveyor Machine Chain


Pitch Width
Between
Inner
Plates		 Roller
Diameter		 Pin
Diameter		 Plate
Height		 Bending
Height		 Attachment Dimension Weight Per
Meter		 Ultimate
Tensile
Strength		 Note
P b1 d1 d2 h h1 f g d3 Q
mm mm mm mm mm mm mm mm mm kg/m KN Note
150 36 70/85 18 51 51 61 40 9 17.9 160 BTL800
150 45.5 67/75 15 41 40 50 55 12 11.3 160 1000T/H
250 51.4 80/110 19.5 50.8 45 75 125 15 23.2 250 2111
250 37.1 65/80 15.88 44.5 38 60 125 15 14.3 190 2139
250 62 100/125 28 65 60 111 Single Hole 22 33.9 240 21.01
300 108 136/160 50 120 100 150 140 27 87 720 1.03
300 77 125/150 36 80 70 131 Single Hole 27 53.9 370 4.02,14.03

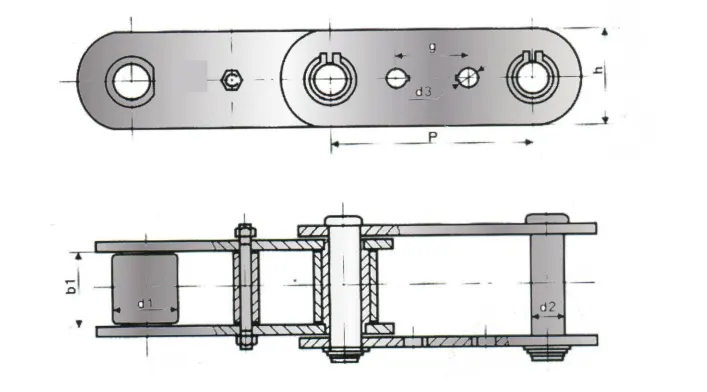

Metallurgical Bucket Lifting Chain


Pitch Width
Between
Inner Plates		 Roller
Diameter		 Pin Diameter Plate Height Attachment Dimension Weight Per
Meter		 Ultimate
Tensile
Strength		 Note
P b1 d1 d2 h f g d3 Q
mm mm mm mm mm mm mm mm kg/m KN
75 30 29 14.5 38.1 75 75 14 11.03 200 /
100 37.1 34.9 16 44.5 100 100 16 14.14 250 /
100 66.3 52 27 80 100 100 18 35.38 650 /
125 57.2 50.8 24 63.5 110 125 22 25.53 650 /
125 66.7 57.2 28 76.2 110 125 18 42.8 800 /
125 70 62 33 90 110 125 18 46.24 1000 /
150 66.7 57.2 28 76.2 140 150 22 37.75 800 /
150 30 31.8 14.5 38.1 75 75 14 8.2 200 /
160 37.1 34.9 16 44.5 75 75 14 11.91 28.5 /
160 56 60 30 82 100 80 14 40 740 TB500
200 37.1 34.9 16 44.5 100 100 16 11.8 250 /
200 52 44.5 19 60 80 100 18 19.55 380 NE100
200 60 50 25 75 100 100 22 26 456 NE100 Strengthen
200 58 48.5 22 74 80(100) 100 18 224 500 NE150
200 57.2 50.8 24 65 100 100 16 20.84 456 /
250 67.4 63.5 31.75 90 80 100 18 / 750 NE200
250 57.5 50 24 64 110 125 18 / 456 NBC600H
250 66.7 57.2 28 76.2 110 125 18 29.88 800 /
300 55 60 30 82 160 120 17 35.73 750 NE400.5a


Pitch Width Between Inner Plates Roller Diameter Pin Diameter Plate Height Attachment Dimension Weight Per Meter Ultimate Tensile Strength Note
P b1 d1 d2 h f g d3 Q
mm mm mm mm mm mm mm mm kg/m KN
75 30 29 14.5 38.1 75 75 14 11.03 200 /
100 37.1 34.9 16 44.5 100 100 16 14.14 250 /
100 66.3 52 27 80 100 100 18 35.38 650 /
125 57.2 50.8 24 63.5 110 125 22 25.53 650 /
125 66.7 57.2 28 76.2 110 125 18 42.8 800 /
125 70 62 33 90 110 125 18 46.24 1000 /
150 66.7 57.2 28 76.2 140 150 22 37.75 800 /
150 30 31.8 14.5 38.1 75 75 14 8.2 200 /
160 37.1 34.9 16 44.5 75 75 14 11.91 28.5 /
160 56 60 30 82 100 80 14 40 740 TB500
200 37.1 34.9 16 44.5 100 100 16 11.8 250 /
200 52 44.5 19 60 80 100 18 19.55 380 NE100
200 60 50 25 75 100 100 22 26 456 NE100 Strengthen
200 58 48.5 22 74 80(100) 100 18 224 500 NE150
200 57.2 50.8 24 65 100 100 16 20.84 456 /
250 67.4 63.5 31.75 90 80 100 18 / 750 NE200
250 57.5 50 24 64 110 125 18 / 456 NBC600H
250 66.7 57.2 28 76.2 110 125 18 29.88 800 /
300 55 60 30 82 160 120 17 35.73 750 NE400.5a
