A rotary cutter gearbox is a gearbox used in a rotary cutter a type of equipment used for mowing or cutting tall grass, weeds, and other vegetation. The gearbox is a critical component of the rotary cutter, as it transmits power from the tractor to the blades that cut the foliage.

The gearbox in a rotary cutter is typically designed to withstand high torque and shock loads that are typical during cutting operations. It is usually made up of gears arranged in a specific configuration to provide the necessary power transmission and speed reduction.

In a typical rotary cutter gearbox, the tractor's power take-off (PTO) drives a horizontal shaft that extends into the gearbox. The gearbox gears are arranged to reduce speed, increasing the torque available to turn the rotary cutter's blades. The blades are responsible for cutting the vegetation and may be placed in various configurations depending on the specific application.

Rotary cutter may be designed with different gear ratios and configurations depending on the specific application and the size of the machine. They may also include additional features such as oil seals and bearings to ensure reliable and long-lasting operation.

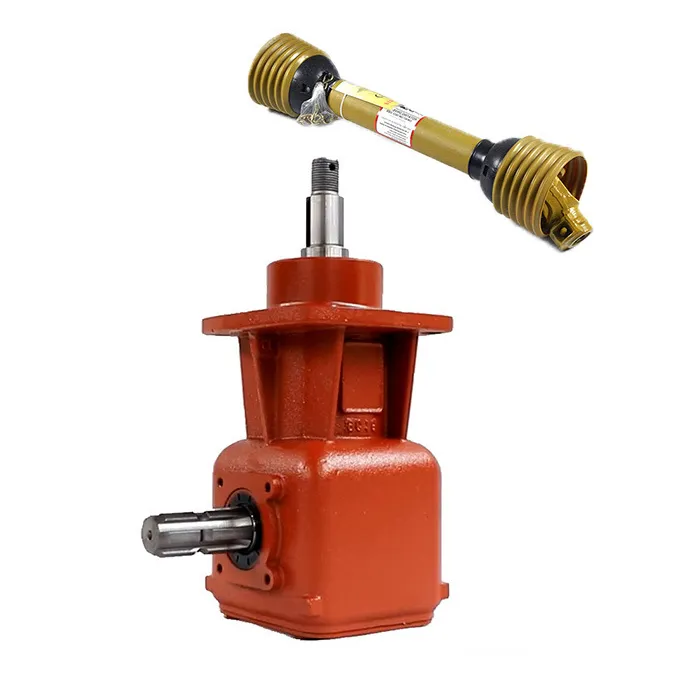

Rotary Cutter Gearbox

Key Components of the Rotary Cutter Gearbox

The tractor PTO driven rotary cutter gearbox comprises several key components, these key components work together seamlessly to transfer power from the tractor's PTO to the rotary cutter's blades, enabling efficient and reliable cutting of vegetation and brush in various agricultural and land management applications. Some of the essential components are:

1. Gears: The gearbox contains a set of precision-engineered gears that transmit rotational power from the tractor's PTO to the cutter blades. These gears are designed to efficiently transfer energy while minimizing friction and wear, ensuring smooth operation and longevity.

2. Input Shaft: This shaft connects directly to the tractor's PTO, serving as the entry point for rotational power into the gearbox. It's engineered to securely attach to the PTO shaft and transmit power without loss or slippage.

3. Output Shaft: Opposite the input shaft, the output shaft extends from the gearbox and connects to the rotary cutter's blades. It's responsible for transferring the rotational energy received from the gears to drive the cutting action of the blades effectively.

4. Bearings: Bearings are crucial components that support the rotating shafts within the gearbox, reducing friction and wear. High-quality bearings ensure smooth and reliable operation while withstanding the significant loads and stresses encountered during cutting operations.

5. Seals: Seals are installed throughout the gearbox to prevent lubricants from leaking out and contaminants from entering, thereby maintaining optimal lubrication and protecting internal components from damage or corrosion.

6. Housing: The gearbox housing encloses and protects all internal components, providing structural integrity and resistance to external forces. It's typically constructed from durable materials such as cast iron or steel to withstand the rigors of heavy-duty cutting applications and environmental conditions.

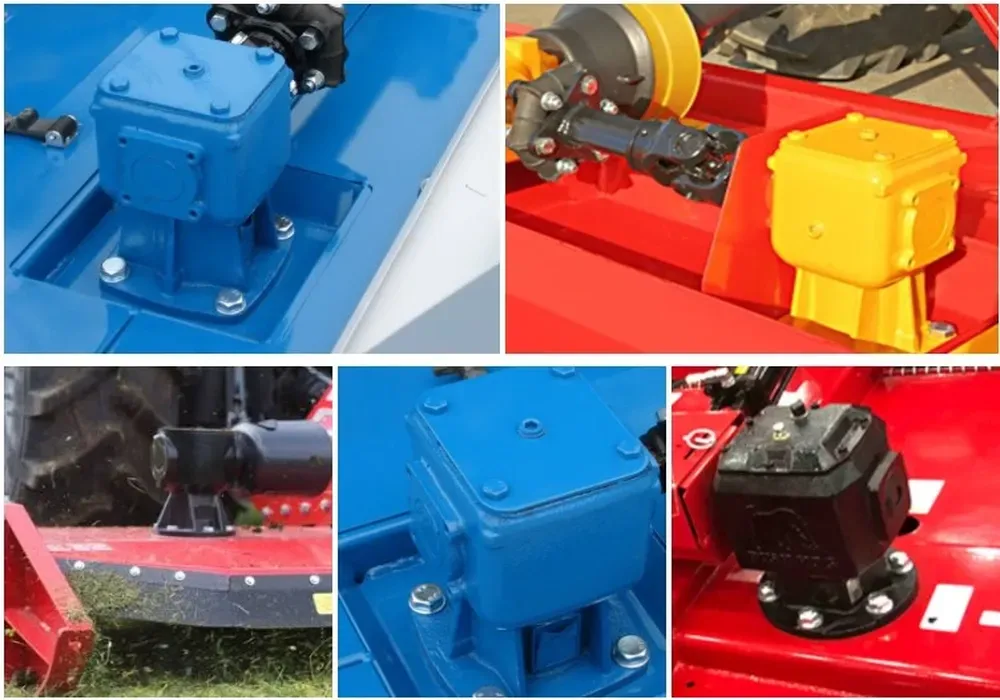

Rotary Cutter Gearbox

Rotary Cutter Gearbox Specifications

Our rotary cutter gearboxes are a powerful replacement option for OMNI Gear, Comer Industries, Bondioli & Pavesi, John Deere, Kubota, Land Pride, Bush Hog, Woods Equipment, Rhino Ag, Schulte Industries, Walterscheid, Case IH, King Kutter, Kuhn and other brands. Our technical staff can reconfigure an existing design or assist you in designing a custom rotary cutter gearbox if a standard or existing design does not fit your application. Shaft rotation, speed ratio, input speed, output speed, input torque, output torque, mounting position, and the application's environment are all considerations when choosing a rotary cutter gearbox.

Model HP Rating Torque Rating (InLbs) Standard Ratios Weight (lbs)
RC-20 15 – 18 1,750 – 3,267 1:2.5, 1:2.83 34
RC-27 25 – 53 2,683 – 6,183 1:2.5, 1:2.83 47
RC-30 24 – 40 2,800 – 4,667 1:1.47, 1:1.71, 1:1.93 51
RC-51 24 – 40 2,800 – 4,667 1:1.47, 1:1.71, 1:1.93 56
RC-61 35 – 72 4,083 – 8,400 1.46:1, 1.21:1, 1:1, 1:1.21 70
RC-71 35 – 83 4,083 – 9,683 1.21:1, 1:1:, 1:1.21, 1:1.46, 1:1.93 83
RC-81 47 – 104 5,483 – 9,683 1.21:1, 1:1:, 1:1.21, 1:1.46, 1:1.92 98
RC-100 53 – 144 6,183 – 16,800 1.21:1, 1:1:, 1:1.21, 1:1.46, 1:1.92 89
RC-100L 53 – 144 6,183 – 16,800 1.21:1, 1:1:, 1:1.21, 1:1.46, 1:1.92 105
RC-130 61 – 171 7,117 – 19,950 1.21:1, 1:1:, 1:1.21, 1:1.46, 1:1.92 109
RC-130L 61 – 171 7,117 – 19,950 1.21:1, 1:1:, 1:1.21, 1:1.46, 1:1.92 120
RC-170 x x 1.21:1, 1:1:, 1:1.21, 1:1.46 x
RC-91 120 – 160 14,000 – 18,667 1.21:1, 1:1.46 191
RC-40T 16 – 23 1,867 – 2,683 1:1.07 45
RC-110 120 – 160 14,000 – 18,667 1.2:1, 1:1.46 140
RC-130T 153 – 262 17,850 – 30,567 1.88:1, 1:1, 1:1.88, 1:1.93 125
RC-130TL 153 – 262 17,850 – 30,567 1.88:1, 1:1.93 176
RC-130TLO 153 – 262 17,850 – 30,567 1.88:1, 1:1.93 173
RC-130TS 133 – 262 17,850 – 30,567 1.88:1, 1:1.93, 1:2.25 165
RC-130TSO 133 – 262 15,517 – 30,567 1.88:1, 1:1.93, 1:2.25 165

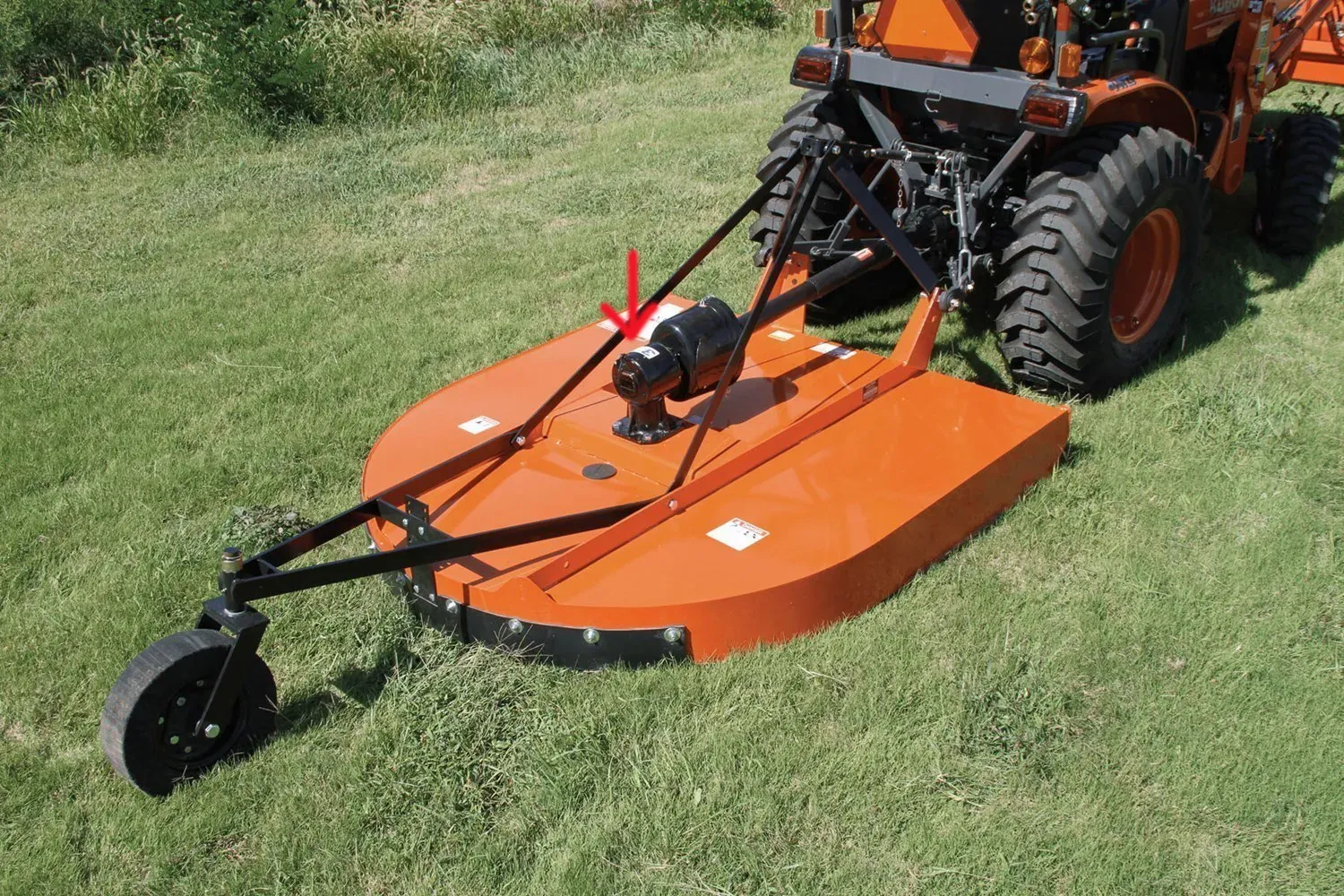

Rotary Cutter Gearbox

The Difference Between “Rotary Cutter Gearbox”, “Rotary Mower Gearbox”, and “Rotary Tiller Gearbox”

The terms “rotary cutter gearbox,” “rotary mower gearbox,” and “rotary tiller gearbox” generally refer to different items, although there may be some overlap in their design and functionality.

A rotary cutter gearbox is typically used in a rotary cutter, which is a type of mowing equipment used to clear grass, brush, and small trees from fields and pastures. The gearbox is the mechanism that transmits power from the tractor to the blades that cut the vegetation. It may have single or multiple output shafts depending on the design of the rotary cutter.

A rotary mower gearbox is similar to a rotary cutter gearbox, but it is typically used in a lawn mower or other types of landscaping equipment. The gearbox is responsible for transmitting power from the engine to the blades that cut the grass or other vegetation. The gearbox may be designed with single or multiple output shafts, depending on the specific application.

A rotary tiller gearbox is used in a rotary tiller, which is a type of farming equipment used to prepare the soil for planting. The gearbox is responsible for transmitting power from the tractor to the tines that till the soil. The gearbox may be designed with single or multiple output shafts, depending on the specific application.

While there may be some similarities in the design and functionality of these gearboxes, they are generally designed and optimized for specific types of equipment and applications.

Rotary Cutter Gearbox Seals 90 HP Lawn Mower Gearbox Rotary Tiller Gearbox
Rotary Cutter Gearbox Rotary Mower Gearbox Rotary Tiller Gearbox

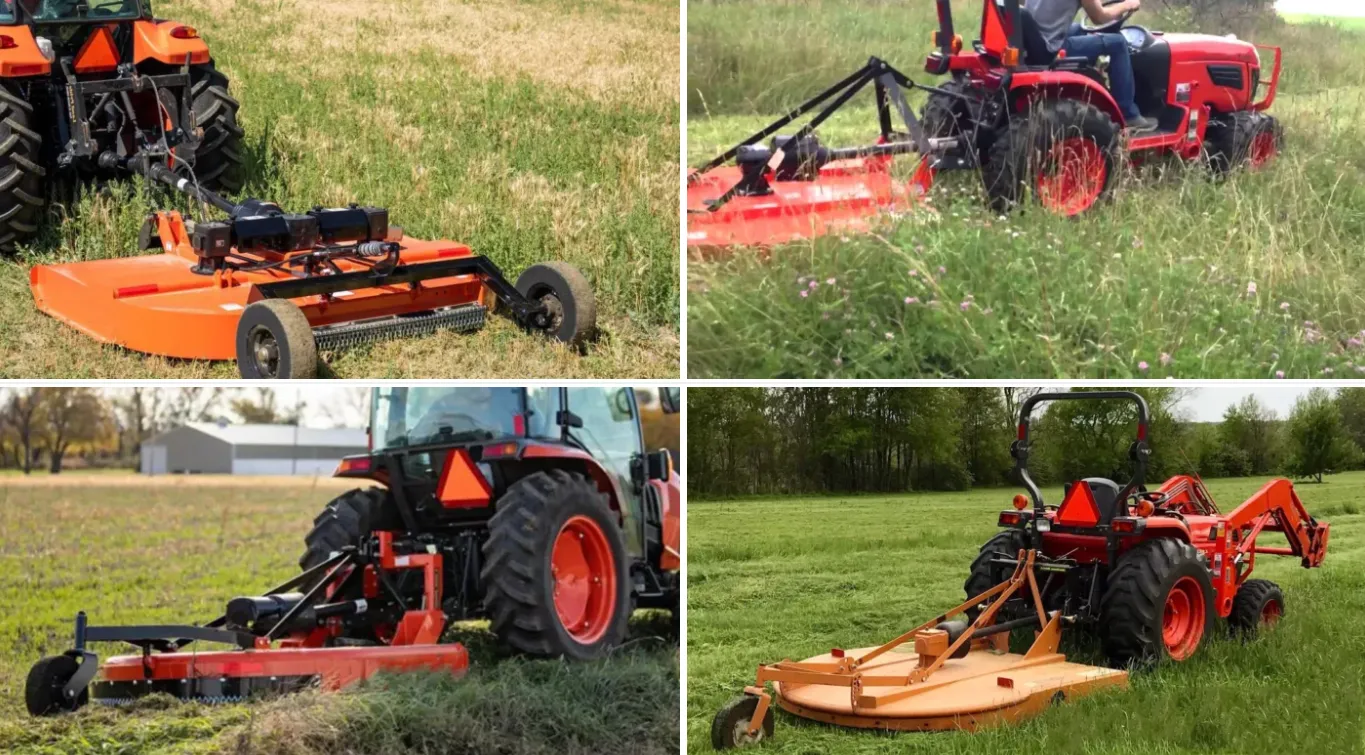

Common Applications of Rotary Cutter Gearbox

PTO driven rotary cutter gearboxes are widely used in agriculture for various tasks related to vegetation management and land maintenance. Some common applications include:

(1) Field Mowing: One of the primary applications of PTO driven rotary cutter gearboxes is field mowing. Farmers use rotary cutters attached to tractors to mow grass and weeds in agricultural fields. This helps maintain tidy fields, prevents weed growth, and improves access for planting, harvesting, and other field operations.

(2) Pasture Management: Pasture maintenance is another common application. Farmers use rotary cutters to mow pastures to control weed growth, maintain a uniform grazing surface, and promote the growth of desirable forage species. Regular mowing improves pasture quality and helps prevent overgrazing.

(3) Roadside Maintenance: Municipalities and highway departments use PTO-driven rotary cutter gearboxes for roadside maintenance. Rotary cutters attached to specialized mowing equipment are used to mow grass and vegetation along roadsides, highways, and rights-of-way. This helps improve visibility for motorists, reduces fire hazards, and prevents overgrowth from encroaching onto road surfaces.

(4) Orchard and Vineyard Maintenance: In orchards and vineyards, rotary cutters are used to maintain vegetation between rows of trees or vines. This helps prevent weed competition, reduces the risk of disease, and improves air circulation and sunlight penetration to the fruit or grape clusters, promoting healthier crop growth.

(5) Clearing Overgrown Areas: PTO driven rotary cutters are effective for clearing overgrown areas, including brush, small trees, and dense undergrowth. Farmers and landowners use rotary cutters to reclaim overgrown pastures, clear fence lines, and prepare land for new construction or agricultural use.

Rotary Cutter Gearbox Applications

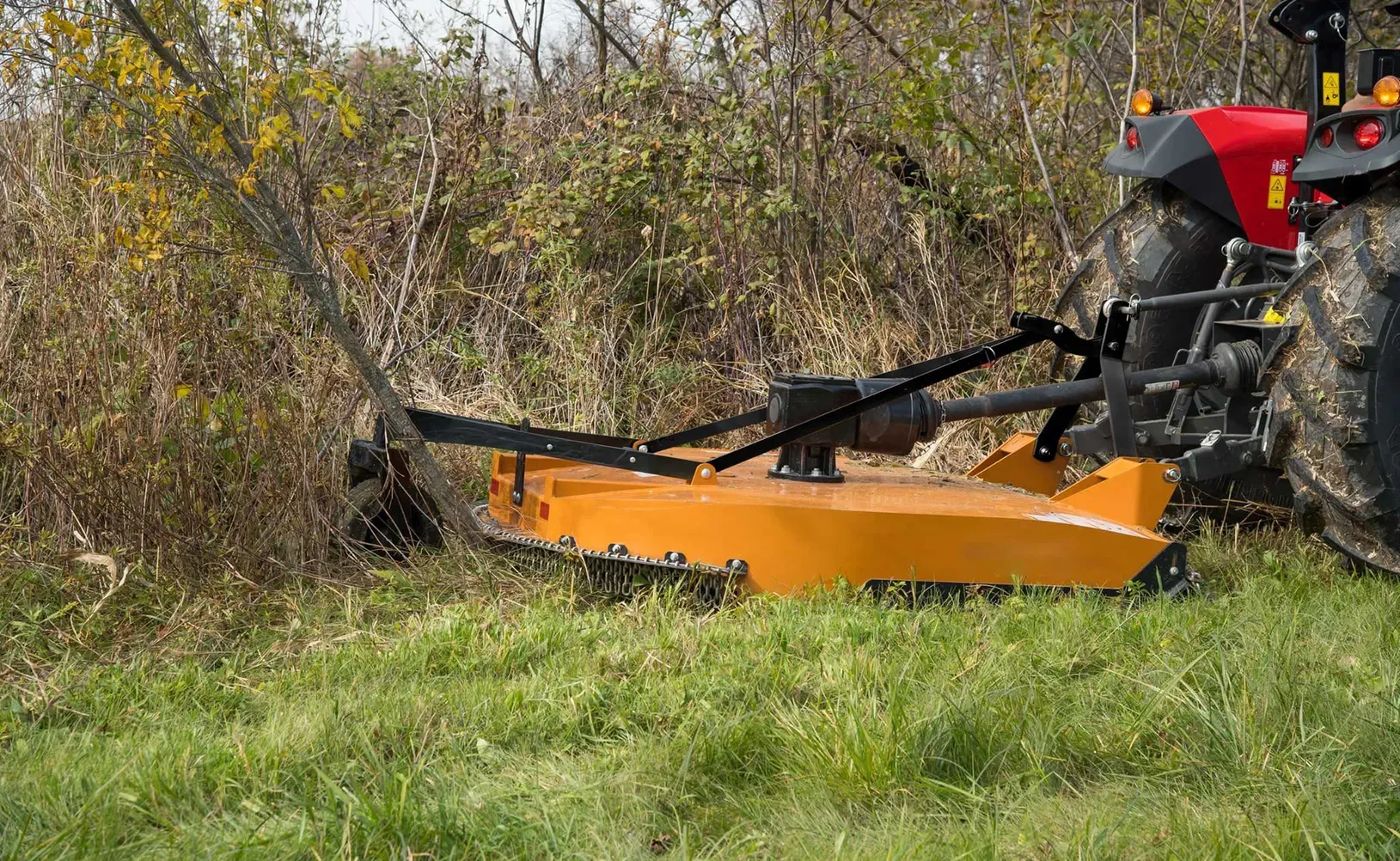

Working Principle of the Rotary Cutter Gearbox

The PTO-driven rotary cutter gearbox works by transmitting and converting mechanical power from a tractor's engine to the blades of a rotary cutter, allowing it to efficiently cut through grass, weeds, and other vegetation. Here's a step-by-step explanation of how this gearbox work:

  • Power Transfer from Tractor to Gearbox: The operation of a PTO-driven rotary cutter gearbox begins with the tractor's PTO shaft. The tractor's engine generates power, which is transmitted through the PTO shaft. This shaft is then connected to the input shaft of the gearbox using a coupling mechanism that ensures efficient power transfer. This step is crucial as it marks the initial phase of mechanical energy transfer from the tractor to the rotary cutter.
  • Gearbox Speed and Torque Modification: Once the power enters the gearbox, it encounters a series of gears designed to modify the input speed and torque according to the needs of the cutting task. The gearbox's gear train adjusts the high rotational speed of the tractor's PTO to a lower speed but higher torque output suitable for effective cutting. This transformation is critical for matching the cutter's requirements with the tractor's output capabilities.
  • Output Shaft Drive: The modified power, now optimized in speed and torque, is transferred to the output shaft of the gearbox. The output shaft then delivers this power directly to the rotary cutter's blade assembly. This shaft is robust and designed to handle the torque and rotational speed necessary to drive the blades through thick grass and weeds efficiently.
  • Blade Rotation for Cutting: Attached to the output shaft are the cutting blades of the rotary mower. As the output shaft rotates, it drives these blades in a powerful spinning motion. The blades are typically made from hardened steel and are arranged in a manner that creates a continuous cutting action as they rotate, effectively slicing through grass and weeds.
  • Adjustment of Cutting Parameters: Operators can adjust certain parameters on the gearbox and rotary cutter to adapt to varying conditions of the grass and weeds, such as density and height. Adjustments can include the gear selection on the gearbox to change the speed of the blades and altering the height of the cutter deck to manage the cutting height

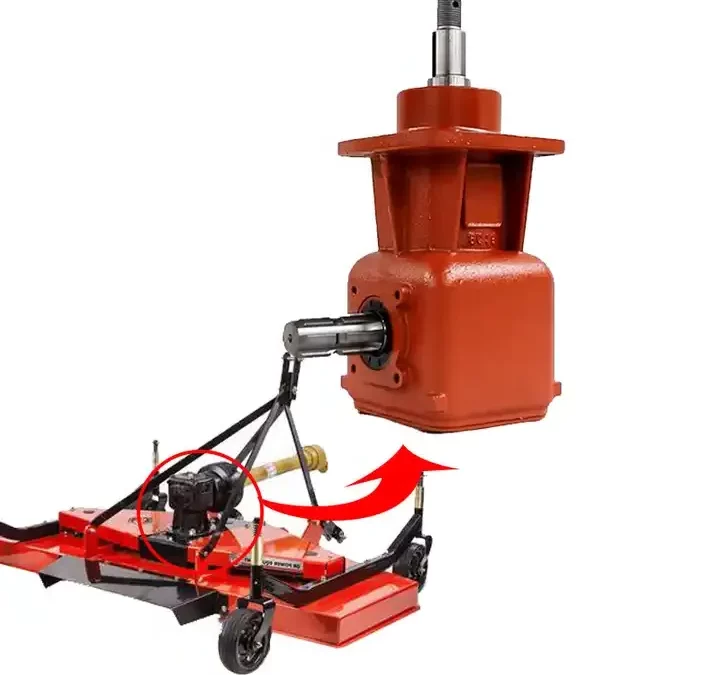

Rotary Cutter Gearbox

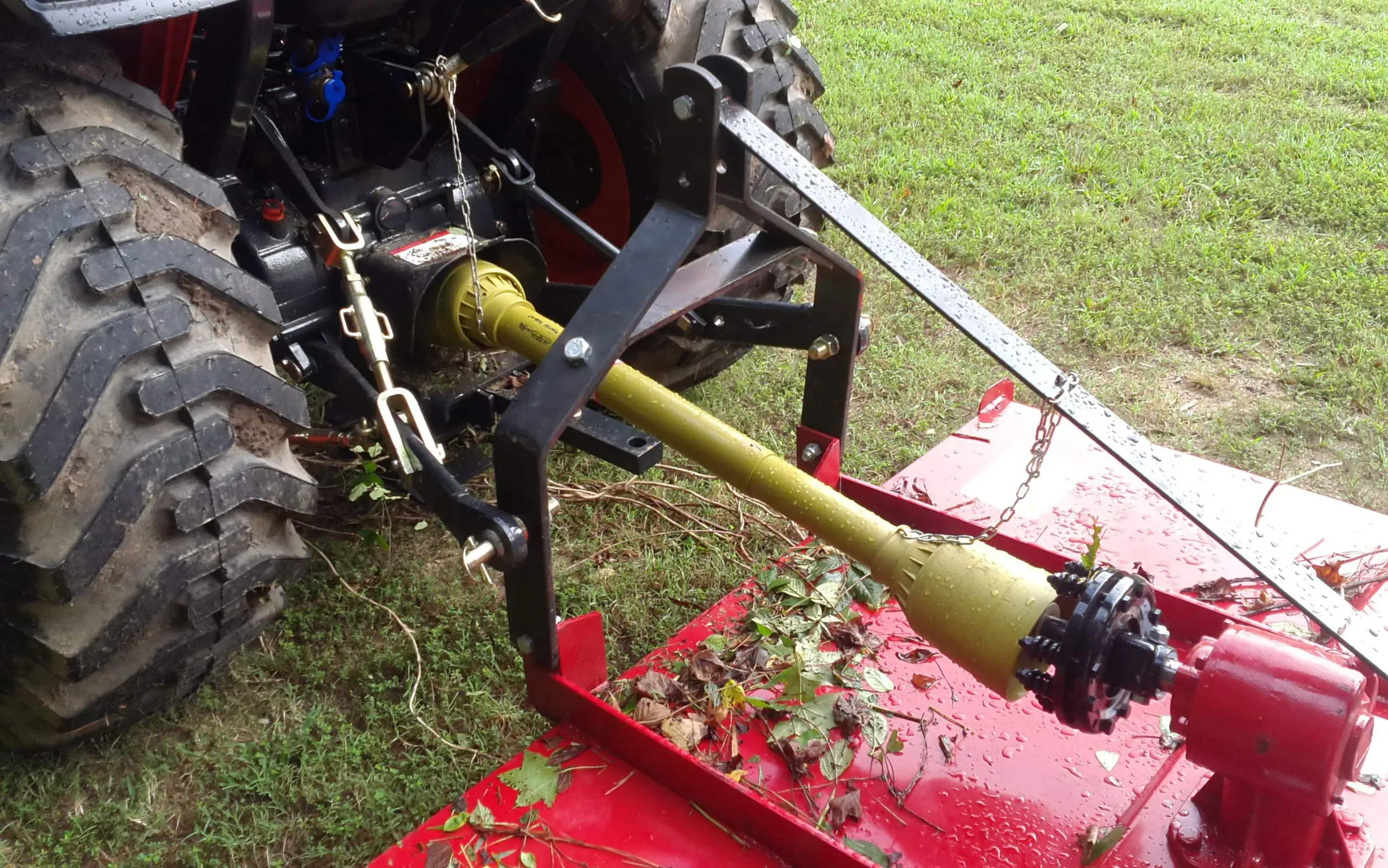

PTO Shafts and Rotary Cutter Gearboxes

A Power Take-Off (PTO) shaft is an essential component used extensively in agricultural machinery to transmit power from a tractor to the equipment it operates. This shaft is crucial for connecting the tractor to implements like rotary cutters, which are used for mowing, clearing brush, and managing vegetation on farms and rural properties.

The PTO shaft extends from the rear of the tractor and connects via a coupler to the implement's drive system, in this case, a rotary cutter gearbox. The shaft is designed to transfer the rotational power generated by the tractor's engine through a series of driveshafts and , which accommodate angular and linear movements.

The rotary cutter gearbox, on the other hand, is an integral part of the rotary cutter. It receives the rotational force from the PTO shaft and uses it to drive the cutter blades. The gearbox typically includes a set of internal gears that reduce the input speed to a suitable level for blade operation, increasing the torque in the process. This reduction is crucial as it allows the blades to cut through thick vegetation effectively without straining the tractor's engine.

Safety is a key consideration with PTO shafts and rotary cutter gearboxes. PTO shafts are equipped with protective shields to prevent entanglement, and gearboxes often include safety features such as shear pins or slip clutches that protect the machinery from damage by disconnecting the drive when the blades hit an obstruction.

Understanding both PTO shafts and rotary cutter gearboxes is essential for their proper use and maintenance. They are fundamental to the efficiency and safety of farming operations, ensuring that power is effectively and safely transmitted from tractors to various implements.

Rotary Cutter Gearbox
Rotary Cutter Gearbox

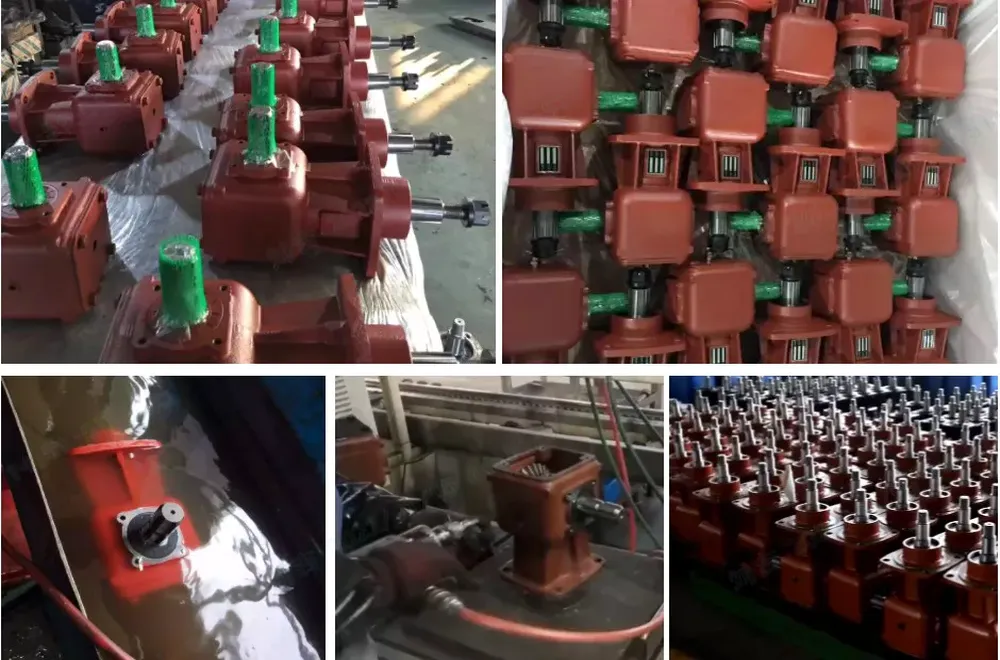

China Rotary Cutter Gearbox Manufacturers

HZPT is a prominent manufacturer of high-performance rotary cutter gearboxes for a variety of applications. As one of the experienced rotary cutter gearbox manufacturers, we offer a variety of high-performance rotary cutter gearboxes to meet your needs. There are several rotary cutter gearboxes for sale on the HZPT. You can find 40 hp rotary cutter gearboxes, 60 hp rotary cutter gearboxes, 75 hp rotary cutter gearboxes, 100 hp rotary cutter gearboxes, rotary cutter gearbox seals 90 hp. You can also find PTO shafts used in agriculture applications. Prices vary depending on the make and model, so be sure to compare prices and features before making your purchase.

We can also offer many types of agricultural gearboxes and PTO shafts, such as rotary cutter gearboxes, rotary tiller gearboxes, feed mixer gearboxes, lawn mower gearboxes, fertilizer spreader gearboxes, flail mower gearboxes, post hole digger gearboxes, corn headers gearboxes, fertilizer mixer gearboxes, round baler gearboxes, square baler gearboxes, irrigation reels gearboxes, manure spreader gearboxes, fertilizer seeder gearboxes, rotary rake gearboxes, cutting bar gearboxes, , etc. If you want to buy a rotary cutter gearbox, please get in touch with us.

Rotary Cutter Gearbox Manufacturers
