Scraper conveyor chain
Scraper conveyor chain is a commonly used chain drive product in the field of bulk material transportation. Scraper conveyor chains have various structural forms and are usually used in heavy-duty, low-speed, continuous conveyor lines in metallurgy, cement, coal, electric power, food, minerals, port machinery, chemical industry and other fields. Compared with belt conveying, scraper chain conveying has obvious advantages in economy, reliability and ease of maintenance.
A scraper conveyor chain is a commonly used chain drive product in the field of bulk material transportation. Scraper conveyor chains have various structural forms and are usually used in heavy-duty, low-speed, continuous conveyor lines in metallurgy, cement, coal, electric power, food, minerals, port machinery, chemical industry, and other fields. Compared with belt conveying, scraper chain conveying has apparent advantages in economy, reliability, and ease of maintenance.
Scraper chain is one of HZPT’s main products. Based on standard scraper chains, Hengjiu Group has developed a series of low-maintenance scraper conveyor chains for customers in steel plants, power stations, cement plants, terminal machinery, automated parking systems, and other industries. Our scraper conveyor chains significantly reduce maintenance frequency and downtime for our customers.
- Specification series 1
- Specification series 2
- Specification series 3
- Specification series 4
- Specification series 5
- Specification series 6

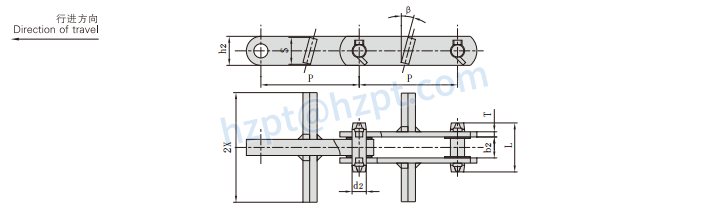

| Chain No. | Pitch | Roller diam eter | Width between nnerphates | Pin diameter | Pin length | Plate depth | Plate thickness | Attachment dimension | Tensile streng th | Weight per meter |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P | d1 m ax | b1 | d2 | L | h2 | T | S | 2X | C | β | Q | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/bf | kg/m | ||
| P152F51 | 152.4 | 40 | 36 | 18.5 | 95.5 | 50.8 | 10 | 175 | 310 | 110 | 20° | 170/38242 | 24.9 |
| P152F221 | 152.4 | 63 | 36.5 | 15.5 | 86 | 20 | 8 | 91 | 240 | - | 0° | 200.0/44960 | 13.5 |
| P152F222 | 152.4 | 36 | 36.5 | 15.5 | 86 | 50 | 8 | 71 | 175 | - | 0° | 200.0/44960 | 12.4 |
| P152F232 | 152.4 | 36 | 36.5 | 15.5 | 86 | 50 | 8 | 100 | 256 | - | 0° | 240.0/53952 | 14.2 |
| Chain No. | Pitch | Width between outerplates b2 | Pin diameter | Pin length | Plate depth | Plate thickness | Attachment dimension | Tensile strength | Weight per meter |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P | d2 | L | h2 | T | S | 2X | C | β | Q | |||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/bf | kg/m | ||
| P150F17A | 150 | 25 | 18.5 | 67.3 | 38.1 | 10 | 115 | 180 | 112 | 15° | 150/33743 | 14.5 |
| P152F45 | 152.4 | 32.5 | 22 | 76 | 45 | 8 | 64 | 326 | 104 | 15° | 260/58489 | 20.4 |
| P152F45A | 152.4 | 32.5 | 22 | 76 | 45 | 8 | 83 | 286 | 106 | 15° | 260/58489 | 20.8 |
| P152F45B | 152.4 | 32.5 | 22 | 76 | 45 | 8 | 64 | 276 | 106 | 15° | 260/58489 | 18 |
| P152F45C | 152.4 | 32.5 | 22 | 76 | 45 | 8 | 64 | 220 | 106 | 15° | 260/58489 | 16.5 |
| P152F47 | 152.4 | 34 | 22 | 85 | 45 | 12 | 81 | 400 | 106 | 15° | 400/89983 | 30.9 |
| P152F194 | 152.4 | 32.5 | 22 | 80 | 45 | 10 | 65.5 | 270 | 105 | 15° | 240.0/50355 | 15.91 |
| PR152F2 | 152.4 | 36.5 | 15.9 | 87 | 45 | 8 | 60 | 180 | 120 | 15° | 253.6/57009 | 13.2 |
| P152F226 | 152.4 | 32.5 | 22 | 80 | 42 | 10 | 76.8 | 270 | 79 | 15° | 260.0/58448 | 20.1 |
| P200F29 | 200 | 40.5 | 35 | 104 | 80 | 13 | 168 | 420 | 112 | 15° | 530/119227 | 50.6 |
| P200F29A | 200 | 40.5 | 35 | 104 | 80 | 13 | 148 | 430 | 112 | 15° | 530/119227 | 53.9 |
| P200F35 | 200 | 33 | 26.5 | 77 | 50 | 10 | 145.5 | 430 | 210 | 15° | 400/89983 | 28.93 |
| Chan No. | Pitch | Width between outerplates | Pin diameter | Pin length | Plate depth | Plate thickness | Attachment dimension | Tensile strength | Weight per meter |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| P | b2 | d2 | L | h2 | T | S | 2X | β | Q | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN/bf | kg/m | ||
| P101.6F20 | 101.6 | 16.5 | 17.46 | 53.7 | 38 | 6 | 34 | 210 | 45° | 100/22496 | 7.26 |
| P150F17C | 150 | 25 | 18.5 | 67.3 | 38.1 | 10 | 36 | 168 | 15° | 150/33743 | 10.6 |
| P152F2 | 152.4 | 33.3 | 22 | 76 | 45 | 8 | 38 | 180 | 20° | 260/58489 | 12.1 |
| P152F45D | 152.4 | 32.5 | 22 | 76 | 45 | 8 | 42 | 170 | 15° | 260/58489 | 13.5 |
| P152F45E | 152.4 | 32.5 | 22 | 76 | 45 | 8 | 42 | 280 | 15° | 260/58489 | 16.2 |
| P152F45F | 152.4 | 32.5 | 22 | 76 | 45 | 8 | 42 | 227 | 15° | 260/58489 | 14.9 |
| P152F46 | 152.4 | 40.8 | 25 | 86 | 50 | 9 | 49 | 290 | 15° | 300/67487 | 20.8 |
| Chain No. | Pitch | Width betw een nnerphtes | Roller diam eter | Pin diam eter | Pin length | Plate depth | Plate thickness | Attachment dimension | Tensile strength | Weight per meter |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P | b1 | d1 | d2 | L | h2 | T | S | 2X | β | Q | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/bf | kg/m | ||
| P152F48 | 152.4 | 37.6 | 36 | 16.5 | 90 | 47 | 8 | 42 | 170 | 15° | 180/40492 | 12.1 |
| RF6205M F3 | 152.4 | 37.1 | 38.1 | 15.9 | 88 | 45 | 8 | 42 | 170 | 15° | 170/38242 | 12.4 |
| Chain No. | Pitch | Width between inner plates | Roller diameter | Pin diameter | Pin length | Inner Plate depth | Plate thickness | Attachment dimension | Tensile strength | Weight per meter |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P | b1 min | d1 | d2 max | Lc max | h2 max | t/T | h4 | S | 2X | t1 | Q | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kg/m | |
| RF6205MF13 | 152.4 | 37.1 | 38.1 | 15.9 | 83.5 | 45 | 8 | 57 | 44 | 240 | 12 | 237.0/53278 | 14.54 |
| Chain No. | Pitch | Width between inner plates | Bush diameter | Pin diameter | Pin length | Plate depth | Plate thickness | Attachment dimension | Tensile strength | Weight per meter | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P | b1 min | d1 max | d2 max | L max | h2 | t / T | C | F | W | d4 | Q | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kg/m | |
| M315F51-B-200 | 200 | 48 | 36 | 25 | 107 | 70 | 10 | 120 | 95 | 145 | 13 | 450/102273 | 21.94 |
| Chain No. | Pitch P mm | Pin diameter d2 m ax mm | Plate dep th h2 mm | Pin Length L mm | Plate th ickness T/t mm | Attachment dimension W mm | Tensile strength Q kN/bf | Weight per meter q kg/m |
||
|---|---|---|---|---|---|---|---|---|---|---|
| MCL267-150-T | 150 | 20 | 46 | 59.3 | 20/10 | 220 | 267/60000 | 11.4 | ||
| Chain No. | Pitch | Width between nnerpltes | Bush diam eter | Pin diam eter | Plate depth | Plate thickness | Attachment dimension | Tensile strength | Weight per meter |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P | b1 | d1 | d2 | h2 | T | F | W mm | d4 | Q | q | ||
| mm | mm | mm | mm | mm | mm | mm | mm | kN/bf | kg/m | |||
| MR112F21-B-100 | 100 | 32 | 21 | 15 | 40 | 6 | 70 | 90 | 11 | 95.2/21413 | 7.45 | |
| Chain No. | P | b1 min | d2 m ax | d5 m ax | h4 | h2 m ax | T m ax | W | Q mi |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | mm | kN/bf | |||
| MR56 | 100 | 125 | - | 24 | 10 | 15 | 20 | 30 | 4 | . | 56.0/12727 |
| MR80 | 100 | 125 | 160 | 28 | 12 | 18 | 25 | 35 | 5 | . | 80.0/18182 |
| MR112 | 100 | 125 | 160 | 32 | 15 | 21 | 35 | 40 | 6 | . | 112.0/25454 |
| MR160 | 100 | 125 | 160 | 37 | 18 | 25 | 40 | 50 | 7 | . | 160.0/36364 |
| MR224 | 125 | 160 | 200 | 43 | 21 | 30 | 44 | 60 | 8 | · | 224.0/50909 |
| MR315 | 160 | 200 | 250 | 48 | 25 | 36 | 50 | 70 | 10 | . | 315.0/71591 |
| FVR40 | 80 | 100 | 125 | 18 | 10 | 15 | 20 | 25 | 3 | . | 42.0/9545 |
| FVR63 | 100 | 125 | 160 | 22 | 12 | 18 | 25 | 30 | 4 | . | 64.0/14545 |
| FVR90 | 100 | 125 | 160 | 25 | 14 | 20 | 30 | 35 | 5 | . | 100.0/22727 |
| FVR112 | 100 | 125 | 160 | 30 | 16 | 22 | 35 | 40 | 6 | . | 120.0/27272 |
| FVR140 | 125 | 160 | 200 | 35 | 18 | 26 | 38 | 45 | 6 | . | 145.0/32954 |
| FVR180 | 125 | 160 | 200 | 45 | 20 | 30 | 44 | 50 | 8 | . | 190.0/43181 |
| FVR250 | 160 | 200 | 250 | 55 | 26 | 36 | 50 | 60 | 8 | . | 275.0/62499 |
| Chain No. | Pitch P | Bush diameter d1 m ax | Width between nnerphtes b1 mi | Pin diameter | Pin length | Tensile strength | Average tensile strength | Weight per m eter | |
|---|---|---|---|---|---|---|---|---|---|
| d2 m ax | L max | Q. m n | Q0 | q | |||||
| mm | mm | mm | mm | mm | kN/bf | kN | kg/m | ||
| PR100F8 | 100.00 | 18.00 | 22.00 | 12.00 | 64.00 | 98.00/22030 | 107.80 | 6.10 | |
| PR100F5 | 100.00 | 18.00 | 22.00 | 12.00 | 62.00 | 98.00/22030 | 107.80 | 5.70 | |
| PR100F3 | 100.00 | 18.00 | 22.00 | 12.00 | 60.00 | 98.00/22030 | 107.80 | 5.20 | |
| PR100F9 | 100.00 | 18.00 | 22.00 | 12.00 | 64.00 | 98.00/22030 | 107.80 | 6.70 | |
| PR100F6 | 100.00 | 18.00 | 22.00 | 12.00 | 62.00 | 98.00/22030 | 107.80 | 6.30 | |
| PR100F4 | 100.00 | 18.00 | 22.00 | 12.00 | 60.00 | 98.00/22030 | 107.80 | 5.70 | |
| Chain No. | G | F | W | K1 | K | h4 | h2 | d4 | tT |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| PR100F8 | 144.00 | 100.00 | 230.00 | - | 210.00 | 25.00 | 35.00 | 10.30 | 6.00 |
| PR100F5 | 144.00 | 100.00 | 230.00 | - | 210.00 | 25.00 | 35.00 | 10.30 | 5.00/6.00 |
| PR100F3 | 144.00 | 100.00 | 230.00 | - | 210.00 | 25.00 | 35.00 | 10.30 | 5.00 |
| PR100F9 | 144.00 | 100.00 | 320.00 | 210.00 | 300.00 | 25.00 | 35.00 | 10.30 | 6.00 |
| PR100F6 | 144.00 | 100.00 | 320.00 | 210.00 | 300.00 | 25.00 | 35.00 | 10.30 | 5.00/6.00 |
| PR100F4 | 144.00 | 100.00 | 320.00 | 210.00 | 300.00 | 25.00 | 35.00 | 10.30 | 5.00 |
| Chain No. | Pitch P mm | Bush diameter d1 max mm | Width between nnerphtes b1 mi mm | Pin diameter | Pin length | Tensile strength | Average tensile trength | Weight per meter |
|
|---|---|---|---|---|---|---|---|---|---|
| d2 max mm | L m ax | Lc m ax | Q mi | Q0 | q | ||||
| mm | mm | kN/bf | kN | kg/m | |||||
| P66.5F1 | 66.5 | 22 | 27 | 12 | 63.3 | - | 120.0/26976 | 132 | 6.1 |
| FVR40F5-P-80 | 80 | 32.0* | 18 | 10 | 36 | 40 | 40.0/8992 | 44 | 3.2 |
| MR22F1-B-100 | 100 | 12 | 12.5 | 8 | 30.6 | 34 | 22.0/4946 | 24.2 | 1.77 |
| MR112F7-S-100 | 100 | 30.0* | 32 | 15 | 64.5 | 69 | 112.0/25179 | 123.2 | 8.95 |
| MR112F8-S-100 | 100 | 30.0* | 32 | 15 | 64.5 | 69 | 112.0/25179 | 123.2 | 9.53 |
| MR160F7-S-100 | 100 | 36.0* | 37 | 18 | 75.7 | 84.7 | 160.0/36000 | 176 | 15.87 |
| MR160F8-S-100 | 100 | 36.0* | 37 | 18 | 75.7 | 84.7 | 160.0/36000 | 176 | 13.8 |
| MR160F11-S-100 | 100 | 36.0* | 37 | 19.6 | 75.7 | 84.7 | 160.0/36000 | 176 | 13.85 |
| MR160F10-B-100 | 100 | 25 | 37 | 19.7 | 75.7 | 84.7 | 160.0/36000 | 176 | 13.16 |
| M80-P100F1 | 100 | 18 | 28 | 12 | 55 | 58.5 | 80.0/18162 | 88 | 5.19 |
| M180-P-100 | 100 | 26 | 28.85 | 18 | 62.5 | - | 180.0/40909 | 198 | 10.25 |
| FVR40F4-B-100 | 100 | 15 | 18 | 10 | 40 | 43.5 | 40.0/8992 | 44 | 2.88 |
| FVR40F6-B-100 | 100 | 15 | 18 | 10 | 36 | 40 | 40.0/8992 | 44 | 2.1 |
| FVR63F2-B-100 | 100 | 18 | 22 | 12 | 46 | 50 | 64.0/14387 | 70.4 | 3.7 |
| FVR63F3-B-100 | 100 | 18 | 22 | 12 | 46 | 50 | 64.0/11240 | 70.4 | 3.9 |
| FVR90F8-B-100 | 100 | 20 | 25 | 14 | - | 56.4 | 65.0/14612 | 71.5 | 7.8 |
| MR112F19-B-100 | 100 | 21 | 32 | 15 | 64.5 | 69 | 112.0/27272 | 123.2 | 8.3 |
| MR160F16-S-100 | 100 | 36.0* | 37 | 18 | 75.7 | 84.7 | 160.0/36000 | 176 | 13.7 |
| MR160F20-S-100 | 100 | 25 | 37 | 18 | 75.7 | 84.7 | 160.0/36000 | 176 | 13.74 |
| P100F16 | 100 | 23 | 28 | 16 | 66 | - | 115.0/26136 | 127 | 6.6 |
| P101.6 | 101.6 | 44.5 | 50.8 | 23.84 | 136.5 | - | 600.0/136362 | 660 | 34.96 |
| PR101.6F1 | 101.6 | 24.6 | 50.8 | 15.88 | 98 | 103 | 180.0/40909 | 198 | 12.1 |
| MR224F1-S-125 | 125 | 42.0* | 43 | 21 | 85 | 91 | 224.0/50357 | 246.4 | 17.92 |
| M310-P-125 | 125 | 40.0* | 52 | 20 | 103.4 | 109.4 | 303.8/6945 | 334 | 19.88 |
| M310F1-P-125 | 125 | 40.0* | 52 | 20 | 103.4 | 109.4 | 303.8/69045 | 334 | 24.88 |
| Chain No. | G | F | W | K | h4 | h2 | d4 | T |
|---|---|---|---|---|---|---|---|---|
| m m | mm | mm | mm | mm | mm | mm | mm | |
| P66.5F1 | 112 | 100 | 160 | - | 28.75 | 29 | 13.0x25.0 | 6 |
| FVR40F5-P-80 | 104 | - | 80 | - | 20 | 25 | - | 3 |
| MR22F1-B-100 | 132.7 | - | 150 | - | 16.4 | 22 | - | 3 |
| MR112F7-S-100 | 160 | 120 | 235 | 205 | 35 | 40 | 12 | 6 |
| MR112F8-S-100 | 160 | - | 285 | - | 35 | 40 | - | 6 |
| MR160F7-S-100 | 170 | 125 | 386 | 356 | 40 | 50 | 12 | 7 |
| MR160F8-S-100 | 170 | 115 | 235 | 205 | 40 | 50 | 18 | 7 |
| MR160F11-S-100 | 170 | 115 | 235 | 205 | 40 | 50 | 19.7 | 7 |
| MR160F10-B-100 | 170 | 140 | 290 | 260 | 40 | 50 | 19.7 | 7 |
| M80-P100F1 | 145.5 | - | 180 | - | 25 | 35 | - | 5 |
| M180-P-100 | 163 | - | 185 | - | 35 | 50 | - | 6 |
| FVR40F4-B-100 | 134.5 | - | 200 | - | 20 | 25 | - | 4 |
| FVR40F6-B-100 | 140 | - | 130 | - | 25 | 25 | - | 3 |
| FVR63F2-B-100 | 142.5 | - | 190 | - | 25 | 30 | - | 4 |
| FVR63F3-B-100 | 142.5 | - | 230 | - | 25 | 30 | - | 4 |
| FVR90F8-B-100 | 145 | - | 250 | - | 25 | 35 | - | 5 |
| MR160F20-B-100 | 165 | - | 280 | - | 40 | 50 | - | 7 |
| PR101.6F1 | 165.8 | 134 | 223 | 196 | 40 | 38.1 | 11.1 | 9.7 |
| MR80F5-B-125 | 170 | - | 280 | - | 25 | 35 | - | 5 |
| P100F16 | 143 | 91.8 | 180 | 159.8 | 25 | 36 | 6.5 | 6 |
| P101.6 | 198.6 | - | 206.5 | - | 62 | 60 | - | 14.5 |
| MR80F7-B-125 | 170 | 91.5 | 180 | 156.5 | 25 | 35 | 6.6 | 5 |
| MR224F1-S-125 | 203 | - | 235 | - | 44 | 60 | - | 8 |
| M310-P-125 | 195 | - | 270 | - | 35 | 55 | - | 10 |
| M310F1-P-125 | 195 | - | 560 | - | 35 | 55 | - | 10 |
| Chain No. | Pitch P mm | Bush diameter d1 max mm | Width between nnerplates | Pin diameter | Pin length | Tensile strength | Average tensile treng th | Weight per m eter |
|
|---|---|---|---|---|---|---|---|---|---|
| b1 m i mm | d2 m ax mm | L m ax mm | Lc m ax mm | Q m in | Q0 | q | |||
| kN/bf | kN | kg/m | |||||||
| FVR90F1-B-125 | 125 | 20 | 25 | 14 | 52 | 56.4 | 150.0/33743 | 165 | 6.16 |
| P125F3 | 125 | 25 | 36 | 18 | 82 | - | 220.0/49999 | 242 | 11.17 |
| P125F4 | 125 | 25 | 36 | 18 | 82 | - | 220.0/49999 | 242 | 9.83 |
| MR80F5-B-125 | 125 | 18 | 28 | 12 | 55 | 58.5 | 80.0/18162 | 88 | 5.24 |
| MR80F7-B-125 | 125 | 18 | 28 | 12 | 55.4 | 60 | 80.0/17984 | 88 | 5 |
| MR80F8-B-125 | 125 | 18 | 28 | 12 | 59.4 | 64 | 112.0/27272 | 123.2 | 6.3 |
| MR112F11-B-125 | 125 | 25 | 20 | 19.05 | 49 | 56 | 112.0/27272 | 123.2 | 5.71 |
| MR112F18-B-125 | 125 | 21 | 32 | 15 | 64.5 | 69 | 112.0/27272 | 123.2 | 7.6 |
| MR160F13-B-125 | 125 | 25 | 37 | 18 | 75.7 | 84.7 | 160.0/36000 | 176 | 7.9 |
| MR160F18-B-125 | 125 | 25 | 37 | 18 | 75.7 | 84.7 | 160.0/36000 | 176 | 11.9 |
| MR112F20-B-125 | 125 | 21 | 32 | 15 | - | 72.5 | 112.0/27272 | 123.2 | 8.52 |
| M310F1-P-150 | 150 | 40.0* | 52 | 20 | 103.4 | 109.4 | 303.8/69045 | 334 | 19.13 |
| PR150F3 | 150 | 30 | 38 | 21 | - | 83 | 200.0/44960 | 220 | 12.4 |
| FVR112F4-P-150 | 150 | 46.0* | 20 | 16 | 52 | 56 | 112.0/25454 | 123.2 | 6.6 |
| MR112F15-B-150 | 150 | 21 | 32 | 15 | 64.5 | 69 | 112.0/27272 | 123.2 | 6.95 |
| MR112F16-B-150 | 150 | 21 | 32 | 15 | 64.5 | 69 | 112.0/27272 | 123.2 | 6.69 |
| FVR112F3-B-155 | 155 | 22 | 65 | 16 | 109 | - | 120.0/26977 | 132 | 7.13 |
| MR160F4-S-160 | 160 | 36.0* | 37 | 18 | 85 | - | 160.0/36000 | 176 | 11.39 |
| FVR180F2-B-160 | 160 | 30 | 49 | 20 | 91 | 97 | 250.0/56203 | 275 | 15.53 |
| P160F12 | 160 | 50.0* | 34 | 20 | 77.8 | - | 160.0/35993 | 176 | 10.3 |
| MR80F3-B-160 | 160 | 18 | 28 | 12 | 55 | 58.5 | 80.0/18162 | 88 | 4.9 |
| MR450F1-S-200 | 200 | 60.0* | 56 | 30 | 119 | 132 | 450.0/101165 | 495 | 35.23 |
| Chain No. | G | F | W | K | h4 | h2 | d4 | T |
|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | mm | |
| FVR90F1-B-125 | 175 | 90 | 290 | 270 | 30 | 40 | 9 | 5 |
| P125F3 | 190 | 139.5 | 290 | 259.5 | 35 | 51 | 8.5 | 6 |
| P125F4 | 190 | 119.5 | 220 | 191.5 | 35 | 51 | 8.5 | 6 |
| MR160F16-S-100 | 170 | 118 | 235 | 208 | 40 | 50 | 12 | 7 |
| MR80F8-B-125 | 175 | 92 | 280 | 252 | 30 | 35 | 6.5 | 6 |
| MR112F11-B-125 | 184 | 90 | 190 | 160 | 35 | 40 | 7 | 5 |
| MR112F18-B-125 | 185 | - | 235 | - | 35 | 40 | - | 6 |
| MR112F19-B-100 | 185 | - | 235 | - | 35 | 40 | - | 6 |
| MR112F20-B-125 | 185 | - | 240 | - | 35 | 40 | - | 6 |
| MR160F13-B-125 | 195 | - | 230 | - | 40 | 50 | - | 7 |
| MR160F18-B-125 | 195.5 | - | 320 | - | 40 | 50 | - | 7 |
| M310F1-P-150 | 220 | - | 350 | - | 40 | 50 | - | 10 |
| PR150F3 | 234 | 98 | 210 | 250 | 50 | 56 | 11 | 8 |
| FVR112F4-P-150 | 203 | 83 | 109 | - | 28 | 40 | 10 | 6 |
| MR80F3-B-160 | 205 | - | 320 | - | 25 | 35 | - | 5 |
| MR112F15-B-150 | 210 | 120 | 280 | 240 | 35 | 40 | 9 | 6 |
| FVR112F3-B-155 | 207.5 | - | 250 | - | 30 | 40 | - | 6 |
| MR160F4-S-160 | 248.5 | 140 | 300 | 250 | 63.5 | 50 | 18 | 7 |
| FVR180F2-B-160 | 230 | 248 | 368 | 308 | 35 | 60 | 8 | 8 |
| P160F12 | 230 | - | 214.5 | - | 40 | 50 | - | 6 |
| MR112F16-B-150 | 210 | 100 | 240 | 200 | 35 | 40 | 9 | 6 |
| MR450F1-S-200 | 307 | - | 488 | - | 60 | 80 | - | 12 |
| Chain No. | Pitch | Bush diameter | Width between nnerphates | Pin diameter | Pin length | Tensile strength | Average tensile trength | Weight per meter |
|
|---|---|---|---|---|---|---|---|---|---|
| P | d1 m ax mm | b1 mi | d2 m ax | Lc m ax | Q m i | Qo | q | ||
| mm | mm | mm | mm | kN/bf | kN | kg/m | |||
| PR150F4 | 150 | 36 | 60 | 18 | 106 | 160.0/35968 | 176 | 11.5 | |
| P150F147 | 150 | 36 | 55 | 25.4 | 116 | 330.0/74184 | 330 | 27.8 | |

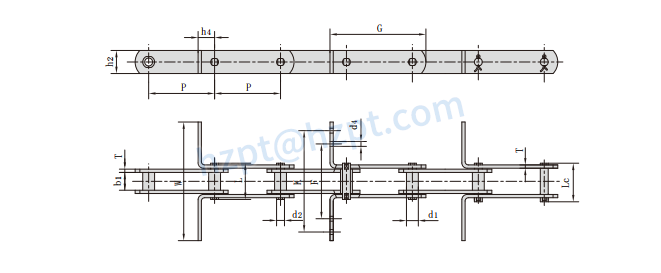

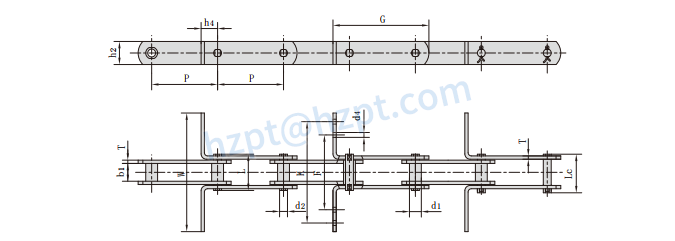

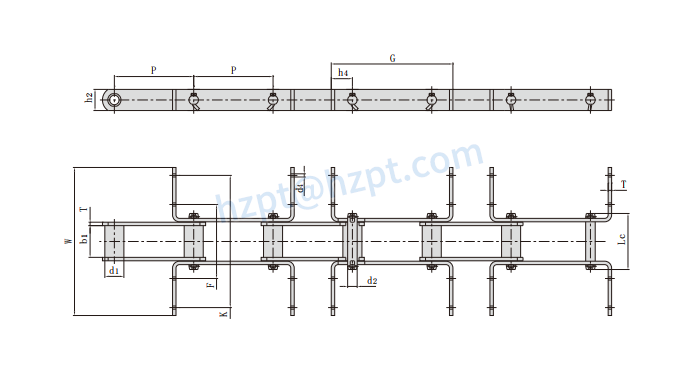

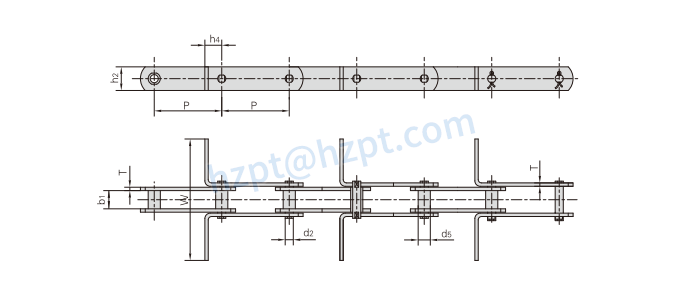

| Chain No. | G | F | W | K | h4 | h2 | d4 | T |
|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | mm | |
| PR150F4 | 230 | 140 | 280 | 250 | 40 | 40 | 6 | 6.5 |
| P150F147 | 236 | - | 380 | - | 43 | 60 | - | 8 |

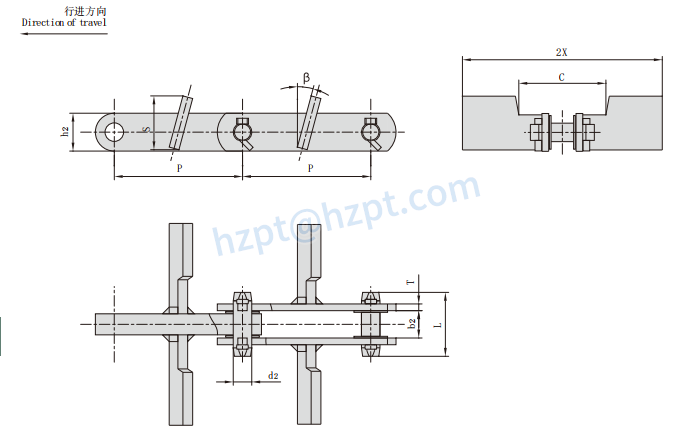

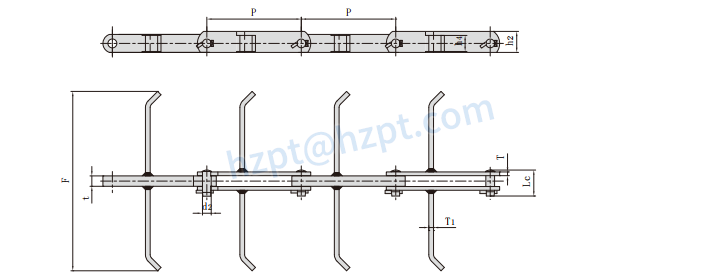

| Chain No. | Pitch P mm | Pin diameter d2 m ax mm | Pin length Lc max mm | Inner plate depth h2 m ax mm | Plate th ickness t/T m ax mm | Attachment dimension F h4 0 mm mm mm | Tensile strength Q mn kN/bf | Average tensile streng th Qo m i mm | Weight per meter q kg/m |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BC150F1 | 150 | 18.95 | 60 | 44.5 | 22.0/7.9 | 185 | 36 | 20° | 280.6/63081 | 308.7 | 8.9 | |

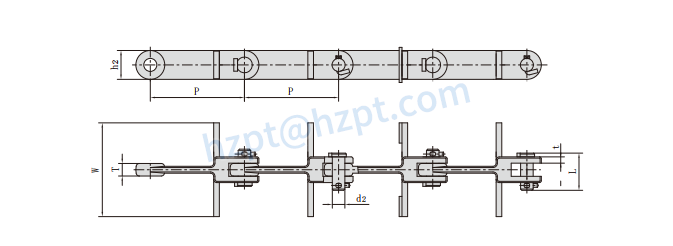

| Chain No. | Pitch | Pin diameter | Pin length | Inner plate depth | Plate thickness | Attachment dimension | Tensile strength | Average tensile streng th | Weight per m eter |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P | d2 m ax | Lc max | h2 m ax | t/T m ax | F | T1 | h4 | Q mi | Qo mn | q | ||
| mm | mm | mm | mm | mm | mm | mm | mm | kN/bf | mm | kg/m | ||
| BC200F5 | 200 | 18.5 | 56 | 44.5 | 22.0/7.9 | 380 | 10 | 34 | 280.6/63081 | 308.7 | 11.9 | |

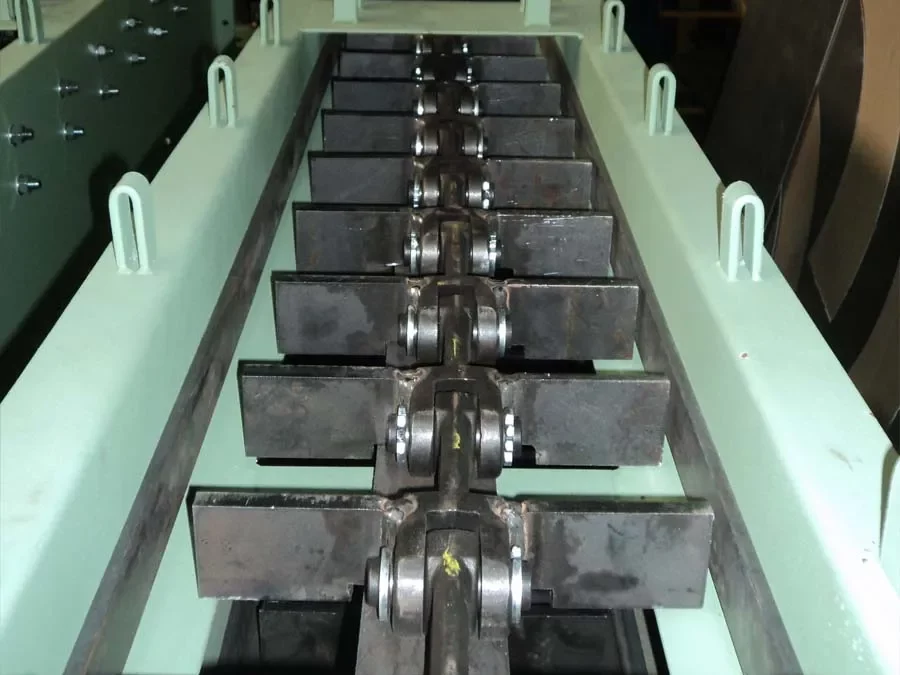

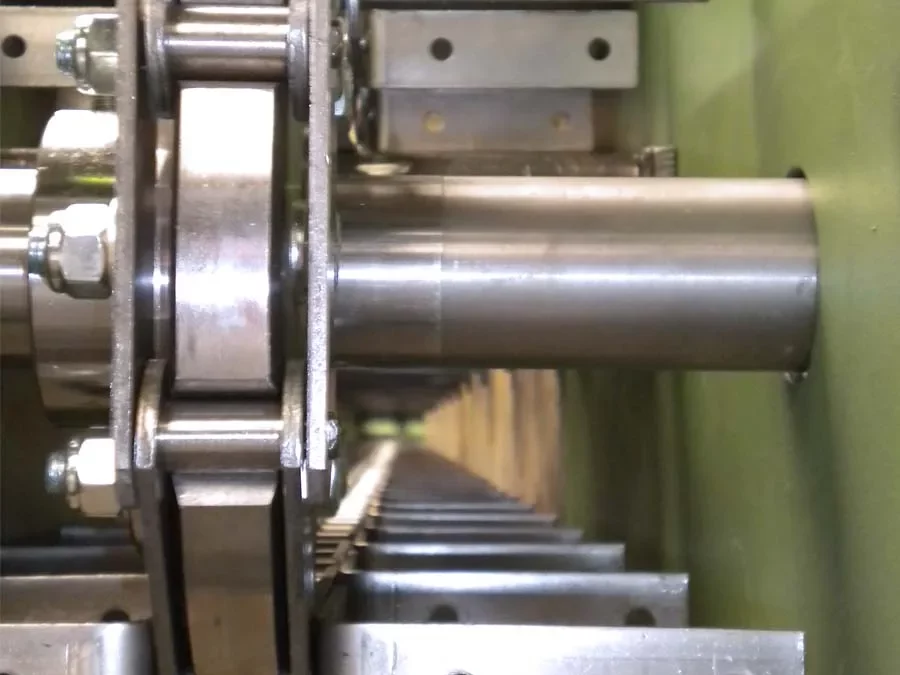

Features of Scraper Conveyor Chains
Scraper conveyor chains are designed for durability, efficiency, and versatility, making them suitable for a wide range of industrial applications. These chains are a critical component of scraper conveyors, which are used to transport bulk materials across a variety of industries, including mining, agriculture, waste management, and more. Here are some key features that make scraper conveyor chains particularly effective and reliable:
Robust Construction
- Scraper conveyor chains are built to withstand harsh conditions, including exposure to abrasive materials, high loads, and potentially corrosive environments. They are typically made from high-strength steel or other durable materials to ensure longevity and reliability.
High Tensile Strength
- These chains are designed to carry heavy loads over long distances without stretching or breaking. Their high tensile strength is crucial in applications involving the movement of bulky or heavy materials, such as in mining or construction.
Versatility in Material Handling
- These chains can transport a wide range of materials, from fine powders to large, bulky items. They are capable of handling materials that are hot, abrasive, or corrosive, making them suitable for diverse industrial applications.
Energy Efficiency
- Scraper conveyors, driven by these chains, are generally more energy-efficient compared to other types of conveyors. They can move large amounts of material with relatively low power consumption, especially in applications where materials need to be moved horizontally or at a slight incline.
Safety and Reliability
- Scraper conveyor chains are designed to provide a reliable conveying solution with minimal risk of spillage or leakage. This not only helps maintain a clean working environment but also reduces the risk of accidents associated with material spillage.
Compatibility with Automated Systems
- Many scraper conveyor chains are designed to work seamlessly with automated control systems, allowing for precise control over the movement and distribution of materials. This integration is crucial for optimizing production processes and enhancing efficiency in modern industrial operations.
The features of scraper conveyor chains underscore their importance in efficient material handling across various industries. Their robust construction, high tensile strength, and resistance to wear and corrosion ensure they can handle the demanding conditions of industrial environments. With the ability to customize these chains for specific applications and materials, alongside their compatibility with automated systems, scraper conveyor chains are a key component in optimizing production and enhancing operational efficiency.

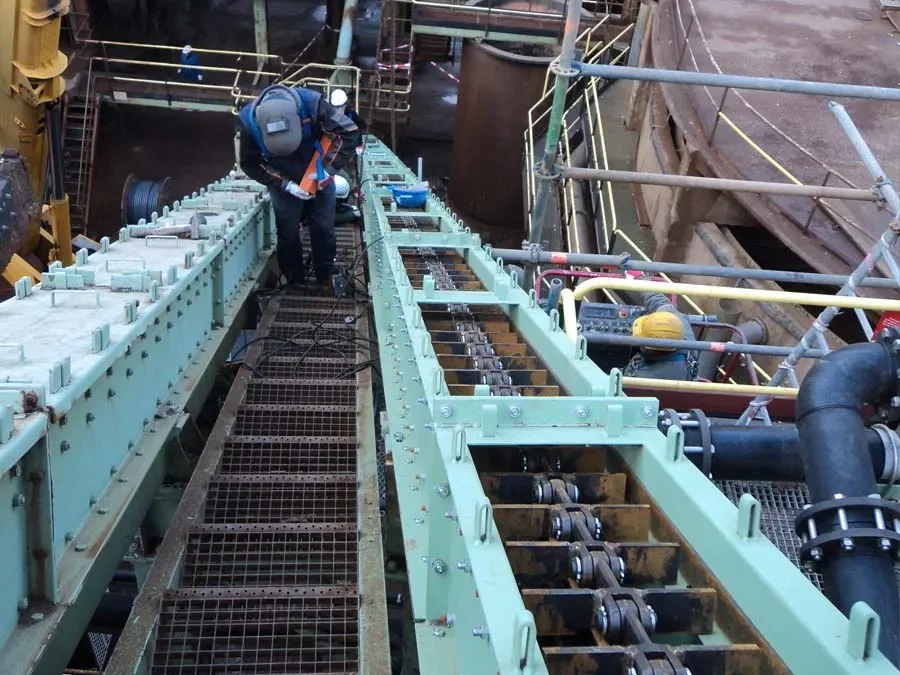

Application of Scraper Conveyor Chains
Scraper conveyor chains are a critical component in the design of scraper conveyors, which are used to transport various materials in bulk across a flat or slightly inclined plane. These conveyors are especially popular in industries where materials need to be moved efficiently over short to medium distances. The application of scraper conveyor chains spans several sectors, including but not limited to:
Mining Industry
In the mining industry, scraper conveyor chains are used to transport coal, minerals, and other mined materials from the mining face to the processing site or to transportation systems. These conveyors are favored for their ability to handle rough, abrasive materials and for their durability in harsh environments.
Agriculture
In agriculture, these conveyor chains are used for moving grains, feed, and other bulk agricultural products. They are instrumental in the grain handling processes at silos, grain elevators, and processing plants, helping to move large quantities of material efficiently and safely.
Waste Management
Scraper conveyor chains play a vital role in waste management facilities by transporting waste materials for recycling, composting, or disposal. They are particularly useful for moving bulky or irregularly shaped items that might be difficult to transport using other types of conveyors.
Food Processing
In the food processing industry, scraper conveyors are used to transport bulk ingredients, like grains, sugar, and powders. They are designed to handle delicate materials gently to prevent damage during transport. Stainless steel or food-grade materials are often used for conveyor chains in this industry to meet hygiene standards.
Chemical Industry
These conveyors are also utilized in the chemical industry for moving bulk chemicals, including powders, granules, and pellets. The design can be adapted to handle corrosive or hazardous materials safely, with chains made from materials resistant to chemical degradation.

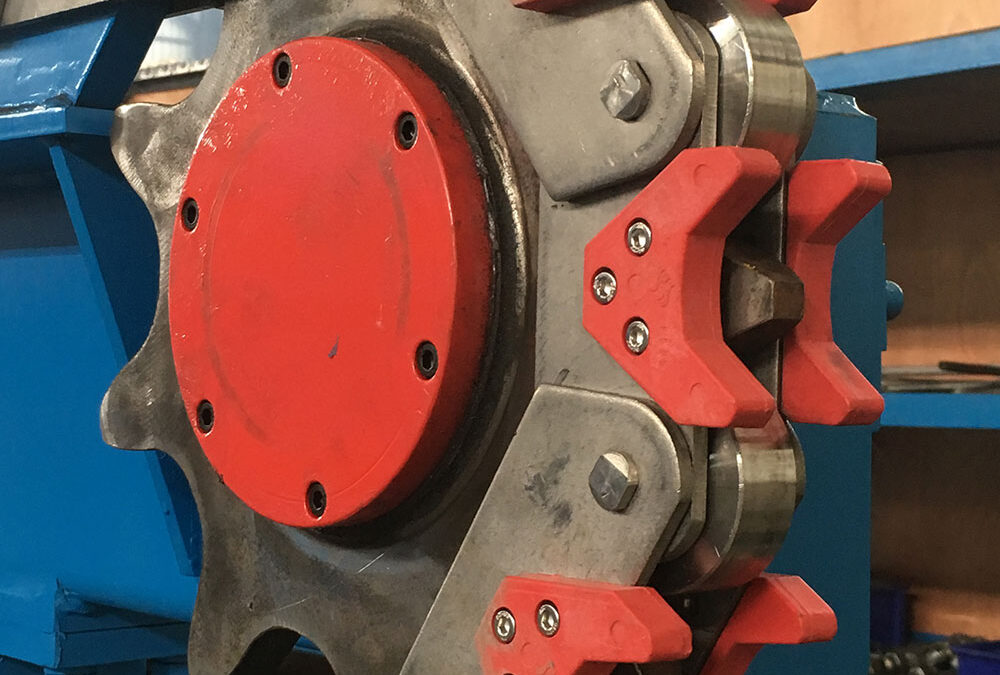

Construction and Cement Industry
Scraper conveyor chains are used in the construction and cement industry to transport raw materials like limestone, clay, and gypsum. They are also used for moving cement and mixed materials in cement production plants.
About HZPT
HZPT focuses on metal parts solutions such as chains, drive shafts, agricultural machinery, construction machinery, transportation equipment, valves and pump systems. Chain products include engineering chains, roller chains, leaf chains, etc.
By keeping manufacturing process design, quality planning, critical manufacturing processes and final quality control in-house, we are developing key capabilities to provide quality machine parts and assemblies to customers in China and export markets.
In order to meet the different mechanical and functional requirements of our customers, we produce various metal products for our customers based on different blank solutions and technologies.
During our early involvement in our clients’ design processes, we provide them with expert advice on process feasibility, cost reduction, and functional approaches.
We adhere to the corporate spirit of professionalism, pragmatism, innovation and quality to create a Hangzhou Wo brand with high precision, longevity, high strength and high customer trust.
