TNE Series High Precision Planetary Gearbox

TNE series: Precision reducer with helical tooth structure. High torque, high rigidity, high-precision output (high efficiency, low noise), low backlash. High positioning accuracy. Equipped with servo and stepper motor for deceleration

• Product Backgap: P2- Standard Backgap P1- Precision Backgap
• Single stage speed ratio; 3-10
• Dual speed ratio; 12-100

TNE Series Product Features

1. The overall design allows for high-speed input from the servo motor to achieve maximum torque output. Precision gear design and processing, with the characteristics of low operating backlash, high efficiency, low noise, and long service life.
2. The advantages of miniaturizing motor power while improving the stability of inertial loads and reducing vibration.

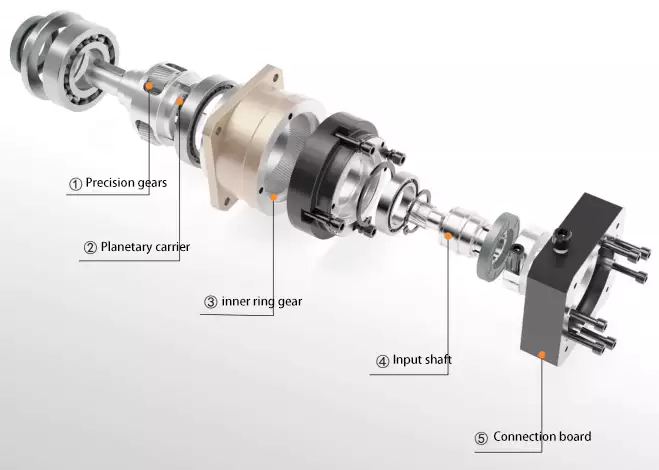

Internal Structure

Performance Parameter
