Winch Drive


Winch drive is a common mechanical transmission device widely used in various devices for tensioning, lifting, towing, or releasing loads.


winch drive planetary gearbox
Winch drive
Winch Drive Gearbox is a precision and high load capacity mechanical transmission device mainly used to provide power conversion and torque amplification functions for the winch system. It achieves effective torque transmission from the input end to the output end through the integration of an efficient gear structure, and ensures low backlash performance under high-intensity operating conditions, thereby ensuring precise control and stable operation of the winch action.

This type of gearbox typically adopts complex gear designs such as planetary or helical to achieve the goals of high torque, small volume, and compact structure. It contains one or more sets of mechanisms, which have good self-locking function and dynamic load distribution characteristics, and can effectively reduce reverse impact and swing generated during tensioning or traction, which is crucial for improving the safety and durability of winch operation.

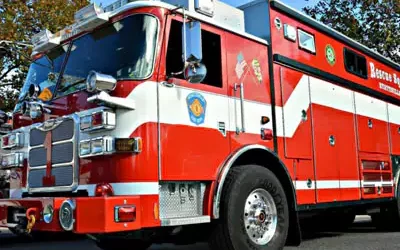

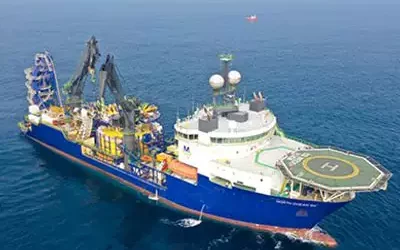

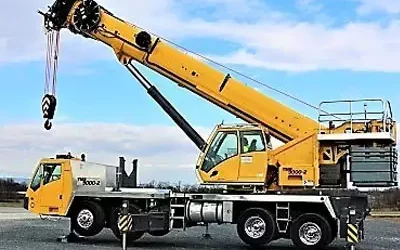

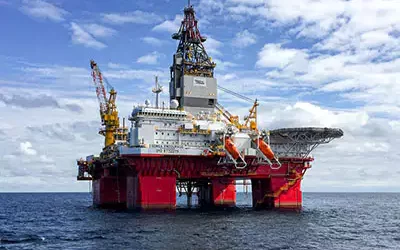

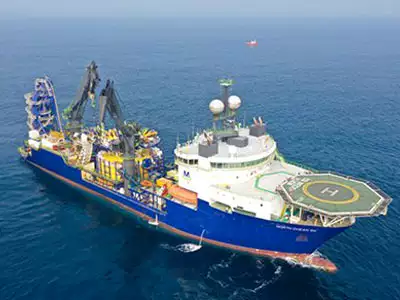

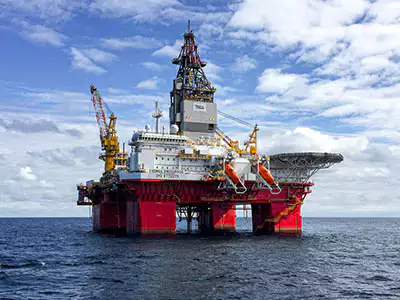

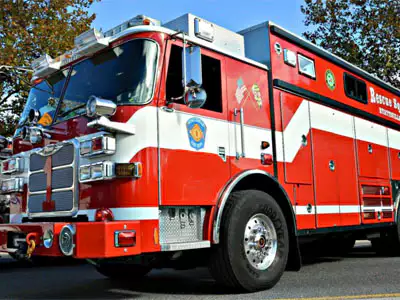

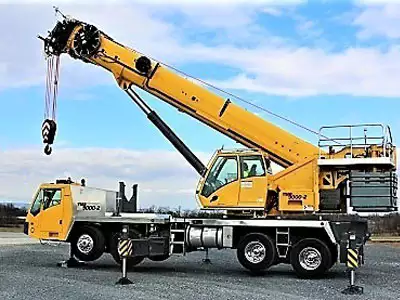

The winch drive gearbox also pays special attention to the optimization design of lubrication and cooling systems, ensuring the prevention of overheating and excessive wear under continuous heavy load working conditions, and extending the service life of the equipment. In addition, some high-performance winch drive devices may be equipped with preloading systems to accurately adjust the meshing degree between gears, thereby strictly controlling the return clearance, meeting applications such as rescue vehicles, heavy-duty cranes, offshore operating platforms, and other applications that have extremely high requirements for winch accuracy.

High Torque Density

Adopting advanced planetary gears or design, allowing for greater torque transmission per unit volume, effectively reducing equipment size and improving overall performance

Low Backlash Transmission

By using precision machining and preloading technology, extremely low return clearance is achieved, ensuring precise control and smooth operation of the winch during operation, especially suitable for applications that require high-precision positioning.

Efficient & Durable

Select high-quality alloy steel as the gear material and undergo hardening treatment to enhance wear resistance and fatigue resistance. Meanwhile, an efficient lubrication system ensures good lubrication between gears, reduces wear, and extends service life.

Load Balanced Distribution

The multi-level planetary gear structure can evenly distribute the load to each planetary gear, thereby improving the stability and reliability of the entire system, and maintaining good working conditions even under heavy load conditions.

Wide Speed Ratio Range

Provide multiple speed ratio options, and adjust the output speed according to actual application needs to meet the traction and speed requirements for different winch operations.

Easy to Maintain & Install

Modular design simplifies the assembly and disassembly process, facilitating daily maintenance and component replacement. In addition, we also provide flexible installation interfaces to meet the integration requirements under various complex working conditions.
