Grip Chains (Film Gripper Chains)

Gripper Chain Clamping Types

Our gripper chains are compatible with a wide range of clamp types, each designed to suit different application needs:

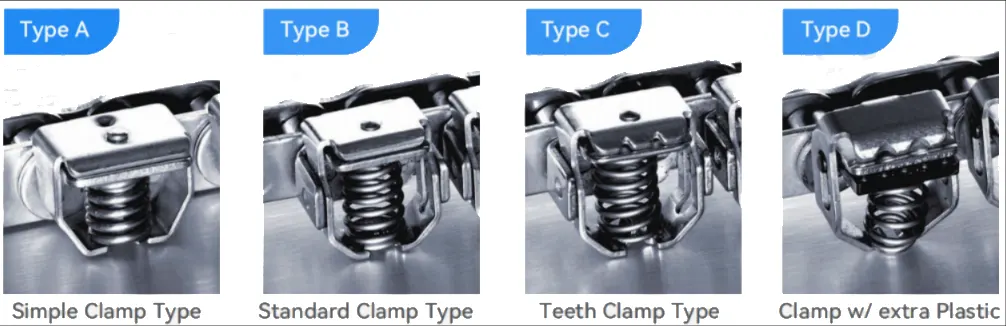

• Simple Frame Clamp (Type A): Opens vertically with slight lateral movement to follow the cam shape, providing easy engagement.

• Standard Frame Clamp (Type B): Allows a combination of vertical movement and horizontal rotation for efficient film engagement and scrap release.

• Teeth Frame Clamp (Type C): Offers superior clamping performance, especially for thicker and stronger films.

• Clamp with Extra Plastic (Type D): Features a combination of steel and plastic plates, ensuring optimal wear resistance and longevity.

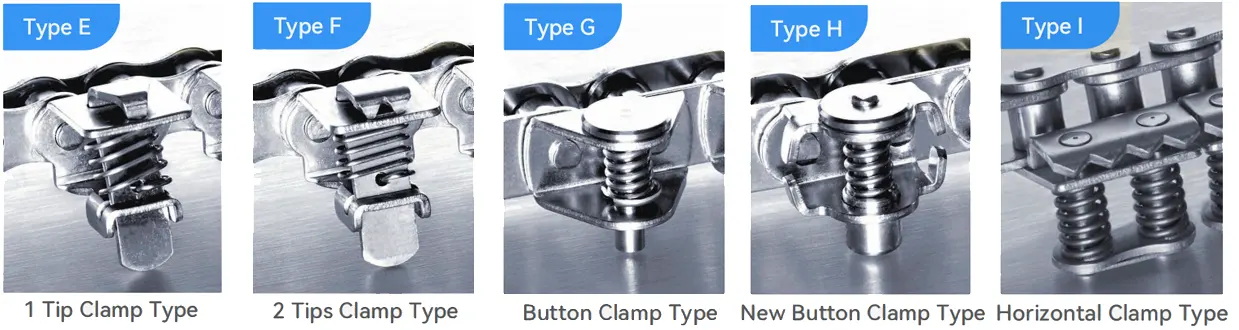

• Tip Clamp (Type E/F): The clamping force depends on the material being transported and the spring’s coil and diameter, offering flexibility for different materials.

• Button Clamp (Type G/H): Enables symmetrical rotation with a holding force determined by the material being transported. This clamp does not swivel outward when opened.

• Horizontal Clamp (Type I): Equipped with two 30N springs for uniform film clamping, it enhances film retention and ensures smooth operation.

Grip chains are available in a variety of materials, including carbon steel, stainless steel, and nickel-plated steel. They can also be lubricated with food-grade lubricants for use in food processing applications.

After several years of research and development, HZPT Gripper Chain has adopted a more reliable clamping mechanism design, M type, resulting in improved chain performance.

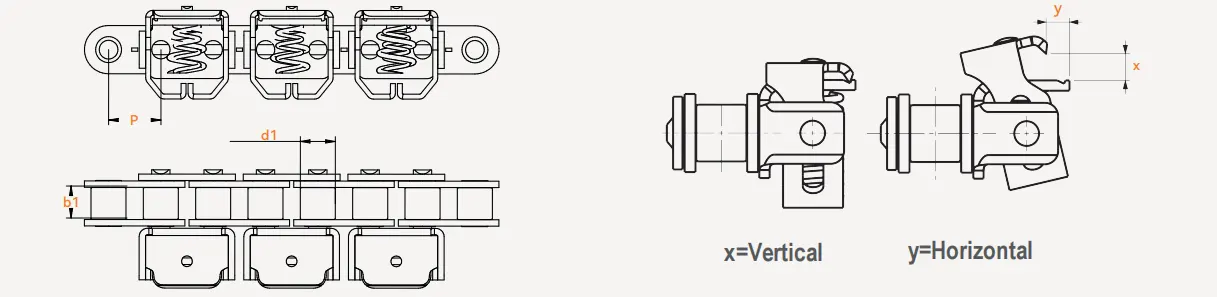

Gripper Chains with Type M Clamp Model Selection

08B1	08B2
10B1	10B2

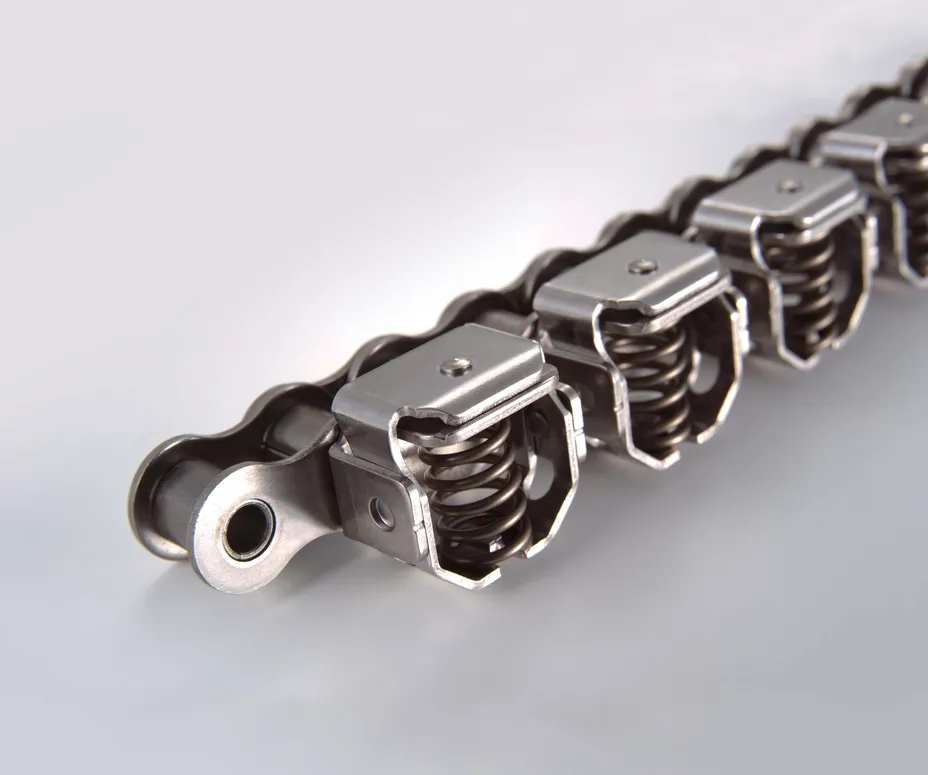

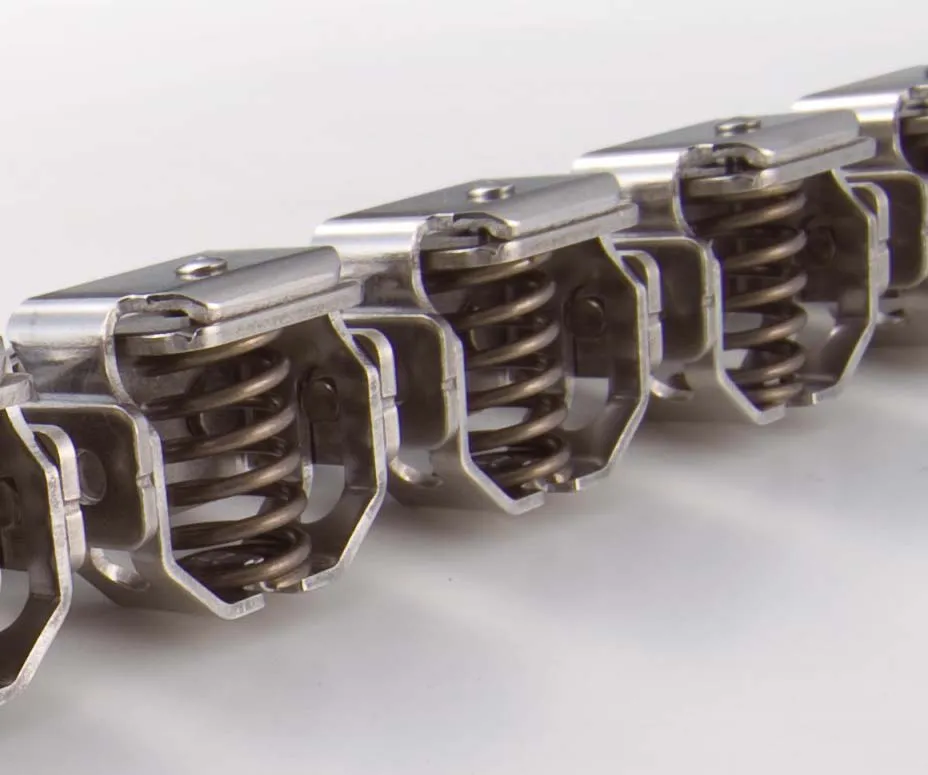

Film Gripper Chains Features

• Gripper Chains with Base Chains: Available in both Nickel Plated and Stainless Steel options, providing excellent corrosion resistance for various environments.

• Stainless Springs: Made from Japan-imported material, ensuring that the clamping force remains consistent and reliable throughout the operational lifecycle.

• Stainless Steel Base Chain: For enhanced durability, the Pin & Bush components are crafted from AISI 630HT stainless steel, offering exceptional wear-resistance for long-lasting performance.

• Pre-Stretched & Matched Strands: Chains are supplied in pre-stretched and matched strands, facilitating trouble-free machine setup and ensuring optimal performance right from installation.

• Lube-Free Nickel Plated Chain Version: A lube-free option is also available, offering a Nickel Plated version for those requiring maintenance-free operation, upon request.

Film Gripper Chains Design

Here are some of the advantages of film gripper chains:

1. Corrosion resistance: Film gripper chains are available in a variety of materials, including stainless steel and nickel-plated steel. These materials are resistant to corrosion, which is important in applications where the chain may be exposed to moisture or chemicals.

2. Strength and wear resistance: Film gripper chains are made from strong materials that can withstand the forces of the conveyor belt. The chains are also designed to minimize wear, which can extend their lifespan.

3. Precision handling: Film gripper chains can handle a wide variety of materials with precision. The clamps on the chain grip the material securely, preventing it from slipping or falling.

4. Ease of installation and maintenance: Film gripper chains are easy to install and maintain. The chains are typically pre-stretched and matched, which makes it easy to set up the conveyor system. The chains are also lubricated at the factory, which helps to extend their lifespan.

More About HZPT Gripper Chains

Grip chains, also known as film gripper chains, are chains that have wear- and corrosion-resistant clamping elements that ensure safe and reliable feeding, transport, and positioning of thin-walled materials with a large surface area. They are used in a variety of industries, including packaging, medical technology, electronics, PCB production, and metalworking.

HZPT specializes in manufacturing high-quality gripper chains, designed for precision, durability, and optimal performance. Our state-of-the-art production facilities utilize cutting-edge technologies and strict quality control processes, ensuring that our gripper chains meet the highest industry standards. With years of expertise in the field, HZPT has established itself as a leader in the market, dedicated to delivering products that exceed customer expectations. We are committed to innovation and excellence, making our gripper chains the perfect choice for a wide range of applications. For unmatched quality and reliability, choose HZPT. Contact us today to learn more about our products and how we can support your business needs.

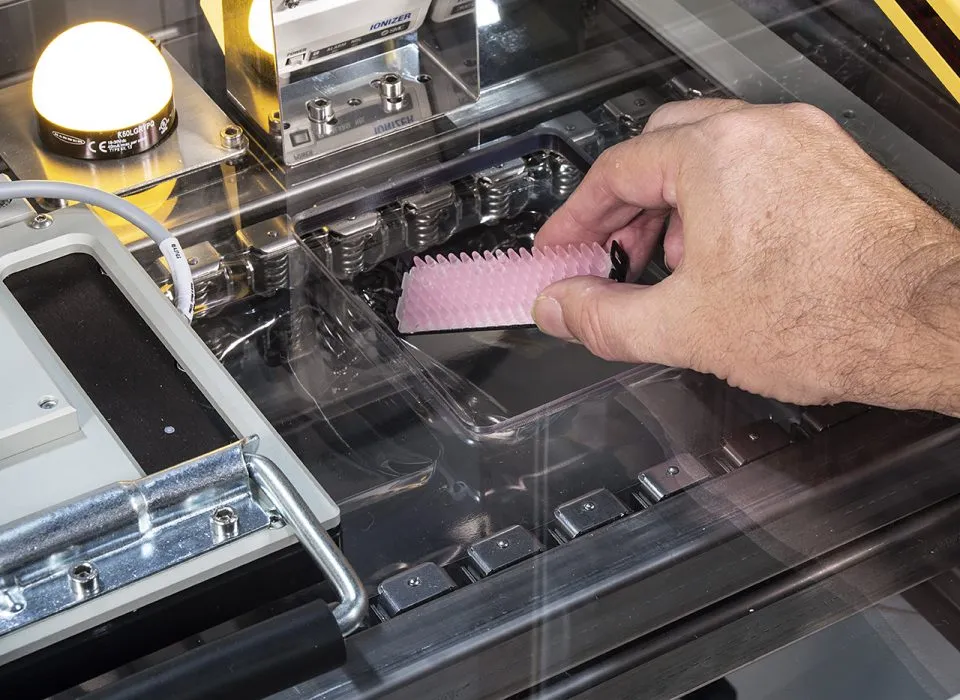

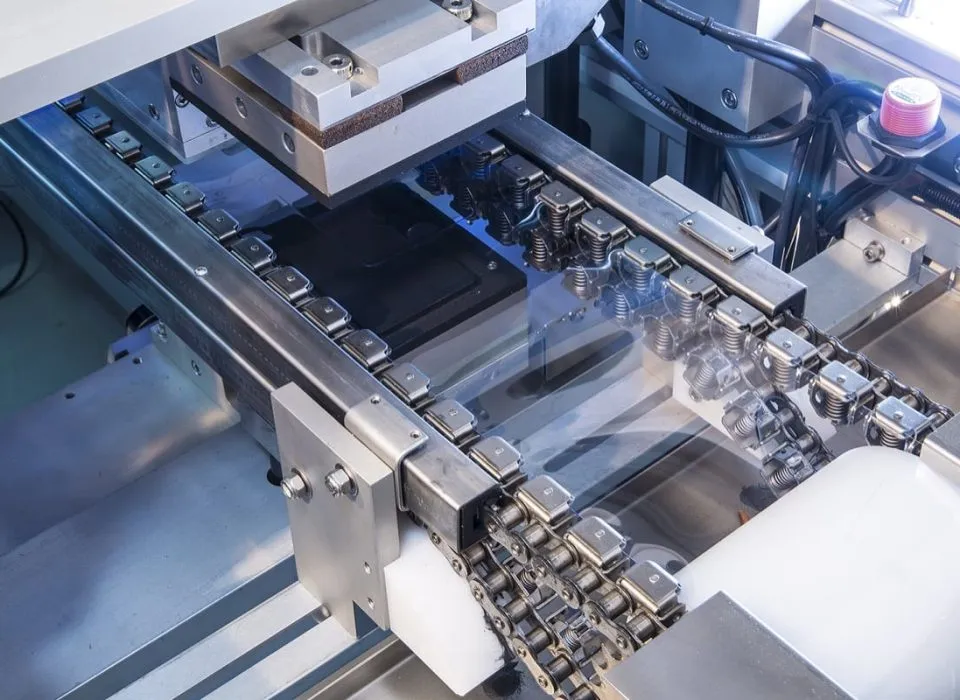

Gripper Chains Common Applications

Grip chains (film gripper chains) are used in a variety of applications where it is necessary to convey plastic film. Some of the most common applications include:

(1) Form, fill, and seal packaging machines: Grip chains (film gripper chains) are used in the form, fill, and seal packaging machines to convey plastic film around the product being packaged. This ensures that the film is applied evenly and securely.

(2) Food processing machines: Grip chains (film gripper chains) are used in food processing machines to convey food products such as cheese, vegetables, and meats. The chains grip the food products securely and prevent them from falling or getting damaged.

(3) Medical packaging machines: Grip chains (film gripper chains) are used in medical packaging machines to convey medical products such as bandages, gloves, and syringes. The chains grip the medical products securely and prevent them from coming loose or being contaminated.

(4) Industrial packaging machines: Grip chains (film gripper chains) are used in industrial packaging machines to convey a wide variety of products, such as electronics, chemicals, and machinery. The chains grip the products securely and prevent them from getting damaged during the packaging process.

(5) Logistics and warehousing: Grip chains (film gripper chains) are used in logistics and warehousing facilities to convey a wide variety of products, such as boxes, pallets, and crates. The chains grip the products securely and prevent them from getting damaged during transportation or storage.

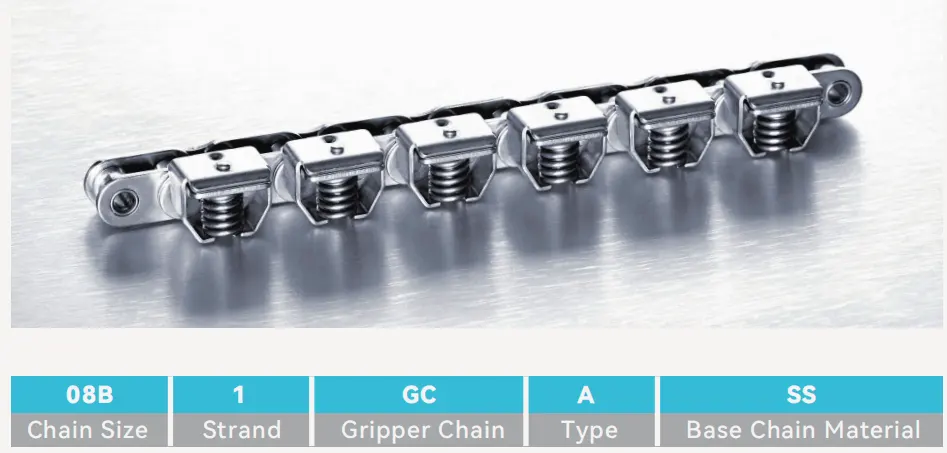

How to Order Our Film Gripper Chains?

When ordering our Film Gripper Chains, consider the following key factors:

• Chain Size: Select the appropriate chain size based on your machine’s specifications and the requirements of your operation.

• Strand: Choose the number of strands based on the load-bearing needs and desired performance for your application.

• Clamp Type: We offer various clamp types to suit different wrapping needs, including both standard and custom designs tailored to your specific product.

• Base Chain Material: Decide between Nickel Plated or Stainless Steel base chains, depending on your requirements for corrosion resistance and durability.

If you need assistance in selecting the right options for your application, our team is available to help guide you through the process.

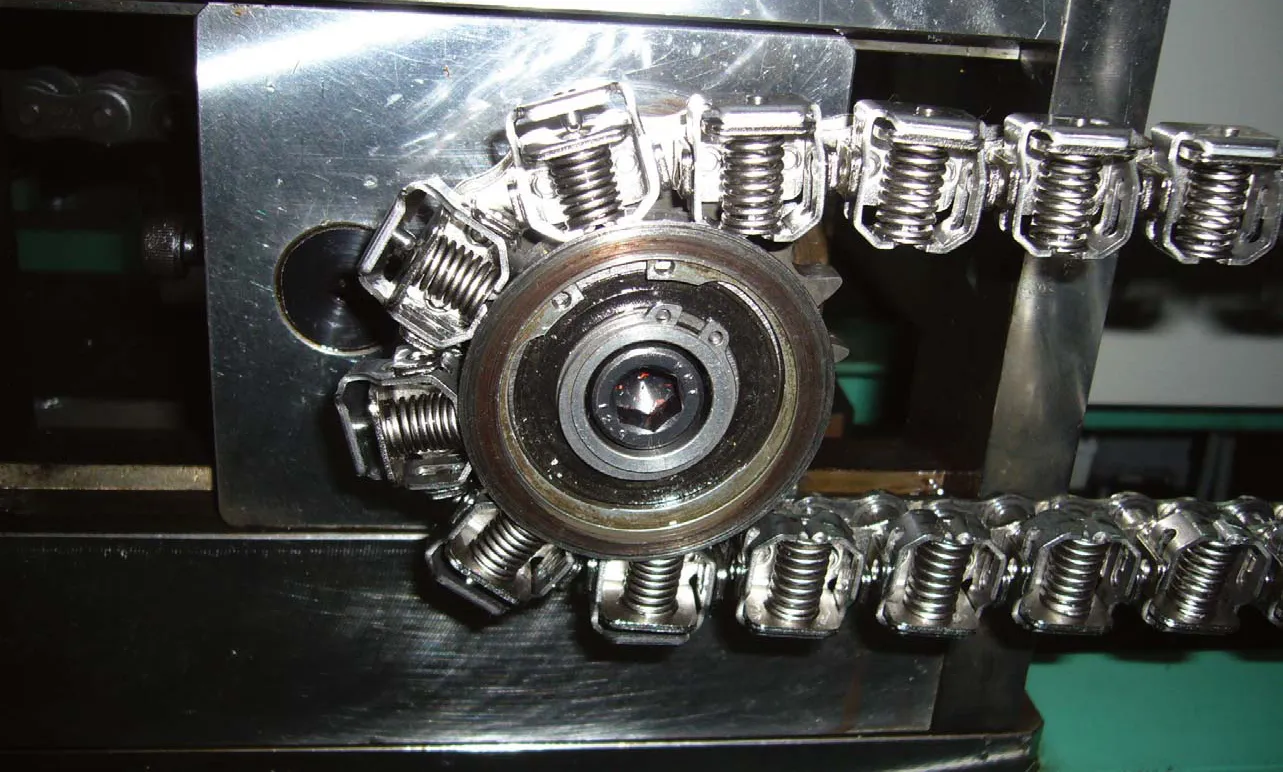

Gripper Chain Sprockets for Gripper Chains

Gripper chain sprockets are typically made from steel or aluminum, and they have a series of teeth that engage with the links of the gripper chain. The number of teeth on the sprocket determines the speed of the gripper chain, and the size of the teeth determines the amount of force that the sprocket can apply to the chain.

Gripper chains are typically made from stainless steel or nickel-plated steel. The material of the gripper chain must be able to withstand the forces of the conveyor belt and the material being conveyed. The gripper chain also needs to be corrosion resistant, as it may be exposed to moisture or chemicals in some applications.

The gripper chain is designed to grip the material securely. The gripper chain usually has a series of clamps or jaws that grip the material. The clamps or jaws are typically made from stainless steel or nickel-plated steel, and they are designed to grip a variety of materials without damaging them.

Gripper chain sprockets and gripper chains are a versatile and reliable solution for a variety of material handling applications. They are strong, durable, and easy to maintain. If you are looking for a way to convey plastic film or other materials securely and efficiently, gripper chain sprockets and gripper chains are a good option to consider.
