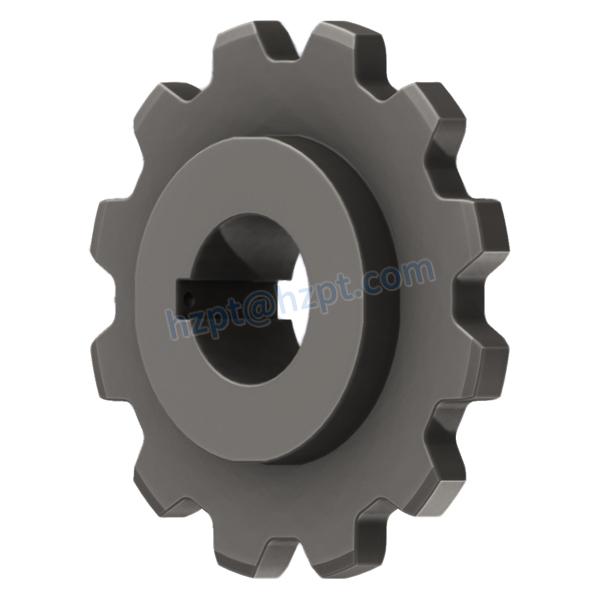

2180-Series Sprockets

2180 series engineer class sprocket is used for a wide verity of chain sizes. These sizes include A1670, B1670, 1670, 2180, 530, 628R, 1126, 1212 and 2180 size chains. These sprockets are typically supplied as cast material but we can also supply them as steel for longer operation. The below chart shows the standard tooth counts as well as dimensions for each size.

Cast 2180-Series Sprockets

Tooth Face at Pitch Line: 1.125" - Roller Diameter: 2.250"

Sprocket Size Tooth Count Pitch Diameter Style Hub Diameter Length Thru Bore Maximum Bore Weight (LBS)
2180C6 6 12.00" C 6.00" 5.00" 4.00" 50.0 LBS
2180C8 8 15.68" C 6.00" 5.00" 4.00" 64.0 LBS
2180C16 16 30.76" C 8.00" 6.00" 6.00" 200.0 LBS
2180C20 20 38.36" C 10.00" 6.00" 8.00" 260.0 LBS



We aslo offer a full range of both precision roller chain and engineered.

Applications are varied and range from conveyor, elevator transfer to broad general industrial power transmission specialty applications with attachments and/or special materials are also available.

hzpt oem odm banner

We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.

Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.
