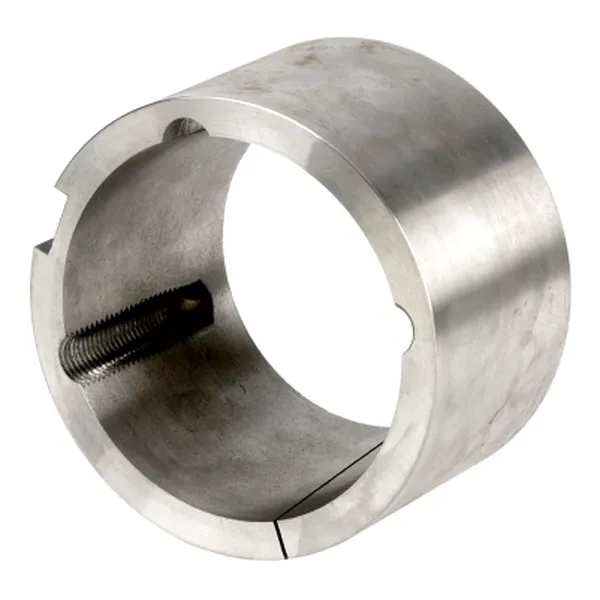

3535B Taper Lock Adapter

3535B Taper Lock Adapter

The 3535B taper lock adapter is designed to be used in conjunction with the 3535 taper lock bushing. The adapter is used to convert the standard bore size of the 3535 taper lock bushing to a larger size, allowing it to fit onto a larger shaft. The taper lock system is a widely used method for mounting components such as pulleys, sprockets, and gears onto shafts. It provides a secure and reliable connection that can withstand high torque and axial loads.

To use the 3535B taper lock adapter, you would first install the 3535 taper lock bushing onto the smaller shaft using the appropriate installation tools. Then, the adapter is placed over the bushing, aligning the keyways if applicable, and secured in place using the provided screws or bolts. Finally, the larger shaft is inserted into the adapter, and the whole assembly is tightened using the taper lock mechanism.

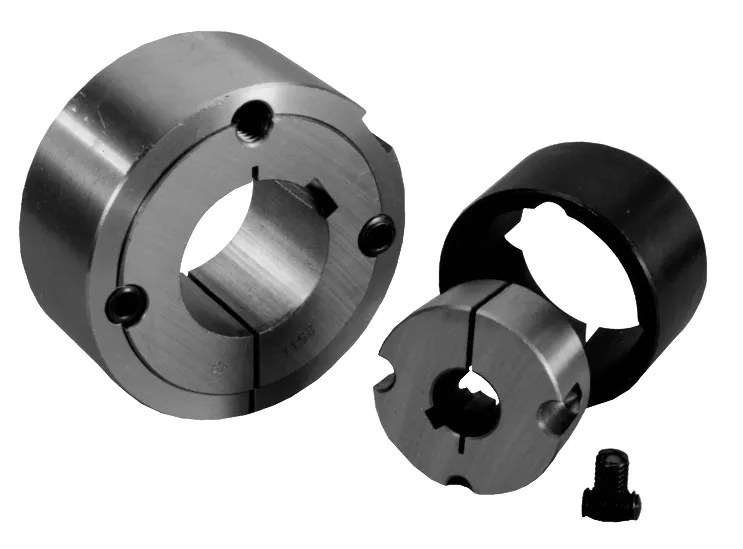

3535B Taper Lock Adapter Dimensions:

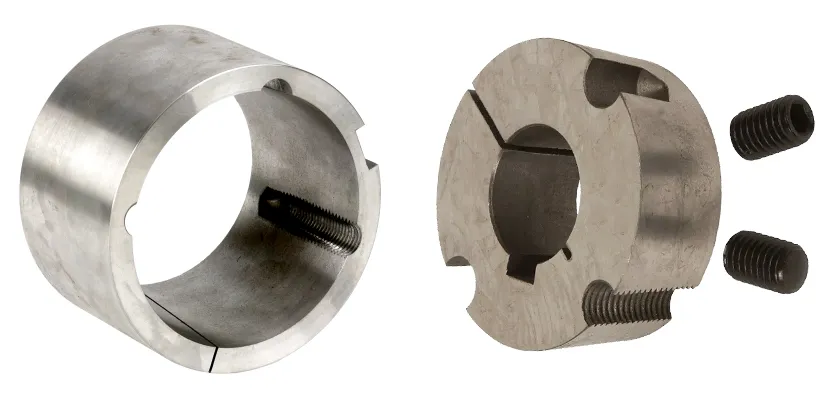

Benefits of 3535B Taper Lock Adapter:

The 3535B taper lock adapter offers several benefits when used with the 3535 taper lock bushing. Here are some advantages:

1. Versatility: The 3535B taper lock adapter allows for compatibility between different shaft sizes and bore sizes. It provides a convenient solution when you need to connect a shaft with a different diameter to a 3535 Taper Lock Bushing.

2. Easy Installation: The 3535B taper lock adapter simplifies the installation process by eliminating the need for extensive machining or modification to the shaft or bushing. It can be easily mounted or removed using basic tools, saving time and effort.

3. Cost-Effective: Instead of replacing the entire 3535 taper lock bushing, which may be costly, the adapter provides a cost-effective solution by enabling the use of the existing bushing with a different shaft size. This can result in significant savings compared to purchasing a new bushing.

4. Reduced Downtime: The 3535B taper lock adapter allows for quick and simple changes in shaft sizes, which minimizes downtime during equipment maintenance or repairs. This is particularly beneficial in industries where downtime can be expensive, such as manufacturing or production environments.

5. Interchangeability: The 3535B taper lock adapter is designed to be compatible with standard 3535 Taper Lock Bushings. This means that the adapter can be used interchangeably with various bushings, providing flexibility in equipment design and allowing for easy replacement or reconfiguration if needed.

6. Reliable and Secure Connection: The taper lock design ensures a secure and reliable connection between the adapter, bushing, and shaft. It provides excellent torque transmission, minimizing the risk of slippage or misalignment during operation.

China Taper Lock Adapter Manufacturers

Are you looking for high-quality bushings or steel hubs for your industrial or agricultural needs? Look no further than HZPT, where our comprehensive selection of taper lock bushing, QD bushing, split taper bushing, FHPK bushing, XT bushing, XT weld-on hubs, Type “B” steel hubs, split taper weld-on hubs, QD Type weld-on hubs, taper bore bolt-on hubs, taper lock adapter, and taper bore weld-on hubs will suit all of your typical application needs, including sprockets, pulleys, and sheave applications. The basic purpose of a bushing is to couple a component to a shaft. Whether you face space constraints, time constraints, or size constraints, our bushings have you covered and are commonly utilized instead of a bored-to-size hub due to these very reasons. Plus, with our vast array of in-stock bore sizes, including an abundance of standard inch and metric bore size bushings, you can be certain that we’ll have the right fit for your application.
