#41 Roller Chain Sprockets
Get a Quote
Our 41 roller chain sprockets are manufactured dimensionally to ANSI B29 Standards and are manufactured from high-strength high-grade steel for optimal wear life and performance, while still being supplied at a budget-friendly cost. A high-quality sprocket is essential to the long-term operation of the chain drive. If sprockets are manufactured out of cheaper and lower-grades of steel the teeth will wear and hook resulting in excessive wear on the 41 roller chain.

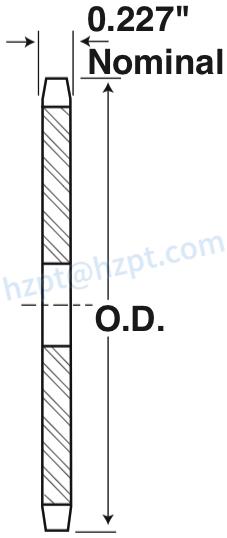

#41 A-Plate Sprockets
| Sprocket Size | Tooth Count | Type | Outside Diameter | Stock Bore | Weight (LBS) |
|---|---|---|---|---|---|
| 41A15 | 15 | A | 5/8 | 0.28 | |
| 41A16 | 16 | A | 5/8 | 0.34 | |
| 41A17 | 17 | A | 5/8 | 0.36 | |
| 41A18 | 18 | A | 5/8 | 0.44 | |
| 41A19 | 19 | A | 5/8 | 0.46 | |
| 41A20 | 20 | A | 5/8 | 0.52 | |
| 41A21 | 21 | A | 5/8 | 0.60 | |
| 41A22 | 22 | A | 5/8 | 0.66 | |
| 41A23 | 23 | A | 5/8 | 0.72 | |
| 41A24 | 24 | A | 5/8 | 0.82 | |
| 41A25 | 25 | A | 5/8 | 0.88 | |
| 41A26 | 26 | A | 5/8 | 0.94 | |
| 41A27 | 27 | A | 5/8 | 1.00 | |
| 41A28 | 28 | A | 5/8 | 1.08 | |
| 41A30 | 30 | A | 19/32 | 1.20 | |
| 41A32 | 32 | A | 19/32 | 1.44 | |
| 41A35 | 35 | A | 19/32 | 1.70 | |
| 41A36 | 36 | A | 19/32 | 1.84 | |
| 41A40 | 40 | A | 23/32 | 2.22 | |
| 41A42 | 42 | A | 23/32 | 2.50 | |
| 41A45 | 45 | A | 23/32 | 2.52 | |
| 41A48 | 48 | A | 23/32 | 2.92 | |
| 41A54 | 54 | A | 23/32 | 3.54 | |
| 41A60 | 60 | A | 21/32 | 4.60 | |
| 41A70 | 70 | A | 23/32 | 6.22 | |
| 41A72 | 72 | A | 23/32 | 6.32 | |
| 41A80 | 80 | A | 23/32 | 8.46 | |
| 41A84 | 84 | A | 23/32 | 9.12 | |
| 41A96 | 96 | A | 15/16 | 11.84 | |
| 41A112 | 112 | A | 15/16 | 15.84 |

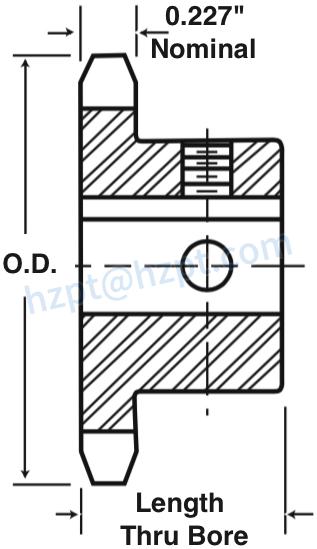

#41 B-Hub Sprockets
| Sprocket Size | Tooth Count | Type | Outside Diameter | Stock Bore | Recommend Max. Bore | Hub Diameter | Length Thru Bore | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|
| 41B6 | 6 | B | 1.170 | 3/8 | 3/8 | 21/32 | 7/8 | 0.07 |
| 41B7 | 7 | B | 1.340 | 1/2 | 3/8 | 3/4 | 7/8 | 0.10 |
| 41B8 | 8 | B | 1.510 | 1/2 | 1/2 | 63/64 | 7/8 | 0.19 |
| 41B9 | 9 | B | 1.670 | 1/2 | 5/8 | 1-1/8 | 7/8 | 0.20 |
| 41B10 | 10 | B | 1.840 | 1/2 | 3/4 | 1-1/4 | 7/8 | 0.27 |
| 41B11 | 11 | B | 2.000 | 1/2 | 7/8 | 1-7/16 | 7/8 | 0.35 |
| 41B12 | 12 | B | 2.170 | 1/2 | 15/16 | 1-9/16 | 7/8 | 0.44 |
| 41B13 | 13 | B | 2.330 | 1/2 | 1 | 1-9/16 | 7/8 | 0.50 |
| 41B14 | 14 | B | 2.490 | 1/2 | 1-1/4 | 1-3/4 | 7/8 | 0.57 |
| 41B15 | 15 | B | 2.650 | 5/8 | 1-5/16 | 1-29/32 | 7/8 | 0.72 |
| 41B16 | 16 | B | 2.810 | 5/8 | 1-3/8 | 2-1/16 | 7/8 | 0.91 |
| 41B17 | 17 | B | 2.970 | 5/8 | 1-1/2 | 2-15/64 | 1 | 1.09 |
| 41B18 | 18 | B | 3.140 | 5/8 | 1-5/8 | 2-3/8 | 1 | 1.25 |
| 41B19 | 19 | B | 3.300 | 5/8 | 1-3/4 | 2-15/32 | 1 | 1.49 |
| 41B20 | 20 | B | 3.460 | 5/8 | 1-7/8 | 2-3/4 | 1 | 1.64 |
| 41B21 | 21 | B | 3.620 | 5/8 | 1-7/8 | 2-7/8 | 1 | 1.81 |
| 41B22 | 22 | B | 3.780 | 5/8 | 2 | 3 | 1 | 1.93 |
| 41B23 | 23 | B | 3.940 | 5/8 | 2-1/4 | 3-3/16 | 1 | 2.25 |
| 41B24 | 24 | B | 4.100 | 5/8 | 2-1/4 | 3-1/4 | 1 | 2.33 |
| 41B25 | 25 | B | 4.260 | 5/8 | 2-1/4 | 3-1/4 | 1 | 2.46 |
| 41B26 | 26 | B | 4.420 | 5/8 | 2-1/4 | 3-1/4 | 1 | 2.50 |
| 41B27 | 27 | B | 4.580 | 5/8 | 2-1/4 | 3-1/4 | 1 | 2.56 |
| 41B28 | 28 | B | 4.740 | 5/8 | 2-1/4 | 3-1/4 | 1 | 2.64 |
| 41B30 | 30 | B | 5.060 | 5/8 | 2-1/4 | 3-1/4 | 1 | 2.80 |
| 41B32 | 32 | B | 5.380 | 5/8 | 2-1/4 | 3-1/4 | 1 | 2.96 |
| 41B35 | 35 | B | 5.860 | 5/8 | 2-3/8 | 3-1/4 | 1 | 3.12 |
| 41B36 | 36 | B | 6.020 | 3/4 | 2-3/8 | 3-1/4 | 1 | 3.32 |
| 41B40 | 40 | B | 6.650 | 3/4 | 2-3/8 | 3-1/4 | 1-1/16 | 4.06 |
| 41B42 | 42 | B | 6.970 | 3/4 | 2-3/8 | 3-1/2 | 1-1/16 | 4.10 |
| 41B45 | 45 | B | 7.450 | 3/4 | 2-3/8 | 3-1/2 | 1-1/16 | 4.18 |
| 41B48 | 48 | B | 7.930 | 3/4 | 2-3/8 | 3-1/2 | 1-1/16 | 4.92 |
| 41B54 | 54 | B | 8.880 | 3/4 | 2-3/8 | 3-1/2 | 1-1/16 | 5.68 |
| 41B60 | 60 | B | 9.840 | 3/4 | 2-3/8 | 3-1/2 | 1-1/16 | 6.78 |
| 41B70 | 70 | B | 11.430 | 3/4 | 2-3/4 | 4 | 1-3/16 | 9.54 |
| 41B72 | 72 | B | 11.750 | 3/4 | 2-3/4 | 4 | 1-3/16 | 9.64 |
| 41B80 | 80 | B | 13.030 | 3/4 | 2-3/4 | 4 | 1-3/16 | 11.54 |
| 41B84 | 84 | B | 13.660 | 1 | 2-3/4 | 4 | 1-3/16 | 12.20 |
| 41B96 | 96 | B | 15.570 | 1 | 2-3/4 | 4 | 1-3/16 | 14.86 |
| 41B112 | 112 | B | 18.120 | 2-3/4 | 4 | 1-3/16 | 19.16 |

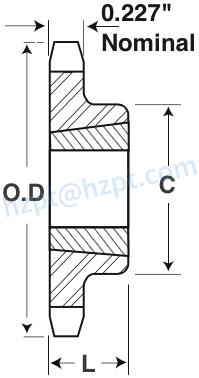

#41 Taper Bushed Sprockets
| Sprocket Size | Tooth Count | Bushing | Outside Diameter | Pitch Diameter | Max. Bore | Dimension (L) | Dimension (C) | Type | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|
| 41BTB14 | 14 | 1008 | 2.490 | 2.247 | 1 | 7/8 | 1-7/8 | B | 0.4 |
| 41BTB15 | 15 | 1008 | 2.650 | 2.503 | 1 | 7/8 | 1-7/8 | B | 0.5 |
| 41BTB16 | 16 | 1008 | 2.810 | 2.721 | 1 | 7/8 | 2 | B | 0.6 |
| 41BTB17 | 17 | 1210 | 2.970 | 2.879 | 1-1/4 | 1 | 2-3/8 | B | 0.7 |
| 41BTB18 | 18 | 1210 | 3.140 | 3.038 | 1-1/4 | 1 | 2-3/8 | B | 0.9 |
| 41BTB19 | 19 | 1210 | 3.300 | 3.196 | 1-1/4 | 1 | 2-1/2 | B | 1.1 |
| 41BTB20 | 20 | 1610 | 3.460 | 3.355 | 1-5/8 | 1 | 2-7/8 | B | 1.1 |
| 41BTB21 | 21 | 1610 | 3.620 | 3.513 | 1-5/8 | 1 | 3 | B | 1.2 |
| 41BTB22 | 22 | 1610 | 3.780 | 3.672 | 1-5/8 | 1 | 3 | B | 1.3 |
| 41BTB23 | 23 | 1610 | 3.940 | 3.831 | 1-5/8 | 1 | 3 | B | 1.4 |
| 41BTB24 | 24 | 1610 | 4.100 | 3.989 | 1-5/8 | 1 | 3 | B | 1.4 |
| 41BTB25 | 25 | 1610 | 4.260 | 4.148 | 1-5/8 | 1 | 3 | B | 1.5 |
| 41BTB26 | 26 | 1610 | 4.420 | 4.466 | 1-5/8 | 1 | 3 | B | 1.5 |
| 41BTB28 | 28 | 1610 | 4.740 | 4.783 | 1-5/8 | 1 | 3 | B | 1.7 |
| 41BTB30 | 30 | 1610 | 5.060 | 5.101 | 1-5/8 | 1 | 3 | B | 1.8 |
| 41BTB32 | 32 | 1610 | 5.380 | 5.578 | 1-5/8 | 1 | 3 | B | 1.9 |
| 41BTB35 | 35 | 1610 | 5.860 | 5.737 | 1-5/8 | 1 | 3 | B | 2.3 |
| 41BTB36 | 36 | 1610 | 6.020 | 6.373 | 1-5/8 | 1 | 3 | B | 2.4 |
| 41BTB40 | 40 | 1610 | 6.650 | 7.168 | 1-5/8 | 1 | 3 | B | 2.7 |
| 41BTB45 | 45 | 1610 | 7.450 | 7.645 | 1-5/8 | 1 | 3 | B | 3.5 |
| 41BTB48 | 48 | 1610 | 7.930 | 8.599 | 1-5/8 | 1 | 3 | B | 4.1 |
| 41BTB54 | 54 | 1610 | 8.880 | 9.554 | 1-5/8 | 1 | 3 | B | 4.9 |
| 41BTB60 | 60 | 1610 | 9.840 | 11.145 | 1-5/8 | 1 | 3 | B | 5.7 |
| 41BTB70 | 70 | 1610 | 11.430 | 11.463 | 1-5/8 | 1 | 3 | B | 7.4 |
| 41BTB72 | 72 | 1610 | 11.750 | 12.736 | 1-5/8 | 1 | 3 | B | 8.2 |
| 41BTB80 | 80 | 1610 | 13.030 | 15.282 | 1-5/8 | 1 | 3 | B | 9.6 |
| 41BTB96 | 96 | 1610 | 15.570 | 1610 | 1-5/8 | 1 | 3 | B | 13.1 |

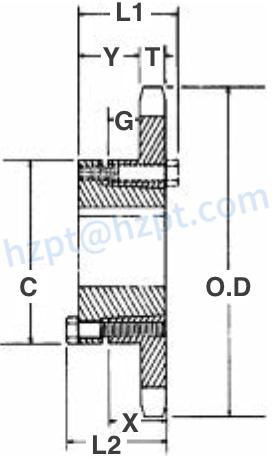

#41 QD Sprockets
| Sprocket Size | Tooth Count | Bushing | Outside Diameter | Pitch Diameter | Type | Max. Bore | Dimension (L1) | Dimension (L2) | Dimension (C) | Dimension (Y) | Dimension (J) | Dimension (T) | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 41JA16 | 15 | JA | 2.650 | 2.405 | B | 1-1/4 | 1-1/8 | 1-1/8 | 2-1/16 | 49/64 | 25/64 | .227 | 0.32 |
| 41JA16 | 16 | JA | 2.810 | 2.563 | B | 1-1/4 | 1-1/8 | 1-1/8 | 2-1/16 | 49/64 | 25/64 | .227 | 0.40 |
| 41JA17 | 17 | JA | 2.980 | 2.721 | B | 1-1/4 | 1-1/8 | 1-1/8 | 2-1/16 | 49/64 | 25/64 | .227 | 0.50 |
| 41JA18 | 18 | JA | 3.140 | 2.879 | B | 1-1/4 | 1-1/8 | 1-1/8 | 2-1/16 | 49/64 | 25/64 | .227 | 0.60 |
| 41JA19 | 19 | JA | 3.300 | 3.038 | B | 1-1/4 | 1-1/8 | 1-1/8 | 2-1/16 | 49/64 | 25/64 | .227 | 0.68 |
| 41SH20 | 20 | SH | 3.460 | 3.196 | B | 1-5/8 | 1-7/16 | 1-7/16 | 2-11/16 | 1-1/32 | 37/64 | .227 | 0.78 |
| 41SH21 | 21 | SH | 3.620 | 3.355 | B | 1-5/8 | 1-7/16 | 1-7/16 | 2-11/16 | 1-1/32 | 37/64 | .227 | 0.82 |
| 41SH22 | 22 | SH | 3.780 | 3.513 | B | 1-5/8 | 1-7/16 | 1-7/16 | 2-11/16 | 1-1/32 | 37/64 | .227 | 1.06 |
| 41SH23 | 23 | SH | 3.940 | 3.672 | B | 1-5/8 | 1-7/16 | 1-7/16 | 2-11/16 | 1-1/32 | 37/64 | .227 | 1.14 |
| 41SH24 | 24 | SH | 4.100 | 3.831 | B | 1-5/8 | 1-7/16 | 1-7/16 | 2-11/16 | 1-1/32 | 37/64 | .227 | 1.16 |
| 41SH25 | 25 | SH | 4.260 | 3.989 | B | 1-5/8 | 1-7/16 | 1-7/16 | 2-11/16 | 1-1/32 | 37/64 | .227 | 1.22 |
| 41SH26 | 26 | SH | 4.420 | 4.148 | B | 1-5/8 | 1-7/16 | 1-7/16 | 2-11/16 | 1-1/32 | 37/64 | .227 | 1.26 |
| 41SH27 | 27 | SH | 4.580 | 4.307 | B | 1-5/8 | 1-7/16 | 1-7/16 | 2-11/16 | 1-1/32 | 37/64 | .227 | 1.40 |
| 41SH28 | 28 | SH | 4.740 | 4.466 | B | 1-5/8 | 1-7/16 | 1-7/16 | 2-11/16 | 1-1/32 | 37/64 | .227 | 1.54 |
| 41SH30 | 30 | SH | 5.060 | 4.783 | B | 1-5/8 | 1-7/16 | 1-7/16 | 2-11/16 | 1-1/32 | 37/64 | .227 | 1.58 |
| 41SH32 | 32 | SH | 5.380 | 5.101 | B | 1-5/8 | 1-7/16 | 1-7/16 | 2-11/16 | 1-1/32 | 37/64 | .227 | 1.68 |
| 41SH35 | 35 | SH | 5.860 | 5.578 | B | 1-5/8 | 1-7/16 | 1-7/16 | 2-11/16 | 1-1/32 | 37/64 | .227 | 1.79 |
| 41SDS36 | 36 | SDS | 6.020 | 5.737 | B | 2 | 1-1/2 | 1-1/2 | 3-3/16 | 1-3/32 | 17/32 | 3/4 | 1.92 |
| 41SDS40 | 40 | SDS | 6.650 | 6.373 | B | 2 | 1-1/2 | 1-1/2 | 3-3/16 | 1-3/32 | 17/32 | 3/4 | 2.32 |
| 41SDS42 | 42 | SDS | 6.970 | 6.691 | B | 2 | 1-1/2 | 1-1/2 | 3-3/16 | 1-3/32 | 17/32 | 3/4 | 2.44 |
| 41SDS45 | 45 | SDS | 7.450 | 7.168 | B | 2 | 1-1/2 | 1-1/2 | 3-3/16 | 1-3/32 | 17/32 | 3/4 | 2.76 |
| 41SDS48 | 48 | SDS | 7.930 | 7.645 | B | 2 | 1-1/2 | 1-1/2 | 3-3/16 | 1-3/32 | 17/32 | 3/4 | 3.36 |
| 41SDS54 | 54 | SDS | 8.890 | 8.599 | B | 2 | 1-1/2 | 1-1/2 | 3-3/16 | 1-3/32 | 17/32 | 3/4 | 3.98 |
| 41SDS60 | 60 | SDS | 9.840 | 9.554 | B | 2 | 1-1/2 | 1-1/2 | 3-3/16 | 1-3/32 | 17/32 | 3/4 | 5.54 |
| 41SK70 | 70 | SK | 11.430 | 11.145 | B | 2-5/8 | 2-1/8 | 2-1/8 | 3-7/8 | 1-41/64 | 1-1/32 | 1-1/4 | 7.42 |
| 41SK72 | 72 | SK | 11.750 | 11.463 | B | 2-5/8 | 2-1/8 | 2-1/8 | 3-7/8 | 1-41/64 | 1-1/32 | 1-1/4 | 8.02 |
| 41SK80 | 80 | SK | 13.030 | 12.736 | B | 2-5/8 | 2-1/8 | 2-1/8 | 3-7/8 | 1-41/64 | 1-1/32 | 1-1/4 | 9.64 |
| 41SK84 | 84 | SK | 13.660 | 13.372 | B | 2-5/8 | 2-1/8 | 2-1/8 | 3-7/8 | 1-41/64 | 1-1/32 | 1-1/4 | 10.40 |
| 41SK96 | 96 | SK | 15.570 | 15.281 | B | 2-5/8 | 2-1/8 | 2-1/8 | 3-7/8 | 1-41/64 | 1-1/32 | 1-1/4 | 12.82 |
| 41SK112 | 112 | SK | 18.120 | 17.828 | B | 2-5/8 | 2-1/8 | 2-1/8 | 3-7/8 | 1-41/64 | 1-1/32 | 1-1/4 | 17.28 |
#41 A-Plate Sprockets
#41 B-Hub Sprockets
#41 Taper-Bushed Sprockets
#41 JA Type Sprockets
#41 SH Type Sprockets
#41 SDS Type Sprockets
#41 SK Type Sprockets
We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.
Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.
