662 Steel Pintle Chain

662 Steel Pintle Chain and Sprocket for Manure Spreader

The 662 pintle chain is a type of chain that is used in a variety of applications, including material spreading equipment, hay handling equipment, wood processing, and wastewater treatment facilities. It is characterized by its open barrel construction, which allows materials to simply fall through instead of freezing up the chain, and its heat-treated, riveted pin for greater durability.

The 662 pintle chain has a pitch of 1.664 inches, an inner width of 0.902 inches, an overall width of 1.622 inches, a pin diameter of 0.283 inches, a link plate height of 0.740 inches, and a link plate thickness of 0.125 inches. It has a tensile strength of 11,400 pounds and a maximum working load of 1,700 pounds. The 662 pintle chain is typically supplied in 10-foot lengths, but alternate lengths are available upon request. It is available in a variety of materials, including carbon steel, alloy steel, and stainless steel.

▍662 Pintle Chain (662 Chain) Dimensions:

Chain No:	662 Chain (662 Pintle Chain)
Pitch (P):	1.664"
Inner Width (b1):	0.902"
Overall Width (L):	1.622"
Pin Diameter (d2):	0.283"
Link Plate Height (h2):	0.740"
Link Plate Thickness (T):	0.125"
Average Tensile Strength:	11,400 lbs
Max Working Load:	1,700 lbs
No. Of Pitches/Links Per 10 Feet:	72
No. Of Connecting Pins Included:	1
Chain Material:	Carbon/Alloy Steel

▍Features of 662 Pintle Chain (662 Chain):

Here are some of the features of the 662 pintle chain:

1. High tensile strength: The 662 pintle chain has a tensile strength of 11,400 lbs, which makes it a very strong and durable chain.

2. Quad-staked and fully heat-treated pins: The pins in the 662 pintle chain are quad-staked and fully heat-treated, which provides maximum durability and strength. This means that the pins are very resistant to wear and tear, and they are less likely to break or bend.

3. Open barrel design: The 662 pintle chain has an open barrel design, which allows materials to simply fall through instead of freezing up the chain. This is a very important feature for applications where the chain is exposed to wet or freezing conditions.

4. Resistant to corrosion: The 662 pintle chain is made of carbon/alloy steel, which makes it resistant to corrosion. This means that the chain can be used in a variety of harsh environments without the risk of rusting or corroding.

5. Available in 10ft lengths: The 662 pintle chain is available in 10ft lengths, which makes it easy to find the right size for your application.

Overall, the 662 pintle chain is a high-quality and durable chain that is ideal for a variety of applications. It is strong, durable, and resistant to corrosion, making it a reliable choice for many industries.

▍662 Pintle Chain (662 Chain) Attachments:

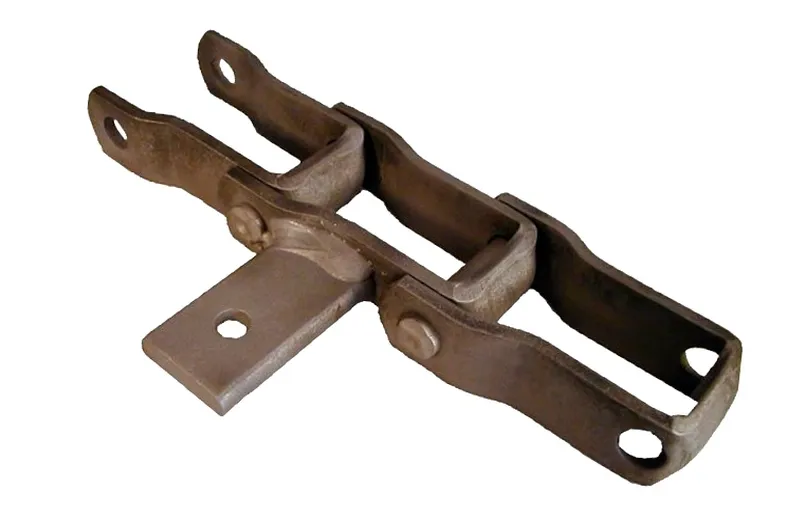

662 Chain AES Attachment	662 Chain AK1 Attachment	662 Chain AS Attachment
662 Chain G30S Attachment	662 Chain G38 Attachment	662 Chain G50 Attachment
662 Chain K1 Attachment	662 Chain KG30S Attachment	662 Chain KS Attachment

▍662 Pintle Chain (662 Chain) Applications:

The 662 pintle chain is a versatile chain that can be used in a variety of applications. Here are some of the most common applications for 662 pintle chains:

(1) Material spreading equipment: 662 pintle chains are commonly used in material spreading equipment, such as manure spreaders, salt spreaders, and fertilizer spreaders. The high tensile strength of the chain makes it ideal for these applications, as it can withstand the weight and force of the materials being spread.

(2) Hay handling equipment: 662 pintle chains are also used in hay handling equipment, such as hay balers and hay feeders. The open barrel design of the chain allows hay to pass through easily, without clogging or jamming.

(3) Wood processing: 662 pintle chains are also used in wood processing applications, such as sawmills and lumber mills. The high strength and durability of the chain make it ideal for these applications, as it can withstand the harsh conditions of wood processing.

(4) Wastewater facilities: 662 pintle chains are also used in wastewater facilities, such as sewage treatment plants and water treatment plants. The corrosion resistance of the chain makes it ideal for these applications, as it can withstand exposure to chemicals and other harsh materials.

(5) Conveyor systems: 662 pintle chains are also used in conveyor systems, such as those used in manufacturing and warehousing. The high strength and durability of the chain make it ideal for these applications, as it can withstand the weight and force of the materials being conveyed.

(6) Agricultural machinery: 662 pintle chains are also used in agricultural machinery, such as tractors, combines, and harvesters. The high strength and durability of the chain make it ideal for these applications, as it can withstand the harsh conditions of agricultural work.

These are just a few of the many applications for 662 pintle chains. If you are looking for a high-strength and durable chain for your application, the 662 pintle chain is a great option. It is a reliable and long-lasting choice that can withstand the rigors of even the toughest environments.

▍662 Pintle Chain Sprockets for 662 Pintle Chain

A 662 pintle chain sprocket is a type of sprocket that is specifically designed to work with 662 pintle chains. Sprockets are used to transmit power from a motor or other source to a chain. The 662 pintle chain sprocket has a special design that allows it to grip the chain securely and prevent it from slipping.

A 662 pintle chain is a type of steel pintle chain that is made up of individual links that are connected by pins. The links are made of steel, and the pins are made of a harder material, such as heat-treated steel. The chain has an open barrel design, which allows materials to pass through easily.

662 pintle chain sprockets and 662 pintle chains are often used together in applications where a high-strength and durable chain is needed. For example, they are commonly used in material spreading equipment, hay handling equipment, and wood processing applications.

Here are some of the key features of 662 pintle chain sprockets and 662 pintle chains:

• High tensile strength: Both 662 pintle chain sprockets and 662 pintle chains have a high tensile strength, which makes them very strong and durable.
• Open barrel design: The open barrel design of the chain allows materials to pass through easily, without clogging or jamming.
• Corrosion resistance: Both 662 pintle chain sprockets and 662 pintle chains are made of materials that are resistant to corrosion, which means that they can be used in a variety of harsh environments.
• Available in a variety of sizes: Both 662 pintle chain sprockets and 662 pintle chains are available in a variety of sizes, which makes it easy to find the right size for your application.

If you are looking for a high-strength, durable, and corrosion-resistant chain and sprocket for your application, then 662 pintle chain sprockets and 662 pintle chains are a great option. They are reliable and long-lasting choices that can withstand the rigors of even the toughest environments.

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains, lumber conveyor chains, agricultural chains, silent chains, PIV chains, stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain, welded steel chain, drop forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.
