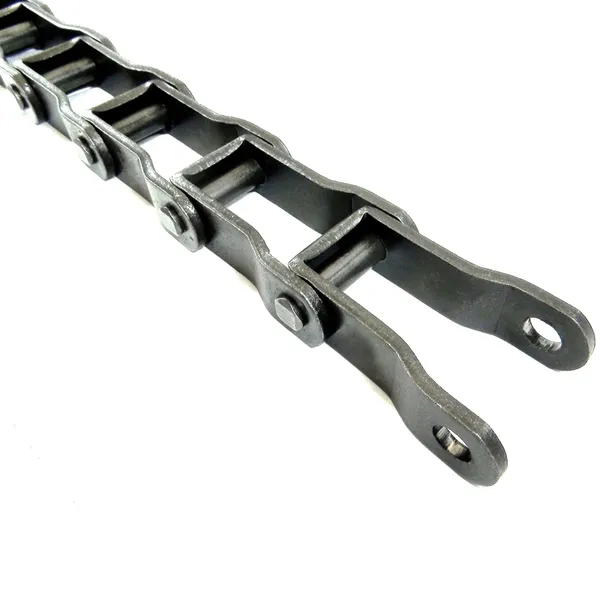

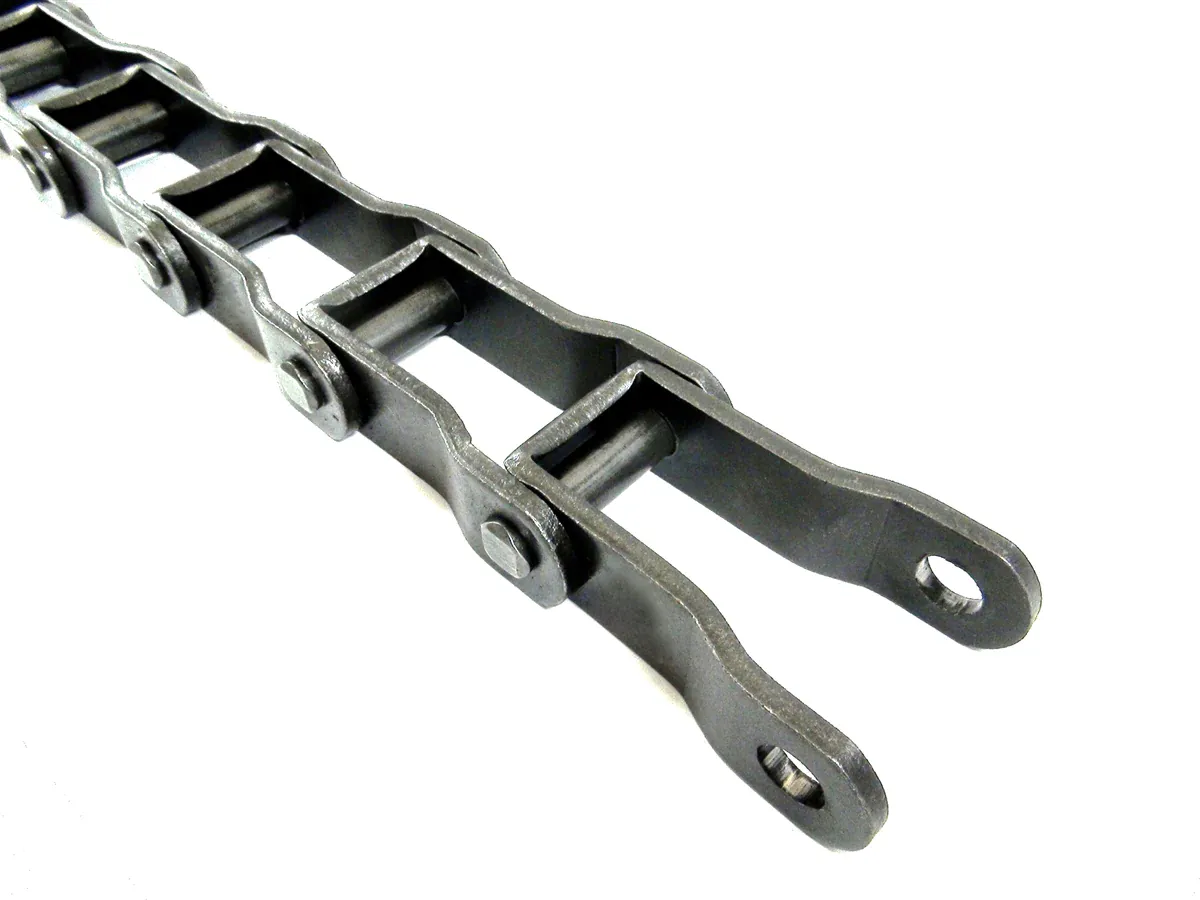

667K Steel Pintle Chain
The 667K pintle chain is made of carbon/alloy steel and is heat-treated for added strength and durability. It has a tensile strength of 31,500 pounds and a maximum working load of 5,200 pounds. The 667K pintle chain is also open-barreled, which allows for free movement of dirt and debris, and quad-staked, which provides added strength and wear resistance. The 667K pintle chain is available in 10-foot lengths, but other lengths can be custom-ordered. It is also available with a variety of connecting pins, depending on the specific application.
667K Steel Pintle Chain
The 667K pintle chain is made of carbon/alloy steel and is heat-treated for added strength and durability. It has a tensile strength of 31,500 pounds and a maximum working load of 5,200 pounds. The 667K pintle chain is also open-barreled, which allows for free movement of dirt and debris, and quad-staked, which provides added strength and wear resistance.
The 667K pintle chain is available in 10-foot lengths, but other lengths can be custom-ordered. It is also available with a variety of connecting pins, depending on the specific application.
Here are some of the key features of the 667K pintle chain:
- High tensile strength
- Durable construction
- Open-barrel design
- Quad staked pins
- Available in a variety of lengths
If you are looking for a high-strength steel chain for your next project, the 667K pintle chain is a great option. It is durable, reliable, and available in a variety of lengths to meet your specific needs.
 |
 |
▍667K Chain (667K Pintle Chain) Dimensions:
| Chain No: | 667K Chain (667K Pintle Chain) |
| Pitch Size: | 2.250 in |
| Width Between Inner Plates: | 1.079 in |
| Pin Diameter: | 0.437 in |
| Pin Length L Max: | 2.185 in |
| Pin Length Lc Max: | 2.362 in |
| Inner Plate Depth: | 1.075 in |
| Plate Thickness: | 0.201 in |
| Average Tensile Strength: | 22009.89 lbs |
| Material: | Carbon Steel |
| Length: | 10 ft |
| Weight Per Foot: | 2.620 lbs/ft |
▍667K Pintle Chain Design Features:
The 667K pintle chain is a high-strength, steel chain that is designed for demanding applications. It features a number of design features that contribute to its strength, durability, and performance.
High tensile strength: The 667K pintle chain is made of carbon/alloy steel and is heat-treated for added strength. This gives the chain a tensile strength of 31,500 pounds, which means it can withstand a significant amount of force before breaking.
Durable construction: The 667K pintle chain is also built to be durable. The pins are quad staked, which provides added strength and wear resistance. The pintle chain is also open-barreled, which allows for the free movement of dirt and debris. This helps to prevent the chain from becoming clogged and damaged.
Open-barrel design: The open-barrel design of the 667K pintle chain allows for free movement of dirt and debris. This helps to prevent the chain from becoming clogged and damaged. The open-barrel design also makes the chain easier to clean, which can help to extend its lifespan.
Quad staked pins: The quad-staked pins of the 667K pintle chain provide added strength and wear resistance. The pins are staked into the link plates four times, which helps to prevent them from coming loose or breaking. This makes the chain more durable and reliable in demanding applications.
Available in a variety of lengths: The 667K pintle chain is available in a variety of lengths, from 10 feet to 100 feet. This allows you to choose the length that is right for your specific application.
Overall, the 667K pintle chain is a high-strength, durable chain that is designed for demanding applications. It features a number of design features that contribute to its strength, durability, and performance.
▍667K Pintle Chain (667K Chain) Accessories:
 |
 |

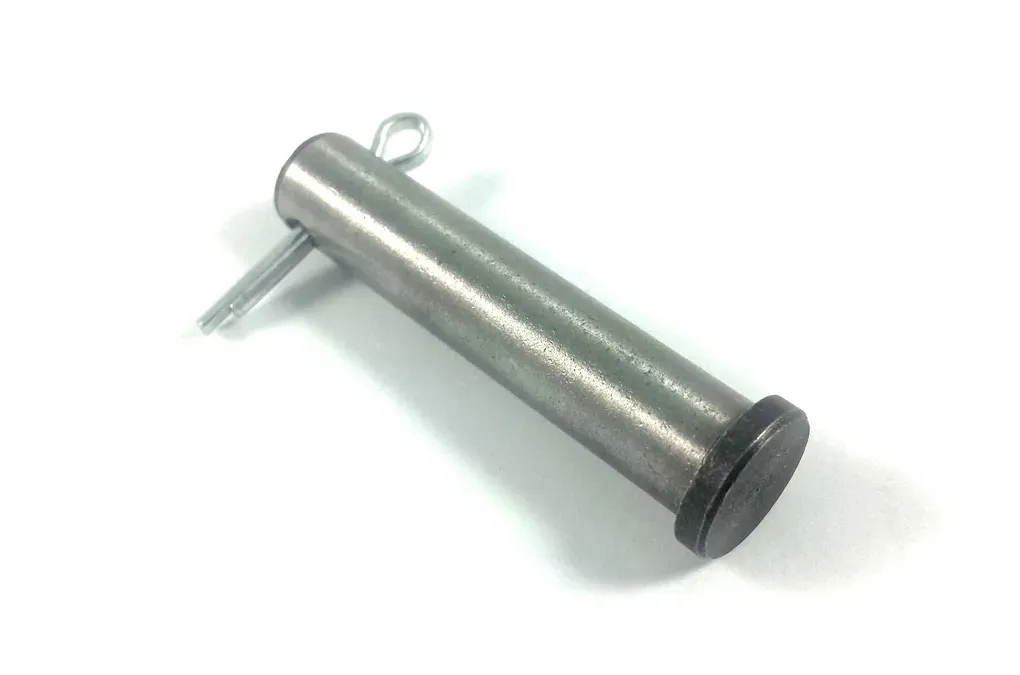

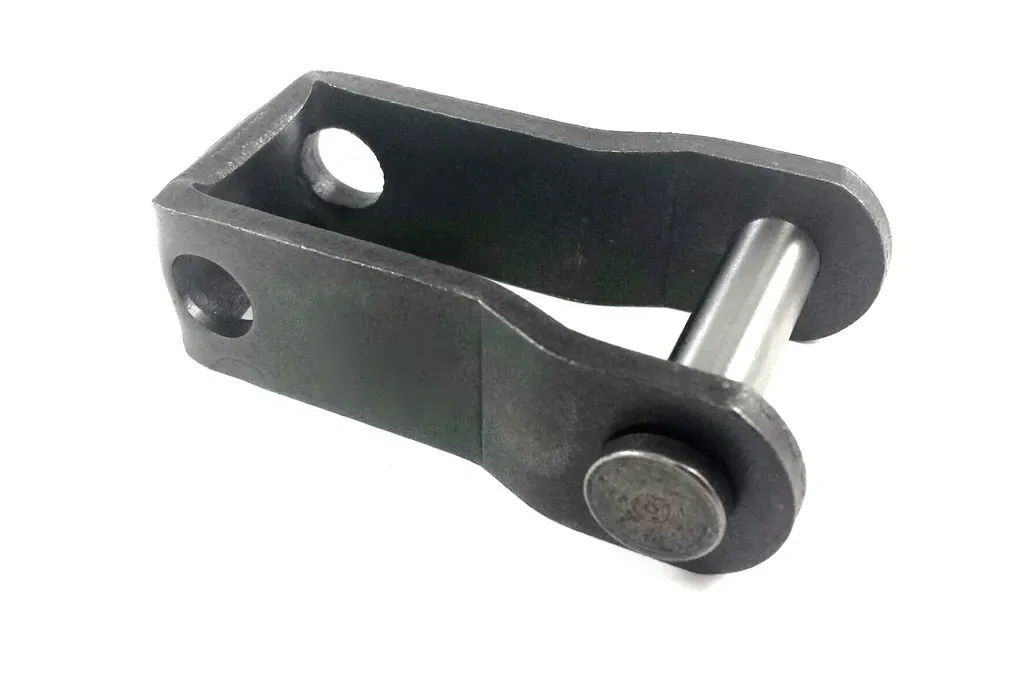

| 667K Pintle Chain Connecting Link | 667K Pintle Chain Pin |
▍667K Pintle Chain Applications:
667K pintle chain, also known as 667K pintle conveyor chain, is a type of heavy-duty industrial chain used in various applications. These chains are designed to handle heavy loads and harsh environments, making them ideal for a range of industries and applications. Some common applications for 667K pintle chains include:

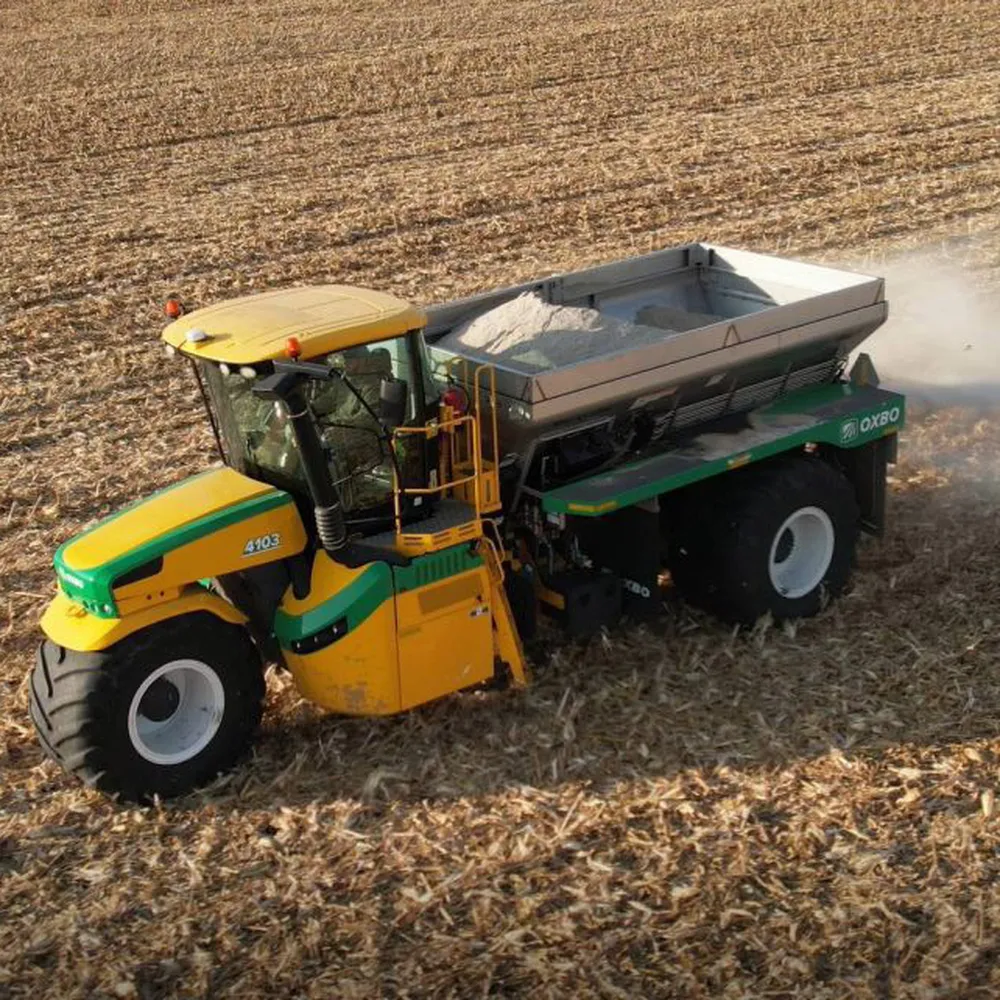

(1) Agricultural Equipment: In the agricultural industry, 667K pintle chains are often used in equipment such as manure spreaders, fertilizer spreaders, and forage harvesters. These chains are designed to handle heavy loads and harsh environmental conditions, making them well-suited for use in farming and agricultural applications.
(2) Forestry Equipment: Forestry equipment, such as log decks and bark conveyors, often rely on 667K pintle chains to transport logs and other materials. Their durability and strength make them ideal for handling heavy loads and abrasive working conditions common in the forestry industry.
(3) Asphalt and Paving Equipment: The asphalt and paving industry also utilizes 667K pintle chains in equipment like asphalt pavers, milling machines, and material transfer vehicles. These chains are resistant to heat, abrasion, and heavy loads, making them well-suited for the demanding conditions found in asphalt and paving applications.
(4) Waste Management and Recycling: In waste management and recycling facilities, 667K pintle chains are used in equipment such as conveyor systems, sorting lines, and balers. Their strength and durability make them ideal for handling heavy loads and the abrasive materials commonly found in waste and recycling applications.
(5) Industrial Manufacturing: Industrial manufacturing processes often involve the transport of heavy materials and components. 667K pintle chains can be found in various types of conveyor systems and material handling equipment, such as assembly lines, pallet handling systems, and overhead cranes.
(6) Mining and Quarrying: In mining and quarrying operations, 667K pintle chains are used in heavy-duty conveyor systems to transport ore, rock, and other materials. Their strength and durability make them well-suited to handle the extreme loads and abrasive environments found in mines and quarries.

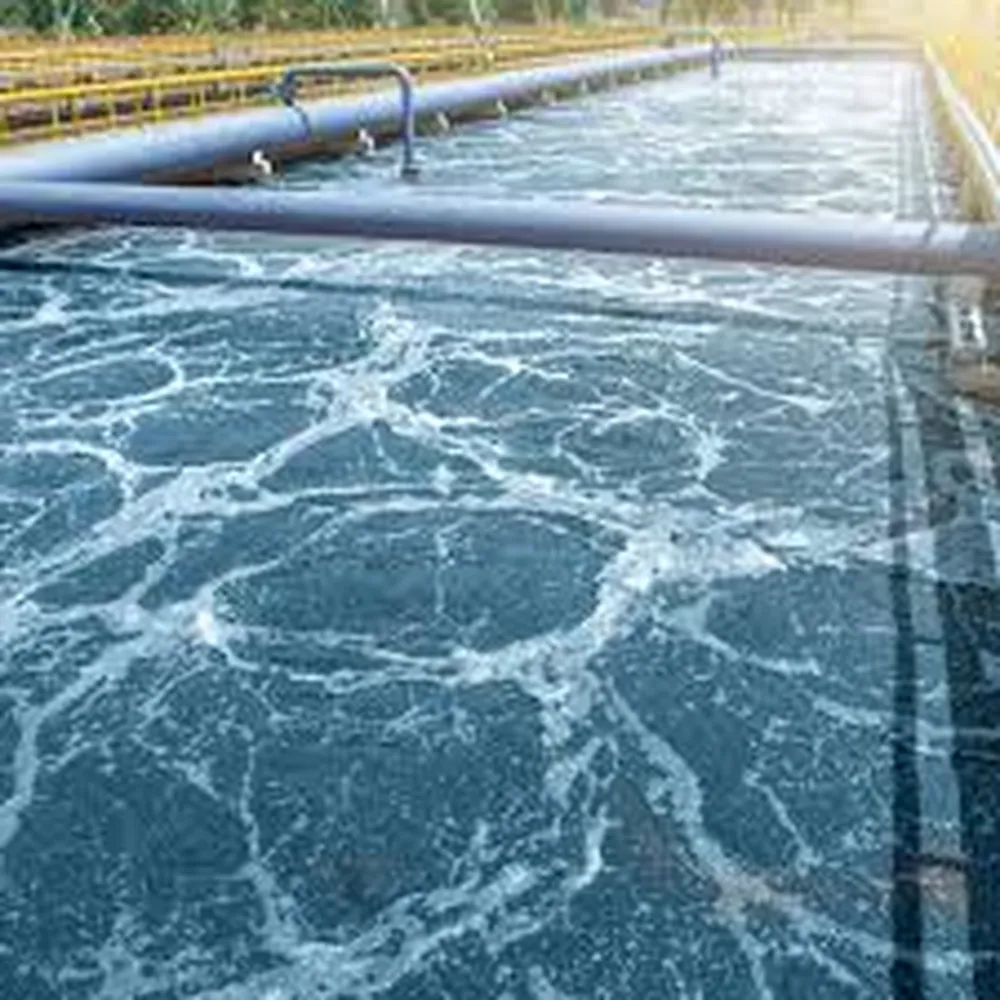

(7) Water and Wastewater Treatment: 667K pintle chains are also used in water and wastewater treatment plants for applications like grit removal, sludge handling, and scraper systems. The corrosion resistance and strength of these chains make them ideal for use in the harsh, wet environments found in water and wastewater treatment facilities.
These are just a few examples of the many applications where 667K pintle chains are used. Due to their strength, durability, and ability to handle heavy loads and harsh environments, these chains are a popular choice in a wide variety of industries and applications.
 |
 |

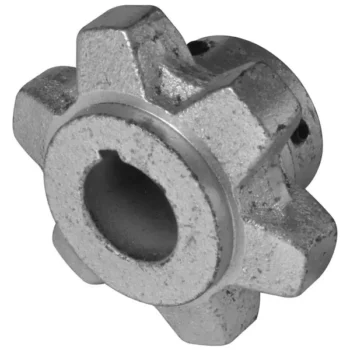

▍667K Pintle Chain Sprockets for 667K Pintle Chain
667K pintle chain sprockets and 667K pintle chain are components commonly used in industrial machinery and equipment. Pintle chain sprockets are used to transmit power and motion from the driving shaft to the driven shaft or system. They are designed to engage with the pintle chain, a type of conveyor chain that features a series of interconnected pins and plates. The 667K pintle chain sprockets have teeth that mesh with the chain, allowing for smooth and efficient power transmission.
667K pintle chain sprockets are likely a specific type or size of pintle chain sprocket, with the "667K" designation indicating its unique characteristics, such as the pitch of the chain or the number of teeth on the sprocket. Similarly, 667K pintle chain likely refers to a specific type or size of pintle chain with the "667K" designation indicating its unique characteristics, such as the pitch of the chain or the size of the pins and plates.
It is important to ensure that the 667K pintle chain and 667K pintle chain sprockets are compatible with each other and with the machinery they are being used in. Using the wrong size or type of chain or sprocket can result in poor performance, premature wear, and even equipment failure.
▍How to Choose the Right 667K Pintle Chain?
Choosing the right 667K pintle chain will depend on several factors, such as the specific application, the load capacity required, and the environment in which the chain will be operating. Here are some key factors to consider when selecting the right 667K pintle chain:
Load Capacity: The load capacity of the 667K pintle chain should be sufficient for the application. This will depend on factors such as the weight of the material being conveyed, the speed of the conveyor, and the type of machinery being used.
Pitch: The pitch of the 667K pintle chain refers to the distance between the centers of two adjacent pins. The pitch of the chain should match the pitch of the sprocket to ensure proper engagement and efficient power transmission.
Material: The material of the 667K pintle chain should be selected based on the environment in which it will be operating. For example, if the chain will be operating in a corrosive environment, a stainless steel chain may be more suitable.
Pin and Plate Size: The size of the pins and plates of the chain should be selected based on the load capacity required and the pitch of the 667K pintle chain.
Lubrication: The 667K pintle chain should be properly lubricated to ensure smooth operation and to prevent wear and tear.
Maintenance and Replacement: Consider the ease of maintenance and replacement of the 667K pintle chain. It is important to select a chain that is easy to maintain, and replacement parts should be readily available.
▍China Steel Pintle Chain Manufacturers
We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains, lumber conveyor chains, agricultural chains, silent chains, PIV chains, stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain, welded steel chain, drop forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.
