8V Series Cast Iron Ten-Groove QD Sheaves for “8V” Belts

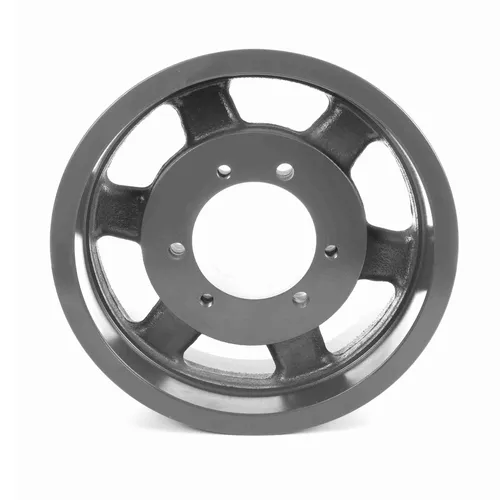

8V series ten-groove QD (quick detachable) bushed sheaves are manufactured for 8V and 8V banded belts. They range from 12.50″ to 5″.00″ in d”diameter. Depending on the sheave size, they are made to use a J, M, N, or P QD bushing, which we also stock. Most of our ten-groove 8V QD sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.

Get a Quote

8V Series Cast Iron Ten-Groove QD Sheaves for "8V" Belts

8V series ten-groove QD (quick detachable) bushed sheaves are manufactured for 8V and 8V banded belts. They range from 12.50" to 5".00" in d"diameter. Depending on the sheave size, they are made to use a J, M, N, or P QD bushing, which we also stock. Most of our ten-groove 8V QD sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.

Ten-Groove 8V QD Sheave Size Chart

Sheave Size
Bushing
Type
Pitch Diameter (P.D.)
Outside Diameter (O.D.)
(E)
(F)
(L)
(M)
Weight (LBS)
108V1250J J A 12.30 12.50 2-1/8" 11-5/8" 4-5/8" 4-7/8" 156
108V1320J J A 13.00 13.20 2-1/8" 11-5/8" 4-5/8" 4-7/8" 190
108V1400J J A 13.80 14.00 2-1/8" 11-5/8" 4-5/8" 4-7/8" 210
108V1500M M A 14.80 15.00 2-11/32" 11-5/8" 6-3/4" 2-17/32" 266
108V1600M M A 15.80 16.00 2-11/32" 11-5/8" 6-3/4" 2-17/32" 256
108V1700M M A 16.80 17.00 2-11/32" 11-5/8" 6-3/4" 2-17/32" 281
108V1800M M A 17.80 18.00 2-11/32" 11-5/8" 6-3/4" 2-17/32" 290
108V1900M M A 18.80 19.00 2-11/32" 11-5/8" 6-3/4" 2-17/32" 301
108V2000M M A 19.80 20.00 2-11/32" 11-5/8" 6-3/4" 2-17/32" 325
108V2120M M A 21.00 21.20 2-11/32" 11-5/8" 6-3/4" 2-17/32" 340
108V2240N N A 22.20 22.40 3/16" 11-5/8" 8-1/8" 3-5/16" 365
108V2480N N A 24.60 24.80 3/16" 11-5/8" 8-1/8" 3-5/16" 390
108V3000N N A 29.80 30.00 3/16" 11-5/8" 8-1/8" 3-5/16" 435
108V3550P P A 35.30 35.50 1/4" 11-5/8" 9-3/8" 2" 507
108V4000P P A 39.80 40.00 1/4" 11-5/8" 9-3/8" 2" 615
108V4450P P A 44.30 44.50 1/4" 11-5/8" 9-3/8" 2" 710
108V5300P P A 52.80 53.00 1/4" 11-5/8" 9-3/8" 2" 945

Related Matching 8V, 8V Banded Series V-Belt

(1) 8V-Series V-Belts

Classic 8V-Series V-Belts have a 0.63" top-width, 0.53" thickness, and a 38° angle. Additionally, 8V V-belts are one of the oldest styles of V-Belts in the industry. Because of their long-term success and economical operation, they are also one of the industry's most widely used belt series. The premium 8V-series v-belts we supply are manufactured under ISO 9001 specifications, are oil and heat resistant, and directly interchange with other brands. They are constructed of a natural rubber compound with polyester cords and use cotton with a polyester blend cover for high durability.

(2) 8V-Series Banded V-Belts

8V-series v-belts are a part of the "classic" lineup of v-belts because they are one of the oldest style belts used and one of the most common. Our belts are manufactured by ARPM standards and offer superior strength, durability, and performance. 8V-series v-belts have a 1.0" top-width per belt (band/ rib).

Related QD Bushings | Quick Disconnect Bushings

QD bushings are utilized throughout the industrial power transmission and agricultural industry for various sprockets, sheaves, pulleys, and synchronized drives. They are designed for easy installation and easy uninstallation; they are also commonly referred to as quick-disconnect bushings. QD bushings can help conventional mounting with the flange outboard and reverse mounting to where the flange is inboard and utilize a single split that extends through the entire bushing length. Our QD bushings interchange with other brands and are made from high-grade steel precision machined for perfect application fitment. QD bushings' benefits over different styles include; ease of installation/ uninstall, superior holding power, and extreme strengths. We stock all the standard sizes of QD bushings and supply custom QD bushings upon request, including stainless steel ones. QD bushings are found in some of the most rugged applications worldwide; contact our customer service team today for a quote or additional information on our premium QD bushings.

Bushing Type
(A)
(B)
(D)
(E)
(F)
(G)
(L)
Bolt Circle
Cap Screws Required
Min. Stock Bore
Max. Bore W/ KW
Max Bore W/ Shallow KW
Set Screw Size
Avg. Weight (LBS)
J 1.000" 5.148" 7.250" 3.500" 3.188" 0.423" 4.500" 6.250" 3 - 0.625X4.5 1.438" 3.750" 4.500" 0.625 - 11 18.0
M 1.250" 6.500" 9.000" 5.500" 5.188" 0.423" 6.750" 7.875" 4 - 0.75X6.75 1.938" 4.750" 5.500" 0.75 - 10 37.0
N 1.500" 7.000" 10.25" 6.625" 6.250" 0.423" 8.125" 8.500" 4 - 0.875X8.5 2.438" 5.125" 6.000" 0.75 - 10 57.0
P 1.750" 8.250" 11.75" 7.625" 7.250" 0.423" 9.375" 10.00" 4 - 1X9.5 2.938" 5.983" 7.000" 0.875 - 9 120.0

Installation and Removal of Pulleys

Install

1. Check the pulley groove to make sure there are no scratches or sharp edges and all dimensions are up to standard;

2. Clean the surfaces of all parts, such as hub holes, taper sleeves, bolt holes, etc. Fit the cone sleeve into the pulley, aligning all the screw holes.

3. Apply oil to the screw (TB 1008-TB 3030) and thread (TB 3525-TB 5050) and screw them into the mounting holes, but do not tighten them yet.

4. Clean the surface of the drive shaft, push the pulley with the tapered sleeve installed to the predetermined position on the shaft, and check whether the v belt pulley is aligned.

5. When using the keyway, it must be inserted into the hub first, and there must be a certain tolerance between the keyway and the hole hub.

6. Using a hexagonal wrench conforming to the DIN911 standard, alternately, gradually, and evenly tighten the bolts in each mounting hole until the torque shown in the table below is reached.

7. After a short period of operation (0.5 to 1 hour), check the tightening torque of the bolts and retighten them if necessary.

8. To prevent the intrusion of foreign matter, fill the hole's connection hole with grease.

Disassemble

1. Loosen all the bolts, take out one or two of the bolts according to the number of disassembly holes, lubricate the bolt pattern and the tip of the bolt with oil, and insert the bolt into the disassembly hole.

2. Tighten the bolts alternately until the taper sleeve and pulley are loosened.

3. Remove the taper sleeve and pulley from the shaft.

What Are the Pulleys Used For?

The pulley is not only used on the car; it is mainly used to transmit power over long distances. It has many applications, such as the power output of small diesel engines, such as tractors, cars, etc. It is also used in mechanical transmissions, such as machining equipment, textile machinery, lathes, and forging machines.

Technological Processing

Company Profile

HZPT is a professional manufacturer of mechanical parts. Our main products are timing pulleys, sprockets, split taper bushings, coupling, and other transmission parts. Its products are mainly exported to Germany, Britain, France, and other European countries, with an annual export value of 18 million U.S. dollars, accounting for more than 65% of the total output. The annual output value reached 200 million yuan.

Our products all adopt international, European, and American advanced industrial standards, use precise and good processing equipment, develop reasonable production technology, apply efficient and flexible management systems, and improve the quality management system to ensure that the product quality is good and the price is affordable.

Our factory adheres to the enterprise concept of "quality: the basis of enterprise survival, integrity: the basis of enterprise development, service: the source of enterprise development, low price: the instrument of enterprise development." We are always looking forward to the presence of customers at home and abroad, seeking win-win benefits and joint cause development.

Warehouse Stock

The warehouse covers an area of 5000 square meters and can provide all kinds of standard models A/B/C/Z, with complete quantity and large quantity in stock. Meanwhile, it accepts all sorts of non-standard customization for drawing production. The daily production capacity is 10 tons, and the delivery time is short.

Packaging & Shipping

Experienced Workers Packing Pulleys Carefully, safe wooden cases keep parts from being injured or damaged during sea or air shipment.
