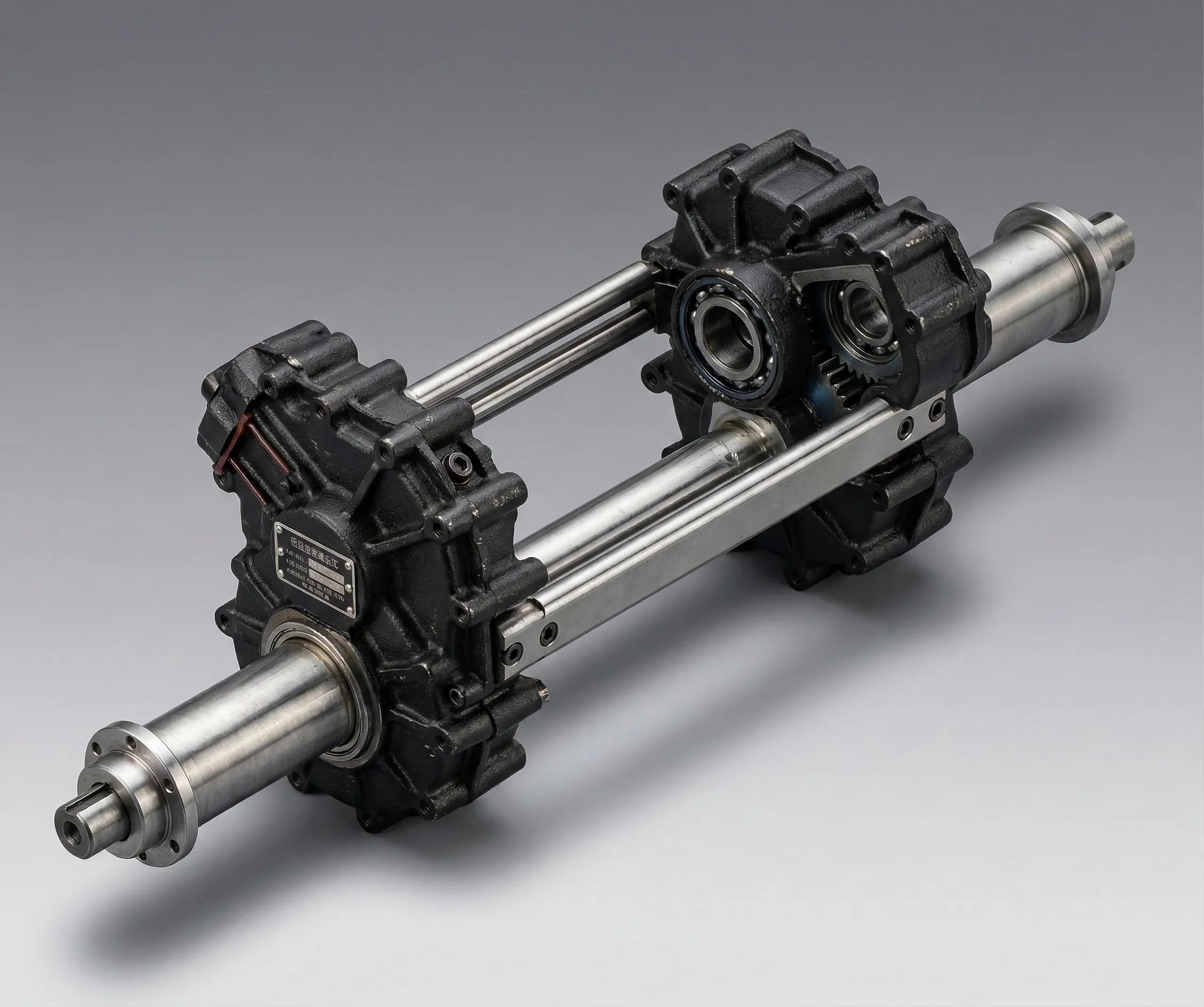

Advanced Dual-Drive Gearbox Assembly

Precision-engineered agricultural transmission solutions for heavy-duty soil cultivation and industrial-scale rotavator systems.

Core Product Parameters and Specifications

The performance of modern rotary tillers depends heavily on the mechanical integrity of the dual-drive gearbox assembly. This technical unit is designed to split the torque from the tractor's PTO shaft across two lateral drive systems, ensuring a perfectly balanced rotation of the tiller blades even in the most stubborn clay-heavy soils. By utilizing high-grade 20CrMnTi alloy steel for the internal gears, we ensure that the transmission can withstand the harmonic vibrations and shock loads inherent in field cultivation. These rotary tiller parts are not merely standard components; they are calibrated instruments that minimize power loss and maximize fuel efficiency. For professional agricultural contractors, the dual-drive configuration offers a significant reduction in shaft deflection, which is a common failure point in single-side drive systems. The HT250 cast iron housing provides a rigid framework that maintains gear alignment under extreme thermal expansion, ensuring that your equipment operates at peak efficiency during the critical windows of the planting season.

Innovative Engineering and Material Superiority

Advanced Thermodynamics and Structural Integrity

When designing the dual-drive gearbox assembly, EVER-POWER engineers focused on two primary challenges: heat dissipation and load distribution. During high-intensity operations, traditional gearboxes often suffer from lubricant breakdown due to localized hotspots. Our proprietary housing design incorporates cooling fins and optimized internal oil passages that promote natural convection. This keeps the internal temperature up to 15% lower than standard competitors. The use of 20CrMnTi steel, treated with an advanced carburizing process, provides a surface hardness of HRC 58-62, while the core remains ductile enough to absorb sudden impacts from rocks or tree roots hidden beneath the topsoil. This balance of hard-wearing surfaces and structural flexibility is what defines our agricultural transmission units.

Precision Gear Geometry and Noise Reduction

The gear teeth in our assembly are finished using CNC grinding technology, achieving a Grade 6 accuracy level. This precision reduces the frictional energy loss between the mesh points, translating more of the tractor's horsepower directly to the tiller blades. Beyond efficiency, this reduces operational noise and vibration, which significantly extends the life of the surrounding bearings and seals. By reducing the "micro-shocks" within the gearbox, we prevent the fatigue-induced cracking that often plagues lower-quality components. Every unit is tested in a load-simulated environment to ensure that the contact patterns of the bevel gears are centered perfectly, providing uniform wear characteristics that allow the gearbox to exceed its expected service life of 2,500 operational hours.

Broad Industry Utility and Machinery Compatibility

Selecting the appropriate gearbox for these varied applications involves more than just matching horsepower. It requires an understanding of the duty cycle and the environmental hazards present in the field. Our dual-drive solution is particularly popular in regions with high volcanic soil content or heavy clay, where single-side drives often suffer from excessive lateral load on the input bearings. By distributing the work, we ensure the machine remains centered, reducing the "pull" that operators often feel when using asymmetric tillers. This improves the ergonomic experience for the driver and ensures that the finished seedbed is uniform in depth and texture, which is vital for the germination rates of high-value crops like soybeans, corn, and wheat.

Step-by-Step Replacement and Manufacturing Workflow

Proactive Maintenance for Maximum Service Life

Long-term reliability of any dual-drive gearbox assembly is rooted in consistent lubrication management. We recommend an initial oil flush after the first 50 hours of "break-in" operation. This critical step removes any microscopic metal particles that occur as the gears bed in. For standard operations, a full oil change every 300 hours or once per season is recommended. It is vital to use only GL-5 grade lubricants, which contain specialized additives to prevent the gear teeth from welding together under extreme pressure. Furthermore, checking the integrity of the breather plug is a frequently overlooked task. A clogged breather leads to internal pressure buildup as the air heats up, which inevitably forces oil past the seals and results in premature leaks.

Mechanical inspections should extend beyond the lubricant. Every month, operators should check for axial play in the input and output shafts. Any movement exceeding 0.2mm indicates that the pre-load on the tapered roller bearings has diminished and requires adjustment or shimming. Additionally, inspecting the mounting bolts for tightness is crucial, as the vibration from tilling can loosen hardware, leading to housing misalignment and catastrophic gear failure. In dusty or muddy environments, washing the exterior of the gearbox is not just about aesthetics; it prevents dirt from acting as an insulator, allowing the housing to dissipate heat as designed. Following these localized maintenance protocols ensures that your EVER-POWER equipment remains operational through the most demanding harvest cycles.

Brand Advantage and Competitive Comparison

Why choose EVER-POWER? Our advantage lies in the integration of high-tier metallurgy with precision manufacturing typically reserved for automotive racing transmissions. While many manufacturers cut costs by using standard carbon steel, we invest in alloyed materials that offer superior fatigue resistance. This commitment to quality means that our dual-drive gearbox assembly has a significantly lower total cost of ownership (TCO) over the lifetime of the rotavator. Our localized support and global distribution network mean that whether you are a dealer in South America or a contractor in Europe, you have access to technical experts who understand the unique soil challenges of your region and can provide the specific agricultural transmission units required for your success.

Sustainability, Compliance, and Regional Standards

In today’s global market, environmental stewardship is just as important as mechanical performance. Countries such as the United States, Brazil, and members of the European Union have implemented strict regulations regarding the recyclability and chemical composition of agricultural machinery. EVER-POWER’s dual-drive gearbox assembly is manufactured in a facility that adheres to ISO 14001 environmental management standards. We utilize lead-free coatings and non-toxic sealing materials that comply with the REACH and RoHS directives. This ensures that our products are safe for the land they help cultivate and can be easily integrated into the "Green Farming" initiatives currently being prioritized by governments and large agricultural cooperatives worldwide.

Furthermore, our focus on efficiency contributes directly to the reduction of carbon footprints in the farming sector. By achieving higher mechanical efficiency through our Grade 6 gear grinding, we reduce the torque resistance on the tractor. This means the engine consumes less diesel to achieve the same tilling results, translating to fewer emissions per hectare. In regions like India and Southeast Asia, where fuel costs represent a significant portion of a farmer's overhead, our technology provides a tangible economic benefit while supporting national sustainability goals. We are also experimenting with bio-degradable lubricant compatibility for sensitive ecological zones, ensuring that EVER-POWER remains at the forefront of the industry’s transition to a more sustainable future.

Market Pricing Structure and ROI Analysis

The data clearly shows that while EVER-POWER is positioned as a mid-priced solution, its longevity rivals that of high-end European brands costing twice as much. For a contractor managing 1,000 hectares, the return on investment (ROI) becomes evident within the first two seasons. The cost of a single field failure—including labor, parts, and lost planting time—can easily exceed $2,000. By investing in a high-quality dual-drive gearbox assembly upfront, you effectively eliminate the most common cause of rotary tiller downtime. Our pricing strategy focuses on providing the best "value-per-hour" in the industry, making professional-grade engineering accessible to medium and large-scale farming operations globally.
