Articulated Bottom Plate Conveying Chain 12A-Tb24 P23-Tb45 16A-Tb48 16b-T32 20A-Tb45 20A-Tb51 24A-Tb65

1. Strong chain bearing capacity;
2. The chain has both rigid support and flexible turning;
3. The conveyor chain is used in pairs with high synchronization and high chain operation accuracy.

Get a Quote

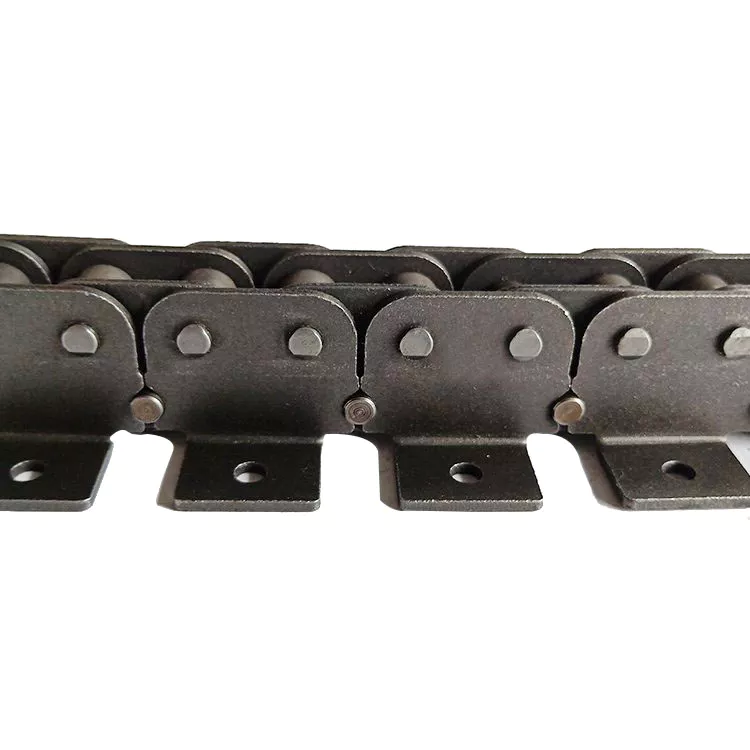

Articulated Bottom Plate Conveying Chain

Plate Conveying Chain is a common production line in production. The production line has simple structure, convenient operation and high efficiency. In the process of product processing, it is mainly used for the transportation of finished products. Belt conveyor is a common occupation in light industry such as electronic products and food packaging, but it is rarely used in heavy product processing.

Articulated Bottom Plate Conveying Chain 12A-Tb24 P23-Tb45 16A-Tb48 16b-T32 20A-Tb45 20A-Tb51 24A-Tb65The Type of Plate Conveying Chain

The utility model discloses a conveyor chain which is connected by a number of external single sections and internal single sections. The outer single section includes the outer bending attachment plate A, the outer bending attachment plate B, the outer attached plate and the pin shaft, and the inner single section includes the inner bending attached plate A, the inner bending attachment plate B, the inner direct attached plate, the pin shaft, the sleeve and the roller. It has high loading capacity, rigid support and flexible turning, and is stable and synchronous.

Chain No. Pitch Roller diameter Width between inner plates Pin size Plate thickness Plate size CL size
P b1 d1 d2 Lp T h4 u1 f d4 W b3 h41 u11 f1 d41 W1
12A-TB24 19.05 11.91 12.57 5.94 26.9 2.4 24 30 42 5.5 58 17.37 14 18 40 6.2 54
P23-TB45 23 15.75 15.88 7.92 31.9 3 45 23 45.5 6.2 63.5 21.75 22 21 49 8.2 66.18
16A-TB48 25.4 15.75 15.88 7.92 32.7 3.2 48 24 46 6.5 63.2 22.15 22 23 49 8.2 66.18
16B-TB32 25.4 17.02 15.88 8.28 36.1 4 32 22 50.8 6.2 67.6 25.02 15 23 50.8 6.2 67.6
20A-TB45 31.75 18.9 19.05 9.53 41.1 4 45 30 67 10 91 26.9 21 30 71 11 95
20A-TB51 31.75 18.9 19.05 9.53 39 4 51 30 67 10 91 27.51 27 30 71 11 95
24A-TB65 38.1 25.5 22.23 11.11 49 4.8 65 45 75 9 100 35.1 32 30 75 11 100

Feature of Plate Conveying Chain

A plate conveying chain is characterized in that it is composed of several outer single sections and inner single sections. The outer single section includes an outer bending attachment plate A, an outer bending attachment plate B, an outer straight attachment plate and a pin shaft. Between the outer single sections, one side is an outer bending attachment plate A and an outer straight attachment plate alternately arranged side by side, and the other side is a number of outer bending attachment plates B and an outer bending attachment plate A and an outer straight attachment plate are arranged one by one and are fixedly connected by a pin shaft, The shaft hole matched with the pin shaft is located at the end of the straight section of the outer bending attachment plate B and the outer bending attachment plate A and the end of the outer straight attachment plate. An inner single section is arranged at the inner side of the outer single section. The inner single section includes the inner bending attachment plate A, the inner bending attachment plate B, the inner straight attachment plate, the pin shaft, the sleeve and the roller, A number of inner straight attachment plates are arranged into a row by butt joint at the head and tail, and two rows are symmetrically arranged and fixedly connected with the outer single section located on the outside through the two pins, on which sleeves and rollers are sleeved in turn.

Articulated Bottom Plate Conveying Chain 12A-Tb24 P23-Tb45 16A-Tb48 16b-T32 20A-Tb45 20A-Tb51 24A-Tb65 Articulated Bottom Plate Conveying Chain 12A-Tb24 P23-Tb45 16A-Tb48 16b-T32 20A-Tb45 20A-Tb51 24A-Tb65

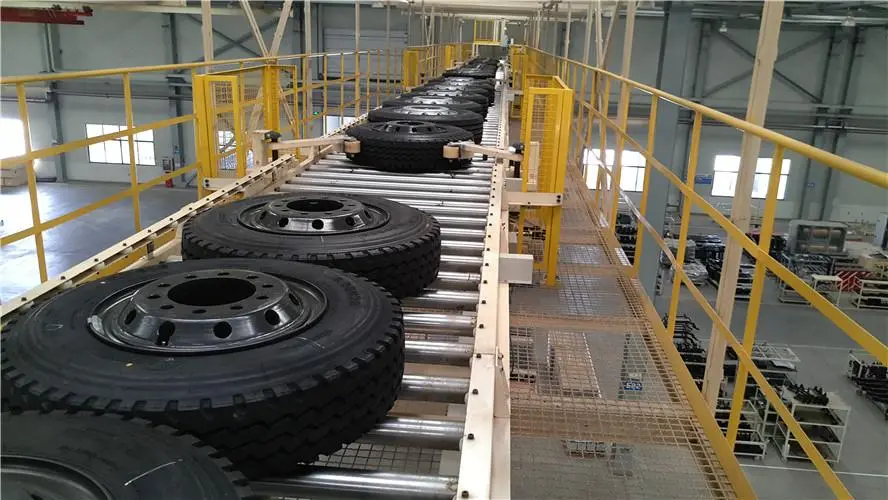

Plate Conveying Chain in Tire Production Line

Articulated Bottom Plate Conveying Chain 12A-Tb24 P23-Tb45 16A-Tb48 16b-T32 20A-Tb45 20A-Tb51 24A-Tb65

In the tire production line,:
1. Strong chain bearing capacity;
2. The chain has both rigid support and flexible turning;
3. The conveyor chain is used in pairs with high synchronization and high chain operation accuracy.

Articulated Bottom Plate Conveying Chain 12A-Tb24 P23-Tb45 16A-Tb48 16b-T32 20A-Tb45 20A-Tb51 24A-Tb65
