Pushing Box Roller Conveyor Chain With Pusher Attachment C208B P28.5 P38.1
Pushing Box chain equipped with thruster attachments or stop attachments are used in the goods packaging and transportation industry because they provide a safe and reliable locking mechanism to connect the chain and the transported products. We offer fixed flight and downward flight when rotating around the sprocket. These accessories are available in standard carbon steel, stainless steel, nickel-plated and maintenance-free versions of chains and materials. For quotations or other information about roller chain thrusters, please contact our customer support team, and we will be happy to help you.
Pushing Box Chain
Pushing Box chains equipped with thruster attachments or stop attachments are used in the goods packaging and transportation industry because they provide a safe and reliable locking mechanism to connect the chain and the transported products. We offer fixed flight and downward flight when rotating around the sprocket. These accessories are available in standard carbon steel, stainless steel, nickel-plated and maintenance-free versions of chains and materials. For quotations or other information about roller chain thrusters, please contact our customer support team, and we will be happy to help you.
| Matched with C208B | Matched with 08B |
| |
 |
 |
 |
Pusher Attachment
 |
 |
|
Chain No.
|
Pitch
|
Pin diameter
|
attachment size
|
||||
|
p
|
d max
|
A
|
B
|
C
|
F
|
H
|
|
|
C208B
|
25.4
|
4.45
|
3
|
81.5
|
102
|
107.6
|
7.2
|
|
P28.5
|
28.5
|
3.28
|
2
|
55
|
65.9
|
70
|
5
|
|
P38.1
|
38.1
|
4.45
|
4
|
117
|
124.2
|
130.3
|
8
|
Accessories can also be customized according to requirements, but dimensional drawings are required.
Why Choose Us

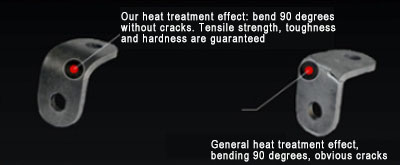

 Heat treatment processThrough excellent standard and excellent heat treatment and quenching process, the hardness, strength, toughness, tensile strength and service life of parts can be improved
|

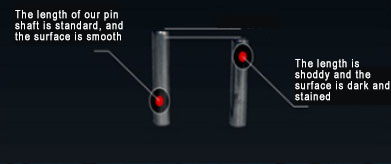

 Pin screen
Each pin shaft has been strictly selected manually, without cutting corners
|

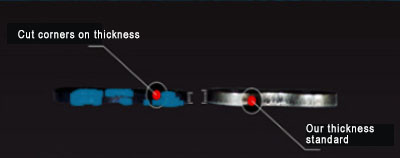

 Chip screeningCustomize the thickness from the raw material chain plate without cutting corners
|

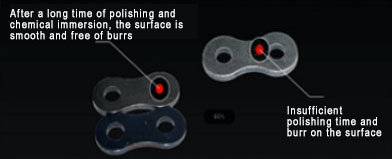

 Surface treatmentAdd chemical raw materials with a grinder, and the surface shall be smooth and free of burrs after the long sealing room is fully polished
|

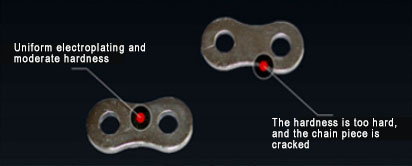

 Surface electroplatingEach zero cow is fully electrolyzed, the surface thickness is uniform, and the service life is improved
|

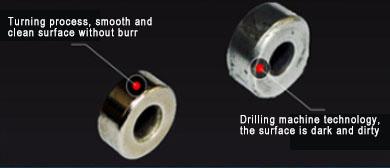

 Accessory processEach roller is made by turning process, and its surface is smooth and free of burrs
|

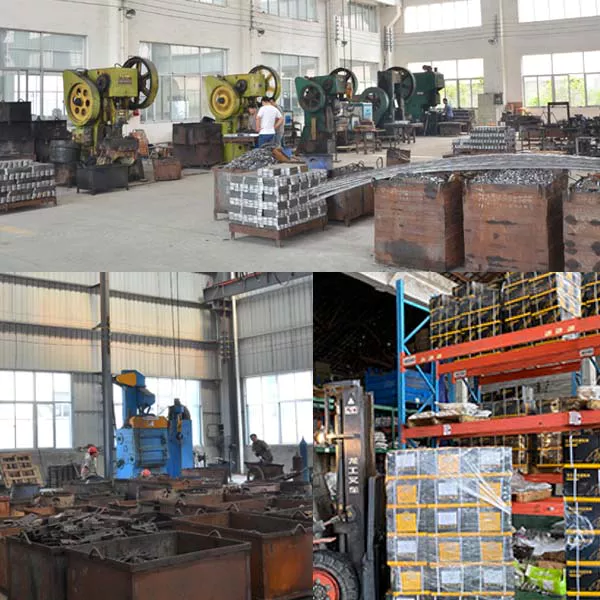

Roller chain manufacturer
The company has advanced manufacturing technology and relatively strong manufacturing force, and high-end precision testing instruments to ensure that every chain leaving the factory is qualified. The company mainly deals in: transmission chain, transmission chain, lifting chain, agricultural machinery chain, stainless steel chain, etc. Various non-standard chains are ordered separately. The company uses more than 600 kinds of non-standard molds. It can be customized according to drawings. We implement all-round management and control over product quality and service, and constantly improve customer satisfaction. The chain produced by the company enjoys a certain reputation in the world with its high quality, good reputation and high-quality service.
