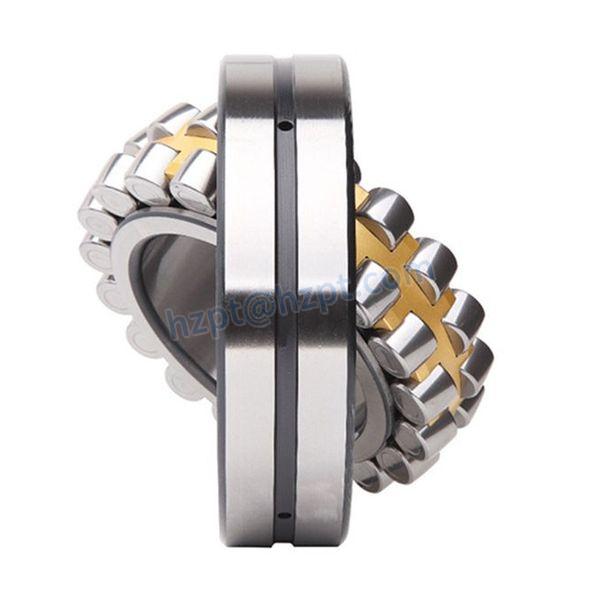

CA Type Spherical Roller Bearings
CA type Spherical Roller Bearing is a spherical roller bearing with a holding rib on the inner ring, a floating guide ring between the double-rows of rollers centered on the inner circle, and a brass double prong-type cage fixed on it – suffix. CA Spherical roller bearings are robust, self-restraining construction assemblies with double-rows of symmetrical spherical roller bearings.
CA Type Spherical Roller Bearings
CA type Spherical Roller Bearing is a spherical roller bearing with a holding rib on the inner ring, a floating guide ring between the double-rows of rollers centered on the inner circle, and a brass double prong-type cage fixed on it – suffix. CA Spherical roller bearings are robust, self-restraining construction assemblies with double-rows of symmetrical spherical roller bearings. The axis of the roller rows is inclined at an angle to the turning axis of the bearing. The raceway in the outer ring is spherically formed so that the double-row roller assembly can adjust easily in case of misalignment or shaft deflections. The extremely high load capacity, angle-adjustable self-adjusting roller bearings are used where high impact radial dynamic forces have to be absorbed, and misalignment or more considerable shaft deflections are expected. They exist in many designs – from standard bearings to industry-specific specialized bearings.
Product parameter
| Boundary dimensions (mm) |
Load ratings (KN) |
Limiting speeds (r/min) |
Mass (kg) |
Bearing NO. | |||||
| d | D | B | Cr | Cor | Grease | oil | HZPT | ||
| 20 | 52 | 15 | 33.7 | 32.1 | 9500 | 12000 | 0.18 | 21304 CA/W33 | |
| 20 | 52 | 15 | 33.7 | 32.1 | 9500 | 12000 | 0.18 | 21304 CAK/W33 | |
| 20 | 52 | 18 | 43.2 | 45 | 8500 | 11000 | 0.18 | 22205 CA/W33 | |
| 20 | 52 | 18 | 43.2 | 45 | 8500 | 11000 | 0.18 | 22205 CAK/W33 | |
| 20 | 62 | 17 | 48 | 49.3 | 7500 | 9000 | 0.28 | 21305 CA/W33 | |
| 20 | 62 | 17 | 48 | 49.3 | 7500 | 9000 | 0.28 | 21305 CAK/W33 | |
| 30 | 62 | 20 | 56 | 61 | 7000 | 8500 | 0.3 | 22206 CA/W33 | |
| 30 | 62 | 20 | 56 | 61 | 7000 | 8500 | 0.3 | 22206 CAK/W33 | |
| 30 | 72 | 19 | 61.1 | 62.9 | 6000 | 7500 | 0.41 | 21306 CA/W33 | |
| 30 | 72 | 19 | 61.1 | 62.9 | 6000 | 7500 | 0.41 | 21306 CAK/W33 | |
| 35 | 72 | 23 | 73.2 | 83.1 | 6600 | 8000 | 0.45 | 22207 CA/W33 | |
| 35 | 72 | 23 | 73.2 | 83.1 | 6600 | 8000 | 0.45 | 22207 CAK/W33 | |
| 35 | 80 | 21 | 70.1 | 74.7 | 5300 | 7000 | 0.54 | 21307 CA/W33 | |
| 35 | 80 | 21 | 70.1 | 74.7 | 5300 | 7000 | 0.54 | 21307 CAK/W33 | |
| 40 | 80 | 23 | 86.9 | 93.5 | 6500 | 7500 | 0.54 | 22208 CA/W33 | |
| 40 | 80 | 23 | 86.9 | 93.5 | 6500 | 7500 | 0.54 | 22208 CAK/W33 | |
| 40 | 90 | 23 | 90 | 99 | 5000 | 6000 | 0.75 | 21308 CA/W33 | |
| 40 | 90 | 23 | 90 | 99 | 5000 | 6000 | 0.75 | 21308 CAK/W33 | |
| 40 | 90 | 33 | 123.6 | 142.1 | 6000 | 7000 | 1 | 22308 CA/W33 | |
| 40 | 90 | 33 | 123.6 | 142.1 | 6000 | 7000 | 1 | 22308 CAK/W33 | |
Series of CA type Spherical Roller Bearings
Popular types of CA type Spherical Roller Bearings:
- 21306 CAK/W33
- 22308 CA/W33
Features of CA type Spherical Roller Bearings
- Accommodate misalignment
- High load-carrying capacity
- Long service life
- Low friction
- Robust
Applications of CA type Spherical Roller Bearing
CA-type Spherical Roller Bearings are widely used in gearboxes, turbines, mechanical fans, constructions equipment, mining and drilling equipment, heavy machinery, wind power, port machinery, and so on. CA-type Spherical Roller Bearings can be used for Vibratory applications and also can be used for wind energy and high-speed applications.
