MRV050 Worm Gear Reducer for Intelligent drive
The MRV050 series worm gear reducer is an instrumental component in the automatic car washing system. This product is a modification of the RV reducer, featuring enhanced cost-effectiveness, wider applicability, and superior advantages of the XRV series. It outperforms the XRV series in terms of installation convenience and flexibility. The supporting motor power ranges from 0.25kw to 0.75kw, and it comes with matching flanges to cater to various customer needs.
Product Specifications of MRV050 Worm Reducer
Below are the detailed technical parameters of the MRV050 Worm Reducer:
| Type | Ratio | Flange | Power |
| MRV050 | 5 7.5 10 12 15 20 30 40 50 60 80 100 | 71B14 | 0.06KW 0.09KW 0.12KW 0.18KW 0.20KW 0.25KW 0.37KW 0.55KW 0.75KW 1.1KW 1.5KW 2.2KW 3KW 4KW 5.5KW 7.5KW |
| 80B14 |
| Type | i | n2/r/min | Mn2/Nm | Fr2/N | Motor | P1/kw | L/mm |
| MRV050 | 5 | 280 | 17 | 1577 | 7134 | 0.55 | 180 |
| 280 | 23 | 1577 | 8024 | 0.75 | 205 | ||
| 7.5 | 187 | 25 | 1805 | 7134 | 0.55 | 180 | |
| 187 | 34 | 1805 | 8024 | 0.75 | 205 | ||
| 10 | 140 | 22 | 1987 | 7124 | 0.37 | 180 | |
| 140 | 32 | 1987 | 7134 | 0.55 | 180 | ||
| 140 | 44 | 1987 | 8024 | 0.75 | 205 | ||
| 12 | 117 | 26 | 2016 | 7124 | 0.37 | 180 | |
| 117 | 33 | 2016 | 7134 | 0.55 | 205 | ||
| 117 | 48 | 2016 | 8024 | 0.75 | 205 | ||
| 15 | 93 | 31 | 2274 | 7124 | 0.37 | 180 | |
| 93 | 46 | 2274 | 7134 | 0.55 | 180 | ||
| 93 | 63 | 2274 | 8024 | 0.75 | 205 | ||
| 20 | 70 | 27 | 2503 | 7114 | 0.25 | 180 | |
| 70 | 40 | 2503 | 7124 | 0.37 | 180 | ||
| 70 | 59 | 2503 | 7134 | 0.55 | 180 | ||
| 70 | 81 | 2503 | 8024 | 0.75 | 205 | ||
| 25 | 56 | 32 | 2696 | 7114 | 0.25 | 180 | |
| 56 | 48 | 2696 | 7124 | 0.37 | 180 | ||
| 56 | 71 | 2696 | 7134 | 0.55 | 180 | ||
| 30 | 47 | 37 | 2865 | 7114 | 0.25 | 180 | |
| 47 | 55 | 2865 | 7124 | 0.37 | 180 | ||
| 47 | 81 | 2865 | 7134 | 0.55 | 180 | ||
| 40 | 35 | 33 | 3153 | 7114 | 0.25 | 180 | |
| 35 | 46 | 3153 | 7124 | 0.37 | 180 | ||
| 35 | 68 | 3153 | 7134 | 0.55 | 180 | ||
| 50 | 28 | 54 | 3397 | 7114 | 0.25 | 180 | |
| 28 | 72 | 3397 | 7124 | 0.37 | 180 | ||
| 28 | 80 | 3397 | 7134 | 0.55 | 180 | ||
| 52 | 27 | 55 | 3482 | 7114 | 0.25 | 180 | |
| 27 | 73 | 3482 | 7124 | 0.37 | 180 | ||
| 27 | 82 | 3482 | 7134 | 0.55 | 180 | ||
| 60 | 23 | 60 | 3610 | 7114 | 0.25 | 180 | |
| 23 | 75 | 3610 | 7124 | 0.37 | 180 | ||
| 23 | 84 | 3610 | 7134 | 0.55 | 180 | ||
| 80 | 18 | 64 | 3973 | 7114 | 0.25 | 180 | |
| 18 | 77 | 3973 | 7124 | 0.37 | 180 | ||
| 18 | 89 | 3973 | 7134 | 0.55 | 180 | ||
| 100 | 14 | 68 | 4280 | 7114 | 0.25 | 180 | |
| 14 | 79 | 4280 | 7124 | 0.37 | 180 | ||
| 14 | 93 | 4280 | 7134 | 0.55 | 180 |
Key Features of the MRV050 Worm Reducer
The MRV050 Worm Reducer is equipped with multiple features that contribute to its top-notch performance:
- Modular flange and other component options, universal mounting configurations
- A large ratio range to suit varying needs
- IP Grade that can reach IP67, adapting to most spraying conditions
- A compact body that can fit most equipment structures
- Full-Synthetic Oil lubrication (with the choice of 320/220 viscosity)
- The housing material is ADC12 with powder painting, offering superior anticorrosive properties and aesthetics
- Sealing with NOK oil seal (NBR), providing good sealability

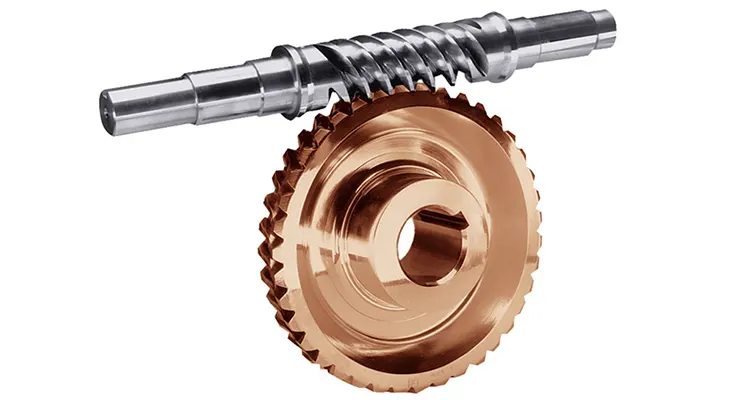

- Worms material is 20CrMnTi with carburizing and quenching, thickness 0.25-0.45mm, HRCSS-62
- Wheels material is QT450+GcuSn12, ensuring high wear resistance
Motors for Worm Gear Reducers
Just as the worm gear reducer is essential for an automatic car washing system, the electric motor is equally important for the operation of the worm gear reducer. We also provide matching electric motors for sale, ensuring maximum performance and efficiency.
Motor Dimensions
IP67 Motor Dimension
IP67 Motor Dimension
| Type | IP56 Motor | IP67 Motor | ||||||||
| RV/De | L | D | ΦC | ΦS | T | L | D | ΦC | ΦS | T |
| 71B14 | 190 | 140 | 85 | 14 | M6 | 180 | 120 | 85 | 14 | M6 |
| 80B14 | 215 | 158 | 100 | 19 | M6 | 205 | 135 | 100 | 19 | M6 |
About HZPT
HZPT is a leading manufacturer of transmission equipment with over 15 years of experience. We specialize in the design, production, and sales of gearboxes. Our products, including the MRV series worm gear reducer, have gained recognition and praise in the markets of Europe, America, Africa, and Asia.
We invite you to explore our worm reducer range and contact us for your purchase needs. Trust us to provide you with the best quality products at competitive prices.
