Conveyor Chain for Automobile Production Line Pitch 250mm

[su_table responsive="yes"]

Pitch	Bush Diameter	Width Between nner Plates	Pin Diameter	Pin Length	Inner Plate Height	Plate Thickness	Attachment Dimension					Ultimate Tensile Strength
P	d3 max	b1 min	d2 max	L max	h2	t/T	C	F	W	d4	d5	Q min
mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	KN
250	42	55	30	182	70	10	140	194	145	98	50	370
250	42	50	30	180	70	10	140	194	137	98	55	500
250	42	55	30	178	70	10	140	194	145	98	42	480

[/su_table]

[su_table responsive="yes"]

Pitch	Roller Diameter	Width Between Inner  Plates	Pin Diameter	Pin Length		Inner Plate Height	Plate Thickness	Attachment Dimension						Ultimate Tensile Strength
P	d1 max	b1 min	d2 max	L1 max	L2 max	h2	t/T	A	B	C	F	G	d5	Q min
mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	KN
250	36	30	18	124	150	51	8	38	48	63	138	100	60	160
250	36	30	18	126	150	51	8	38	48	63	138	100	65	160
250	60	44	30	162.5	190	82	12	380	55	65	140	140	80	450
250	60	40	30	-	180	82	12	38	55	65	140	140	84	450

[/su_table]

[su_table responsive="yes"]

Pitch

Roller Diameter

Width Between Inner  Plates

Pin Diameter

Pin Length

Inner Plate Height

Plate Thickness

Attachment Dimension

Ultimate Tensile Strength

P

d1 max

b1 min

d2 max

L max

h2

t/T

C

L1

G

h4

d3

d4

Q min

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

KN

250

43

36

21

135.3

60

8

101

140

190

80

65

12

224

[/su_table]

[su_table responsive="yes"]

Pitch	Roller Diameter		Width Between Inner  Plates	Pin Diameter	Pin Length		Inner Plate Height	Plate Thickness	Ultimate Tensile Strength	Weight Per Meter
P	d1 max	d3 max	b1 min	d2 max	L max	Lc max	h2	t/T	Q min	q
mm	mm	mm	mm	mm	mm	mm	mm	mm	KN	kg/m
250	50	80	47	25	152.2	716.8	72	10	224	59.2
250	45	70	36	25	133	380	62	8	224	43.4
250	50	80	47	25	152.2	1016.8	72	10	224	60
P	L1	G	C	F	Pt	h4	M	d4
mm	mm	mm	mm	mm	mm	mm	mm	mm
250	140	180	518	658	518	90	50	11
250	150	190	178	365	200	90	50	12
250	140	180	818	958	818	90	50	11

[/su_table]

[su_table responsive="yes"]

Pitch	Roller Diameter			Width Between Inner  Plates	Pin Diameter	Pin Length	Inner Plate Height	Plate Thickness	Ultimate Tensile Strength	Weight Per Meter
P	d1 max	d3 max	d5 max	b1 min	d2 max	L max	h2	t/T	Q min	q	L1	G	F	W	h4	d4
mm	mm	mm	mm	mm	mm	mm	mm	mm	KN	kg/m	mm	mm	mm	mm	mm	mm
250	40	80	98	38	21	166	60	10	224	27.4	140	180	62	89.2	100	11
250	45	80	98	38	25	166	80	10	315	30.5	140	180	62	82.5	100	11
250	50	80	98	38	30	173.5	90	12	450	37.5	140	180	66	97.5	100	11.5

[/su_table]

[su_table responsive="yes"]

Pitch	Roller Diameter			Width Between Inner  Plates	Pin Diameter	Pin Length	Inner Plate Height	Plate Thickness	Ultimate Tensile Strength	Weight Per Meter
P	d1 max	d3 max	d5 max	b1 min	d2 max	L max	h2	t/T	Q min	q	L1	G	F	W	h4	d4
mm	mm	mm	mm	mm	mm	mm	mm	mm	KN	kg/m	mm	mm	mm	mm	mm	mm
250	100	65	120	73	25	180.8	70	10	315	47.6	110	170	180	230	105	11
250	40	72	-	25	25	127	50	8	160	18.7	125	180	90	122	54	11
250	100	65	120	73	25	168	70	8	315	43.3	110	150	170	210	105	11
250	100	65	120	75	25	188	70	11.5	315	58.8	110	170	180	220	105	12
250	100	62	120	60	25	155	82	10	450	42.5	160	200	160	200	95	12
250	100	62	119	60	25	145.8	82	10	520	43	160	200	160	200	95	12

[/su_table]

Conveyor Chain for Automobile Production Chain Pitch 250mm

The Conveyor Chain for Automobile Production Chain Pitch 250mm is a high-quality, durable product designed specifically for use in automobile production lines. This model features a pitch size of 250mm, making it ideal for heavy-duty applications where precise, reliable motion is essential. The conveyor chain is built to withstand harsh industrial environments, ensuring longevity and consistent performance.

Advantages of Conveyor Chain for Automobile Production Chain Pitch 250mm

Durability and Reliability

The Conveyor Chain for Automobile Production Chain Pitch 250mm is built to last. Made from high-grade alloy steel, the chain is heat-treated to enhance its strength and durability. This ensures that it can handle the heavy loads and constant use typical of automobile production lines without wearing down prematurely. Additionally, the rust-resistant coating helps protect the chain from corrosion, further extending its lifespan.

High Efficiency and Energy Savings

Efficiency is a critical factor in any production environment. The Conveyor Chain for Automobile Production Chain Pitch 250mm is designed to minimize friction and wear, which not only enhances its durability but also improves its operational efficiency. The smooth operation of the chain reduces the amount of energy required to move it, leading to significant energy savings over time. This makes it an environmentally friendly choice as well.

Low Noise Operation

Noise levels in industrial settings can have a significant impact on worker comfort and productivity. The Conveyor Chain for Automobile Production Chain Pitch 250mm is engineered for quiet operation, helping to create a more pleasant working environment. The low noise levels also make it easier to identify other potential issues on the production line, such as mechanical failures or irregularities, allowing for quicker and more effective maintenance.

Easy Maintenance

Maintenance is a critical consideration for any production line component. The Conveyor Chain for Automobile Production Chain Pitch 250mm is designed with ease of maintenance in mind. It features accessible points for inspection and lubrication, making it simple to keep the chain in optimal condition. This ease of maintenance helps reduce downtime and associated costs, contributing to the overall efficiency and productivity of the automobile production line.

Cost-Effectiveness

When considering the total cost of ownership, the Conveyor Chain for Automobile Production Chain Pitch 250mm stands out as a cost-effective solution. Its durability and efficiency reduce the need for frequent replacements, and its low maintenance requirements help keep operational costs down. Over time, these factors combine to provide significant cost savings, making this chain an excellent investment for automobile manufacturers looking to optimize their production processes.

Applications of Conveyor Chain for Automobile Production Chain Pitch 250mm in Automobile Production Lines

• Body Assembly: In the body assembly stage of automobile production, the Conveyor Chain for Automobile Production Chain Pitch 250mm is used to transport large components and assembled car bodies. Its durability and reliability ensure smooth and continuous operation, which is essential for maintaining production schedules.
• Painting Process: The chain's rust-resistant coating and ability to operate in a range of temperatures make it suitable for use in the painting process, where it can withstand the harsh chemicals and high temperatures involved.
• Engine Assembly: The high strength and precision of the Conveyor Chain for Automobile Production Chain Pitch 250mm make it ideal for the engine assembly line, where it can handle heavy loads and ensure accurate positioning of engine components.
• Final Assembly: During the final assembly of automobiles, this chain helps transport the vehicle through various stages of the process, ensuring that all components are correctly assembled and quality control standards are met.

Maintenance of Automobile Production Conveyor Chain

Proper maintenance of the Conveyor Chain for Automobile Production Chain Pitch 250mm is essential to ensure its longevity and optimal performance. Regular inspection should be carried out to check for signs of wear and tear, such as elongation or corrosion. Lubrication is critical; although the chain is designed to be self-lubricating, additional lubrication may be necessary in particularly demanding environments. Cleaning the chain to remove any buildup of debris or contaminants is also important to prevent operational issues. By adhering to a regular maintenance schedule, downtime can be minimized, and the overall efficiency of the automobile production line can be maintained.

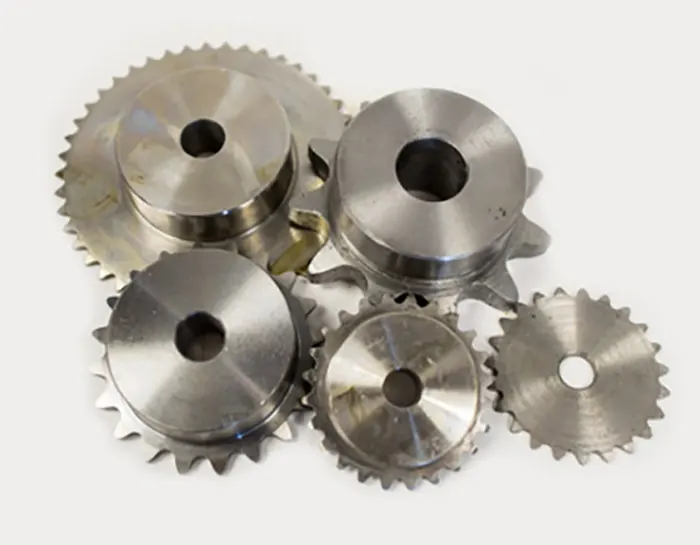

Sprockets for Sale

Chains and sprockets work together to ensure the smooth operation of conveyor systems. Sprockets are the toothed wheels that engage with the conveyor chain, driving it forward and ensuring synchronized movement. Alongside our high-quality Conveyor Chain for Automobile Production Chain Pitch 250mm, we also manufacture and supply a range of sprockets designed to complement our chains. These sprockets are crafted with the same attention to detail and commitment to quality, ensuring optimal performance and longevity. We invite customers to inquire about our sprockets and take advantage of our comprehensive product offerings.

Why Choose Ever-power

Ever-power is a leading manufacturer of conveyor chains for automobile production lines. Our Conveyor Chain for Automobile Production Chain Pitch 250mm is a testament to our commitment to quality and innovation. We utilize state-of-the-art manufacturing equipment and processes to ensure that every chain we produce meets the highest standards of durability, efficiency, and reliability. Our team of experienced professionals is dedicated to providing exceptional customer service and support, helping you find the right solutions for your production needs. With Ever-power, you can be confident in the performance and longevity of your conveyor chains, allowing you to focus on what matters most—keeping your production line running smoothly.
