Conveyor Chain for Automobile Production Line

If the product you need is not listed, Go to GET A FREE QUOTE!

Pitch 75mm Automobile Production Line Conveyor Chain


Pitch Roller
Diameter		 Width
Between
Inner Plates		 Pin
Diameter		 Pin
Length		 Inner
Plate
Height		 Plate
Thickness		 UItimate Tensile
Strength		 Weight
Per
Meter
P d1
max		 d3
max		 d4
max		 b1
min		 d2
max		 max h2 t/T min q
mm mm mm mm mm mm mm mm mm KN kg/m
75 22.2 40 49 22 11.1 102 32 4.5 58.3 9.3

Pitch 100mm Automobile Production Line Conveyor Chain

P100 Conveyor Chain for Automobile Production Line

Pitch Roller
Diameter		 Width
Between
Inner Plates		 Pin
Diameter		 Pin
Length		 Inner
Plate
Height		 Inner
Plate
Height		 Plate
Thickness		 Attachment
Dimension		 UItimate Tensile
Strength		 Weight
Per
Meter
P d1
max		 b1
min		 d2
max		 L
max		 LC
max		 h2 h t/T A B C G Q
min		 q
mm mm mm mm Mm mm mm mm mm Mm mm mm mm KN kg/m
100 50 40 15 79.8 84.9 24 55 8 87 70 90 37.5 200 16
100 50 40 12 71 76.5 24 55 6 87 60 86 40 120 37
100 50 40 15 71.8 76.9 24 55 6 97 58 86 40 120 14

P100 Conveyor Chain for Automobile Production Line

Pitch Roller
Diameter		 Width
Between
Inner  Plates		 Pin
Diameter		 Pin
Length		 Inner
Plate
Height		 Plate
Thickness		 Attachment
Dimension		 Ultimate Tensile
Strength
P d1
max		 b1
min		 d2
max		 L
max		 Lc
max		 h2 t/T C F1 F2 G W d3 Q
min
mm mm mm mm mm mm mm mm mm mm mm mm mm mm KN
100 25.4 24.5 12 – 113 32 6 25 36 27.5 46 106 45 126
100 25.4 24.5 12 97 113 32 6 25 43 30 55 118 45 80
100 25.4 24.5 12 93.5 113 32 6 25 36 34 45 112.5 45 126
100 25.4 24.5 12 93.5 113 32 6 25 36 28 34 106.5 45 126
100 25.4 25 12 97 113 32 6 25 43 45 55 133 49.7 80

P100 Conveyor Chain for Automobile Production Line

Pitch Roller
Diameter		 Width
Between
Inner  Plates		 Pin
Diameter		 Pin
Length		 Inner
Plate
Height		 Plate
Thickness		 Attachment
Dimension		 UItimate Tensile
Strength		 Weight
Per
Meter
P d1
max		 b1
min		 d2
max		 L
max		 h2 t/T L1 G W M Q
min		 q
mm mm mm mm mm mm mm mm mm mm mm KN/Ibf kg/m
100 50.8 30 14.5 69 38.1 6.3 30 70 94 80 100.0/22480 10.3

P100 Conveyor Chain for Automobile Production Line

Pitch Roller
Diameter		 Width
Between
Inner  Plates		 Pin
Diameter		 Pin
Length		 Inner
Plate
Height		 Plate
Thickness		 Attachment
Dimension		 UItimate Tensile
Strength		 Weight
Per
Meter
P d1
max		 b1
min		 d2
max		 L
max		 Ic
max		 h2 t/T L1 G F Q
min		 q
mm mm mm mm mm mm mm mm mm mm mm KN kg/m
100 60 32 15 64.5 68.5 40 6 40 50 93.5 112.0/25177 16.6

Pitch Roller
Diameter		 Width
Between
Inner  Plates		 Pin
Diameter		 Pin
Length		 Inner
Plate
Height		 Plate
Thickness		 Attachment
Dimension		 Ultimate Tensile
Strength
P d1
max		 b1
min		 d2
max		 L
max		 h2 t/T C L1 G h4 d3 d4 Q
min
mm mm mm mm mm mm mm mm mm mm mm mm mm KN
100 36 32 18 119 45 6 95 50 80 80 60 11 112
100 36 32 18 111.5 45 6 95 50 80 80 60 12 112
100 45 36 25 133.2 62 8 107.5 90 140 120 70 11 224

P100 Conveyor Chain for Automobile Production Line

Pitch Roller
Diameter		 Width
Between
Inner  Plates		 Pin
Diameter		 Pin
Length		 Inner
Plate
Height		 Plate
Thickness		 UItimate Tensile
Strength		 Weight
Per
Meter
P d1
max		 d3
max		 b1
min		 d2
max		 L
max		 LC
max		 h2 t/T Q
min		 q C F W G M
mm mm mm mm mm mm mm mm mm KN kg/m mm mm mm mm mm
100 40 50 40 18 80.5 87.5 50 8 200 15.5 77 85 135 90 105

P100 Conveyor Chain for Automobile Production Line

Pitch Roller
Diameter		 Width
Between
Inner  Plates		 Pin
Diameter		 Pin
Length		 Inner
Plate
Height		 Plate
Thickness		 Attachment
Dimension		 Ultimate Tensile
Strength		     Weight
Per Meter
P d1
max		 b1
min		 d2
max		 L
max		 h2 t/T C L1 G h4 d3 Q
min		 q
mm mm mm mm mm mm mm mm mm mm mm mm KN kg/m
100 70 29 46 114 90 6 95 120 115 16 70 400 39.6

P100 Conveyor Chain for Automobile Production Line

Pitch Roller
Diameter		 Width
Between
Inner  Plates		 Pin
Diameter		 Pin
Length		 Inner
Plate
Height		 Plate
Thickness		 UItimate Tensile
Strength		 Weight
Per
Meter
P d1
max		 d3
max		 d4
max		 b1
min		 d2
max		 Lc
max		 h2 t/T Q
min		 q W G F W h4 d5
mm mm mm mm mm mm mm mm mm KN/Ibf kg/m mm mm mm mm mm mm
100 36 50 60 32 15 118 40 6 100.0/22480 14.8 50 100 95 130 55 13

P100 Conveyor Chain for Automobile Production Line

Pitch Roller
Diameter		 Width
Between
Inner  Plates		 Pin
Diameter		 Pin
Length		 Plate
Height		 Plate
Thickness		 UItimate Tensile
Strength		 Average Tensile
Strength		 Weight
Per
Meter
P d1
max		 b1
min		 d2
max		 L
max		 h h2 t/T Q
min		 Q0 q
mm mm mm mm mm mm mm mm KN KN kg/m
100 40 22 12 53.5 25 40 4.5 63 68.6 5.1

P100 Conveyor Chain for Automobile Production Line

Pitch Roller
Diameter		 Width
Between
Inner  Plates		 Pin
Diameter		 Pin
Length		 Plate
Height		 Plate
Thickness		 Attachment
Dimension		 UItimate Tensile
Strength		 Weight
Per
Meter
P d1
max		 b1
min		 d2
max		 L
max		 h2 t/T L1 d3 d4 Q
min		 q
mm mm mm mm mm mm mm mm mm mm KN kg/m
100 50.8 30 14.5 69 38.1 6.3 30 12 20 96 8.75

Pitch 120mm Automobile Production Line Conveyor Chain


Pitch Roller
Diameter		 Width
Between
Inner  Plates		 Pin
Diameter		 Pin
Length		 Inner
Plate
Height		 Plate
Thickness		 Attachment
Dimension		 Ultimate Tensile
Strength		 Weight Per Meter
P d1
max		 b1
min		 d2
max		 L
max		 h2 t/T C L1 G h4 d3 Q
min		 q
mm mm mm mm mm mm mm mm mm mm mm mm KN kg/m
120 70 29 46 91 90 6 115 120 121 16 70 300 50.2
120 70 29 46 91 90 6 115 120 121 5 70 300 41.8

Pitch 125mm Automobile Production Line Conveyor Chain

P125 Conveyor Chain for Automobile Production Line

Pitch Roller
Diameter		 Width
Between
Inner Plates		 Pin
Diameter		 Pin
Length		 Inner
Plate
Height		 Inner
Plate
Height		 Plate
Thickness		 Attachment
Dimension		 UItimate Tensile
Strength		 Weight
Per
Meter
P d1
max		 b1
min		 d2
max		 L
max		 LC
max		 h2 h t/T A B C G Q
min		 q
mm mm mm mm Mm mm mm mm mm Mm mm mm mm KN kg/m
125 50 40 18 71.8 76.9 24 55 6 97 58 86 40 120 13.8


P125 Conveyor Chain for Automobile Production Line

Pitch Roller
Diameter		 Width
Between
Inner Plates		 Pin
Diameter		 Pin
Length		 Inner
Plate
Height		 Plate
Thickness		 Attachment
Dimension		 UItimate Tensile
Strength
P d1
max		 b1
min		 d2
max		 L1
max		 L2
max		 h2 t/T C F G d3 Q
min
mm mm mm mm mm mm mm mm mm mm mm mm KN
125 36 36 18 85.5 142 50 7 80 130 105 60 160

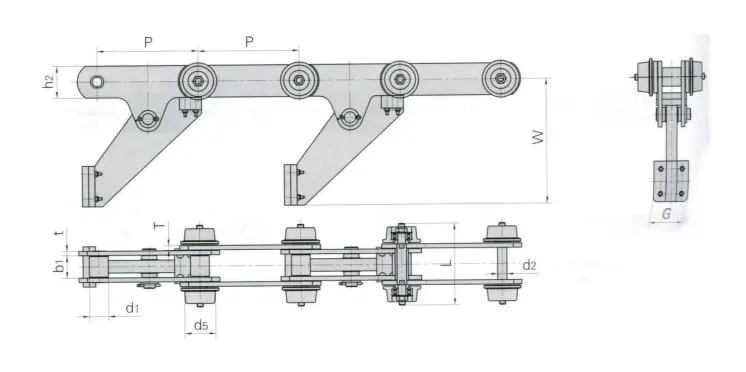

Pitch 160mm Automobile Production Line Conveyor Chain

Pitch Roller
Diameter		 Width
Between
Inner Plates		 Pin
Diameter		 Pin
Length		 Inner
Plate
Height		 Plate
Thickness		 Attachment
Dimension		 UItimate Tensile
Strength
P d1
max		 b1 d2
max		 L
max		 h2 t/T G W d5 Q
min
mm mm mm mm mm mm mm mm mm mm KN
160 30 36 15 131 51 7 65 200 49 160

Pitch Roller
Diameter		 Width
Between
Inner Plates		 Pin
Diameter		 Pin
Length		 Inner
Plate
Height		 Plate
Thickness		 Attachment
Dimension		 UItimate Tensile
Strength
P d1
max		 b1
min		 d2
max		 L
max		 h1 h2 t/T A B C d3 Q
min
mm mm mm mm mm mm mm mm mm mm mm mm KN
160 60 32 15 71 60 40 6 70 120 140 90 140

Pitch Roller
Diameter		 Width
Between
Inner Plates		 Pin
Diameter		 Pin
Length		 Plate
Thickness		 Attachment
Dimension		 UItimate Tensile
Strength
P d1
max		 b1
min		 d2
max		 max t/T G M h2 Q
min
mm mm mm mm mm mm mm mm mm KN
160 65 32 15 71 6 115 154 70 140

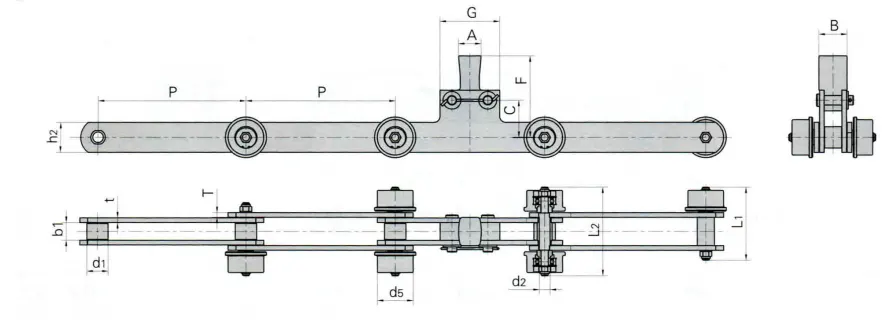

Pitch 200mm Automobile Production Line Conveyor Chain

Pitch Roller
Diameter		 Width
Between
Inner  Plates		 Pin
Diameter		 Pin
Length		 Pin
Length		 Inner
Plate
Height		 Plate
Thickness		 Attachment
Dimension		 Ultimate Tensile
Strength
P d1
max		 b1
min		 d2
max		 L1
max		 L2
max		 h2 t/T A B C F G d5 min
mm mm mm mm mm mm mm mm mm mm mm mm mm mm KN
200 36 30 18 123 152 51 8 38 48 63 138 100 59.5 160
200 60 44 30 162.5 190 82 12 38 55 65 140 140 84.7 450
200 60 44 30 165.5 190 82 12 38 55 65 140 140 84.7 450

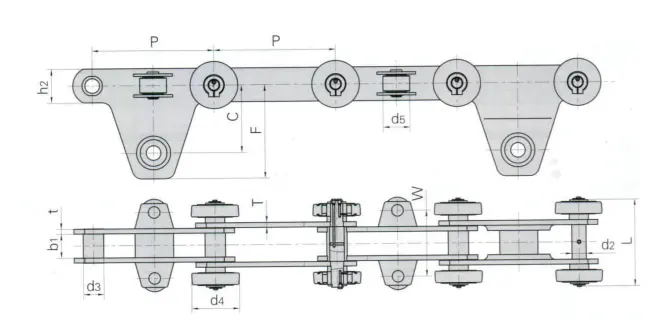

Pitch 250mm Automobile Production Line Conveyor Chain

Pitch Bush
Diameter		 Width
Between
nner Plates		 Pin
Diameter		 Pin
Length		 Inner
Plate
Height		 Plate
Thickness		 Attachment
Dimension		 Ultimate Tensile
Strength
P d3
max		 b1
min		 d2
max		 L
max		 h2 t/T C F W d4 d5 Q
min
mm mm mm mm mm mm mm mm mm mm mm mm KN
250 42 55 30 182 70 10 140 194 145 98 50 370
250 42 50 30 180 70 10 140 194 137 98 55 500
250 42 55 30 178 70 10 140 194 145 98 42 480

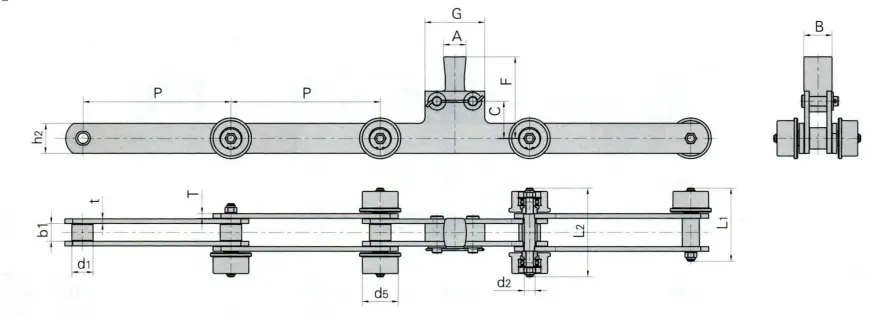

Pitch Roller
Diameter		 Width
Between
Inner  Plates		 Pin
Diameter		 Pin
Length		 Inner
Plate
Height		 Plate
Thickness		 Attachment
Dimension		 Ultimate Tensile
Strength
P d1
max		 b1
min		 d2
max		 L1
max		 L2
max		 h2 t/T A B C F G d5 Q
min
mm mm mm mm mm mm mm mm mm mm mm mm mm mm KN
250 36 30 18 124 150 51 8 38 48 63 138 100 60 160
250 36 30 18 126 150 51 8 38 48 63 138 100 65 160
250 60 44 30 162.5 190 82 12 380 55 65 140 140 80 450
250 60 40 30 – 180 82 12 38 55 65 140 140 84 450

Pitch Roller
Diameter		 Width
Between
Inner  Plates		 Pin
Diameter		 Pin
Length		 Inner
Plate
Height		 Plate
Thickness		 Attachment
Dimension		 Ultimate Tensile
Strength
P d1
max		 b1
min		 d2
max		 L
max		 h2 t/T C L1 G h4 d3 d4 Q
min
mm mm mm mm mm mm mm mm mm mm mm mm mm KN
250 43 36 21 135.3 60 8 101 140 190 80 65 12 224

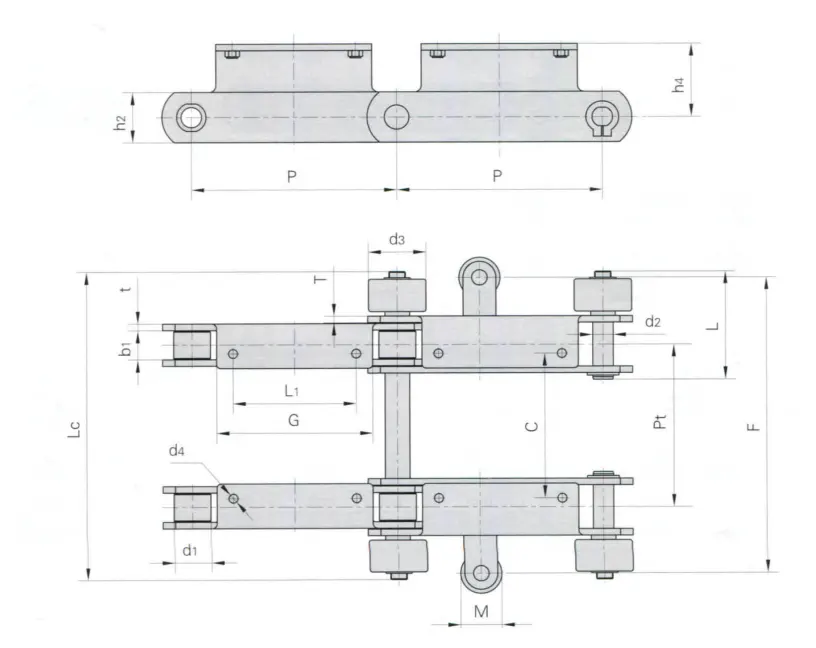

Pitch Roller
Diameter		 Width
Between
Inner  Plates		 Pin
Diameter		 Pin
Length		 Inner
Plate
Height		 Plate
Thickness		 Ultimate Tensile
Strength		 Weight
Per
Meter
P d1
max		 d3
max		 b1
min		 d2
max		 L
max		 Lc
max		 h2 t/T Q
min		 q
mm mm mm mm mm mm mm mm mm KN kg/m
250 50 80 47 25 152.2 716.8 72 10 224 59.2
250 45 70 36 25 133 380 62 8 224 43.4
250 50 80 47 25 152.2 1016.8 72 10 224 60
P L1 G C F Pt h4 M d4
mm mm mm mm mm mm mm mm mm
250 140 180 518 658 518 90 50 11
250 150 190 178 365 200 90 50 12
250 140 180 818 958 818 90 50 11

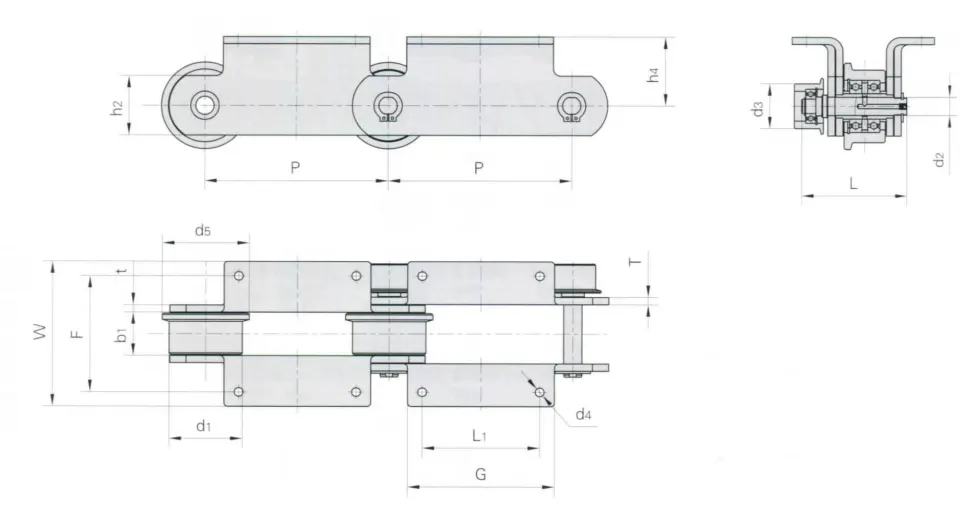

Pitch Roller
Diameter		 Width
Between
Inner  Plates		 Pin
Diameter		 Pin
Length		 Inner
Plate
Height		 Plate
Thickness		 Ultimate Tensile
Strength		 Weight
Per
Meter
P d1
max		 d3
max		 d5
max		 b1
min		 d2
max		 L
max		 h2 t/T Q
min		 q L1 G F W h4 d4
mm mm mm mm mm mm mm mm mm KN kg/m mm mm mm mm mm mm
250 40 80 98 38 21 166 60 10 224 27.4 140 180 62 89.2 100 11
250 45 80 98 38 25 166 80 10 315 30.5 140 180 62 82.5 100 11
250 50 80 98 38 30 173.5 90 12 450 37.5 140 180 66 97.5 100 11.5

Pitch Roller
Diameter		 Width
Between
Inner  Plates		 Pin
Diameter		 Pin
Length		 Inner
Plate
Height		 Plate
Thickness		 Ultimate Tensile
Strength		 Weight
Per
Meter
P d1
max		 d3
max		 d5
max		 b1
min		 d2
max		 L
max		 h2 t/T Q
min		 q L1 G F W h4 d4
mm mm mm mm mm mm mm mm mm KN kg/m mm mm mm mm mm mm
250 100 65 120 73 25 180.8 70 10 315 47.6 110 170 180 230 105 11
250 40 72 – 25 25 127 50 8 160 18.7 125 180 90 122 54 11
250 100 65 120 73 25 168 70 8 315 43.3 110 150 170 210 105 11
250 100 65 120 75 25 188 70 11.5 315 58.8 110 170 180 220 105 12
250 100 62 120 60 25 155 82 10 450 42.5 160 200 160 200 95 12
250 100 62 119 60 25 145.8 82 10 520 43 160 200 160 200 95 12

Pitch 315mm Automobile Production Line Conveyor Chain

Pitch Roller
Diameter		 Width
Between
Inner Plates		 Pin
Diameter		 Pin
Length		 UItimate Tensile Strength Weight
Per
Meter
P d1
max		 d4
max		 d5
max		 b1
min		 d2
max		 d3
max		 L
max		 Q
min		 q
mm mm mm mm mm mm mm mm KN/ kg/m
315 180 100 210 90 40 30 217 100 110

P L1 G F1 F2 h4 h2 d6 T
mm mm mm mm mm mm mm mm mm
315 150 250 180 206 120 120 21 12
