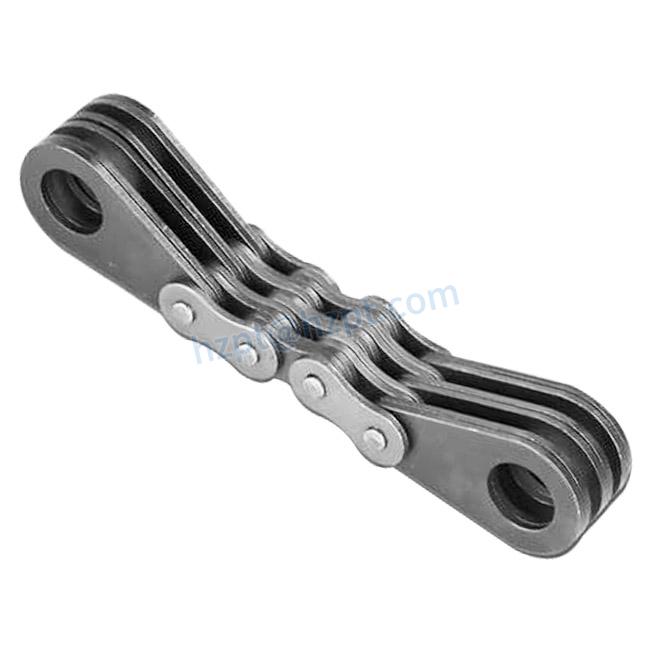

Conveyor Leaf Pin Chain 2146A 2146B 2146C B10

Leaf pin chains are often used for a variety of lifting applications. They are made from alloy steel, which is heat-treated to increase its hardness. They are also designed with a malleable core to withstand repeated loads. They also feature a tight diameter tolerance, so they can withstand high torques and heavy loads without breaking.

Get a Quote

2146A 2146B 2146C B108 Conveyor Leaf Pin Chain For Metallurgy And Steel Industry

All Ever-power leaf chain pins are made from specially produced alloy steel which is heat-treated to increase surface hardness. Great care is taken to ensure that the core of the leaf chain pin remains malleable as this enables it to cope with repeated loads pin is also centrally polished to improve the surface finish and to achieve a tight tolerance on its diameter. We believe the most vital possible connection is achieved when the leaf chain terminates on the inner links, fits internally to the leaf chain anchor, and is held in place by a chain anchor pin. This method ensures the maximum number of sheer faces and the greatest tensile strength. Using chain pins on the outer links of a leaf chain can have serious load carrying and safety issues.

Dimensions of 2146A 2146B 2146C B108 Conveyor Leaf Pin Chains

Conveyor Leaf Pin Chain

Leaf Pin Chains Features

Leaf pin chains are available in various materials and sizes for various applications. They are ideally suited for industrial and conveyor applications and can be made of nickel-plated steel, standard steel, or stainless steel. Depending on their use, leaf chains can have tensile strengths ranging from 4,000 to 156,000 lbs.

Leaf chains have special steel plates and joints that can withstand high tensions and sudden loads. In addition, their pins are made of special steel and offer superior resistance to bending. Closely controlled pinhole diameters also help improve the movement of inner plates, reducing friction and rubbing. Besides, their pitch accuracy ensures smooth movement of joints and plates.

Leaf chains have superior tensile strength compared to standard roller chains. This type of chain is ideal for balancing, hanging, and lowering applications. It is made of link plates mounted on pins side by side. This makes leaf chains extremely versatile and suitable for various applications, from machine tools to container loaders. Leaf chains come in wide varieties, including works-standard compliant options. Leaf chains also come in special versions and attachments.

Palm Oil Chain

Leaf Pin Chains and Sprockets

Leaf pin chains are designed for slow-moving applications. Unlike roller chains and sprockets, leaf pin chains are constructed with pins instead of bushings or rollers. These pins are press-fit into the outermost plate. They offer high strength per foot and are usually used as counterweight chains in machine tools. They require proper lubrication to achieve a reasonable service life.

Leaf pin chain sprockets are typically secured to the shaft using one or more set screws or ANSI-standard-dimensioned keyways. These dimensions are not universal, however, and it is vital that the supplier of a particular leaf pin chain understands the appropriate keyway size for the chain's application.

Leaf chain is the simplest form of steel chain and is composed of interlaced link plates and pins. Leaf chain has a much higher tensile strength than roller chains. It also offers narrower overall width and is often used for balancing and lifting applications.

The wear and tear on sprockets are caused by friction. Every rotation of the chain causes the teeth to come into contact with the chain. In some cases, this wear and tear are so severe that the sprockets are worn out. The teeth of the sprockets eventually break off and the chain will not work properly.

Chains and Sprockets

Ever power is also a mature sprocket supplier that you can rely on. Contact us to get more about our sprockets!

Sprockets

Why Choose Us?

Ever-power transmission group is a professional drive chain manufacturer. We have a complete chain production line, equipment selection, and process design that adhere to high efficiency, energy-saving, and automation, with perfect testing equipment, high-quality enterprise management, and professional technical personnel. We focus on the production, processing, and sales of the drive chains, particular chains, chain accessories, machinery parts, and so on, forming an "aluminum, fine, special, creative" separate chain development and production system. We have mastered the core technology of chain production and are proficient in core processing. All products are widely used in sugar, paper, cement, wood, food, mining, metallurgy, and other industries. We pay attention to the reputation of product quality through IS09001:2008 quality management system certification and obtain self-supporting, agent-related products and technology import and export business qualifications. Our products are exported to all provinces and cities in China, Europe, America, and Southeast Asia.
1. Large bell-type intelligent annealing furnace:
stable and reliable annealing quality and low energy consumption
2. Mesh belt furnace:
first-class domestic mesh belt furnace heat treatment production line
3. Multipurpose furnace:
Epson multipurpose furnace provides stable and reliable heat treatment quality
4. ABB intelligent welding robot:
instead of manual completion of complex welding operations, the welding is beautiful, stable, and reliable
5. Automatic hot riveter: the self-developed automatic assembly line of welding chain can replace manual to realize automatic outcrop and hot riveting, with stable products, high precision, and high efficiency
6. Induction quenching equipment: the self-developed semi-automatic induction quenching equipment successfully realizes selective (local) induction quenching of pin shaft and induction quenching of sprocket teeth
7. Programmable gantry cutting machine: it has the functions of plasma cutting and flame cutting
8. CNC machining center: CNC vertical machining center and CNC horizontal machining center, which meet the processing of high-precision molds and products
