Cutter Suction Dredger Inverted Pile Cylinder

Cutter Suction Dredger Inverted Pile Cylinder

The cutter suction dredger is a type of hydraulic dredging vessel used for the excavation and removal of sediment, silt, and other materials from underwater areas. It is equipped with a rotating cutter head and powerful suction pumps that allow it to cut through and extract materials from the seabed or riverbed.

The inverted pile cylinder is an essential component of a cutter suction dredger. It is a large, hollow steel cylinder with an open bottom that is submerged into the sediment. The inverted pile cylinder is lowered vertically, and the suction pump of the cutter suction dredger is activated to create a vacuum inside the cylinder. This vacuum effectively holds the cylinder in place and prevents it from being lifted by the water pressure.

Once the cutter suction dredger inverted pile cylinder is securely positioned, the cutter head of the cutter suction dredger is activated. It rotates and cuts through the sediment, loosening it from the bed. Simultaneously, the suction pumps draw the loosened material into the cylinder through the open bottom. The material is then transported through pipelines to a designated discharge area or into the hopper of the dredger.

The inverted pile cylinder plays a crucial role in stabilizing the cutter suction dredger during dredging operations. It ensures that the cutter head can efficiently excavate the sediment without causing significant movement or displacement of the dredger. By utilizing the vacuum created within the cylinder, the dredger remains in place, allowing for precise and controlled dredging operations.

Cutter Suction Dredger Inverted Pile Cylinder Specifications:

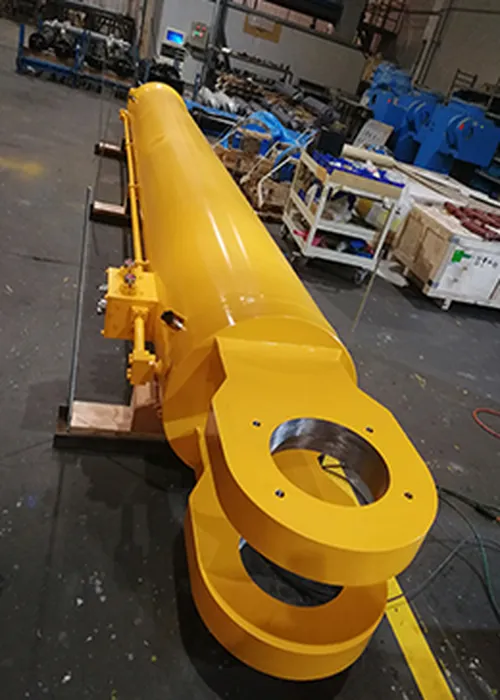

Cutter Suction Dredger Inverted Pile Cylinder Benefits:

The use of an inverted pile cylinder in a cutter suction dredger offers several benefits. Here are some advantages of using an inverted pile cylinder:

1. Increased Stability: The inverted pile cylinder provides enhanced stability to the cutter suction dredger during dredging operations. It helps to maintain the vertical position of the dredging ladder and cutter head, ensuring efficient and accurate dredging.

2. Precise Control: The cutter suction dredger inverted pile cylinder allows for precise control of the dredging depth and position. It enables the operator to adjust the height of the cutter head and ladder with greater accuracy, ensuring that the desired depth is achieved during dredging.

3. Improved Efficiency: By providing better stability and control, the inverted pile cylinder contributes to improved dredging efficiency. It helps to optimize the dredging process by reducing unnecessary movements and ensuring consistent performance, resulting in increased productivity.

4. Versatility: The cutter suction dredger inverted pile cylinder offers versatility in dredging operations. It enables the cutter suction dredger to work in various soil conditions, including hard soils, soft soils, and rocky terrains. The cylinder's stability and control capabilities make it suitable for a wide range of dredging projects.

5. Reduced Downtime: The inverted pile cylinder is designed to withstand the demanding conditions of dredging operations. Its robust construction and reliability contribute to reduced downtime and maintenance requirements. This ensures that the cutter suction dredger can operate continuously, minimizing interruptions and maximizing productivity.

6. Enhanced Safety: The stability provided by the cutter suction dredger inverted pile cylinder enhances the safety of dredging operations. It reduces the risk of instability or tilting of the dredger, improving the overall safety of both the crew and the equipment.

Cutter Suction Dredger Inverted Pile Cylinder Uses:

The inverted pile cylinder on a cutter suction dredger has several applications and uses in maritime construction and dredging projects. Here are some common applications of the inverted pile cylinder:

1. Stability Enhancement: The primary application of the inverted pile cylinder is to provide stability to the cutter suction dredger during dredging operations. By penetrating the seabed or riverbed, it acts as an anchor, preventing excessive movement or drifting of the vessel caused by the forces generated by the cutter head and suction system.

2. Dredging in Cohesive Soils: In cohesive soil conditions where the sediment or soil has a high clay content and tends to stick together, the inverted pile cylinder can be particularly useful. It helps stabilize the dredger and counteracts the cohesive forces that may hinder the excavation process.

3. Deep Excavation: When dredging projects require excavation to significant depths, the inverted pile hydraulic cylinder provides additional stability and support. It allows the cutter suction dredger to maintain its position and depth while operating in deeper waters.

4. Maintenance Dredging: Maintenance dredging involves removing accumulated sediments or debris from waterways, harbors, or ports to maintain navigation channels or restore their design depths. The inverted pile cylinder aids in stabilizing the cutter suction dredger during these routine maintenance operations.

5. Environmental Dredging: In situations where the dredging project involves the removal of contaminated sediments or pollutants, the inverted pile cylinder helps stabilize the vessel during the extraction of the contaminated material. This allows for careful and controlled removal without disturbing the surrounding environment.

China Dredger Tank Cylinder Manufacturers

In 30 years of focusing on innovation, HZPT has reached the forefront of the world’s hydraulic industry in terms of both production scale and technical level. Meanwhile, HZPT is now a widely recognized benchmarking enterprise in the domestic hydraulic industry. Headquartered in Hangzhou, HZPT has founded five hydraulic R&D centers in China, Germany, the United States, Japan, and Mexico, and ten manufacturing bases worldwide. HZPT the establishment of a high-precision foundry and a pump & valve factory, HZPT has mastered the key to developing and manufacturing more advanced hydraulic transmission and control components to supply high-pressure cylinders, hydraulic pump valves, motors, precision castings, and the complete hydraulic system. Well sold in over 20 countries and regions, the products are widely applied in various fields such as mobile machinery, agricultural machinery, industrial engineering, offshore, energy technology, and tunnel boring machines.

HZPT is a company in the R&D and manufacture of hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders in China. In 2020, the domestic market share was around 29%. We produce industrial vehicle hydraulic cylinders, aerial work vehicle hydraulic cylinders, mobile machinery cylinders, industrial engineering hydraulic cylinders, construction machinery hydraulic cylinders, forklift hydraulic cylinders, crane luffing hydraulic cylinders, and sanitation machinery hydraulic cylinders. Hydraulic cylinder is a non-standard product and all products are independently developed by ourselves.
