Cyclo Drive Reducer BLED Type Gearbox
Cyclo Drive Reducer BLED Type Cycloidal Gearbox

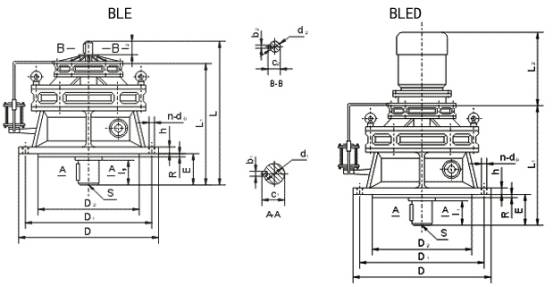

Appearance and installation dimension
mm
Frame | Installation dimension | Shaft end dimension | Outer side dimension | Weight Kg |
|||||||||||||||||
D1 | D2 | E | h | R | S | Hole |
Output shaft |
Input shaft | D
|
Double shaft style |
Flange style
|
||||||||||
n | d0 | d1 | b1 | c1 | l1 | d2 | b2 | c2 | l2 | L | L1 | L2 | |||||||||
120 | 230 | 200 | 80
|
15 | 4 | M10 | 6
|
11 | 45 | 14 | 48.5 | 64 | 15
|
5
|
17
|
22
|
260 | 368 | 309 |
According
|
72 |
130 | 310 | 270 | 20 |
5
|
M12
|
13 | 55 | 16 | 59 | 75 | 340 | 423 | 351 | 87 | |||||||
131 | 18 | 6
|
22.5 | 35 | 453 | 374 | 95 | ||||||||||||||
141 | 360 | 320 | 99 | 22 | 8 | 15 | 70 | 20 | 74.5 | 92 | 400 | 521 | 451 | 145 | |||||||
152 | 450 | 400 | 115 | 30 | M16 |
12
|
18 | 90 | 25 | 95 | 108 | 22 | 24.5 | 40 | 490
|
616 | 540 | 215 | |||
153 | 30 | 8 | 33 | 55 | 656 | 574 | 230 | ||||||||||||||
163 | 520 | 455 | 173 | 35 | 8 | M20
|
24 |
100 | 28 | 106 | 130 | 580 | 781 | 660 | 440 | ||||||
174 | 590 | 520 | 180 | 40 | 10
|
120 | 32 | 127 | 165 |
35 |
10
|
38
|
60
|
650 |
865 | 766 | 700 | ||||
184 | 800 | 680 | 215 | 45 | 2-M20 | 34 | 140 | 36 | 148 | 200 | 880 | 1081 | 972 | 1280 |
Note:Matching tolerance of shaft d1/d2 is h6
