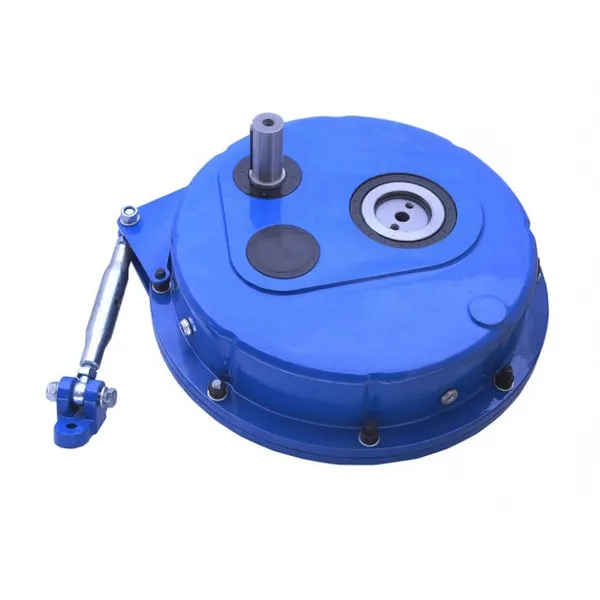

DXG35/DXG35 D Series Shaft Mounted Gearbox for Material Handling Industry

DXG35/DXG35 D Series Shaft Mounted Gearbox for Material Handling Industry

DXG35 series shaft mounted gearbox (reducer) adopts hard tooth surface helical gear, with high bearing capacity, smooth transmission, lightweight, and low energy consumption. The input shaft of DXG35 shaft mounted gearbox is connected with the reducer motor through the pulley; The hollow output shaft is connected by a key. Electric rollers can replace it as the power for belt conveyors and lifting equipment. DXG35 series shaft mounted gearbox can be installed with backcheck, avoid the working machine skid, pull rod installation is convenient. DXG35 series shaft mounted gearbox is widely used in mining equipment, concrete mixing plants, gravel crushers, sand production lines, and other belt conveyors and mechanical transmission fields.

DXG35/DXG35 D Series Shaft Mount Gearbox Specifications

DXG35/DXG35 D Series Shaft Mounted Gearbox Dimensions

DXG35 Series Shaft Mounted Gearbox Output Hollow Shaft:

Features of DXG30/DXG35 D Series Shaft Mounted Gearbox:

1. Absolute reliability and low maintenance for the quarry and mine applications
2. Sturdy ductile iron housing suitable for outdoor installation
3. Up to three optional output shaft bore diameters
4. Output shaft rotation in two directions: clockwise(Default) and counterclockwise(Customized)
5. Optional backstop for all models(Excluded DAG30) to prevent back driving in case of incline conveyors
6. Dimensions are the same with Bonfiglioli(TA Series)
7. Double lips oil seal combines the functions of seal and dust-proof
8. Widely used in belt conveyor and pulley drive system

DXG Series Shaft Mounted Gearbox Applied to Conveyor

DXG Series Shaft Mounted Gearbox is widely applied to the mining industry, such as Crusher, Ore Mill, Crane, Screening Machine, Conveyor, etc. The following pictures illustrate how DXG is applied to the conveyor belt. The motorized pulley(drum motor) is configured with a DXG series shaft-mounted gearbox and then transmits power to the conveyor.

Shaft Mounted Gearbox Manufacturers and Suppliers

Zhejiang HZPT Transmission Machinery Co., Ltd. is China's general mechanical gearbox industry Association unit; it is engaged in gearbox professional manufacturing company, the company in the domestic industry took the lead and passed the ISO9001 international quality system certification, perfect quality system, and strict management, so that the product quantity is a perfect guarantee, deeply trusted by the majority of users, was rated as a star enterprise over the years. Since its establishment in 1991, the company has introduced advanced technology and high-precision equipment so that the quality of its products continues to improve; the main products are helical gearbox, spiral bevel gearbox, cycloidal gearbox, mechanical stepless speed variator, worm gearbox, screw jack lifter, and planetary gearbox. The company has complete testing equipment; gear material is made of high-quality alloy steel by carburizing fire, grinding teeth, and precision up to GB/T10095 standard 5~6 to ensure high strength, low noise, and durable products. The Company's tenet is "quality first, reputation first"; the company is willing to cooperate with friends at home and abroad, which is a joint development.
