DZ Series Worm Gear Reducer

speed reducer

DZ

Shaft Direction
speed reducer

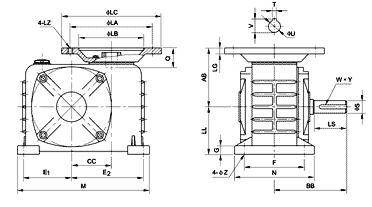

SIZE KW RATIO AB LL BB CC E1 E2 F M N G Z FLANGE INPUT HOLE OUTPUT SHAFT KG
LA LB LC LG LZ Q U T×V LS S W×Y
50 0.18 1/10
1/20
1/30
1/40
1/50
1/60
87 76 95 50 53 77 100 160 125 15 11 115 95 140 10 M8 25 11 4×12.8 40 17 5×3 7.5
60 0.18 78 82 110 60 68 92 100 190 130 15 11 115 95 140 10 M8 25 11 4×12.8 50 22 7×4 12
0.37 130 110 160 35 14 5×16.3
70 0.37 101 95 130 70 75 115 120 230 155 20 15 130 110 160 10 M8 33 14 5×16.3 60 28 7×4 15
0.75 165 130 200 M10 43 19 6×21.8
80 0.75 118 100 140 80 96 144 125 265 160 20 15 165 130 200 12 M10 43 19 6×21.8 65 32 10×4×5 22
1.5 55 24 8×27.3
100 1.5 145 135 155 100 100 150 155 310 195 22 15 165 130 200 15 M10 55 24 8×27.3 75 38 10×4.5 38
2.2 215 180 250 M12 65 28 8×31.3
120 2.2 160 160 185 120 120 180 180 360 230 28 18 215 180 250 18 M12 65 28 8×31.3 85 45 12×4.5 60
3.0
135 3.0 183 170 210 135 130 200 200 390 250 30 18 215 180 250 20 M12 65 28 8×31.3 95 55 15×5 80
industries we service

We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.

Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.

hzpt oem odm banner

pruduct quality report

Surface Treatment

Annealing, natural canonization, heat treatment, polishing, nickel plating, chrome plating, zinc plating,yellow passivization, gold passivization, satin, Black surface painted etc.product materials available

Processing Method

CNC machining, punch,turning, milling, drilling, grinding, broaching, welding and assembly

product finishing



product packages

FAQ

Q: Are you trading company or manufacturer ?
A: Our group consists in 3 factories and 2 abroad sales corporations.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shipment.

Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.
