EP-3-15kW | 18-20kW Permanent Magnet Synchronous Motor for Electric Vehicles

1. Technical Parameters of EP-3-15kW Permanent Magnet Synchronous Motor for Electric Vehicles

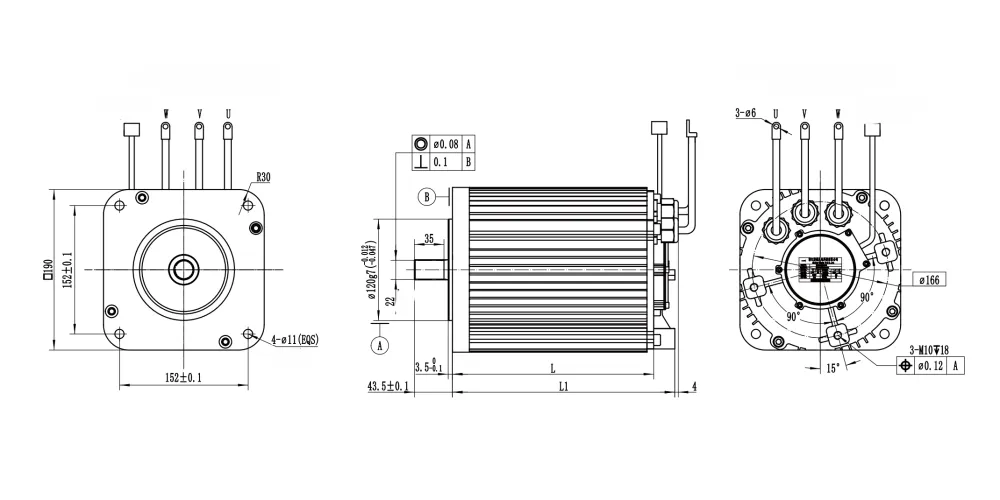

EP-3-15kW Permanent Magnet Synchronous Motor Dimensions

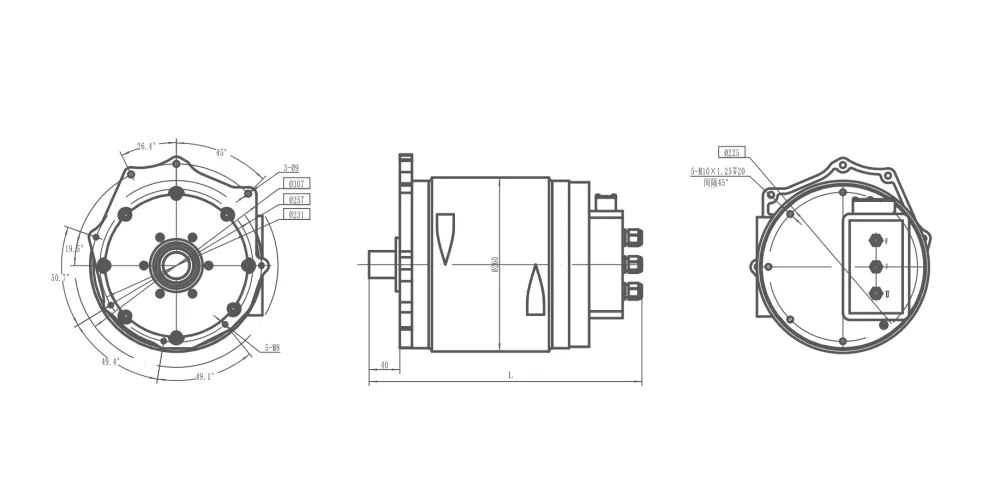

18-20kW Permanent Magnet Synchronous Motor Dimensions

2. Working Principle of 3-15kW Permanent Magnet Synchronous Motor for Electric Vehicles

The EP-3-15kW permanent magnet synchronous motor electric vehicle system operates on the principle of magnetic locking between a rotating stator field and a permanent magnetic rotor. Unlike asynchronous (induction) motors, which require electrical current to induce a magnetic field in the rotor (leading to "slip" and energy loss), our Permanent Magnet Synchronous Motor technology utilizes high-grade rare-earth permanent magnets embedded within the rotor. When the 3-phase AC is applied to the stator windings, it generates a rotating magnetic field. The rotor, possessing its own constant magnetic field, synchronizes instantly with the stator's frequency. This synchronous operation eliminates rotor copper losses, which is the primary reason why our pmsm for electric vehicle applications achieves efficiency ratings as high as 96.5%.

Crucially, this motor is designed to be paired with an advanced vector controller (FOC - Field Oriented Control). This control strategy allows for the precise decoupling of magnetic flux and torque-producing currents. For the driver, this translates into smooth, linear acceleration without the torque ripple often associated with older electric motor technologies. The elimination of mechanical commutators and brushes—standard in DC motors—means there are no sparking or wearing parts inside the motor housing, aside from the high-durability bearings. This brushless design significantly reduces maintenance requirements and enhances the lifespan of the unit. Furthermore, the high power factor of our PMSM design means that the pmsm motor control for electric vehicles can utilize the battery's energy more effectively, reducing the thermal load on the inverter and extending the overall system longevity.

3. Materials of Permanent Magnet Synchronous Motor

As a professional permanent magnet synchronous motor manufacturer, we understand that electric motor quality is dictated by the materials used and the precision of the manufacturing process. The EP-3-15kW permanent magnet synchronous motor series features a housing crafted from high-strength, lightweight aluminum alloy. This material selection is deliberate; it provides excellent thermal conductivity for natural cooling while minimizing the vehicle's unsprung weight. The stator core is constructed from premium, low-loss cold-rolled silicon steel sheets, which are essential for minimizing hysteresis and eddy current losses, thereby boosting the motor's overall efficiency map. The windings utilize Class H enameled copper wire, capable of withstanding operating temperatures up to 180°C, ensuring the motor remains reliable even under heavy climbing loads or peak power bursts.

Our manufacturing facility employs a rigorous quality assurance system accredited by ISO9001 and IATF16949 standards. The assembly process includes Vacuum Pressure Impregnation (VPI) for the stator windings, a process that ensures complete insulation and mechanical solidity, protecting the electric motor parts from vibration and moisture. The rotor magnets are secured using advanced retention techniques to withstand centrifugal forces at speeds up to 6500 rpm.

4. Which is better, PMSM or BLDC?

PMSM (Permanent Magnet Synchronous Motor): Permanent Magnet Synchronous Motors offer higher efficiency, precision, and better control at varying speeds. They have superior power density and can perform well at high speeds with less energy loss, making them ideal for high-performance EVs such as electric cars and commercial vehicles. Additionally, their design minimizes energy loss due to friction and heat, enhancing the motor's longevity and performance.

BLDC (Brushless DC Motor): BLDC motors are commonly used in smaller, less complex electric vehicle applications such as electric scooters and e-bikes. These motors are simpler, require less maintenance due to the absence of brushes, and can be more cost-effective. However, they may not offer the same level of performance, particularly at high speeds, as PMSM motors.

In conclusion, PMSM motors are better suited for high-performance electric vehicles that require efficiency at higher speeds, while BLDC motors are ideal for cost-effective, low-maintenance applications in smaller electric vehicles.

5. Permanent Magnet Synchronous Motor Application Scenarios

The EP-3-15kW Permanent Magnet Synchronous Motor for electric vehicles (EVs) is versatile, ideal for a variety of applications, especially for those in transportation and logistics. Based on the specifications and details, the motor is suitable for:

1. Electric Buses: Providing efficient, high-performance power for city buses that operate for extended periods daily, ensuring reliable energy consumption and minimal maintenance.
2. Electric Commercial Vehicles: Designed to cater to vehicles in commercial sectors like electric delivery trucks, optimizing performance for short-range deliveries and ensuring high efficiency under varying loads.
3. Electric Passenger Vehicles: Perfect for electric cars, offering powerful performance while maintaining efficiency, contributing to a smoother driving experience and range optimization.
4. Electric Industrial Vehicles: This motor is also great for use in industrial equipment, including forklifts and other industrial machines that require high torque and reliability.

By utilizing advanced permanent magnet technology, the EP-3-15kW permanent magnet synchronous motor enhances power output while ensuring energy efficiency, making it suitable for modern electric vehicle solutions and retrofitting traditional vehicles to electric drive systems.

6. Why Choose Us?

Professional team: Our team of domestic top-tier experts, many holding advanced degrees, brings deep R&D capabilities in motor design, electromagnetic analysis, and intelligent drive systems to every project.
Backed by a complete, scientific R&D process, we begin with your vehicle parameters to define motor specifications, followed by precise performance calculations, detailed design, and comprehensive simulation—ensuring optimal performance before a single prototype is built.

Superior Performance & Efficiency: Our permanent magnet synchronous motor technology delivers the "high power density and high efficiency" that defines the next generation of EVs. As demonstrated by our products, we achieve peak efficiencies exceeding 96%, ensuring maximum range and performance for your vehicles—from low-speed logistics trikes to passenger cars.
This excellence is rooted in our advanced electromagnetic field analysis using EasiMotor software, which allows us to simulate magnetic flux distribution, optimize thermal management, and validate torque characteristics at the design stage, minimizing losses and maximizing output.

End-to-End Quality Assurance: Quality is our lifeblood. We operate under a rigorous quality management system certified to IATF 16949 and ISO 9001 standards. From our advanced manufacturing lines with automated processes to our comprehensive R&D-level testing platforms, we guarantee reliability and consistency in every motor we ship.
Our professional and efficient simulation platform enables full-system validation of the motor, controller, and vehicle dynamics—allowing us to predict real-world performance, optimize control algorithms, and ensure seamless integration across the entire drivetrain.

Tailored Solutions, Not Just Products: We understand that one size doesn't fit all. Our scientific design process starts with your vehicle's specific parameters, allowing us to match or custom-develop the perfect motor and controller system for your unique application, whether it's for a main drive, air compressor, oil pump, or other auxiliary systems.
With end-to-end simulation and virtual prototyping, we can rapidly iterate designs, reduce development cycles, and deliver customized solutions that meet your exact requirements—without compromising on quality or performance.

Proven Track Record: With a modern 80,000 sqm production base and a workforce of over 800 professionals, we have a proven history of successful partnerships with major OEMs.
