YEJ2 Series Electromagnetic Braking Three Phase Asynchronous Motor

YEJ2 Series Electromagnetic Braking Three Phase Asynchronous Motor

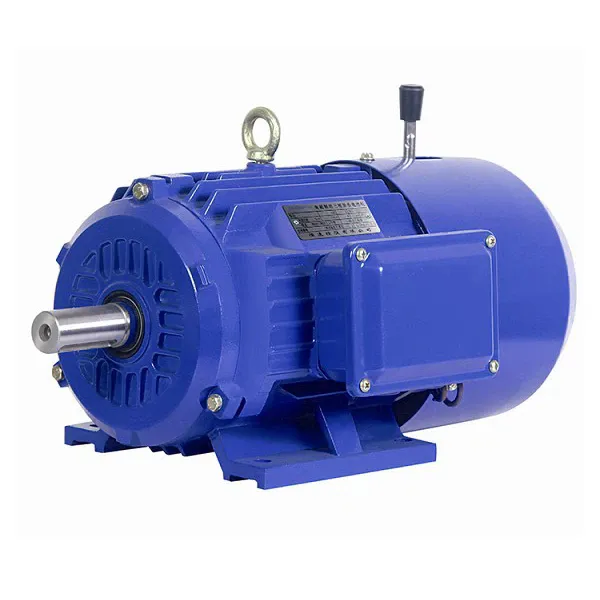

YEJ2 series electromagnetic brake three phase motor is specially designed for special requirements, which confirms JB/T6428-92 and IEC standards. The series YEJ2 series electric motor is the improved product of the YEJ series electric motor, which can realize rapid braking after the motor loses power. And the electrical performance, installation size, protection class, and insulation class are consistent with the requirements of the YE2 series motor.

The electric motors are equipped the electromagnetic brake on the non-shaft end, when electricity is off, retarding disc will automatically press in the end shield which produces friction brake torque and stop the running of the motor, the no-load brake duration is changed with the frame size of the motor, the range is 0.15-0.45 seconds. This kind of motor is considered the driving force of various machinery and is widely used in mechanical workout machine tools, transport machinery, packaging, woodworking, food, chemical engineering, textile, construction, shop, and roll door machinery.

▍YEJ2 Series Electromagnetic Braking Three Phase Motor Operating Conditions:

• Ambient temperature:-15℃≤0≤40℃
• Altitude: not exceeding 1000m
• Rated voltage: 380V
• Rated frequency:50Hz、60Hz
• Protection class:IP44、IP54、IP55
• Insulation class: F
• Cooling method: ICO141
• Duty: S1 (continuous)
• Voltage for brake: DC 99V for motors up to H100, DC170V for motors H112 and up

▍YEJ2 Series Electromagnetic Braking Three Phase Motor Technical Data:

Type	Output	Speed	Current In	Efficiency	Power factor	Static braking	No-load brake lag	Energizing	Locked-rotor torque	Locked-rotor current	Pull-out	weight
	(kW)	(r/min)	(A)	η(%)	(COS Φ)	torque(N.m)	time(S)	power(W)	Rated torque Tst/TN	Rated current Ist/IN	torque	(kg)
Synchronous Speed 3000r/min(2P)
YEJ2-63M1-2	0.18KW	2720	0.53	65	0.8	4	0.2	18	5.5	2.2	2.2	12
YEJ2-63M2-2	0.25KW	2720	0.69	68	0.81	4	0.2	18	5.5	2.2	2.2	13
YEJ2-71M1-2	0.37KW	2740	0.99	70	0.81	4	0.2	18	6.1	2.2	2.2	14
YEJ2-71M2-2	0.55KW	2740	1.4	73	0.82	4	0.2	18	6.1	2.2	2.3	15
YEJ2-80M1-2	0.75KW	2840	1.81	75	0.84	7.5	0.2	50	6.5	2.2	2.3	19
YEJ2-80M2-2	1.1KW	2840	2.52	76.2	0.86	7.5	0.2	50	7	2.2	2.3	20
YEJ2-90S-2	1.5KW	2840	3.43	78.5	0.85	15	0.2	60	7	2.2	2.3	25
YEJ2-90L-2	2.2KW	2840	4.83	81	0.86	15	0.2	60	7	2.2	2.3	29
YEJ2-100L-2	3KW	2860	6.4	82.6	0.87	30	0.2	80	7	2.2	2.3	38
YEJ2-112M-2	4KW	2880	8.2	84.2	0.87	40	0.25	110	7	2.2	2.3	50
YEJ2-132S1-2	5.5KW	2900	11.1	85.7	0.88	75	0.25	130	7	2	2.3	74
YEJ2-132S2-2	7.5KW	2900	15	87	0.88	75	0.25	130	7	2	2.3	80
YEJ2-160M1-2	11KW	2930	21.8	88.1	0.88	150	0.35	150	7	2	2.3	134
YEJ2-160M2-2	15KW	2930	29.4	89.4	0.88	150	0.35	150	7	2	2.2	141.5
YEJ2-160L-2	18.5KW	2930	35.5	90	0.89	150	0.35	150	7	2	2.2	164
YEJ2-180M-2	22KW	2940	42.2	90.5	0.89	200	0.35	150	7	2	2.2	209
YEJ2-200L1-2	30KW	2950	56.9	91.4	0.89	300	0.45	200	7	2	2.2	285
YEJ2-200L2-2	37KW	2950	69.8	92	0.89	300	0.45	200	7	2	2.2	300
YEJ2-225M-2	45KW	2950	83.9	92.5	0.89	450	0.45	200	7	2	2.2	362
Synchronous Speed 1500r/min(4Poles)
YEJ2-63M1-4	0.12KW	1310	0.44	57	0.72	4	0.2	18	4.4	2.1	2.2	13
YEJ2-63M2-4	0.18KW	1310	0.62	60	0.73	4	0.2	18	4.4	2.1	2.2	14
YEJ2-71M1-4	0.25KW	1330	0.79	65	0.74	4	0.2	18	5.2	2.1	2.2	15
YEJ2-71M2-4	0.37KW	1330	1.12	67	0.75	4	0.2	18	5.2	2.1	2.2	16
YEJ2-80M1-4	0.55KW	1390	1.55	71	0.75	7.5	0.2	50	6	2.4	2.3	19
YEJ2-80M2-4	0.75KW	1390	2.03	73	0.76	7.5	0.2	50	6	2.3	2.3	20
YEJ2-90S-4	1.1KW	1380	2.81	76.2	0.77	15	0.2	60	6.5	2.3	2.3	26
YEJ2-90L-4	1.5KW	1390	3.67	78.5	0.79	15	0.2	60	6.5	2.3	2.3	31
YEJ2-100L-4	2.2KW	1390	5	81	0.81	30	0.2	80	7	2.2	2.3	39
YEJ2-100L2-4	3KW	1410	6.8	82.6	0.82	30	0.2	80	7	2.2	2.3	43
YEJ2-112M-4	4KW	1410	8.8	84.2	0.82	40	0.25	110	7	2.2	2.3	50
YEJ2-132S-4	5.5KW	1435	11.7	85.7	0.83	75	0.25	130	7	2.2	2.3	78
YEJ2-132M-4	7.5KW	1440	15.6	87	0.84	75	0.25	130	7	2.2	2.3	91
YEJ2-132M1-4	9KW	1440	18.5	87	0.84	75	0.25	130	7	2.2	2.3	93
YEJ2-160M-4	11KW	1440	22.6	88.4	0.84	150	0.35	150	7	2.2	2.3	140
YEJ2-160L-4	15KW	1460	30.3	89.4	0.85	150	0.35	150	7	2.2	2.2	161
YEJ2-180M-4	18.5KW	1470	36.3	90	0.86	200	0.35	150	7	2	2.2	210
YEJ2-180L-4	22KW	1470	43.9	90.5	0.86	200	0.35	150	7	2	2.2	218
YEJ2-200L-4	30KW	1470	57.3	91.4	0.86	300	0.45	200	7	2	2.2	315
YEJ2-225S-4	37KW	1480	70.2	92	0.87	450	0.45	200	7	1.9	2.2	337
YEJ2-225M-4	45KW	1480	84	92.5	0.87	450	0.45	200	7	1.9	2.2	345
Synchronous Speed 1000r/min(6Poles)
YEJ2-71M1-6	0.18KW	850	0.74	56	0.66	4	0.2	18	4	1.9	2	9.5
YEJ2-71M2-6	0.25KW	850	0.95	59	0.68	4	0.2	18	4	1.9	2	11
YEJ2-80M1-6	0.37KW	885	1.3	62	0.7	7.5	0.2	50	4.7	1.9	2	20
YEJ2-80M2-6	0.55KW	885	1.79	65	0.72	7.5	0.2	50	4.7	1.9	2.1	21
YEJ2-90S-6	0.75KW	910	2.36	69	0.7	15	0.2	60	5.5	2	2.2	27
YEJ2-90L-6	1.1KW	910	3.22	72	0.72	15	0.2	60	5.5	2	2.2	29
YEJ2-100L-6	1.5KW	920	4.1	76	0.74	30	0.2	80	6.5	2	2.2	38
YEJ2-112M-6	2.2KW	935	5.7	79	0.74	40	0.25	110	6	2	2.2	52
YEJ2-132S-6	3KW	960	7.4	81	0.76	75	0.25	130	6	2	2.2	73
YEJ2-132M1-6	4KW	960	9.6	82	0.77	75	0.25	130	6.5	2	2.2	83
YEJ2-132M2-6	5.5KW	960	12.8	84	0.78	75	0.25	130	6.5	2	2	94
YEJ2-160M-6	7.5KW	970	17	86	0.78	150	0.35	150	6.5	2	2	135
YEJ2-160L-6	11KW	970	24.5	87.5	0.78	150	0.35	150	6.5	2	2	163
YEJ2-180L-6	15KW	970	31.6	89	0.81	200	0.35	150	6.5	1.8	2	223
YEJ2-200L1-6	18.5KW	970	38.6	90	0.83	300	0.45	200	6.5	1.8	2	277
YEJ2-200L2-6	22KW	970	44.7	90	0.83	300	0.45	200	6.5	1.8	2	295
YEJ2-225M-6	30KW	980	58.6	91.5	0.85	450	0.45	200	6.5	1.7	2	345
Synchronous Speed 750r/min(8Poles)
YEJ2-80M1-8	0.18KW	645	0.88	51	0.61	7.5	0.2	50	3.3	1.8	1.9	19
YEJ2-80M2-8	0.25KW	645	1.15	54	0.61	7.5	0.2	50	3.3	1.8	1.9	21
YEJ2-90S-8	0.37KW	670	1.49	62	0.61	15	0.2	60	4	1.8	1.9	25
YEJ2-90L-8	0.55KW	670	2.18	63	0.61	15	0.2	60	4	1.8	2	27
YEJ2-100L-8	0.75KW	680	2.17	71	0.67	30	0.2	80	4	1.8	2	32
YEJ2-100L2-8	1.1KW	680	2.39	73	0.69	30	0.2	80	5	1.8	2	39
YEJ2-112M-8	1.5KW	690	4.5	75	0.69	40	0.25	110	5	1.8	2	50
YEJ2-132S-8	2.2KW	705	5.8	80.5	0.71	75	0.25	130	5.5	1.8	2	73
YEJ2-132M-8	3KW	705	7.7	82	0.72	75	0.25	130	5.5	2	2	79
YEJ2-160M1-8	4KW	720	9.9	84	0.73	150	0.35	150	6	2	2	134
YEJ2-160M2-8	5.5KW	720	13.3	85	0.74	150	0.35	150	6	2	2	140
YEJ2-160L-8	7.5KW	720	17.7	86	0.75	150	0.35	150	5.5	2	2	164
YEJ2-180L-8	11KW	730	25.1	87.5	0.77	200	0.35	150	6	1.7	2	212
YEJ2-200L-8	15KW	730	34.1	88	0.76	300	0.45	200	6	1.8	2	295
YEJ2-225S-8	18.5KW	730	41.3	89.5	0.76	450	0.45	200	6	1.7	2	319
YEJ2-225M-8	22KW	740	47.6	90	0.78	450	0.45	200	6	1.8	2	345

▍YEJ2 Series Electromagnetic Braking Three Phase Motor Brake Technical Parameters:

Frame No.	Stroke of the Armature  (mm)	Free-load braking time (S)	Braking Torque(N.m)	Excitation Voltage(V)	Brake Excitation Power(W)
YEJ2-80	1.0	0.20	7.5	99	50
YEJ2-90	1.0	0.20	15	99	60
YEJ2-100	1.0	0.20	30	99	8o
YEJ2-112	1.0	0.25	40	170	110
YEJ2-132	1.2	0.25	75	170	130
YEJ2-160	1.2	0.35	150	170	150
YEJ2-180	1.2	0.35	200	170	150
YEJ2-200	1.5	0.45	300	170	200
YEJ2-225	1.5	0.45	400	170	200

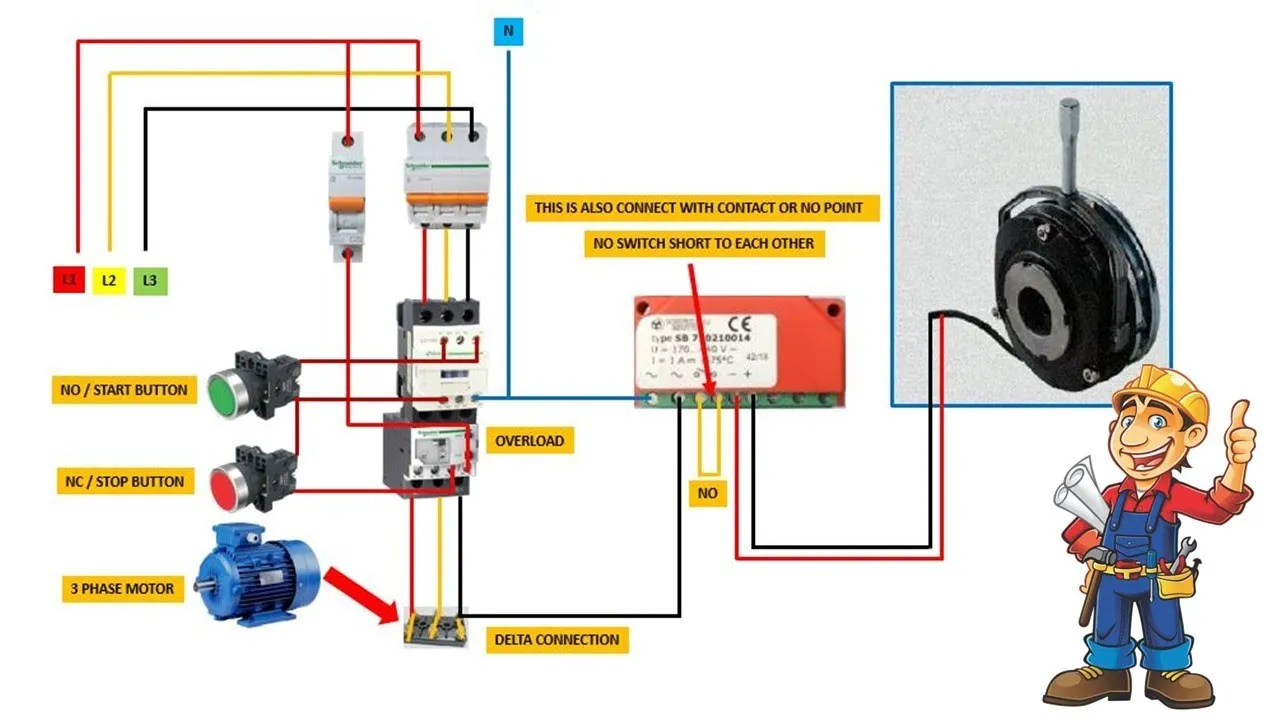

▍YEJ2 Series Electromagnetic Braking Three Phase Motor Working Principle:

The electromagnetic brake gets 99 or 170V DC voltage through the 220V AC or rectifier. At the same time, the armature is attracted by an electromagnet, ThIs makes the brake disc ratable and enables the motor to run freely. When the power Is oL the electromagnet Loses electromagnetic force. The armature is pushed by the spring and sticks to the end shield of the motor Immedlatelythe rotation is stopped, therefore.

The brake disc is installed in the end cover on the non-driving side. When supplying the power to the brake motor, the brake also works at the same time. Due to the electromagnetic suction function, the electromagnet attracts the armature and compression spring, the brake disc separates from the armature, and end cover, and the motor starts working.

When cutting off the power supply, the brake electromagnet loses the electromagnetic suction, spring-driven armature to pressure brake disc. Under the effect of friction torque, the motor stops working immediately.

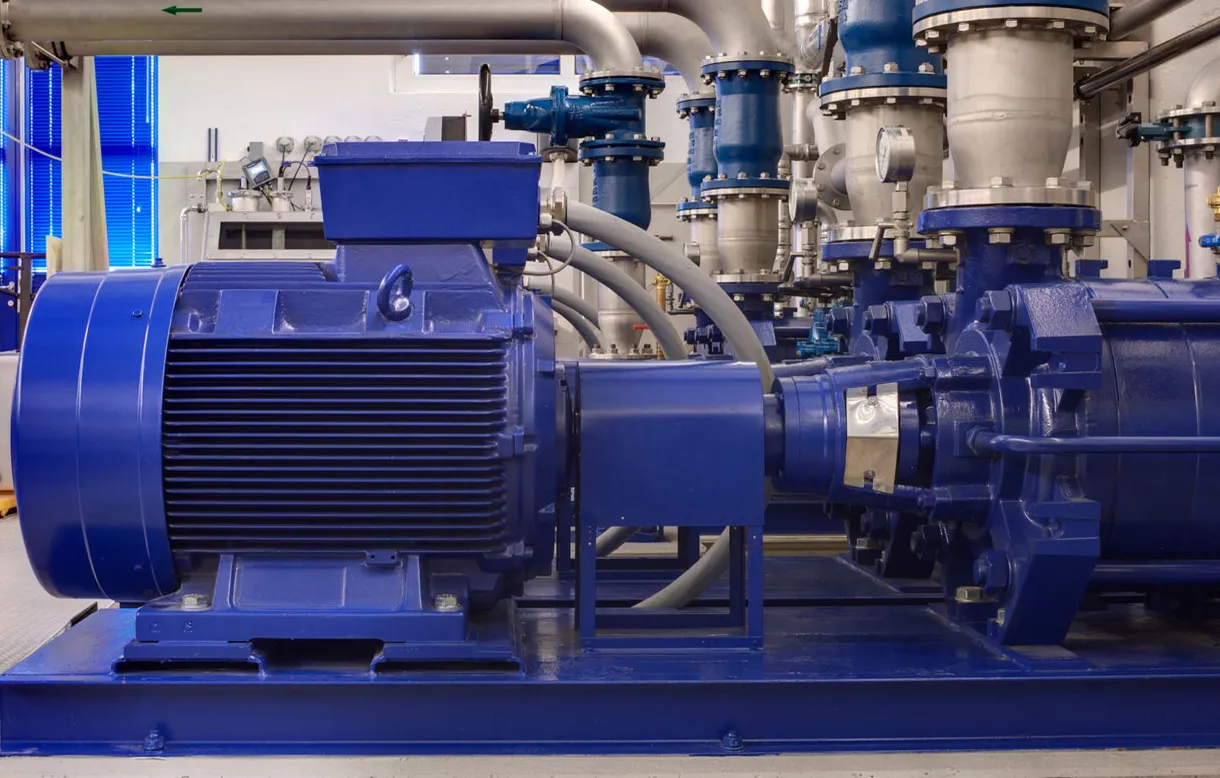

▍YEJ2 Series Electromagnetic Braking Three Phase Asynchronous Motor Applications:

The YEJ2 series electromagnetic braking three phase asynchronous motor is designed with an electromagnetic brake for rapid and reliable braking action. This type of motor is widely used in various industrial applications where precise control, quick stopping, and safety are critical. Some common applications include:

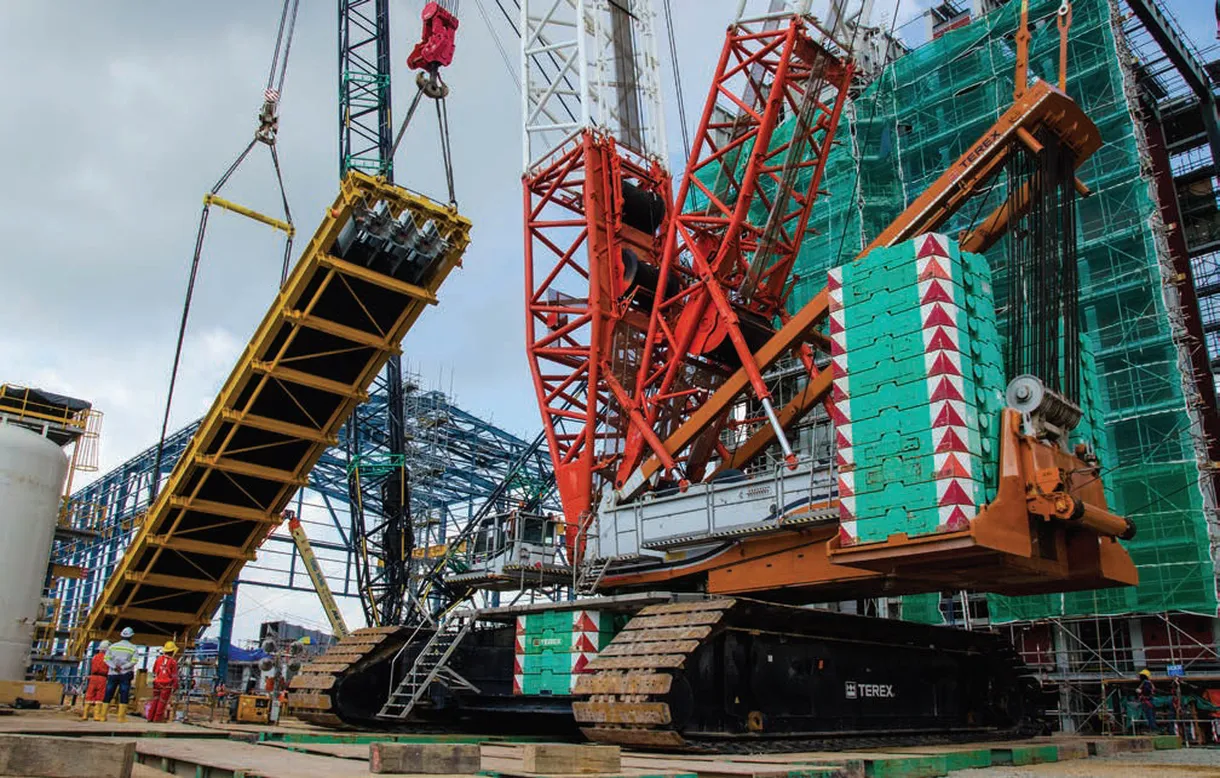

1. Lifting and hoisting equipment: The rapid braking action of YEJ2 series electromagnetic braking three phase asynchronous motors makes them ideal for use in cranes, hoists, and winches, where quick and controlled stopping is essential for safety and efficiency.

2. Conveying systems: In conveyor belts, escalators, and other material handling equipment, YEJ2 series electromagnetic braking three phase asynchronous motors can help ensure smooth and controlled movement of goods, reducing the risk of accidents and improving overall system efficiency.

3. Machine tools: In various manufacturing processes, such as metal cutting, milling, and drilling, YEJ2 series electromagnetic braking three phase asynchronous motors provide precise control and quick stopping, which can improve the accuracy and productivity of these operations.

4. Packaging machinery: In automated packaging processes, YEJ2 series electromagnetic braking three phase asynchronous motors can help ensure precise control of movement and rapid braking, which is essential for maintaining the integrity of the packaged goods and preventing damage.

5. Printing equipment: In printing presses and related machinery, YEJ2 series electromagnetic braking three phase asynchronous motors can help maintain tight control over the movement of paper and other materials, ensuring accurate and efficient printing operations.

6. Textile machinery: In spinning, weaving, and other textile production processes, YEJ2 series electromagnetic braking three phase asynchronous motors can provide rapid stopping and precise control, ensuring consistent product quality and reducing waste.

7. Food processing equipment: In various food processing applications, such as mixing, grinding, and filling, YEJ2 series electromagnetic braking three phase asynchronous motors can help maintain precise control over the movement of food products, ensuring consistent quality and reducing the risk of contamination.

8. Woodworking machinery: In saws, planers, and other woodworking equipment, YEJ2 series electromagnetic braking three phase asynchronous motors can help ensure accurate cutting and shaping, improving the quality of the finished products and reducing waste.

9. Pumps and compressors: In fluid handling applications like pumps and compressors, YEJ2 series electromagnetic braking three phase asynchronous motors can provide precise control over the flow of fluids, improving efficiency and reducing the risk of leaks or spills.

10. Fans and blowers: In ventilation systems, YEJ2 series electromagnetic braking three phase asynchronous motors can help maintain precise control over airflow, ensuring optimal environmental conditions and improving energy efficiency.
