Feed Mixer Machines Gearboxes – Replacement of Comer Code PGA-1602
Get a Quote

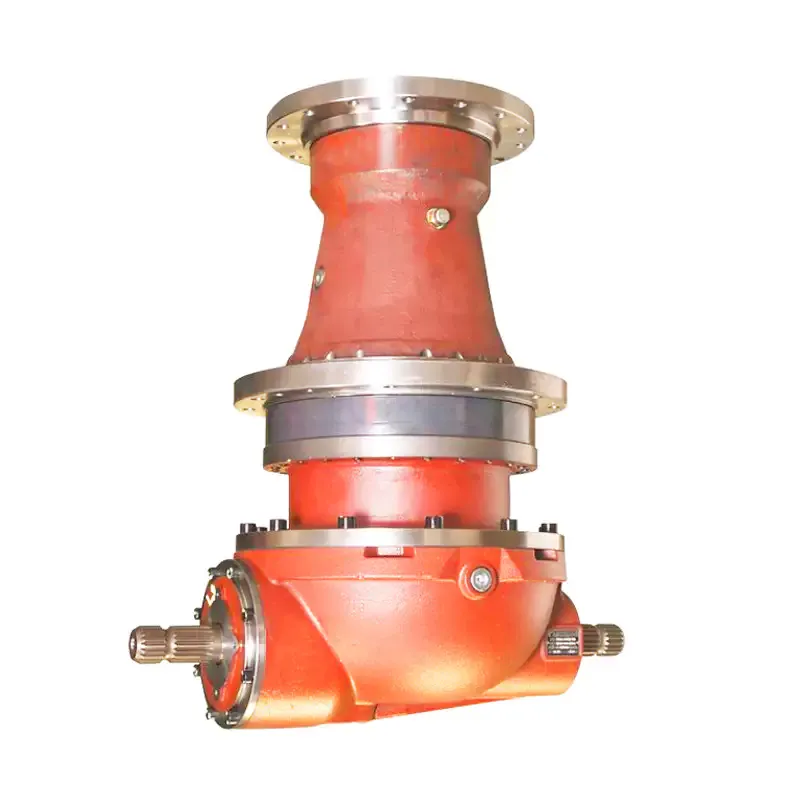

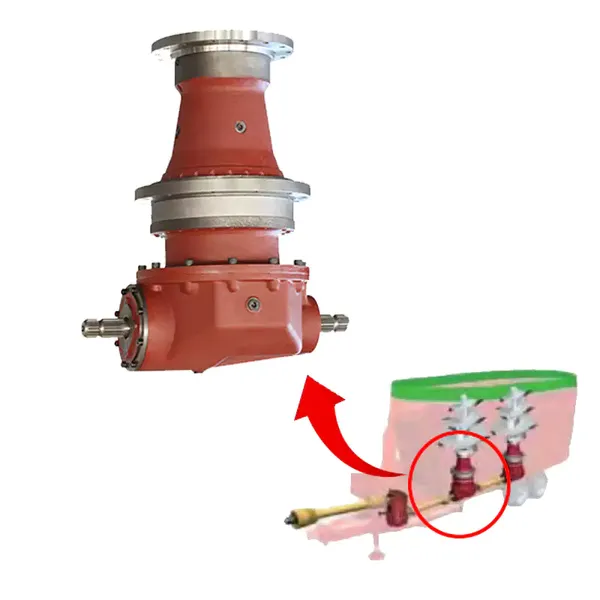

PGA1602VM Mixing wagon Gearbox - Replacement of Comer Code PGA-1602
| Description |

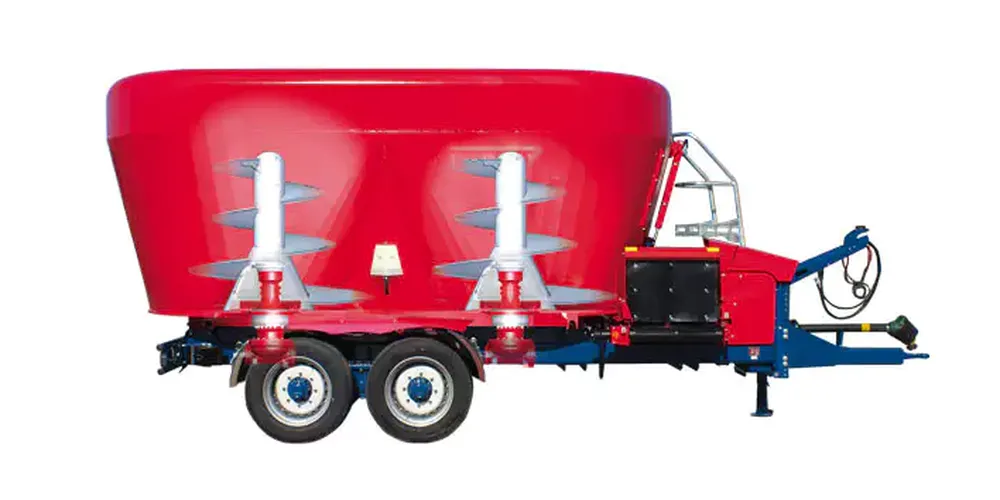

Feed Mixer Machines Gearboxes - Replacement of Comer Code PGA-1602
|
|
|---|---|---|
| Specifications |
Has a special bearing complete where the screw spindle can be directly connected.
|
|
| Benefits |
No separate bearing complete required for the winch
|
|
| Application |
|
|
| Consists of |
|
|
| Model |
PGA 1602
|
|
| Max. output rotation speed |
29 r/min
|
|
| Max. output torque |
15700 nm
|
|
| Max. output torque |
1570 daNm
|
|
| Contains oil |
No
|
|
| Oil SAE viscosity grade |
90EP
|
|
| Weight |
265 kg
|
|
| Gear ratio |
16.1:1
|
|
| Input power KW / HP Reducing |
88.7 kW/HP
|
|
| Ratio Reducing |
16,2:1
|
|
| Shaft type |
2 x 1.3/4 (Z20)
|
We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.

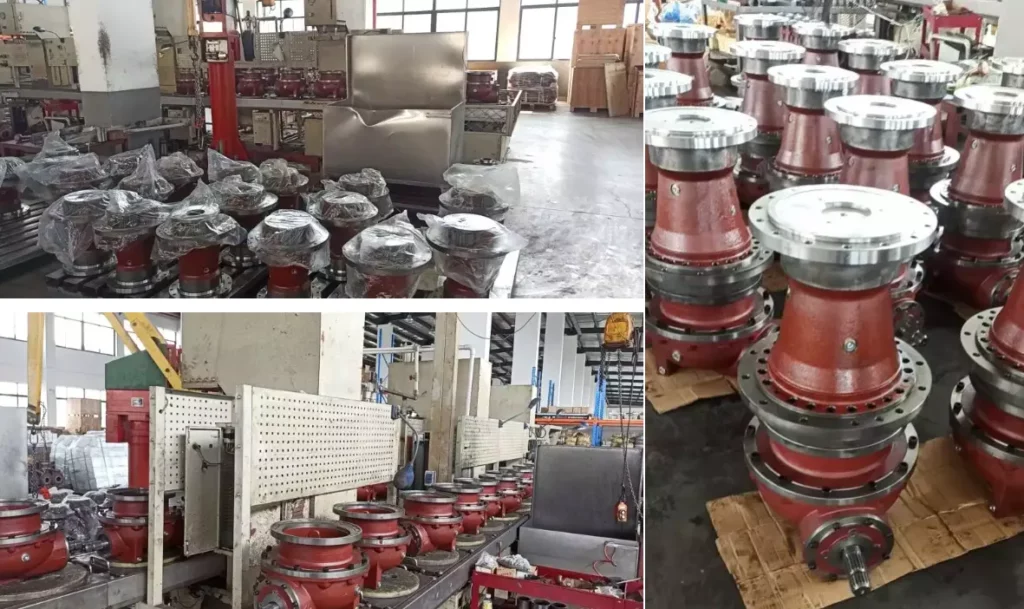

Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.
