Gearbox for Trailer Stabilizer Parking Support

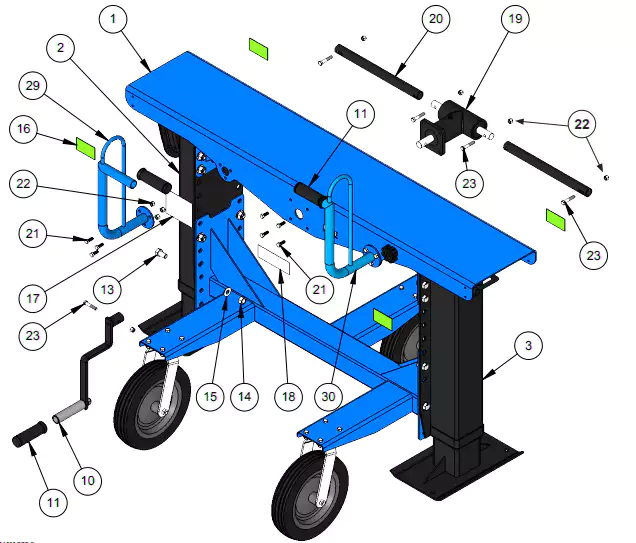

Structure of Trailer Stabilizer

1.PLATE WELDMENT TOP      2.JACK,DRIVE      3.JACK,DRIVEN      10.CRANK,ASSY
11.GRIP,PVC, BLK      13.SCR,HHMS      14.NUT,HEX      15.WSHR,FLAT      16.LABEL,REFLECTOR, RED
17. LABEL,INSTRUCTION      18. LABEL,PRODUCT      19.GEARBOX 3WAY
20.TUBE,DRIVE,JACKS      21.SCR,HHMS      22.NUT,HEX,NYLCK      23.SCR,HHMS      29.HANDLE,LEFT,FLANGED
30.HANDLE,RIGHT,FLANGED

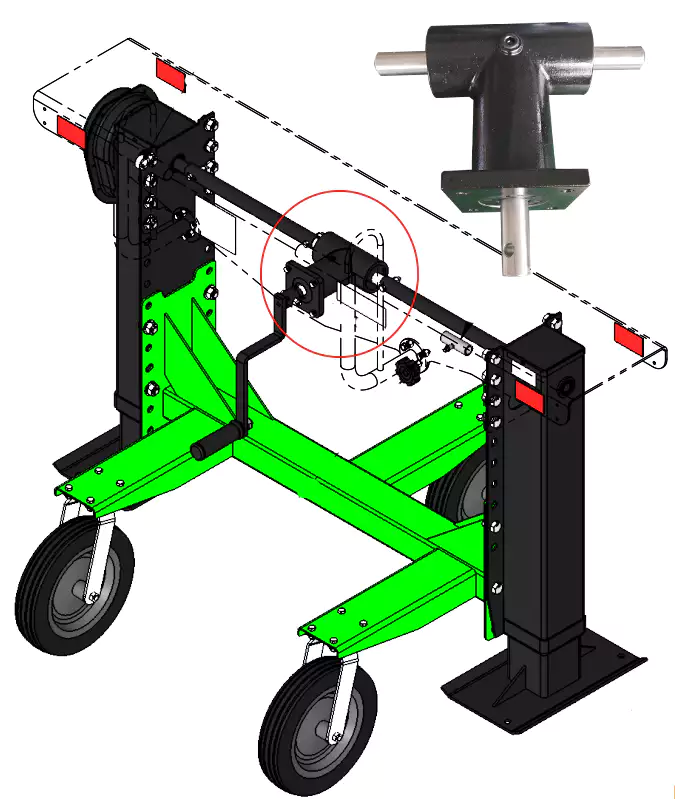

Gearbox for Trailer Parking Support

Gearbox for Trailer Parking Support is a device used to prevent trailers from tipping over during loading and unloading.

The gearbox of the trailer parking support is designed to provide additional stable support to prevent the trailer from tipping over during loading and unloading. It converts the input rotational force into vertical support force through a gear mechanism, providing additional stability.
Function:

• Extra support: The gearbox of the trailer parking support effectively provides additional support for the trailer during loading and unloading by increasing vertical support. This helps to balance weight distribution and reduce the risk of trailer tipping over.
• Stable loading/unloading: When the trailer is parked, weight changes during loading and unloading may cause the trailer to become unstable. The gearbox provides additional support to help maintain the balance and stability of the trailer, preventing it from tipping over or losing balance.
• Enhanced safety: Trailers may cause serious accidents and damage when tipping over or losing balance. By using the gearbox of the trailer parking support, the safety of the trailer can be improved, the risk of accidents can be reduced, and the safety of personnel and property can be protected.

Dimensional Drawing of Trailer Parking Support Gearbox

All sizes in the picture can be customized. Please contact us to design a more perfectly matched gearbox solution for your trailer parking system

How Gearbox for Trailer Parking Support Works

1. Gearbox structure: The gearbox of the trailer parking support is usually composed of gears, shafts, and support rods. The gearbox is installed at the bottom of the trailer and connected to the trailer's support feet or other support systems.
2. Manual or automatic operation: The trailer parking support can be activated by manual or automatic operation. Manual operation usually involves using manpower or tools to rotate gears or adjust the position of support rods. Automatic operation can be controlled using hydraulic systems, electric motors, or other mechanical devices.
3. Support rod adjustment: When it is necessary to support the trailer, by adjusting the position of the support rod, the gearbox will rotate the gears to extend the support rod downwards and make contact with the ground. In this way, the support rod provides additional vertical support, stabilizing the position of the trailer.
4. Increased stability: By providing additional support, the gearbox of the trailer parking support helps balance the weight distribution of the trailer, increasing overall stability. It can reduce the risk of trailer tipping over due to center of gravity deviation during loading and unloading.
5. Release support: When support is no longer needed, the support rod can be retracted by adjusting the operation of the gearbox. Under manual operation, the gear can be rotated in reverse or the position of the support rod can be adjusted to retract it back to the bottom of the trailer. Under automatic operation, retract the support rod through the corresponding control system.

Through this working principle, the gearbox of the trailer parking support can provide additional support when needed, stabilize the position of the trailer and balance weight distribution, thereby improving the stability and safety of the trailer during loading and unloading processes.

Choose Our Trailer Parking Support Gearbox

• High quality products: We are proud to produce high-quality Gearbox for Trailer Parking Support products. We use high-quality materials and advanced manufacturing processes to ensure the reliability, durability, and performance stability of our products. You can rest assured to choose our products because we have strict quality control and inspection.
• Customized solutions: We understand that each customer's needs are unique, so we provide customized solutions. We work closely with customers to understand their requirements and specifications, and customize Gearbox for Trailer Parking Support products according to their requirements. We can customize according to your specific needs in terms of size, load-bearing capacity, and operation mode.
• Technical expertise: We have rich experience and professional knowledge in mechanical manufacturing. Our team has deep technical expertise in the field of gears and transmission systems. We continuously conduct research and technological innovation to provide the latest solutions and continuously improve the performance and functionality of our products.
• Timely delivery and after-sales support: We value the time and needs of our customers and are committed to delivering products on time. We have efficient production and supply chain management to ensure timely delivery. In addition, we provide comprehensive after-sales support, including technical consultation, installation guidance, and maintenance services, to ensure that you receive excellent support and service when using our products.
• Establishing long-term cooperative relationships: We focus on building cooperative relationships with customers and are committed to building long-term partnerships. We listen to customer feedback and needs, and continuously improve and innovate according to market changes and developments. We will take flexibility and professionalism as our cornerstone to develop and achieve success together with you.

Solutions for Trailer Parts

As a professional trailer parts supplier, we offer a variety of trailer related accessory products aimed at meeting your various needs. In our product range, you can find trailer connectors, lighting equipment, protective devices, suspension systems, and other accessories closely related to trailers.
Our accessory products have been carefully screened and rigorously tested to ensure their quality and reliability. Whether it's to maintain the integrity of existing trailers or for upgrades and improvements, we have a wide range of options for you to choose from.
Our goal is to provide you with a one-stop trailer accessory solution to simplify your procurement process and save you time and energy. No matter what type of accessories you need, we will do our best to meet your needs and provide professional advice and support.
We sincerely invite you to contact us for more detailed product information and customized solutions. Our team will be very happy to cooperate with you and provide you with satisfactory service.
