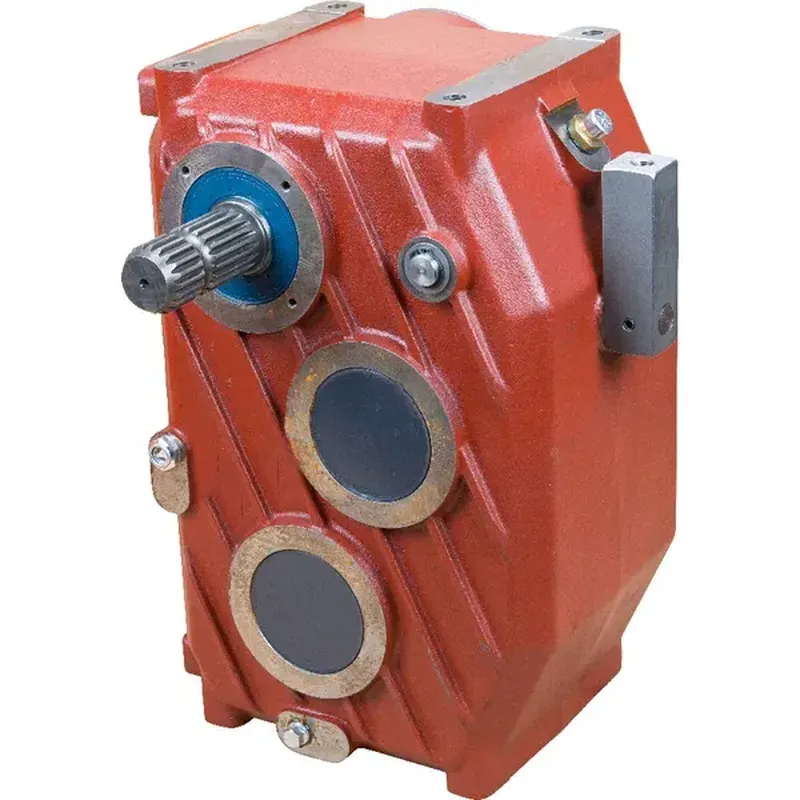

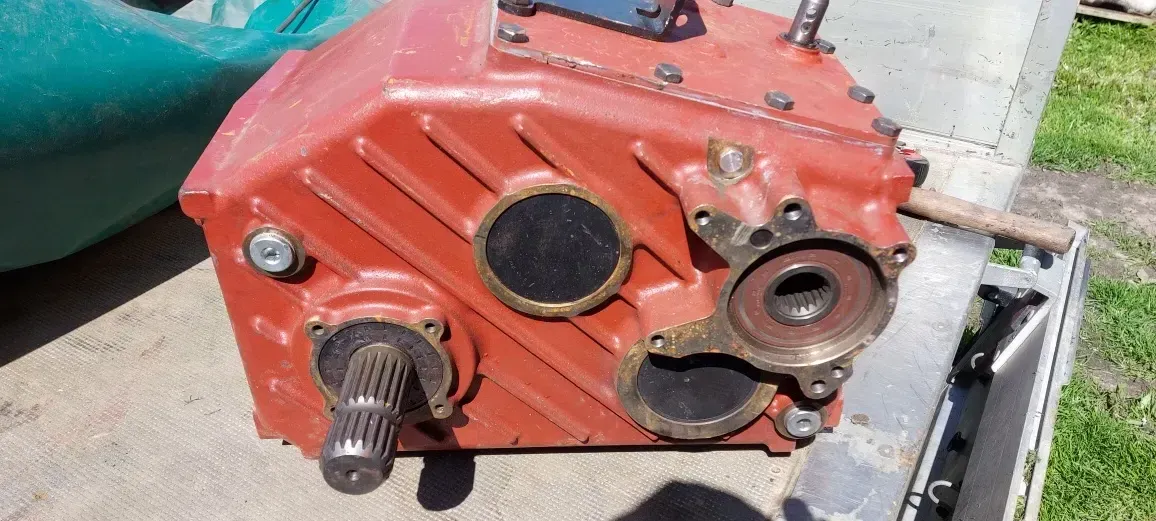

Horizontal Feed Mixer Gearbox-Replacement of Comer C3A Gearbox 1:1

The horizontal feed mixer gearbox replacement for the Replacement of Comer C3A gearbox is specifically designed to meet the demands of agricultural feed mixing applications. This replacement gearbox aligns with the dimensions and specifications of the original Replacement of Comer C3A, ensuring seamless integration and consistent performance. It typically features a robust construction with high-quality gears and bearings that withstand the constant loads and operational stresses common in feed processing.

Crafted from durable materials such as hardened steel or cast iron, the gearbox is built to offer longevity and resilience against wear and tear. It supports efficient power transmission with customized gear ratios that optimize the mixing process, thereby enhancing the mixer's effectiveness and productivity. The design often includes features like reinforced housings and sealed lubrication systems to reduce maintenance needs and improve reliability. This gearbox replacement is crucial for maintaining the operational efficiency of feed mixing systems, ensuring they continue to operate smoothly and effectively without downtime.

Horizontal Feed Mixer Gearbox C3A Dimensions

Product Specifications:

Product Description	Horizontal Feed Mixer Gearbox-Replacement of Comer C3A Gearbox 1:1
Product details	Housing material: cast iron Contact us for power at a different RPM The gearbox is delivered without oil and must be filled before first use. First oil change after 50-70 operating hours, then after 500-700 operating hours or at least once a year.
Application range	Mixing wagon
Model	C3A
Ratio factor	1:1
Max. input rotation speed	540 r/min
Consists of	Gearbox Order oil separately
Max. input power	92 kW
Connection 1 type	Splined
Connection 1 outside diameter	1-3/8 Inch
Connection 1 number of splines	6
Connection 2 type	Splined
Connection 2 outside diameter	1-3/4 Inch
Connection 2 number of splines	20
Contains oil	No
Oil SAE viscosity grade	90

Advantages of Using the Horizontal Feed Mixer Gearbox C3A

Application Scenarios:

The PTO (Power Take-Off) driven horizontal feed mixer gearbox finds applications in various farming scenarios, each utilizing its robust functionality to enhance operational efficiency and productivity. Here are six detailed applications:

1. Dairy Farming:

In dairy farming, a PTO driven horizontal feed mixer gearbox is instrumental in preparing a nutritionally balanced diet for cattle. It facilitates the thorough mixing of various feed components like silage, grains, and supplements. This ensures each cow receives a consistent intake of nutrients, crucial for maintaining milk yield and quality. Additionally, the gearbox's power efficiency helps in managing large volumes of feed, essential in larger dairy operations.

2. Beef Cattle Rearing:

For beef cattle, the mixer gearbox plays a pivotal role in achieving uniform feed consistency, which is vital for the growth and health of the cattle. It enables the efficient blending of high-energy feeds and roughages, optimizing the digestibility and nutritional uptake necessary for weight gain and muscle development. This equipment is particularly valuable during the finishing phase, where precise nutrient management is critical.

3. Sheep and Goat Farming:

In sheep and goat farming, the gearbox aids in processing smaller quantities of feed tailored to the specific dietary needs of these ruminants. It ensures that fibrous materials like hay and foliage are adequately mixed with grains and minerals, promoting better health and productivity. The gearbox's adaptability to different feed types and volumes makes it suitable for diverse flock sizes and farming styles.

4. Poultry Farming:

Poultry operations benefit significantly from the precise and quick mixing capabilities of a PTO driven gearbox. It allows for the homogenization of pellet feeds, grains, and additives, crucial for the balanced growth of poultry. The gearbox ensures that feed is consistently mixed to prevent nutrient segregation, enhancing the overall health and growth rate of the birds.

5. Equine Facilities:

At equine facilities, the gearbox is used to prepare feeds that include a mixture of grains, chaff, pellets, and supplements. This precise mixing is essential for horses, where dietary consistency affects not just their energy levels but also their overall health and temperament. The gearbox's reliability and efficiency ensure that daily feed preparations are quick and uniform, saving time and reducing labor costs in larger stables.

Key Components of Horizontal Feed Mixer Gearbox

The horizontal feed mixer gearbox is a critical component in the mechanized mixing of livestock feed, ensuring efficient and uniform blending of various ingredients. Understanding its key components can help in better maintenance and troubleshooting. Here are the essential parts of a horizontal feed mixer gearbox:

(1) Housing: The housing is the robust outer shell that protects the internal components of the gearbox from dirt, moisture, and mechanical damage. Typically made from cast iron or steel, it provides structural integrity and supports the alignment of the gears and bearings.

(2) Gears: Gears are the core components that transmit torque from the power source (tractor PTO) to the mixer. They come in various types such as spur, helical, or bevel gears, depending on the design and required torque. Precision-engineered gears ensure efficient power transfer and are designed to handle the specific load requirements of feed mixing.

(3) Bearings: Bearings play a crucial role in reducing friction and supporting the rotating gears. High-quality bearings ensure smooth operation and longevity of the gearbox. They must be properly lubricated and maintained to prevent wear and overheating.

(4) Shafts: The input and output shafts connect the gearbox to the power source and the mixing mechanism, respectively. These shafts are designed to handle significant mechanical loads and transmit the rotational force efficiently to the mixer.

(5) Seals and Gaskets: Seals and gaskets are used to prevent lubricant leakage and protect the internal components from contaminants. These are essential for maintaining the integrity and performance of the gearbox, especially in the dusty, often harsh conditions of agricultural environments.

(6) Lubrication System: The lubrication system ensures that all moving parts within the gearbox operate smoothly and are protected from wear and heat build-up. This might include an oil bath or grease-filled system, depending on the gearbox design. Regular checks and refills of the lubricant are critical to prevent mechanical failures.

Working Principle:

The working principle of a tractor PTO (Power Take-Off) driven horizontal feed mixer gearbox involves several steps to transfer power from the tractor to the mixer, facilitating efficient feed mixing. Here’s a detailed breakdown of this process:

1. Power Initiation: The process starts with the tractor’s engine, which generates mechanical power. This engine is connected to the PTO, a stub shaft typically located at the rear or side of the tractor.

2. Power Transmission to the Gearbox: When engaged, the PTO shaft rotates, carrying the engine’s rotational power to the feed mixer’s gearbox. The PTO shaft can be directly connected to the gearbox or through a series of drive shafts and universal joints, depending on the distance and alignment between the tractor and the mixer.

3. Gear Speed Adjustment: Inside the gearbox, the incoming power encounters a series of gears. These gears adjust the speed and torque of the rotation according to the needs of the mixer. Depending on the design, the gearbox may reduce the speed while increasing the torque, which is crucial for mixing heavy or large volumes of feed effectively.

4. Torque Transmission to the Mixing Mechanism: The adjusted rotational power is then transmitted to the mixer’s main shaft. This shaft is equipped with mixing elements like paddles or augers, which are responsible for the mechanical blending of feed materials.

5. Mixing Action: As the main shaft turns the paddles or augers, the feed ingredients inside the mixing chamber are stirred, lifted, and tumbled. This action ensures that all components are uniformly mixed, preventing any ingredient from settling at the bottom or clumping together.

6. Control and Operation: The operator can control the mixing process via the tractor, adjusting the PTO speed to change the mixing intensity. This is useful for different types of feed ingredients or desired mix consistency. Some mixers also come with features allowing the operator to reverse the mixing direction, which helps in unloading the mixer or clearing jams.

Proper Maintenance of the Horizontal Feed Mixer Gearbox

Proper maintenance of a horizontal feed mixer gearbox is essential to ensure its longevity and optimal performance. Regular and systematic maintenance can prevent most operational issues and extend the life of the gearbox. Here are detailed steps and practices for maintaining a horizontal feed mixer gearbox:

(1) Regular Lubrication: Check and replace the gearbox oil according to the manual’s recommendations. Use only the specified type of oil to ensure optimal lubrication and protection of the gears and bearings. Regularly inspect for oil leaks and address them immediately to maintain proper lubrication levels and protect internal components.

(2) Inspect and Tighten All Bolts and Fasteners: Vibrations from normal operation can loosen bolts and fasteners. Periodically check and tighten them to ensure the gearbox is securely assembled. This helps prevent damage to the gearbox housing and internal components, which can arise from excessive movement.

(3) Check Gear and Bearing Wear: Inspect gears and bearings for signs of wear, such as pitting, scoring, or uneven wear patterns. Replace worn parts promptly to avoid gearbox failure. Regular checks can help detect issues early, preventing more extensive damage and costly repairs.

(4) Clean the Gearbox Regularly: Keep the exterior of the gearbox clean from dirt, dust, and debris, which can enter the system and cause abrasion or clogging. This is particularly important in the agricultural setting, where exposure to elements and contaminants is frequent.

(5) Monitor Gearbox Temperature and Noise: During operation, pay attention to any abnormal increase in temperature or changes in noise, such as grinding or knocking sounds. These can be early indicators of issues such as insufficient lubrication, bearing failure, or gear misalignment.

(6) Ensure Proper Shaft Alignment: Misalignment of the input and output shafts can lead to excessive wear and tear on the gearbox. Ensure that these shafts are correctly aligned according to the manual’s specifications. Regular checks should be conducted, especially after any major maintenance or adjustments.

Horizontal Feed Mixer Gearbox Manufacturers

HZPT is a leading manufacturer of high-performance horizontal feed mixer gearboxes. Our horizontal feed mixer gearboxes are a powerful replacement option for Replacement of Comer Industries, Replacement of Bondioli & Pavesi, Brevini, Kuhn, Storti, Trioliet, Jaylor, Schuler, and other brands of gearboxes. Our technical staff can reconfigure an existing design or assist you in designing a custom horizontal feed mixer gearbox if a standard or existing design does not fit your application. Shaft rotation, speed ratio, input speed, output speed, input torque, output torque, mounting position, and the application's environment are all considerations when choosing a horizontal feed mixer gearbox.

We can also offer many types of agricultural gearboxes and PTO shafts, such as rotary cutter gearboxes, rotary tiller gearboxes, feed mixer gearboxes, lawn mower gearboxes, fertilizer spreader gearboxes, flail mower gearboxes, post hole digger gearboxes, round baler gearboxes, square baler gearboxes, irrigation reels gearboxes, manure spreader gearboxes, rotary rake gearboxes, etc. If you want to buy a horizontal feed mixer gearbox, please get in touch with us.
