KHB Series Hydraulic Ball Valves

KHB Series Hydraulic Ball Valves

KHB Series Hydraulic Ball Valves are a type of hydraulic control valve designed to regulate the flow of fluid in hydraulic systems. These valves are widely used in industrial applications where precise control of fluid flow is required.

The KHB Series ball valves are known for their high-performance capabilities, durability, and reliability. They are typically made from high-quality materials such as stainless steel or brass, which provide excellent resistance to corrosion and ensure long-lasting performance even in harsh operating conditions.

One of the key features of KHB Series hydraulic ball valves is their ability to handle high-pressure applications. They have a robust construction that allows them to withstand high pressures, making them suitable for use in hydraulic systems that operate under demanding conditions.

The design of KHB Series ball valves includes a spherical ball with a cylindrical hole in the center. When the valve is in the open position, the fluid can flow through the hole, allowing unrestricted flow. Conversely, when the valve is closed, the ball rotates to block the flow, effectively shutting off the fluid passage.

These hydraulic ball valves offer precise control over the fluid flow due to their quarter-turn operation. This means that the valve can be fully opened or closed by rotating the ball by only 90 degrees. The quarter-turn action allows for quick and efficient control, making KHB Series valves suitable for applications that require rapid response and precise flow adjustment.

KHB Series hydraulic ball valves are available in various sizes, pressure ratings, and configurations to meet specific application requirements. They can be operated manually, using a lever or a handwheel, or can be integrated into automated systems for remote control and operation.

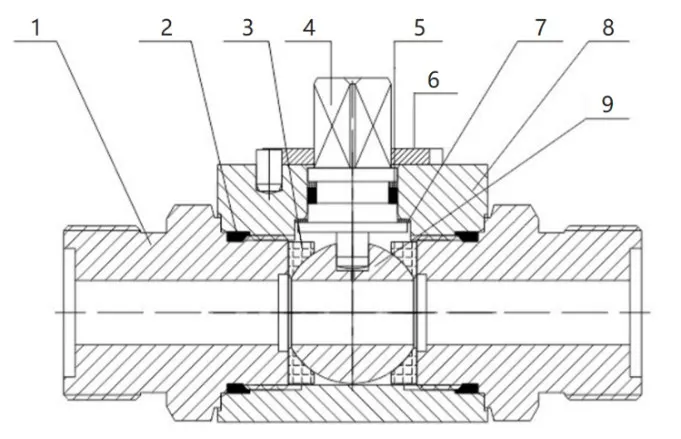

KHB Series Hydraulic Ball Valve Materials of Construction:

	Item	Name	Material
			Stainless Steel	Carbon Steel
	1	Fittings	SS 316 / SS 304	A105 / 45#
	2	O-ring	FKM	NBR
	3	Packing	POM / PEEK	POM
	4	Stem	SS 316 / SS 304	A105 / 45#
	5	O-ring	POM / PEEK	POM
	6	stop Pin	SS 316 / SS 304	A105 / 45#
	7	Washer	SS 316 / SS 304	A105 / 45#
	8	Body	SS 316 / SS 304	A105 / 45#
	9	Ball	SS 316 / SS 304	A105 / 45#

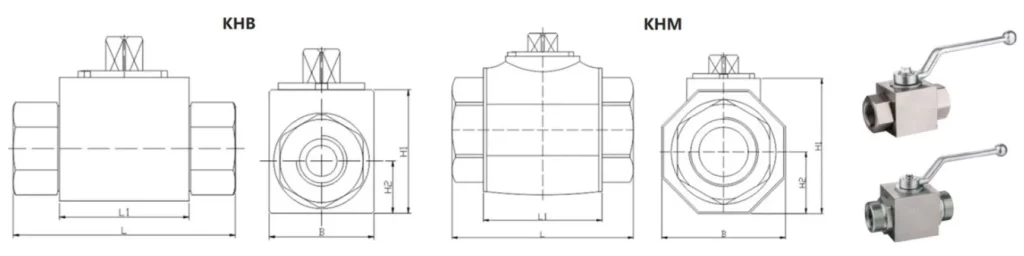

KHB Series Hydraulic Ball Valve Dimensions:

	Part NO.	PN	DN	Dimension(mm)
				D1	D2	DM	L	L1	L2	L3	H1	H2	B
	KHB-M16	500	06	6	11	M16*1.5	69	40	11	1.4	32	13	26
	KHB-M22	500	08	8	16	M22*1.5	76	42	12	1.8	40	17	34
	KHB-M27	500	10	10	20	M27*1.5	76	42	12	1.8	40	17	34
	KHB-M30	400	16	15	24	M30*1.5	84	48	13	1.8	45	19	38
	KHB-M36	315	20	19	30	M36*2	103	60	15	2.4	56	24	48
	KHB-M42	315	25	24	35	M42*2	116	64	18	2.4	63	29	58
	KHB-M52	315	32	30	40	M52*2	149	72	20	2.4	75	34	69
	KHB-M60	315	40	36	45	M60*2	174	80	22	2.4	86	40	80
	KHB-FG2	500	04	4	-	G1/8	69	40	10	-	32	13	26
	KHB-FG4	500	06	6	-	G1/4	69	40	14	-	32	13	26
	KHB-FG6	500	10	10	-	G3/8	72	42	14	-	40	17	34
	KHB-FG8	500	13	13	-	G1/2	83	48	16	-	40	17	34
	KHB-FG8	400	16	15	-	G1/2	83	48	16	-	45	19	38
	KHB-FG12	315	20	19	-	G3/4	95	60	18	-	56	24	48
	KHB-FG16	315	25	24	-	G1	113	64	20	-	63	29	58
	KHB-FG20	315	32	30	-	G11/4	110	72	22	-	75	34	68
	KHB-FG24	315	40	38	-	G11/2	130	80	24	-	86	40	80
	KHB-FG32	315	50	48	-	G2	140	96	26	-	104	48	99
	KHB-FN2	500	04	4	-	NPT1/8	69	40	10	-	32	13	26
	KHB-FN4	500	06	6	-	NPT1/4	69	40	14	-	32	13	26
	KHB-FN6	500	10	10	-	NPT3/8	72	42	14	-	40	17	34
	KHB-FN8	500	13	13	-	NPT1/2	83	48	16	-	40	17	34
	KHB-FN8	400	16	15	-	NPT1/2	83	48	16	-	45	19	38
	KHB-FN12	315	20	19	-	NPT3/4	95	60	18	-	56	24	48
	KHB-FN16	315	25	24	-	NPT1	113	64	20	-	63	29	58
	KHB-FN20	315	32	30	-	NPT11/4	110	72	22	-	75	34	68
	KHB-FN24	315	40	38	-	NPT11/2	130	80	24	-	86	40	80
	KHB-FN32	315	50	48	-	NPT2	140	96	26	-	104	48	99
	KHB-06LR	500	04	4	6	M12*1.5	67	40	10	-	32	13	26
	KHB-08LR	500	06	6	8	M14*1.5	67	40	10	-	32	13	26
	KHB-10LR	500	08	8	10	M16*1.5	74	42	11	-	40	17	34
	KHB-12LR	500	10	10	12	M18*1.5	74	42	11	-	40	17	34
	KHB-15LR	500	13	12	15	M22*1.5	82	48	12	-	40	17	34
	KHB-18LR	400	16	15	18	M26*1.5	82	48	12	-	40	17	34
	KHB-22LR	315	20	19	22	M30*2	101	60	14	-	56	24	48
	KHB-28LR	315	25	24	28	M36*2	108	64	14	-	63	29	58
	KHB-35LR	315	32	30	35	M45*2	141	72	16	-	75	34	68
	KHB-42LR	315	40	36	42	M52*2	162	80	16	-	86	40	80
	KHB-08SR	500	04	4	8	M16*1.5	73	40	12	-	32	13	26
	KHB-10SR	500	06	6	10	M18*1.5	73	40	12	-	32	13	26
	KHB-12SR	500	08	8	12	M20*1.5	76	42	12	-	40	17	34
	KHB-14SR	500	10	10	14	M22*1.5	80	42	14	-	40	17	34
	KHB-16SR	500	13	12	16	M24*1.5	86	48	14	-	40	17	34
	KHB-20SR	500	13	12	20	M30*2	90	48	16	-	40	17	34
	KHB-20SR	400	16	15	20	M30*2	90	48	16	-	45	19	38
	KHB-25SR	315	20	19	25	M36*2	109	60	18	-	56	24	48
	KHB-30SR	315	25	24	30	M42*2	120	64	20	-	63	29	58
	KHB-38SR	315	32	30	38	M52*2	153	72	22	-	75	34	68

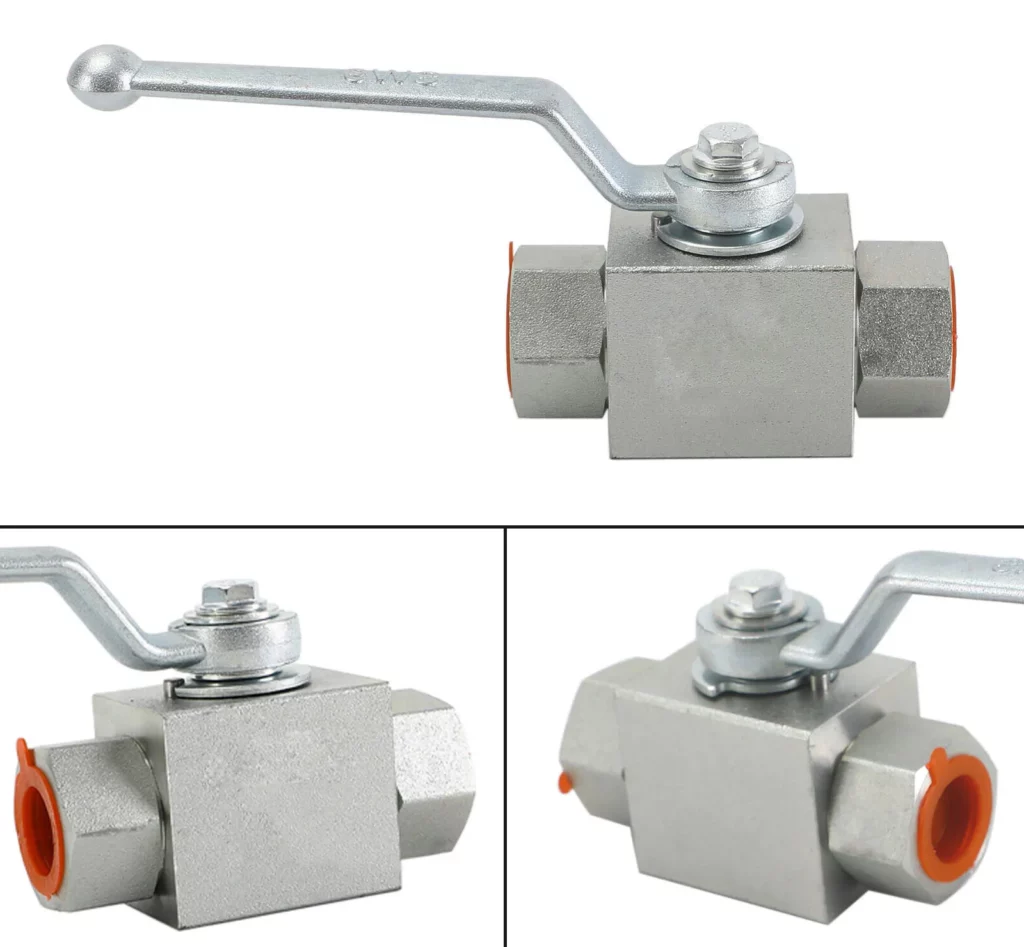

Benefits of Using KHB Series Hydraulic Ball Valves:

KHB series hydraulic ball valves are a popular choice for a variety of applications due to their numerous benefits, including:

1. High pressure rating: KHB ball valves are designed to withstand high pressures, up to 500 bar (7250 psi). This makes them ideal for use in demanding hydraulic systems.

2. Tight sealing: KHB hydraulic ball valves provide a tight seal, even under high pressure. This helps to prevent leaks and ensures reliable performance.

3. Low flow resistance: KHB ball valves have low flow resistance, which means they do not significantly restrict the flow of fluid. This is important for maintaining efficient system operation.

4. Durable construction: KHB hydraulic ball valves are made from high-quality materials and are built to last. This makes them a reliable choice for long-term use.

5. Easy operation: KHB ball valves are easy to operate, requiring only a 90-degree turn to open or close. This makes them ideal for use in applications where quick and easy operation is important.

6. Versatile use: KHB hydraulic ball valves can be used in various hydraulic applications, including machine tools, mobile equipment, and industrial process systems.

In addition to the benefits listed above, KHB hydraulic ball valves are also relatively inexpensive and easy to maintain. This makes them a cost-effective choice for many hydraulic applications.

Applications of KHB Series Hydraulic Ball Valves:

KHB Series hydraulic ball valves find applications in various industries and hydraulic systems where precise flow control and reliability are required. Some common applications of these ball valves include:

Industrial Machinery: KHB Series ball valves are widely used in industrial machinery and equipment, such as hydraulic presses, machine tools, and material handling systems. They provide control over fluid flow, allowing for precise operation and efficient performance of these machines.

Process Control Systems: These KHB Series hydraulic ball valves are utilized in process control systems where accurate flow regulation is essential. They are commonly found in industries such as oil and gas, chemical processing, pharmaceuticals, and food and beverage, where precise control of fluids is critical for production processes.

Power Generation: KHB Series ball valves are employed in power generation applications, including hydraulic power plants, hydroelectric systems, and steam turbines. They help control the flow of hydraulic fluids, allowing for efficient energy generation and safe operation of power generation equipment.

Mobile Equipment: These KHB Series hydraulic ball valves are used in mobile hydraulic systems, such as construction machinery, agricultural equipment, and mining machinery. They enable precise control over fluid flow, enabling smooth operation and optimal performance of these mobile systems.

Transportation and Automotive: KHB Series ball valves are utilized in hydraulic systems of transportation vehicles and automotive applications. They are commonly found in hydraulic braking systems, suspension systems, steering systems, and transmission systems, ensuring reliable and efficient operation.

Marine and Offshore: These KHB Series hydraulic ball valves are suitable for marine and offshore applications, where they are used in hydraulic systems of vessels, offshore platforms, and underwater equipment. They provide reliable flow control and help maintain the integrity and safety of hydraulic systems in marine environments.

Aerospace: KHB Series ball valves are employed in hydraulic systems of aircraft and aerospace applications. They play a crucial role in controlling the flow of hydraulic fluids for landing gear, flight control surfaces, and other hydraulic systems in aircraft, ensuring safe and efficient operation.
