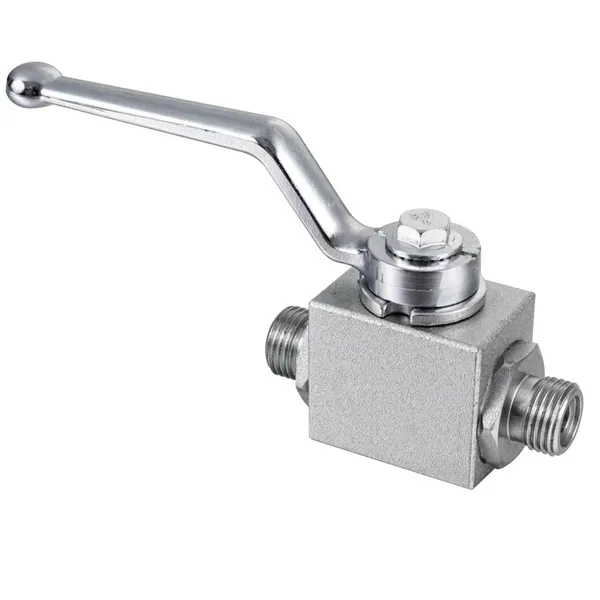

KHM Series Hydraulic Ball Valves

KHM Series Hydraulic Ball Valves

KHM Series hydraulic ball valves are high-pressure ball valves designed for use in a variety of hydraulic applications. KHM ball valves are known for their reliability, durability, and tight sealing performance.

KHM ball valves are available in a wide range of sizes and materials, making them suitable for a variety of applications. They are commonly used in industrial hydraulic systems, such as those found in construction equipment, machine tools, and agricultural machinery. KHM hydraulic ball valves can also be used in mobile hydraulic systems, such as those found in excavators, bulldozers, and forklifts.

KHM hydraulic ball valves are typically made of brass, stainless steel, or carbon steel. The ball valve itself is made of hardened steel for durability. The valve body is typically made of brass or stainless steel, depending on the application. KHM ball valves are available with a variety of seal materials, including PTFE, Buna-N, and EPDM.

KHM hydraulic ball valves are available in both two-way and three-way configurations. Two-way ball valves have two ports, one for inlet and one for outlet. Three-way ball valves have three ports: one for inlet, one for outlet, and one for diverting the flow.

KHM ball valves are operated by a lever or handle. When the lever or handle is turned, the ball valve rotates to open or close the valve. KHM ball valves are also available with pneumatic or electric actuators for automated operation.

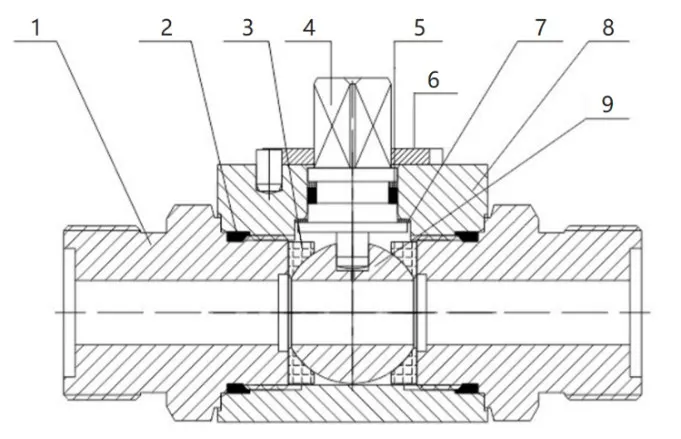

KHM Series Hydraulic Ball Valve Materials of Construction:

	Item	Name	Material
			Stainless Steel	Carbon Steel
	1	Fittings	SS 316 / SS 304	A105 / 45#
	2	O-ring	FKM	NBR
	3	Packing	POM / PEEK	POM
	4	Stem	SS 316 / SS 304	A105 / 45#
	5	O-ring	POM / PEEK	POM
	6	stop Pin	SS 316 / SS 304	A105 / 45#
	7	Washer	SS 316 / SS 304	A105 / 45#
	8	Body	SS 316 / SS 304	A105 / 45#
	9	Ball	SS 316 / SS 304	A105 / 45#

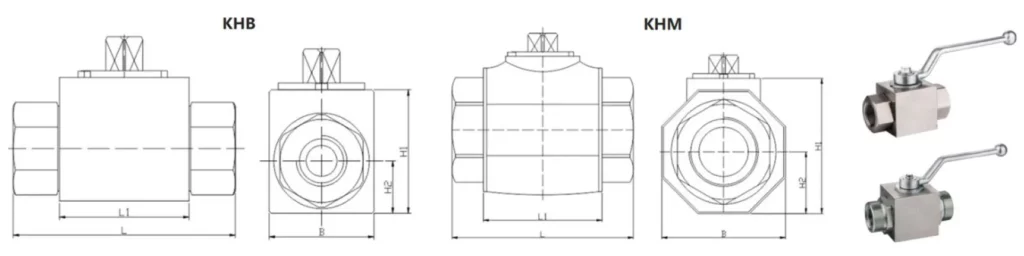

KHM Series Hydraulic Ball Valve Dimensions:

	Part NO.	PN	DN	Dimension(mm)
				D1	D2	DM	L	L1	L2	L3	H1	H2	B
	KHB-M16	500	06	6	11	M16*1.5	69	40	11	1.4	32	13	26
	KHB-M22	500	08	8	16	M22*1.5	76	42	12	1.8	40	17	34
	KHB-M27	500	10	10	20	M27*1.5	76	42	12	1.8	40	17	34
	KHB-M30	400	16	15	24	M30*1.5	84	48	13	1.8	45	19	38
	KHB-M36	315	20	19	30	M36*2	103	60	15	2.4	56	24	48
	KHB-M42	315	25	24	35	M42*2	116	64	18	2.4	63	29	58
	KHB-M52	315	32	30	40	M52*2	149	72	20	2.4	75	34	69
	KHB-M60	315	40	36	45	M60*2	174	80	22	2.4	86	40	80
	KHB-FG2	500	04	4	-	G1/8	69	40	10	-	32	13	26
	KHB-FG4	500	06	6	-	G1/4	69	40	14	-	32	13	26
	KHB-FG6	500	10	10	-	G3/8	72	42	14	-	40	17	34
	KHB-FG8	500	13	13	-	G1/2	83	48	16	-	40	17	34
	KHB-FG8	400	16	15	-	G1/2	83	48	16	-	45	19	38
	KHB-FG12	315	20	19	-	G3/4	95	60	18	-	56	24	48
	KHB-FG16	315	25	24	-	G1	113	64	20	-	63	29	58
	KHB-FG20	315	32	30	-	G11/4	110	72	22	-	75	34	68
	KHB-FG24	315	40	38	-	G11/2	130	80	24	-	86	40	80
	KHB-FG32	315	50	48	-	G2	140	96	26	-	104	48	99
	KHB-FN2	500	04	4	-	NPT1/8	69	40	10	-	32	13	26
	KHB-FN4	500	06	6	-	NPT1/4	69	40	14	-	32	13	26
	KHB-FN6	500	10	10	-	NPT3/8	72	42	14	-	40	17	34
	KHB-FN8	500	13	13	-	NPT1/2	83	48	16	-	40	17	34
	KHB-FN8	400	16	15	-	NPT1/2	83	48	16	-	45	19	38
	KHB-FN12	315	20	19	-	NPT3/4	95	60	18	-	56	24	48
	KHB-FN16	315	25	24	-	NPT1	113	64	20	-	63	29	58
	KHB-FN20	315	32	30	-	NPT11/4	110	72	22	-	75	34	68
	KHB-FN24	315	40	38	-	NPT11/2	130	80	24	-	86	40	80
	KHB-FN32	315	50	48	-	NPT2	140	96	26	-	104	48	99
	KHB-06LR	500	04	4	6	M12*1.5	67	40	10	-	32	13	26
	KHB-08LR	500	06	6	8	M14*1.5	67	40	10	-	32	13	26
	KHB-10LR	500	08	8	10	M16*1.5	74	42	11	-	40	17	34
	KHB-12LR	500	10	10	12	M18*1.5	74	42	11	-	40	17	34
	KHB-15LR	500	13	12	15	M22*1.5	82	48	12	-	40	17	34
	KHB-18LR	400	16	15	18	M26*1.5	82	48	12	-	40	17	34
	KHB-22LR	315	20	19	22	M30*2	101	60	14	-	56	24	48
	KHB-28LR	315	25	24	28	M36*2	108	64	14	-	63	29	58
	KHB-35LR	315	32	30	35	M45*2	141	72	16	-	75	34	68
	KHB-42LR	315	40	36	42	M52*2	162	80	16	-	86	40	80
	KHB-08SR	500	04	4	8	M16*1.5	73	40	12	-	32	13	26
	KHB-10SR	500	06	6	10	M18*1.5	73	40	12	-	32	13	26
	KHB-12SR	500	08	8	12	M20*1.5	76	42	12	-	40	17	34
	KHB-14SR	500	10	10	14	M22*1.5	80	42	14	-	40	17	34
	KHB-16SR	500	13	12	16	M24*1.5	86	48	14	-	40	17	34
	KHB-20SR	500	13	12	20	M30*2	90	48	16	-	40	17	34
	KHB-20SR	400	16	15	20	M30*2	90	48	16	-	45	19	38
	KHB-25SR	315	20	19	25	M36*2	109	60	18	-	56	24	48
	KHB-30SR	315	25	24	30	M42*2	120	64	20	-	63	29	58
	KHB-38SR	315	32	30	38	M52*2	153	72	22	-	75	34	68

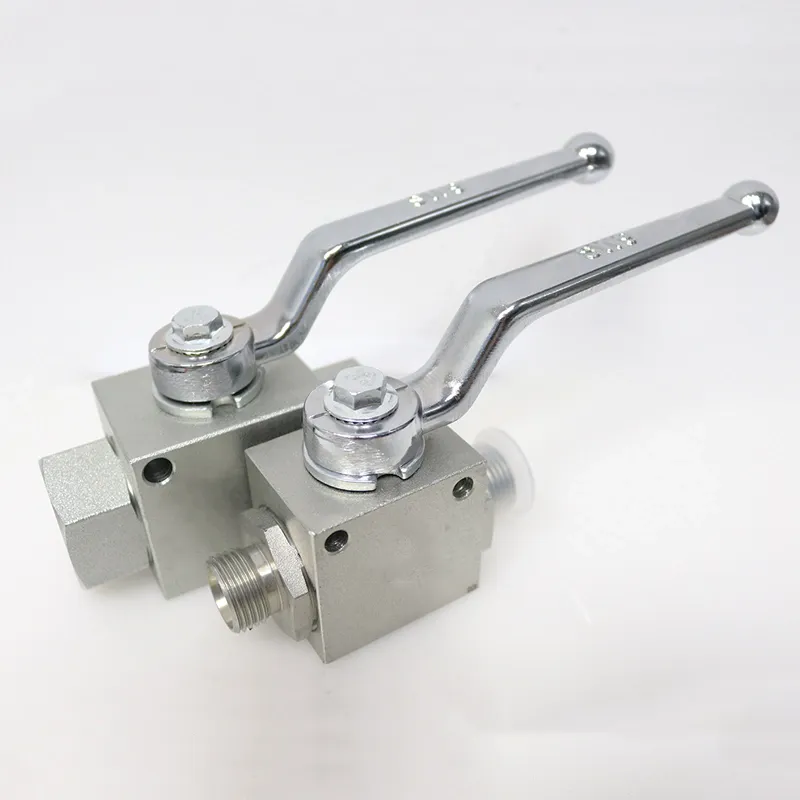

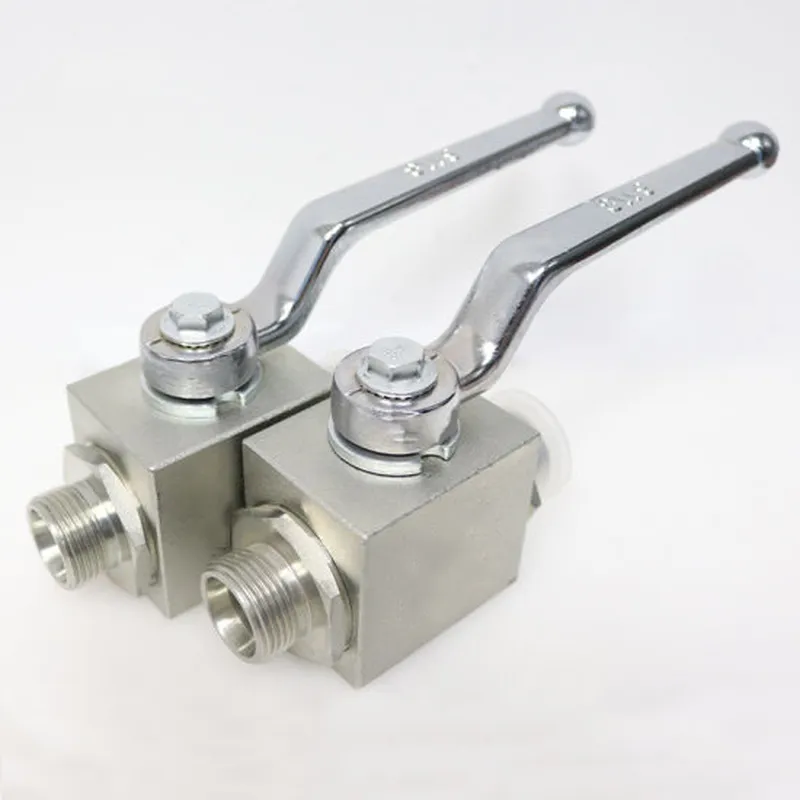

Advantages of KHM Series Hydraulic Ball Valves:

KHM Series hydraulic ball valves are a type of high-pressure ball valve that is designed for use in demanding hydraulic applications. They offer a number of advantages over other types of valves, including:

1. Excellent Flow Control: KHM Series hydraulic ball valves provide precise flow control capabilities. The ball within the valve can be rotated to different positions, allowing for variable flow rates or complete shut-off. This level of control is crucial in hydraulic systems, where accurate fluid flow management is necessary for optimal system performance.

2. High Pressure and Temperature Resistance: KHM Series ball valves are designed to handle high-pressure applications commonly found in hydraulic systems. They are built with robust materials and construction that can withstand high pressures without leakage or failure. Additionally, these valves can operate effectively in a wide temperature range, making them suitable for various operating conditions.

3. Quick and Reliable Operation: KHM Series hydraulic ball valves offer fast response times due to their design and actuation method. When actuated, the ball can be rotated quickly to open or close the valve, allowing for rapid changes in fluid flow. This swift operation ensures efficient system performance and minimizes downtime.

4. Durability and Longevity: The construction of KHM Series ball valves is typically made of high-quality materials such as stainless steel, carbon steel, or brass. These materials provide durability and resistance to corrosion, ensuring the valves can withstand harsh operating conditions and have a long service life.

5. Versatility and configurability: These KHM Series hydraulic ball valves are available in various sizes, pressure ratings, and end connections, allowing for easy integration into different hydraulic systems. They can be customized to meet specific application requirements, providing flexibility in system design and installation.

6. Minimal Leakage: KHM Series ball valves provide a reliable seal when closed, minimizing leakage and ensuring tight shut-off. This feature is crucial in hydraulic systems to prevent fluid loss and maintain system efficiency.

7. Easy Maintenance: KHM Series hydraulic ball valves are generally low-maintenance components. They are designed for easy disassembly and inspection, allowing for quick maintenance and replacement of internal components if needed. This feature reduces downtime and overall maintenance costs.

8. Wide Range of Applications: These KHM Series ball valves are suitable for a wide range of applications across various industries, including oil and gas, petrochemical, power generation, marine, and industrial manufacturing. Whether it's controlling the flow of hydraulic fluids, isolating components, or diverting flow, KHM Series hydraulic ball valves can fulfill diverse system requirements.

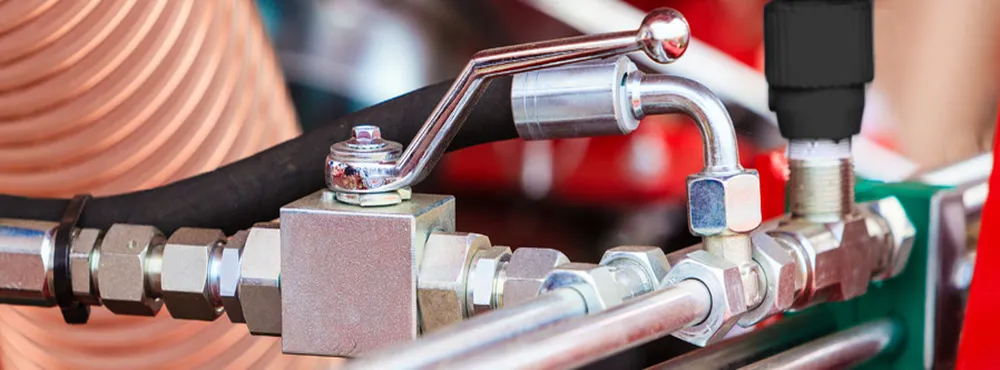

How Does the KHM Series Hydraulic Ball Valve Work?

KHM Series Hydraulic Ball Valves are high-pressure ball valves that are used in a variety of industrial applications. They are known for their reliability, durability, and ease of maintenance.

KHM Series Ball Valves work by using a spherical ball with a bore through it to control the flow of fluid. The ball is rotated 90 degrees to open or close the valve. When the valve is open, the bore of the ball is aligned with the upstream and downstream ports, allowing fluid to flow freely. When the valve is closed, the bore of the ball is perpendicular to the ports, blocking the flow of fluid.

The KHM Series Ball Valves are designed to operate at high pressures, up to 7250 PSI. They are also available in a variety of materials, including stainless steel and brass, to meet the needs of different applications.

Here is a more detailed explanation of how the KHM Series Ball Valve works:

1. The valve body has two ports: an inlet port and an outlet port. The ball is positioned between the two ports.
2. The ball has a bore through it that is aligned with the ports when the valve is open.
3. The ball is rotated by a lever or actuator.
4. When the valve is open, fluid can flow freely from the inlet port to the outlet port.
5. When the valve is closed, the bore of the ball is perpendicular to the ports, blocking the flow of fluid.

KHM Series Ball Valves are used in a variety of hydraulic applications, including:

• Mobile hydraulic systems, such as construction equipment and agricultural machinery
• Industrial hydraulic systems, such as machine tools and processing equipment
• Marine hydraulic systems
• Aerospace hydraulic systems
