Low Noise Timing Belt Pulley HTD8M Type

The HTD 8M standard timing pulleys are designed for all types of HTD and RPP belts with a tooth pitch of 8.00 mm. Pulley has wide applications in automobile, textile, chemical fiber, paper-making, printing machines, sewing machines, office equipment, telecommunication, tobacco, food machinery, steel machinery, metallurgy, petrochemical works, instrument, meters, and various precision machine tools.

Category:
Get a Quote

HTD8M standard timing pulleys are the primary type of HTD pulleys. A high-quality HTD8M Type Timing Belt Pully is available for many applications. It is used in applications where high-speed linear motion is required. It has a high spring resistance and a clamping length of 80 mm. Moreover, it is free from resonance.

The benefits of timing belt pulleys are well known. They require little maintenance and operate appropriately under tight system timing. Furthermore, because there is no direct surface-to-surface contact, they eliminate the need for constant lubrication. They also significantly reduce noise levels during operation compared to other types of gears and chains. The selection of timing belt pulleys depends on the type of application and the environmental conditions.

Timing belt pulleys can be made from a variety of materials. These include steel, gray cast iron, and stainless steel. They are also available in various bore sizes. They are economical and quiet and can be used in many applications. Furthermore, they are compatible with a variety of gear shapers and machines.

HTD8M Timing Belt Pulley Fields of Use

The HTD 8M standard timing pulleys are designed for all types of HTD and RPP belts with a tooth pitch of 8.00 mm. They are typically used in machine tools, small machinery, compressors, packaging, printing machines, the food, paper, and chemical industry, and many other devices.

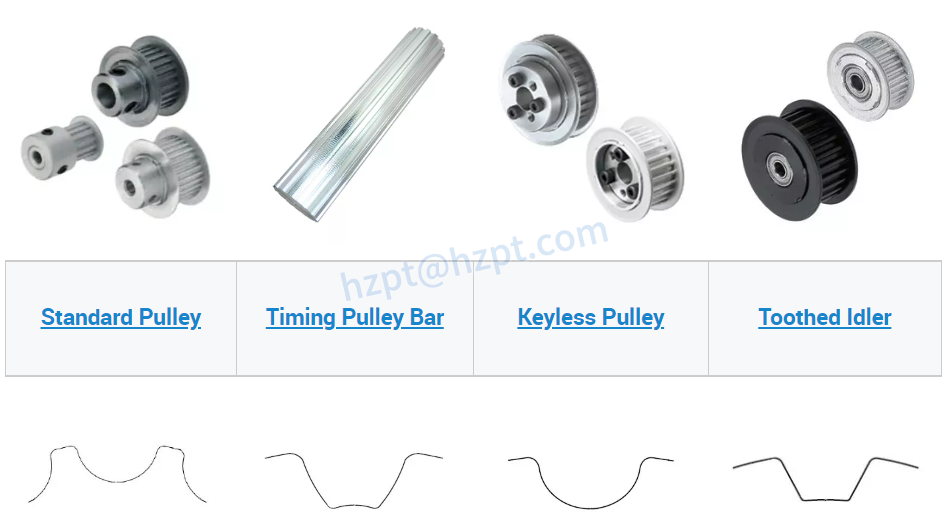

Timing Belt Pulley Model

Torque Transmission
High Torque Transmission
High Precision Positioning
Light Load Transmission
HTD3M
S2M
2GT
T2.5
HTD5M
S3M
3GT
T5
HTD8M
S5M
5GT
T10
HTD14M
S8M
S14M
General Transmission
High Torque Transmission
High Precision Positioning
Heavy Load Transmission
MXL
P2M
8YU
AT5
XL
P3M
AT10
L
P5M
H
P8M
P14M
Features of Timing Belt Pulley

Timing belt pulleys are highly versatile and valuable in various applications. Their outer diameter features teeth and pockets that fit into the holes on the belt. They are primarily made from light raw materials and are available in many different types. These pulleys are used in various industrial sectors.

Timing belt pulleys are made from aluminum or nylon. While aluminum is a strong and durable material, nylon has a lower tensile strength. However, because of the advancements in plastics, nylon is a more affordable alternative than aluminum. Moreover, it is lightweight, making it suitable for high-temperature environments.

Timing belt pulleys can be split into low and high-tension types. A multi-ribbed pulley is ideal for applications requiring torque in a compact environment. Another type of timing belt pulley is a variable-speed one, which varies the ratio of the gears or the driven pulley speed. These pulleys are most suitable for machinery that frequently changes its velocity.

Timing belts have teeth that are reliable for keeping the crank and camshafts in sync. They come with a variety of tooth pitches. The pitch of the teeth affects their number, diameter, and number of teeth. Some timing belts are designed with trapezoidal-shaped teeth to minimize belt slippage.

Timing belt pulleys are a crucial component of a vehicle's timing system. These pulleys have teeth and pockets outside to help timing and prevent misalignment. They connect two shaft systems - the crankshaft and the camshaft - and provide the necessary linkage to make the engine valves open and close properly.

Timing belt pulleys are made of high-quality materials. They are usually made of aluminum or cast iron and are finished with zinc phosphate corrosion protection. They are primarily used in the automobile and textile industries. They also have teeth that prevent slippage and limit speed variation. The teeth on the pulley engage with the teeth on the belt, resulting in a smoother engagement that reduces friction, noise, and wears.

Timing belts with a trapezoidal tooth profile offer better efficiency than V-belt drives. However, this profile has its disadvantages. In high-speed applications, the straps can produce rapid wear and tear. This can also cause a decrease in performance.

Application of Timing Belt Pulley

The timing belt pulleys are widely used in various industrial sectors.

Engineering: Timing belt pulleys are widely used in machine tools, foundry equipment, painting systems, compressors, and conveyors.

Pharmaceuticals & Food Processing: These pulleys are widely used in blowers in pulp mills, warehouse conveyors, bakery machines, machines for labeling, robot, etc.

Textile Mills: Timing belt pulleys are widely used in machines like High-speed auto looms, Ruler calendar machines, high-speed winders, looms, wrappers, etc.

Printing Machinery: Different plants and machinery have extensive use of these pulleys. These are used in the New paper press, Screen Printer Machine, Linotype machine offset printer, and more.

Agriculture Industries: Tractors, cultivators, harvesters, Rice planters, etc. are primary machines used in Agricultural industries. Timing belt pulleys are widely used in these machines too.

Paper Industries: There is wide use of timing belt pulleys in paper industries. Cut-off saws, or Edgers or flotation cells, etc., are those machines where these belt pulleys are hugely used.

Why Choose Our Timing Belt Pulley?

Timing pulleys are widely used in various equipment where the timing of both drives is precious, and the display ratio is essential. A timing pulley's benefit is eliminating slippage and maintaining constant angular velocity. Timing pulleys are manufactured per international and national standards with carbon steel/alloy steel/aluminum and hardened teeth to provide long life. We have been ranked as the most dependable and leading firm worldwide and actively emerged to offer a wide array of timing belts. Our sophisticated production unit's timing pulleys are fabricated by our skilled personnel using advanced technology.

Known for superior sturdiness, dimensional accuracy, and durability, the offered range is manufactured in compliance with industry norms and guidelines. Further, we provide these components in various customized forms according to patrons' specific requirements. Apart from this, these pulleys are quality tested by our quality controllers on different parameters.

1) Warranty: our timing pulley's quality is excellent, and with insurance within one year, when you receive the products and find quality problems, we promise you could return it and free maintenance.
2) Drawings: please send your timing pulleys' drawings to us to get the best quotation; If you have no drawings, please get in touch with us, then we can work out CAD drawings and the best reference for you ASAP.
3) Sample: we accept one-piece sample orders. We could do examples until you're satisfied.
4) Confidentiality agreement: Strictly adherence to client confidentiality agreement for timing pulleys.
