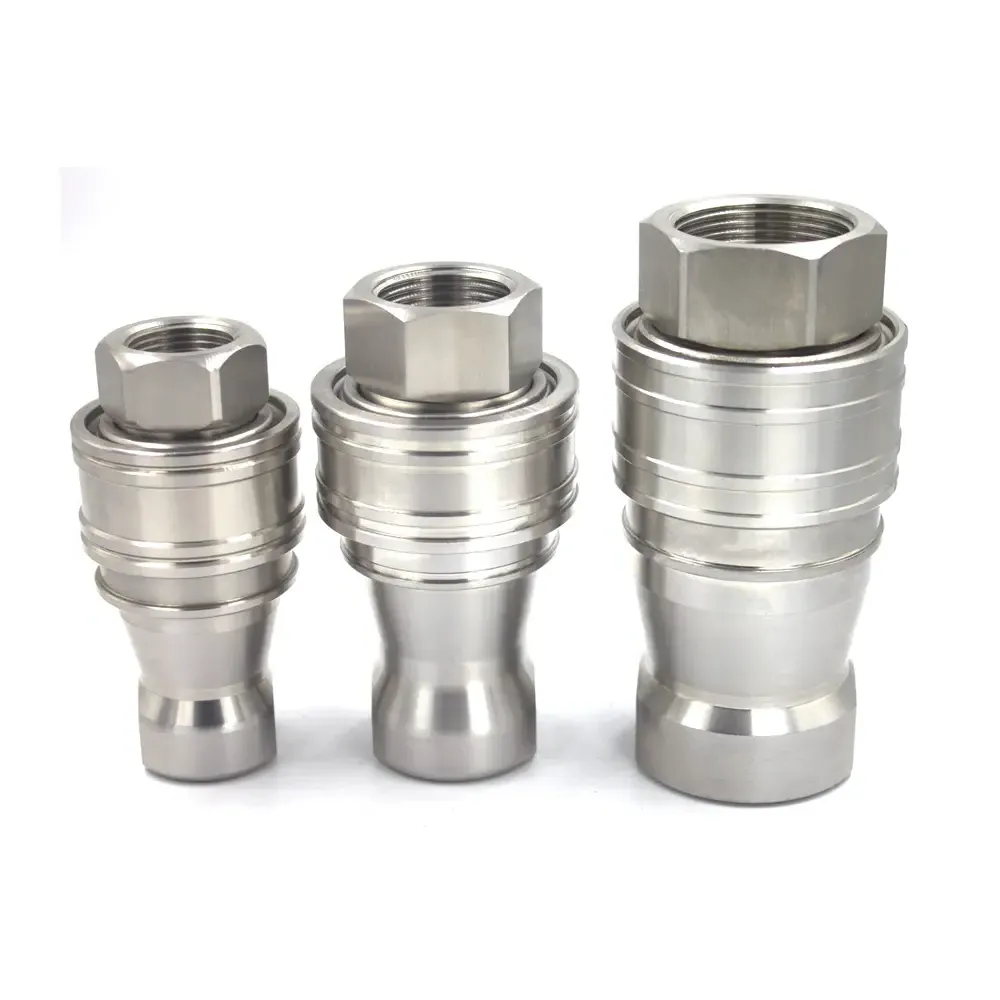

Non-Valve series 3/4 size BSP/NPT Thread quick disconnect hydraulic hose fittings&hydraulic hose end fittings

Featuring a smooth, open bore design with no valving in either half, the Non-Valve series 3/4 size BSP/NPT Thread quick disconnect hydraulic hose fittings&hydraulic hose end fittings offer minimal pressure drop. They are easy to clean, making them ideal for applications where the same lines are used for more than one media. These fittings are machined from solid barstock, providing a durable, high-quality coupling. Available in both brass and 303 stainless steel as standard, these fittings are versatile and adaptable, meeting a variety of needs.

Advantages of Non-Valve series Hydraulic Hose Fittings

Why choose these hydraulic hose fittings? Here are at least six reasons:

1. Superior Flow: The open bore design of these fittings allows for maximum flow, a critical feature for many hydraulic systems.
2. Easy Cleaning: The smooth, open design makes these fittings easy to clean, ideal for applications where lines are used for different media.
3. Durable: Each fitting is machined from solid barstock, providing a high-quality, durable coupling.
4. Versatile: Available in both brass and 303 stainless steel, these fittings are suitable for a variety of applications.
5. Efficient: These fittings are designed for quick disconnect, enhancing efficiency and productivity.
6. Reliable: With a 1-year warranty, you can trust in the reliability and quality of these fittings.

We at HZPT have the capability to produce these hydraulic hose fittings, ensuring their quality and durability.

Applications of Hydraulic Quick Couplings

Hydraulic Quick Couplings find widespread applications across various industries due to their ability to efficiently connect and disconnect hydraulic lines and components. Here are some common applications where hydraulic quick couplings are extensively used:

1. Construction and Heavy Machinery: Quick couplings are integral to construction equipment like excavators, loaders, and bulldozers. They enable the rapid attachment and detachment of hydraulic attachments such as buckets, breakers, and grapples, enhancing the versatility and efficiency of the machinery.
2. Agriculture: Agricultural machinery relies on hydraulic systems for tasks like plowing, seeding, and harvesting. Quick couplings enable farmers to quickly switch between different implements, saving time and increasing productivity.
3. Manufacturing and Automation: In manufacturing processes, hydraulic quick couplings are used to connect hydraulic actuators, presses, and tools. They facilitate fast tool changes and adjustments, improving production efficiency.
4. Oil and Gas Industry: Hydraulic systems are common in the oil and gas sector for various applications, including wellhead control, drilling rigs, and offshore platforms. Quick couplings are essential for connecting hydraulic lines and components in these harsh environments.
5. Aerospace: Hydraulic systems play a crucial role in aircraft operation, from landing gear to flight control surfaces. Quick couplings are used during maintenance and repair activities to ensure the integrity of hydraulic connections.
6. Automotive Industry: Hydraulic systems are present in vehicles for functions like power steering and braking. Quick couplings enable easy assembly and servicing of hydraulic components in automotive applications.

How Does the Hydraulic Quick Coupling Work?

Hydraulic quick couplings, also known as hydraulic quick disconnects or hydraulic quick connectors, are devices used to rapidly connect and disconnect hydraulic lines and components without the need for tools or extensive manual labor. They work based on a simple yet effective principle to ensure a secure and leak-free connection. Here's how hydraulic quick couplings work:

1. Male and Female Couplings: Hydraulic quick couplings consist of two main components: the male coupling and the female coupling. These components are designed to fit together seamlessly.
2. Valve Mechanism: Within both the male and female couplings, there is a valve mechanism. This valve can be in the form of poppet valves, ball valves, or flat-face valves, depending on the coupling design.
3. Sealing O-Ring: Each coupling has an O-ring or other sealing mechanism that ensures a watertight and pressure-tight seal when the male and female couplings are connected.
4. Push-to-Connect: To make a connection, the operator simply pushes the male coupling into the female coupling. The external force applied during this process compresses the valve mechanism and opens a pathway for hydraulic fluid to flow.
5. Fluid Flow: With the valves open, hydraulic fluid can flow freely from one side of the coupling to the other. This allows for the transmission of hydraulic power, such as pressure or flow, to operate various hydraulic components or machinery.
6. Locking Mechanism: Most hydraulic quick couplings have a locking mechanism that holds the male and female couplings together securely. This prevents accidental disconnection during operation, especially in high-pressure hydraulic systems.

Hydraulic Quick Coupling Installation Steps

Installing hydraulic quick couplings correctly is crucial for the efficient and safe operation of hydraulic systems. Here are the installation steps for hydraulic quick couplings:

1. Select the Right Couplings: Choose hydraulic quick couplings that are suitable for your specific application, taking into account factors like size, pressure rating, and compatibility with your hydraulic lines. Thoroughly inspect the male and female couplings, as well as any seals, O-rings, or gaskets for damage or wear. Replace any components that show signs of deterioration.
2. Clean the Couplings: Ensure that both the male and female couplings are clean and free from dirt, debris, and contaminants. Use a lint-free cloth or compressed air to clean them thoroughly. Apply a small amount of compatible hydraulic oil or grease to the O-rings or seals to facilitate smooth coupling and reduce wear during connection.
3. Position the Couplings: Position the male and female couplings so that they align correctly for connection. Ensure that the couplings are oriented in the same direction. Push the male coupling into the female coupling until they snap or click into place. Some couplings have a locking mechanism that provides audible confirmation of proper engagement.
4. Secure the Connection: If your hydraulic quick couplings have a locking mechanism, engage it to secure the connection further.
5. Test the Connection: Perform a pressure test to ensure that the hydraulic quick couplings are securely connected and there are no leaks. Slowly pressurize the system and inspect for any visible leaks around the couplings.

Maintenance of Hydraulic Quick Couplings

Maintenance of hydraulic quick couplings is essential to ensure the reliability and longevity of hydraulic systems. Proper maintenance can prevent leaks, reduce downtime, and improve the overall efficiency of your hydraulic equipment. Here are some maintenance steps for hydraulic quick couplings:

1. Regular Inspection: Perform routine visual inspections of the hydraulic quick couplings. Look for signs of wear, damage, or corrosion. Pay special attention to O-rings, seals, and locking mechanisms. Check for any hydraulic fluid leaks around the couplings. Leaks can indicate a faulty seal or a loose connection. Address any leaks immediately to prevent fluid loss and system contamination.
2. Cleanliness: Keep the couplings and surrounding areas clean. Dirt and debris can damage seals and prevent proper engagement. Use a lint-free cloth or compressed air to clean the couplings.
3. Lubrication: Apply a small amount of compatible hydraulic oil or grease to O-rings and seals before coupling. Lubrication helps ensure a smooth connection and prolongs the life of seals.



4. Torque Checks: Periodically check the torque on the coupling nuts. Over time, they may loosen, leading to leaks or improper connection. Use a torque wrench to tighten them to the manufacturer's specifications.



5. Replace Damaged Components: If you notice any damaged or worn-out O-rings, seals, gaskets, or locking mechanisms, replace them immediately. Using damaged components can lead to leaks and system failure.
6. Use Protective Caps: When quick couplings are not in use, protect the exposed ends with dust caps or plugs. This prevents contamination and damage to the couplings.

Why Choose HZPT's Hydraulic Quick Couplings?

HZPT Hydraulic Component Co., Ltd is located in the Hangzhou Industrial Zone Zhejiang City, covering 6500 square meters. It launched in 1992, which is the design, development, production, and sales of quick couplings, including hydraulic cylinders, hydraulic couplings, hydraulic fittings, hydraulic ball valves, pneumatic couplings, and pipe couplings. HZPT is focused on international market explorations and the South China market's development. Our products are not only sold well in the domestic market but also in the USA, Europe, Southeast Asia, and the Middle East. We mainly provide the hydraulic and pneumatic products for oil, engineering, metallurgical, machine tools, military equipment and machinery manufacturing industry. We stick to the principle of "Quality first, Customer first, Reputation first, and Service first" to satisfy the customers' requirements and increase the market share. We are growing stably and healthily. We pursue the excellent brand and comply to the best service, which will make us move faster to keep up with the international enterprise. We look forward to creating a bright future with you.

With a rich history spanning almost three decades, HZPT has made its mark in the hydraulic and pneumatic products industry. Our commitment to quality, customer satisfaction, and innovation has propelled us to the forefront of the market. We have obtained international certifications, which are testament to our high-quality standards. Our production facilities are equipped with advanced machinery and technology, enabling us to manufacture a wide range of products to meet diverse requirements. We also offer customized services, allowing us to tailor our products to your specific needs. As part of our commitment to our customers, we provide extensive after-sales services to ensure your complete satisfaction. Our professional team is always ready to assist you with any questions or concerns you may have.
