Nylon Spur Gears

Nylon spur gears are a type of mechanical gear made from nylon, a strong and durable thermoplastic material. Nylon spur gears are the most common type of gear and are characterized by their straight teeth that project radially from a cylindrical gear body. They are used to transmit power and motion between parallel shafts in a wide range of machinery and equipment, such as electric motors, power tools, and conveyor systems. Nylon spur gears have several advantages over other materials, such as metal or brass. They are lightweight, corrosion-resistant, and have a lower coefficient of friction, which means they generate less heat and noise during operation.

Get a Quote

Nylon Spur Gears

Nylon spur gears are a type of mechanical gear made from nylon, a strong and durable thermoplastic material. Nylon spur gears are the most common type of gear and are characterized by their straight teeth that project radially from a cylindrical gear body. They are used to transmit power and motion between parallel shafts in a wide range of machinery and equipment, such as electric motors, power tools, and conveyor systems.

Nylon spur gears have several advantages over other materials, such as metal or brass. They are lightweight, corrosion-resistant, and have a lower coefficient of friction, which means they generate less heat and noise during operation. Additionally, nylon spur gears are less likely to damage mating components because they are softer than metal gears.

However, nylon spur gears also have some limitations. They have a lower maximum operating temperature compared to metal gears, and they may not be suitable for high-speed or high-torque applications. Additionally, they may wear out faster than metal gears under heavy loads or in abrasive environments.

China Nylon Spur Gears

Specifications of Nylon Spur Gears

Model   NumberM1,M1.5,M2,M2.5,M3,M4,M5,M8,M12   and etc.
MaterialPA,   POM, UHMWPE, ABS, PTFE, PPS, Peek.
StandardISO,   DIN, ANSI, JIS, BS, and Non-standard.
PrecisionDIN6,DIN7,DIN8,DIN9.
Teeth   treatmentHardened, Milled, or Ground
Tolerance0.001mm-0.01mm-0.1mm
Finishshot/sandblast, heat treatment, annealing, tempering, polishing, anodizing, zinc-plated
Items   packingPlastic   bag+Cartons Or Wooden Packing
Payment   termsT/T,   L/C
Production   lead time20 business days for the sample,25 days for the bulk
SamplesSample price range from $2 to $100.   sample express request paid by clients
Application1.   Automatic controlling machine   2. Semiconductor industry   3. General industry machinery   4. Medical equipment   5. Solar energy equipment   6. Machine tool   7. Parking system   8. High-speed rail and aviation transportation equipment, etc.

Advantages of Nylon Spur Gears

A nylon spur gear is a type of gear that has straight teeth that are parallel to the gear's axis of rotation. It is made of nylon, which is a strong and lightweight material that is resistant to wear and tear. Nylon spur gears are available in a variety of sizes and materials, so they can be tailored to the specific needs of any application. They are also relatively inexpensive, which makes them a cost-effective option for many applications.

Here are some of the advantages of using nylon spur gears:

  • Lightweight: Nylon is a lightweight material, which makes nylon spur gears a good choice for applications where weight is a concern.
  • Strong: Nylon is a strong material, which makes nylon spur gears able to withstand a lot of wear and tear.
  • Low-maintenance: Nylon spur gears are low-maintenance, which means that they do not require regular lubrication or cleaning.
  • Cost-effective: Nylon spur gears are relatively inexpensive, which makes them a cost-effective option for many applications.

Here are some of the disadvantages of using nylon spur gears:

  • Low modulus: Nylon has a low modulus, which means that it is not as stiff as other materials such as metal. This can make nylon spur gears more susceptible to deformation under high loads.
  • Low thermal conductivity: Nylon has a low thermal conductivity, which means that nylon spur gears can build up the heat under high loads. This can lead to premature wear and tear.
  • Not as strong as metal: Nylon is not as strong as metal, so nylon spur gears are not suitable for applications where high loads are expected.

Overall, nylon spur gears are a versatile and cost-effective option for a variety of applications. They are lightweight, strong, and low-maintenance, making them a good choice for applications where weight, wear, and tear are concerns. However, they are not as stiff or strong as metal gears, so they should not be used in applications where high loads are expected.

Nylon Spur Gears Details

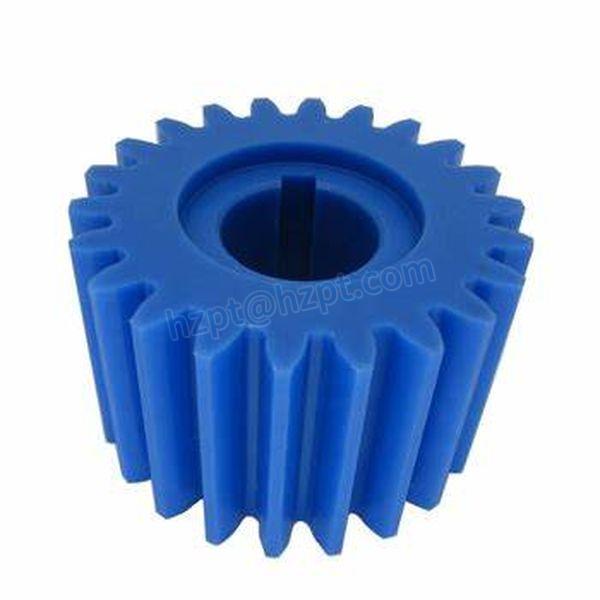

Nylon Spur GearsNylon Spur Gears

Nylon Spur Gear Application Examples

Nylon spur gears are the most common form of gear and are found in a wide range of applications. They perform several important functions, the most critical of which is providing gear reduction to motorized mechanical devices. Once the nylon spur gear is mounted on a parallel shaft, it meshes perfectly with other gears.

Since the teeth of nylon spur gears are parallel to the rotational axis, they do not produce axial thrust, which makes it easy to mount them with ball bearings. They are cost-effective and precision-engineered products that are easy to use and install.

Nylon spur gears are used to increase or decrease the torque or power on a device and are found in washing machines, blenders, clothes dryers, construction equipment, food machinery, pumps, and conveyors. In power stations, groups of connected nylon spur gears, or trains, are used to convert energy, such as wind or hydroelectric power, into electrical power. Nylon spur gears in a train have the same sized teeth, with adjacent gears rotating in opposite directions.

Nylon Spur Gear Application ExamplesNylon Spur Gear Application Examples

▍Nylon Spur Gears Vs Nylon Bevel Gears

Nylon spur gears and nylon bevel gears are both made of nylon, which is a lightweight, strong, and corrosion-resistant material. However, there are some key differences between the two types of gears.

Nylon Spur Gears have teeth that are parallel to the shaft on which they are mounted. This makes them ideal for applications where power needs to be transmitted in a straight line, such as in conveyor belts and electric motors. Spur gears are also relatively inexpensive to manufacture.

Nylon Bevel Gears have teeth that are angled at a specific angle to the shaft on which they are mounted. This allows them to transmit power between two shafts that are not aligned in the same direction. Bevel gears are more complex to manufacture than spur gears, but they can handle higher loads and torques.

In general, nylon spur gears are a good choice for applications where low cost, lightweight, and quiet operation are important considerations. Nylon bevel gears are a good choice for applications where high loads and torques need to be transmitted.

Here is a table that summarizes the key differences between nylon spur gears and nylon bevel gears:

FeatureNylon Spur GearsNylon Bevel Gears
TeethParallel to the shaftAngled to the shaft
ApplicationsConveyor belts, electric motorsPower transmission between non-aligned shafts
CostInexpensiveMore expensive
WeightLightweightHeavy
Noise levelQuietNoisier
Load CapacityLowHigh
Torque capacityLowHigh

Ultimately, the best type of nylon gear for your application will depend on your specific needs and requirements.

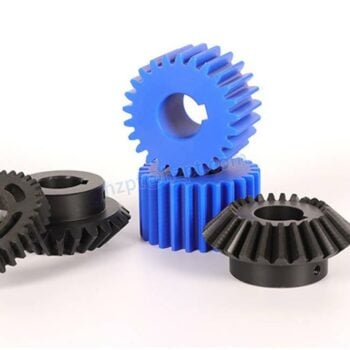

Nylon Spur GearsNylon Bevel Gears
Nylon Spur GearsNylon Bevel Gears

Nylon Spur Gears Suppliers

The reason that they are the more cost-effective gear is that nylon spur gears are far more economical to produce than metal spur gear, which in turn results in a lower cost for the customer. In addition to the initial cost savings, nylon spur gears also have to be lubricated far less than a metal spur gear might require, meaning further savings to the customer long term.

Nylon spur gears have more advantages than just being cheaper than the sturdier metal spur gears, and nylon spur gears also operate at a much lower noise level. This makes them ideal for the applications we discussed earlier in an office setting. Often times these machines are made from similar materials, which means that nylon spur gears are a must, as a metal spur gear would eventually grind away at the plastic tracks they must operate on. On top of all of these, nylon spur gears also offer an advantage when it comes to maintenance as they absorb dirt and other particles rather than grinding them down, as frequent grinding can cause damage over time to a metal spur gear.

So if you are unsure if nylon spur gears are right for your application or if you need custom-built gear, consult a knowledgeable, trusted, and experienced nylon spur gears manufacturer in order to receive the right solution for your unique application.

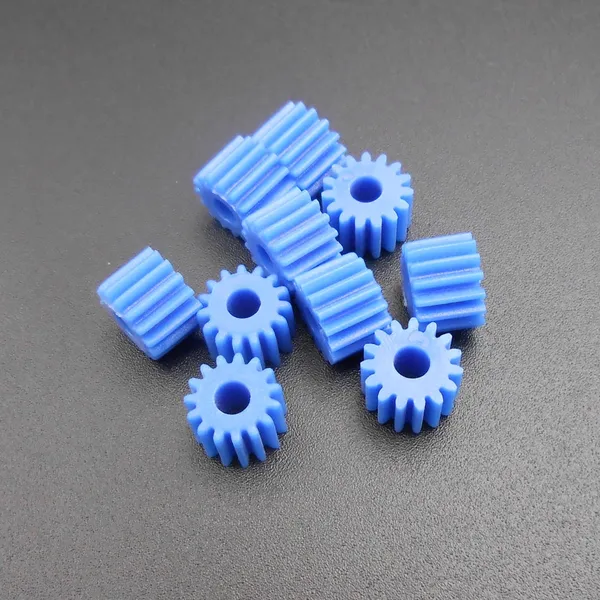

Nylon Spur Gears SuppliersNylon Spur Gears Suppliers
Nylon Spur Gears SuppliersNylon Spur Gears Suppliers

FAQ

Q: Can you customize the products?

A: Yes, we have a professional R&D team to customize the products according to your requirements.

Q: Can you customize the products?

A: Yes, we have a professional R&D team to customize the products according to your requirements.

Q: What is the price of the nylon spur gears? How much for one piece?

A: The price of nylon spur gear is not fixed. Generally, we need to quote according to the customer's required parameters, such as material, tooth type, module, length, accuracy, style, spiral angle, and unique customization!

Q: How to start the project?

A: To start your project, please send us the design drawings together with materials, quantity, and a complete list. Then you will receive our quotation within 24 hours.

Q: Can HZPT Machinery manufacture nylon spur gears, not on this site?

A: Of course! We can provide custom nylon spur gears with excellent delivery options as standard gears.
