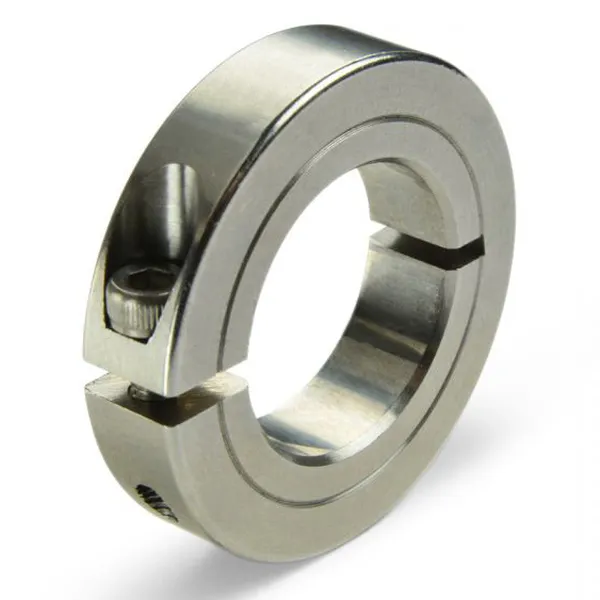

One Piece Thin Line Shaft Collars (Shaft Clamps) Metric Series

The metric series one piece thin line shaft collars are a type of mechanical component that is used to hold or position objects on a shaft in a precise manner. These thin line shaft collars are designed to be lightweight and low-profile, with a very thin profile compared to traditional shaft collars. They are typically made from high-quality materials such as stainless steel, aluminum, or carbon steel and are available in a range of sizes to fit different shaft diameters. The one-piece design of these thin line shaft collars means that they can be easily installed and removed from a shaft without the need for additional components.

Get a Quote

One Piece Thin Line Shaft Collars (Shaft Clamps) Metric Series

The metric series one piece thin line shaft collars are a type of mechanical component that is used to hold or position objects on a shaft in a precise manner. These thin line shaft collars are designed to be lightweight and low-profile, with a very thin profile compared to traditional shaft collars.

They are typically made from high-quality materials such as stainless steel, aluminum, or carbon steel and are available in a range of sizes to fit different shaft diameters. The one-piece design of these thin line shaft collars means that they can be easily installed and removed from a shaft without the need for additional components.

The metric series one piece thin line shaft collars are commonly used in a variety of industrial applications, such as robotics, automation, and machinery. If you are looking for a lightweight, easy-to-use, and high-holding-power shaft collar, then metric series one piece thin line shaft collars are a great option.

One Piece Thin Line Shaft Collars (Shaft Clamps) Metric SeriesOne Piece Thin Line Shaft Collars (Shaft Clamps) Metric Series

▍One Piece Thin Line Shaft Collar Sizes Chart (Metric Series)

One Piece Thin Line Shaft Collar Sizes Chart (Metric Series)One Piece Thin Line Shaft Collar Sizes Chart (Metric Series)
Part Number AluminumPart Number Stainless SteelBore (B) (mm)Outer Diameter (OD) (mm)Width (W) (mm)
ENCL20-5MM-AENCL20-10MM-SS5205.5
ENCL20-6MM-AENCL20-6MM-SS6205.5
ENCL20-8MM-AENCL20-8MM-SS8205.5
ENCL20-10MM-AENCL20-10MM-SS10205.5
 ENCL25-5MM-A ENCL25-5MM-SS5256
ENCL25-6MM-AENCL25-6MM-SS6256
ENCL25-8MM-AENCL25-8MM-SS8256
ENCL25-10MM-AENCL25-10MM-SS10256
ENCL25-12MM-AENCL25-12MM-SS12256
ENCL25-14MM-AENCL25-14MM-SS14256
ENCL30-6MM-AENCL30-6MM-SS6308
ENCL30-8MM-AENCL30-8MM-SS8308
ENCL30-10MM-AENCL30-10MM-SS10308
ENCL30-12MM-AENCL30-12MM-SS12308
ENCL30-14MM-AENCL30-14MM-SS14308
ENCL30-15MM-AENCL30-15MM-SS15308
ENCL30-16MM-AENCL30-16MM-SS16308
ENCL35-12MM-AENCL35-12MM-SS12358
ENCL35-14MM-AENCL35-14MM-SS14358
ENCL35-15MM-AENCL35-15MM-SS15358
ENCL35-16MM-AENCL35-16MM-SS16358
ENCL35-20MM-AENCL35-20MM-SS20358
ENCL45-16MM-AENCL45-16MM-SS164510
ENCL45-20MM-AENCL45-20MM-SS204510
ENCL45-24MM-AENCL45-24MM-SS244510
ENCL45-25MM-AENCL45-25MM-SS254510
ENCL60-25MM-AENCL60-25MM-SS256012
ENCL60-30MM-AENCL60-30MM-SS306012
ENCL60-32MM-AENCL60-32MM-SS326012
ENCL60-35MM-AENCL60-35MM-SS356012
ENCL60-40MM-AENCL60-40MM-SS406012

▍Features of One Piece Thin Line Clamping Shaft Collars

One-piece thin line clamping shaft collars are a type of shaft collar that is used to secure a rotating shaft to a machine. They are made of a single piece of material, and they have a thin profile that allows them to fit in tight spaces. One-piece thin line clamping shaft collars are available in a variety of sizes and materials, and they can be used with a variety of shafts.

Some of the features of one-piece thin line clamping shaft collars include:

1. Thin profile: One-piece thin line clamping shaft collars have a thin profile that allows them to fit in tight spaces. This makes them ideal for use in applications where space is limited, such as in machine tool spindles.

2. High strength: One-piece thin line clamping shaft collars are made of high-strength materials, such as steel or aluminum. This makes them strong enough to withstand the forces generated by rotating shafts.

3. Easy to install: One-piece thin line clamping shaft collars are easy to install. They simply slide over the shaft and are tightened with a wrench.

4. Cost-effective: One-piece thin line clamping shaft collars are a cost-effective way to secure rotating shafts. They are less expensive than other types of shaft collars, such as split-ring shaft collars.

5. Reduced vibration: One-piece thin line clamping shaft collars can help to reduce vibration by providing a more rigid connection between the shaft and the machine.

6. Increased accuracy: One-piece thin line clamping shaft collars can help to improve the accuracy of machine operations by providing a more precise alignment of the shaft and the machine.

7. Extended service life: One-piece thin line clamping shaft collars can help to extend the service life of machines by reducing wear and tear on the shaft and the machine.

One Piece Thin Line Clamping Shaft Collar Features

▍One Piece Thin Line Shaft Collar Application Scenarios

One piece thin line shaft collars are versatile components that can be used in a variety of applications where precise control of shaft positioning and alignment is required. Here are some common application scenarios for one piece thin line shaft collars:

(1) Robotics: One piece thin line shaft collars can be used in robotics to provide precise positioning and alignment of robot arms, grippers, and other components. They can also be used to secure the shaft of motors and sensors.

(2) Medical devices: One piece thin line shaft collars are used in medical devices such as surgical tools, dental equipment, and imaging devices. They provide accurate positioning and alignment of components and ensure that the equipment operates smoothly and safely.

(3) Industrial machinery: One piece thin line shaft collars are used in industrial machinery such as conveyors, pumps, and mixers. They provide precise positioning and alignment of shafts, reducing wear and tear on the machinery and increasing its lifespan.

(4) Aerospace: One piece thin line shaft collars are used in aerospace applications such as satellites, rocket engines, and aircraft. They provide precise positioning and alignment of components, ensuring that they operate correctly in the harsh environment of space or at high altitudes.

(5) Automotive: One piece thin line shaft collars are used in automotive applications such as engines, transmissions, and steering systems. They provide accurate positioning and alignment of components, ensuring that the vehicle operates smoothly and safely.

Overall, one piece thin line shaft collars are useful in any application where precise control of shaft positioning and alignment is required. They are commonly used in industries such as robotics, medical devices, industrial machinery, aerospace, automotive, and others. One piece thin line shaft collars are easy to install and provide a reliable solution for securing shafts, preventing slippage, and reducing wear and tear on machinery components. They are available in a variety of sizes, materials, and finishes to suit different application requirements.

One Piece Thin Line Shaft Collar Application ScenariosOne Piece Thin Line Shaft Collar Application Scenarios

▍One Piece Thin Line Shaft Collar Manufacturers

Shaft collars are machine components that feature a simple design but play an important role in a wide range of industrial applications. They serve three primary functions; holding components in place, locating or positioning components on a shaft, and creating an attachment between the shaft and another component. Designers have a variety of factors to consider, such as style, material, bore size, and shaft geometry, before a selection can be made. It is important to identify the requirements, parameters, and limitations of your system in order to determine the right style for the application.

Despite their simple design, shaft collars play an important role in a wide range of industrial applications. As such, when choosing one for a particular application, it is essential to use the one with the right design and performance characteristics.

As an experienced manufacturer and distributor of shaft collars suitable for use in power transmission, motion control, automation, and other OEM and ODM operations, HZPT has the knowledge, skills, and inventory to help customers select and source the right shaft collar for their application. In addition to offering standard shaft collars, including set screw shaft collars, heavy duty shaft collars, one piece shaft collars, two-piece shaft collars, quick release shaft collars, double wide shaft collars, mountable shaft collars, hex shaft collars, D profile shaft collars, and threaded shaft collars, we also provide custom design and engineering services to manufacturing specialized shaft collars for unique customer needs.

Shaft Collar Manufacturers

▍FAQ

Q: What is a thin line shaft collar?
A: A thin line shaft collar is a type of mechanical fastener used to secure and position components on a shaft. It is typically a small, cylindrical device that is installed on a shaft to prevent sliding or rotating movement of the components.

Q: What is the difference between a thin line shaft collar and a regular shaft collar?
A: A thin line shaft collar is thinner in profile than a regular shaft collar. This makes it ideal for applications where minimal space is available or where a smaller profile is desired. It is also typically lighter in weight than a regular shaft collar.

Q: What materials are thin line shaft collars made of?
A: Thin line shaft collars are typically made from materials such as stainless steel, aluminum, brass, or plastic. The choice of material will depend on the specific application and the required properties such as strength, corrosion resistance, and weight.

Q: How are thin line shaft collars installed?
A: Thin line shaft collars are typically installed by sliding them onto the shaft and then tightening the set screw using a hex wrench. The set screw creates a secure grip on the shaft, preventing the collar from moving or rotating.

Q: What are some common applications for thin line shaft collars?
A: Thin line shaft collars are commonly used in applications where space is limited, such as robotics, automation, and medical devices. They are also used in applications where a low profile is desired, such as in optical equipment, instrumentation, and electronics. Additionally, they can be used in machinery and equipment for positioning and securing components such as bearings, gears, pulleys, and sprockets.
