Plastic Conveyor Chains Sideflexing With Base Roller Chains Replacement Of System Plast 3873SS-L-K1000

Chain No.	Width ( W )	Width ( W )	Weight	Weight	Minimum Radius R min
	mm	inch	kg/m	lbs/ft

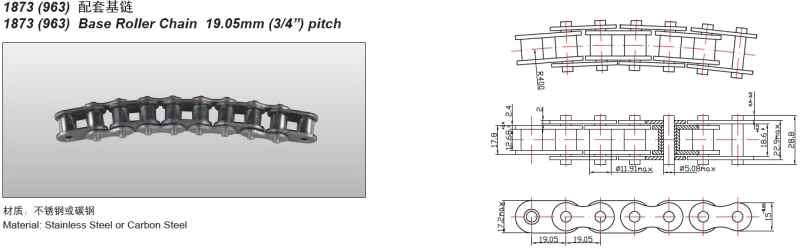

	STEEL BASE ROLLER CHAIN
3873 - L - K1000	254	10	4.52	1.78	450
3873 - L - K1200	304.8	12	4.81	1.89	450
	STAINLESS STEEL BASE ROLLER CHAIN
3873SS - L - K1000	254	10	4.52	1.78	450
3873SS - L - K1200	304.8	12	4.81	1.89	450

Application in high-speed curve conveyors in food industry dish conveying

Long-distance conveying,Bottom chain: carbon steel or stainless steel,Consist of metal chain and plastic chain,The longest distance: carbon steel-30m,stainless steel-24m,Max. speed: lubricant 90M/min dryness 60M/min,Packing: 10 feet = 3.048 M/box 26pcs/M,Max tensile force in carbon??4000N,stainless steel??2000N.

Plastic Conveyor Chains Sideflexing With Base Roller Chains Replacement Of System Plast 3873SS-L-K1000

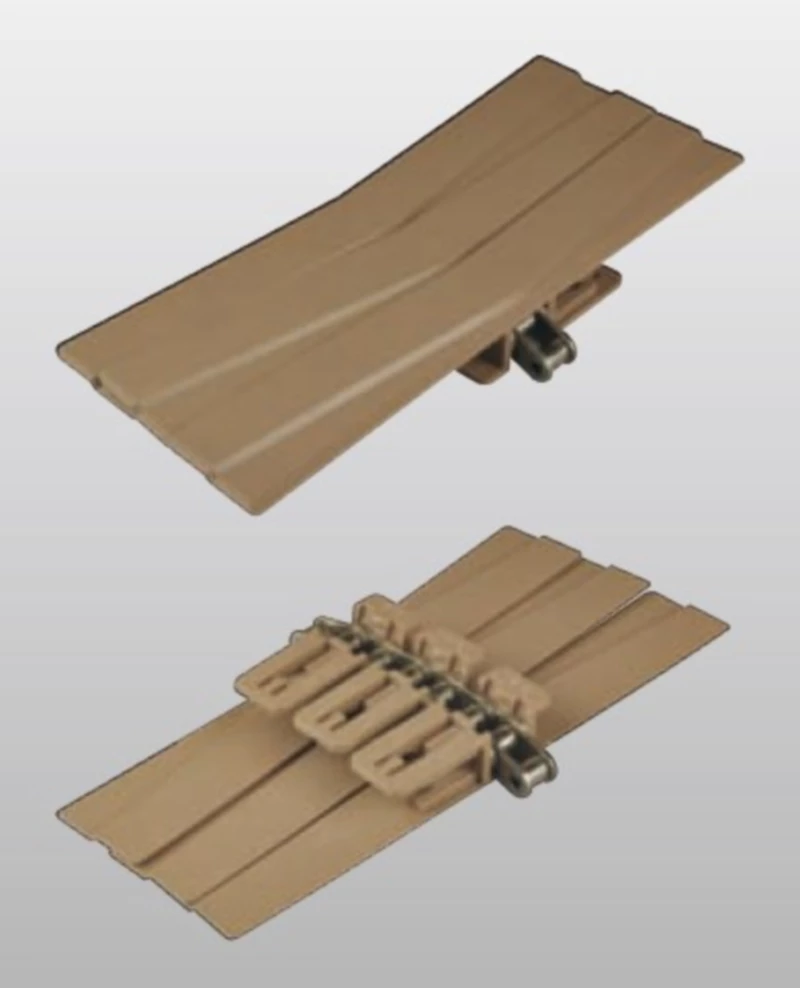

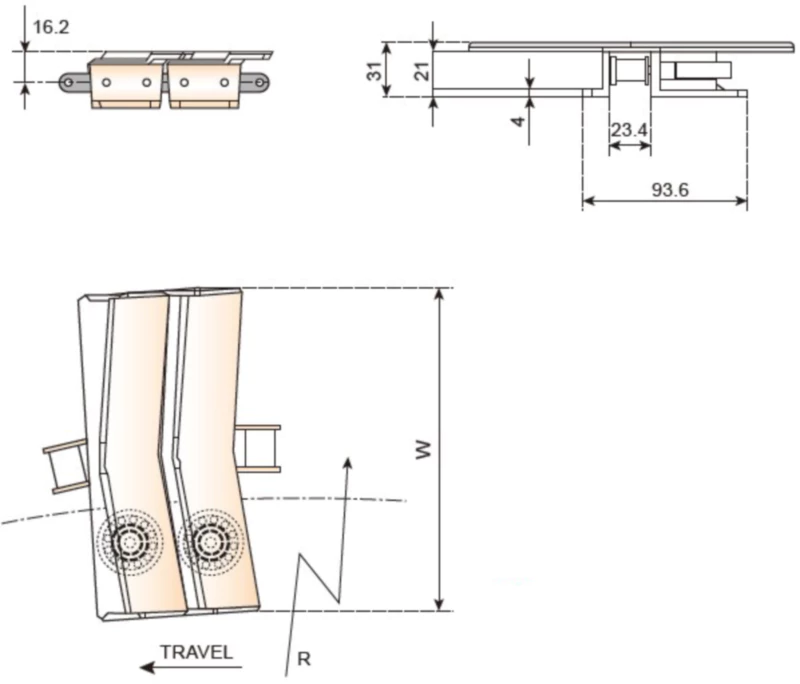

Plastic Conveyor Chains Sideflexing With Base Roller Chains is a type of plastic conveyor chain with a base roller chain that can transport materials in a side-flexing manner. These chains are typically made of plastic and have properties such as wear resistance, corrosion resistance, and light weight. Please refer to the following diagram:

Features and Advantages

• Side-flexing capability: Plastic conveyor chains have greater side-flexing capabilities compared to traditional metal chains. They can adapt to curved conveying systems, allowing for curved or multi-angle conveying, providing greater flexibility and freedom in equipment layout.
• Lightweight and low noise: Plastic conveyor chains are lighter in weight compared to metal chains. This reduces the load and energy consumption during transportation and produces lower noise levels. This is particularly beneficial for applications that require low noise and energy efficiency.
• Wear and corrosion resistance: Plastic conveyor chains typically have excellent wear and corrosion resistance. They can operate for long periods of time in harsh environmental conditions without being corroded or damaged.
• Easy to clean and maintain: Plastic conveyor chains are easier to clean and maintain compared to metal chains. They typically have smooth surfaces that do not accumulate dust, dirt, or liquids. In addition, plastic materials do not require lubrication, reducing maintenance work and lubricant usage.

Applications

Plastic Conveyor Chains Sideflexing With Base Roller Chains are widely used in the following industries and applications:

• Food and Beverage Industry: These chains are widely used in food and beverage production lines. They can achieve curved conveying during food processing, packaging, and transportation, such as in bottled beverage production lines.
• Chemical and Pharmaceutical Industry: Due to their corrosion resistance properties, these chains are widely used in the chemical and pharmaceutical industry. They can be used for conveying chemicals, drugs, and other corrosive substances.
• Warehousing and Logistics Industry: These chains are also common in sorting, packaging, and transportation systems in the warehousing and logistics industry. They can adapt to complex layouts and curved conveying requirements, improving logistics efficiency.
• Mechanical Manufacturing and Assembly: In the mechanical manufacturing and assembly industry, plastic conveyor chains can be used for conveying parts and components. Their side-flexing capability and lightweight characteristics help improve production line flexibility and efficiency.

Customization Options

When selecting Plastic Conveyor Chains Sideflexing With Base Roller Chains, it is important to consider the following customization options:

• Application requirements: Ensure that your specific application requirements, including working environment conditions, load requirements, curve radii, and speed requirements, are clearly communicated to the manufacturer or supplier. This will help the manufacturer provide you with a customized chain solution.
• Material selection: Choose the appropriate plastic material based on the requirements of your application environment to ensure wear resistance, corrosion resistance, and resistance to chemical solvents. Different plastic materials have different characteristics, such as polyethylene, polyamide, polypropylene, etc.
• Size and construction: Determine the size and construction of the chain based on the layout of the equipment and the requirements of curved conveying. This includes chain width, roller diameter, chain link shape, etc. Ensure that the customized chain is fully compatible with the equipment and meets the requirements of curved conveying.

Installation

When installing Plastic Conveyor Chains Sideflexing With Base Roller Chains, follow these steps:

• Clean the work area: Ensure that the work area is clean and free of any obstacles for the installation work to proceed.
• Prepare tools and materials: Prepare the necessary tools, such as wrenches, screwdrivers, and bolts and nuts needed to install the chain.
• Install the chain: Install the chain correctly on the conveying equipment according to the manufacturer's installation guide. Ensure that the chain is correctly positioned and fastened to ensure normal operation.
• Adjust and test: After installation is complete, adjust and test the chain. Ensure that the chain is not too loose or too tight during operation, and test the side-flexing capability of the chain.

Maintenance

To maintain Plastic Conveyor Chains Sideflexing With Base Roller Chains, follow these steps:

• Regular cleaning: Regularly clean the chain and rollers to remove any accumulated dirt and debris. Use cleaning agents and brushes to clean and ensure that the chain surface remains clean and smooth.
• Lubrication: Regularly lubricate the chain and rollers based on the manufacturer's recommendations. Use suitable lubricants to ensure smooth operation and reduce wear during chain operation.
• Inspection and parts replacement: Regularly inspect the wear and damage of the chain, rollers, and other parts. If any damage or wear is found, replace it in a timely manner.
• Adjustment and calibration: Regularly check the tension and side-flexing capability of the chain and make necessary adjustments and calibrations.
• Follow manufacturer's guidelines: Always follow the manufacturer's maintenance guidelines and recommendations. Especially for special customized chains, the manufacturer may provide specific maintenance requirements and precautions.

Sprockets for Plastic Conveyor Chains Sideflexing With Base Roller Chains Replacement Of System Plast 3873SS-L-K1000

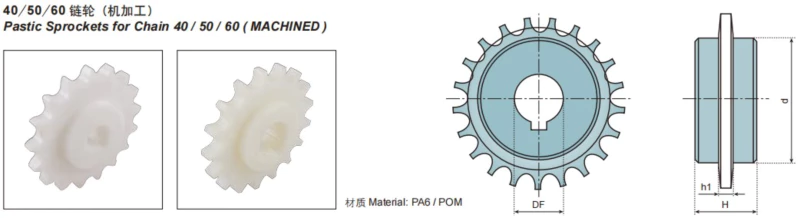

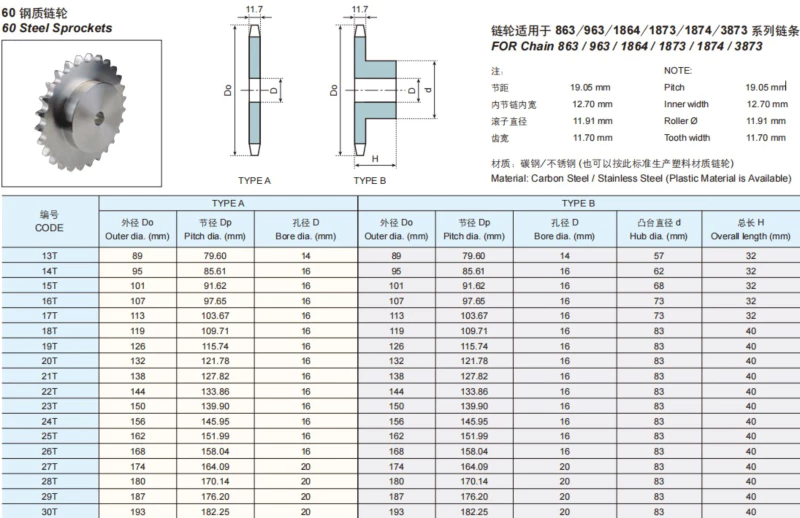

We offer a wide range of sprockets that are compatible with Plastic Conveyor Chains Sideflexing With Base Roller Chains. Sprockets play an important role in the proper operation of the chain, as the chain engages with the teeth of the sprocket to move materials. Please refer to the following diagrams:

Choosing the right sprocket for your Plastic Conveyor Chains Sideflexing With Base Roller Chains is critical to ensuring optimal operation. Please consult with our technical team for guidance on selecting the most appropriate sprocket for your chain.

Other Chain Products

In addition to Plastic Conveyor Chains Sideflexing With Base Roller Chains, we also offer other chain products, such as Plastic Chain, Stainless Steel Chain, Agricultural Chains, Leaf Chains, and more. These chains are available in a variety of configurations and materials to meet your specific needs.

About EVER-POWER

EVER-POWER was established in 2003 as a professional manufacturer of power transmission components. We have multiple advanced production and inspection equipment, including CNC Gear grinding machine, gear measuring machine, CNC gear shaper, machining center, CMMS, Torque test system, and more. Our company is committed to providing high-quality customized products and services to our customers.

Why Choose EVER-POWER?

• Professionalism: As a professional manufacturer, we have extensive experience and expertise in the design and production of power transmission components.
• International Certification: Our products are certified to meet international standards, ensuring high quality and reliability.
• Customization: We offer customized solutions to meet the specific needs of our customers.
• Advanced Production Equipment: Our advanced production equipment ensures high precision and quality in our products.
• After-Sales Service: We provide comprehensive after-sales service, including technical support, maintenance, and repair services.

Contact EVER-POWER today to inquire about our products or to request a customized solution for your specific needs.

FAQ

1. What is Plastic Conveyor Chains Sideflexing With Base Roller Chains Replacement Of System Plast 3873SS-L-K1000?

Plastic Conveyor Chains Sideflexing With Base Roller Chains is a type of plastic conveyor chain with a base roller chain that can transport materials in a side-flexing manner. It is a replacement for System Plast 3873SS-L-K1000 chain.

2. What are the advantages of Plastic Conveyor Chains Sideflexing With Base Roller Chains?

Plastic Conveyor Chains Sideflexing With Base Roller Chains have advantages such as side-flexing capability, lightweight and low noise, wear and corrosion resistance, and ease of cleaning and maintenance.

3. What are the customization options for Plastic Conveyor Chains Sideflexing With Base Roller Chains?

Customization options for Plastic Conveyor Chains Sideflexing With Base Roller Chains include application requirements, material selection, size and construction.

4. What are the maintenance requirements for Plastic Conveyor Chains Sideflexing With Base Roller Chains?

Maintenance requirements for Plastic Conveyor Chains Sideflexing With Base Roller Chains include regular cleaning, lubrication, inspection and parts replacement, adjustment and calibration, and following the manufacturer's guidelines.

5. What other chain products does EVER-POWER offer?

EVER-POWER offers other chain products such as Plastic Chain, Stainless Steel Chain, Agricultural Chains, Leaf Chains, and more.
