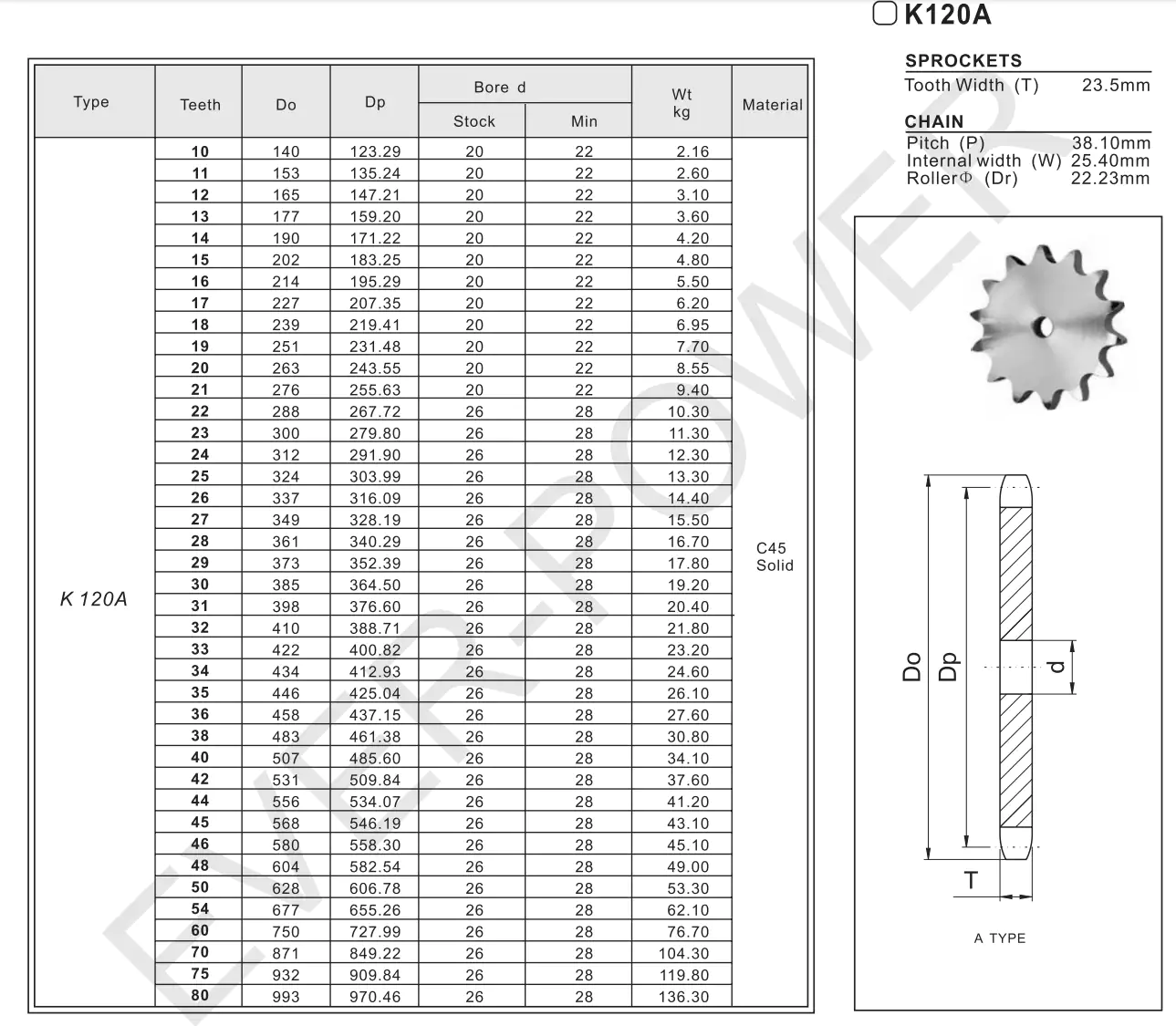

Plate Wheel K120A

Introduction to Plate Wheel K120A

Plate Wheel K120A is a type of plate sprocket commonly used in power transmission systems. It is a type of sprocket that uses plates instead of teeth to engage with the chain. The basic structure of a plate wheel consists of a hub, plates, and a bore for mounting on a shaft.

Types of Plate Wheels

There are three main types of plate wheels:

• Single-row plate wheels: consist of only one row of plates.
• Double-row plate wheels: consist of two rows of plates on the same plane, with the plates on each row alternating with each other.
• Multi-row plate wheels: consist of multiple rows of plates, with the plates on each row alternating with each other.

Product Features of Our Platewheel Sprocket

Our platewheel sprockets are known for their material and design features:

• Material advantages: Our sprockets are made of materials with high corrosion resistance, wear resistance, strength, and toughness.
• Design advantages: Our sprockets are designed to be lightweight, precisely manufactured, and with excellent surface treatment.

Our Services

We offer a range of services to our customers:

• Customization: We can customize sprockets according to customer-provided drawings or samples.
• Material selection: We can help customers select the most suitable material for their specific application.
• Surface treatment: We can provide various surface treatments such as black oxide, electroplating, and powder coating.
• Hardening treatment: We can provide heat treatment such as quenching and tempering.
• Customized packaging: We can pack and label products according to customer requirements.

Our Sprocket Manufacturing Process

Our sprockets are manufactured through the following process:

1. Forging: The raw material is forged into the required shape.
2. Machining: The rough forging is machined to the finished dimensions.
3. Hobbing: The teeth of the sprocket are cut using a hobbing machine.
4. Teeth Heating: The teeth are heated to a certain temperature to improve their hardness and wear resistance.
5. Treated on Quenching: The sprocket is quenched in a special solution to further improve its hardness and toughness.
6. Surface Treatment/Rust-Proof Treatment: The sprocket is treated with black oxide or other surface treatment to improve its corrosion resistance.
7. Quality Inspection: The sprocket is inspected to ensure it meets the required specifications.
8. Packing: The sprocket is packed according to customer requirements.
9. Shipping: The sprocket is shipped to the customer.

Maintenance of Plate Wheels

Proper maintenance of plate wheels is important for their longevity and performance. The following maintenance steps are recommended:

• Daily inspection: Check for wear, damage, and misalignment.
• Cleaning: Remove dirt and debris from the sprocket and chain.
• Lubrication: Apply lubricant to the sprocket and chain to reduce wear and friction.
• Replacing: Replace worn or damaged sprockets or chains as soon as possible.

FAQs

1. What is the maximum operating temperature of Plate Wheel K120A?
   The maximum operating temperature of Plate Wheel K120A is approximately 150??C.
2. Can Plate Wheels be used in dusty environments?
   Yes, but the sprockets and chains should be regularly cleaned and lubricated to prevent excessive wear.
3. What is the typical lifespan of a Plate Wheel?
   The lifespan of a Plate Wheel depends on the application and usage conditions. Proper maintenance can significantly extend its lifespan.
4. What are the advantages of using Plate Wheels?
   Plate Wheels are lightweight, have simple structures, and can transmit high torque and power. They are also suitable for use in high-speed transmission systems.
5. What should I do if my Plate Wheel is worn or damaged?
   Replace it as soon as possible to prevent damage to other components in the transmission system.

Author: Miya
